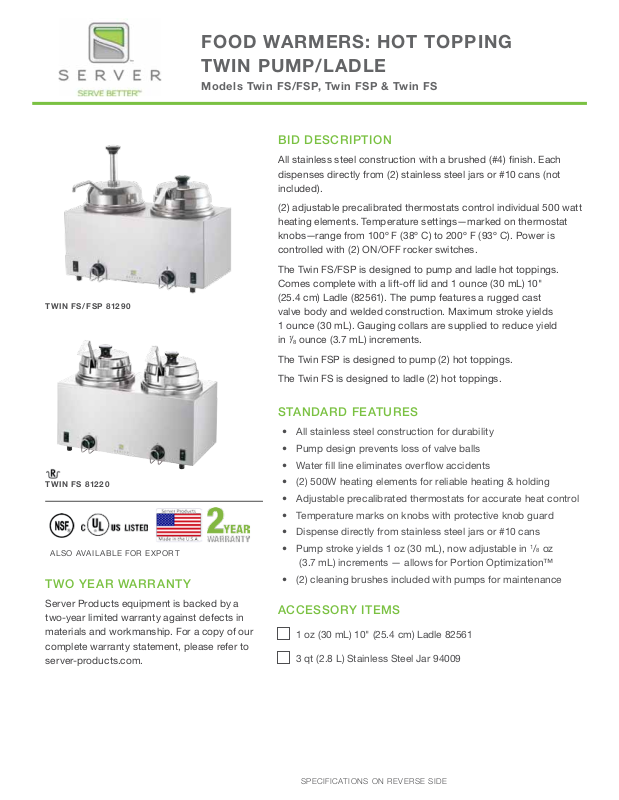

TWIN FS/FSP 81290
FOOD WARMERS: HOT TOPPING
TWIN PUMP/LADLE
Models Twin FS/FSP, Twin FSP & Twin FS
Bid description
All stainless steel construction with a brushed (#4) finish. Each
dispenses directly from (2) stainless steel jars or #10 cans (not
included).
(2) adjustable precalibrated thermostats control individual 500 watt
heating elements. Temperature settings—marked on thermostat
knobs—range from 100º F (38º C) to 200º F (93º C). Power is
controlled with (2) ON/OFF rocker switches.
The Twin FS/FSP is designed to pump and ladle hot toppings.
Comes complete with a lift-off lid and 1 ounce (30 mL) 10"
(25.4 cm) Ladle (82561). The pump features a rugged cast
valve body and welded construction. Maximum stroke yields
1 ounce (30 mL). Gauging collars are supplied to reduce yield
in 1/8 ounce (3.7 mL) increments.
TWIN FS 81220
ALSO AVAILABLE FOR EXPORT
two year warranty
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship. For a copy of our
complete warranty statement, please refer to
server-products.com.
The Twin FSP is designed to pump (2) hot toppings.
The Twin FS is designed to ladle (2) hot toppings.
standard Features
• All stainless steel construction for durability
• Pump design prevents loss of valve balls
• Water fill line eliminates overflow accidents
• (2) 500W heating elements for reliable heating & holding
• Adjustable precalibrated thermostats for accurate heat control
• Temperature marks on knobs with protective knob guard
• Dispense directly from stainless steel jars or #10 cans
• Pump stroke yields 1 oz (30 mL), now adjustable in 1/8 oz
(3.7 mL) increments — allows for Portion Optimization™
• (2) cleaning brushes included with pumps for maintenance
accessory items
1 oz (30 mL) 10" (25.4 cm) Ladle 82561
3 qt (2.8 L) Stainless Steel Jar 94009
SpecificationS on re verSe Side
FOOD WARMERS: HOT TOPPING
TWIN PUMP/LADLE
Models Twin FS/FSP, Twin FSP & Twin FS
TWIN FUDGE SERvER WITH PUMP
AND LADLE
13 ½ "
34.3 cm
Dim. A
11 7/16 "
29.1 cm
9 11/16 "
24.6 c m
12 5/16"
31.3 cm
15 5/16"
38.9 cm
MODELS TWIN FS/FSP
81290
Height 15 5/16"
38.9 cm
Width 17"
43.2 cm
Depth
13 ½"
34.3 cm
Weight 18 lb
8.2 kg
TWIN FSP
8123 0
15 5/16"
38.9 cm
17"
43.2 cm
13 ½"
34.3 cm
19 lb
8.6 kg
TWIN FS
81220
12 5/16"
31.3 cm
17"
43.2 cm
13 ½"
34.3 cm
17 lb
7.8 k g
Electrical 120V, 60Hz, 1000W, 8.3A, 72"
(183 cm) cord set NEMA 5-15P, 15A,
120V PLUG
Capacity (2) stainless steel jars or #10 cans hold
3 qt (2.8 L) each; 6 qt (5.7 L) total
FOB RICHFIELD, WISCONSIN 53076
NSF LISTED AS A RETHERMALIZATION UNIT TO ENSURE
FOOD IS QUICKLY HEATED TO A SAFE TEMPERATURE
BEFORE BACTERIA HAS AN OPPORTUNITY TO GROW.
cad LiBrary
17"
43.2 cm
Individual CAD images can be downloaded from our website.
We are also a member of The KCL CADalog with more than 100
other manufacturers. Our complete collection of CAD files can be
purchased through Kochman Consultants, Ltd. at kclcad.com.
Server Products, Inc. | PO Box 98 | Richfield WI 53076 | 800.558.8722
262.628.5600 | F: 262.628.5110 | spsales@server-products.com | server-products.com
Serve r Products, Inc. reserves the right to mo dify specifications with out oblig ation. Pri nted in USA 1.2012 Stock 02051
