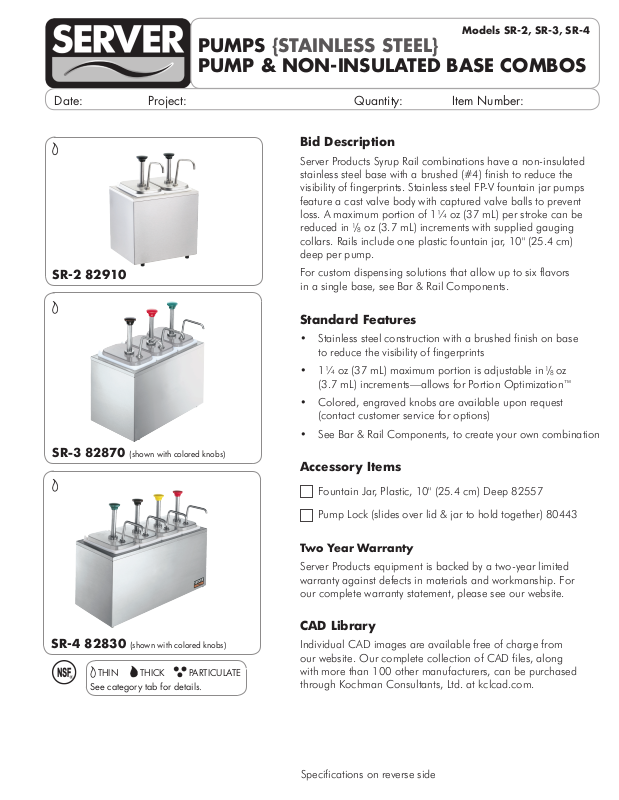

Server Products SR-2 82910 Specifications
Models SR-2, SR-3, SR-4
PUMPS {STAINLESS STEEL}
PUMP & NON-INSULATED BASE COMBOS
Date: Project: Quantity: Item Number:
Bid Description
Server Products Syrup Rail combinations have a non-insulated
stainless steel base with a brushed (#4) finish to reduce the
visibility of fingerprints. Stainless steel FP-V fountain jar pumps
feature a cast valve body with captured valve balls to prevent
SR-2 82910
loss. A maximum portion of 1¼ oz (37 mL) per stroke can be
reduced in
collars. Rails include one plastic fountain jar, 10" (25.4 cm)
deep per pump.
For custom dispensing solutions that allow up to six flavors
in a single base, see Bar & Rail Components.
Standard Features
1
/8 oz (3.7 mL) increments with supplied gauging
SR-3 82870 (shown with colored knobs)
• Stainless steel construction with a brushed finish on base
to reduce the visibility of fingerprints
• 1¼ oz (37 mL) maximum portion is adjustable in
(3.7 mL) increments—allows for Portion Optimization™
• Colored, engraved knobs are available upon request
(contact customer service for options)
• See Bar & Rail Components, to create your own combination
1
/8 oz
Accessory Items
Fountain Jar, Plastic, 10" (25.4 cm) Deep 82557
Pump Lock (slides over lid & jar to hold together) 80443
Two Year Warranty
Server Products equipment is backed by a two-year limited
warranty against defects in materials and workmanship. For
our complete warranty statement, please see our website.
CAD Library
SR-4 82830 (shown with colored knobs)
THIN THICK PARTICULATE
See category tab for details.
Individual CAD images are available free of charge from
our website. Our complete collection of CAD files, along
with more than 100 other manufacturers, can be purchased
through Kochman Consultants, Ltd. at kclcad.com.
Specifications on reverse side
Models SR-2, SR-3, SR-4
PUMPS {STAINLESS STEEL}
PUMP & NON-INSULATED BASE COMBOS
Syrup Rail Combos
Width
A
Height
Specications
Construction Stainless steel non-insulated base includes
stainless steel FP-V 82120 pumps and plastic
fountain jars, 10" (25.4 cm) deep.
Capacity 3½ qt (3.3 L) per jar
Dimensions Height Depth
16 1/16" (40.8 cm) 8 13/16" (22.4 cm)
Pump Key
Model
Complete
Base (only)
Pumps
Jars
Width 10
Dim A
Spout Depth
Weight
Complete
FOB Richfield, Wisconsin 53076
SR-2
82910
82570
(2) 82120
(2) 82557
7
/8"
27.6
2 1/16"
5.2 cm
13 lb
6 kg
SR-3
82870
82600
(3) 82120
(3) 82557
15 ½"
39.4
2 1/16"
5.2 cm
18 lb
8.2 kg
SR-4
82830
82550
(4) 82120
(4) 82557
20 1/8"
51.1
2 1/16"
5.2 cm
22 lb
10 kg
Depth
THIN THICK PARTICULATE
See category tab for details.
Stainless Steel Pumps Quickly Pay For emselves
Using a new Portion Optimization™ feature, our stainless steel pumps can
dispense what a menu item needs versus what standard equipment can
provide. Currently, menus are created using the ¼ ounce portion increments
standard pumps and ladles offer. However, simply by reducing the portion
by 1/8 ounce can create signicant savings. And more impressively, it doesn't
have a perceivable change in the taste prole
How Does Portion Optimization™ Work?
Our stainless steel pumps include a new gauging collar to allow the pump to
dispense a smaller 1/8 ounce increment as well as the industry standard ¼ ounce
incremental portions. This slightly smaller portion size pays for your equipment
investment in a matter of months — and continues for the life of the pump
ROI Example: Reduction Size .125 (1/8 oz)
Portion Size 1 oz
Cost/Portion $0.10 $0.0 875
Por tions/Day x 100 x 100
Se rving Days/Year 360 360
Annual Cost $3 ,600 $3,150
The really impressive numbers occur when you multiply this savings amount
by the number of ingredients you want to control. This previously overlooked
adjustment can suddenly make a huge difference!
7
/8 oz
.
.
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 11.2010 Stock 02022
• F: 262-628-5110 •
