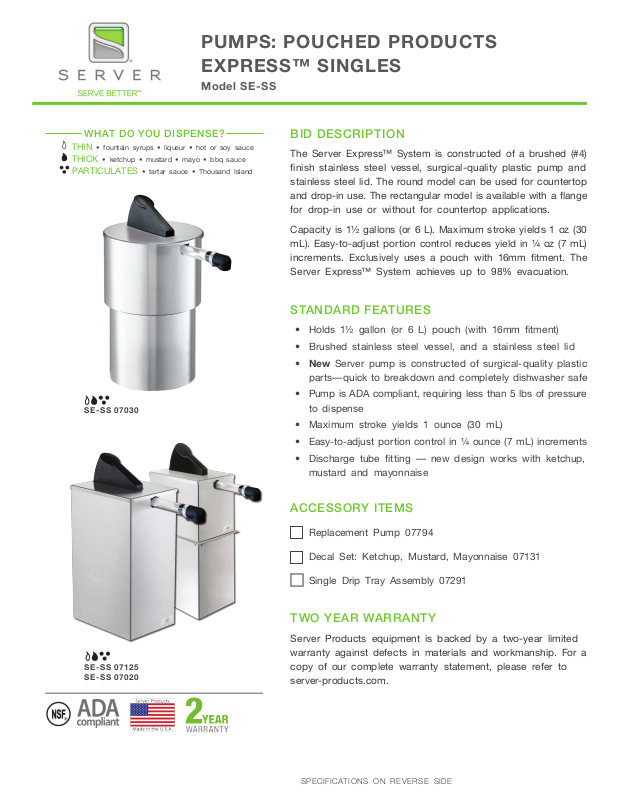

Server Products SE-SS User Manual
PUMPS: POUCHED PRODUCTS
EXPRESS™ SINGLES
Model SE-SS
WHAT DO YOU DISPENSE?
THIN • fountain syrups • liqueur • hot or soy sauce
THICK • ketchup • mustard • mayo • bbq sauce
PARTICULATES • tartar sauce • Thousand Island
SE -SS 07 03 0
BID DESCRIPTION
The Server Express™ System is constructed of a brushed (#4)
finish stainless steel vessel, surgical-quality plastic pump and
stainless steel lid. The round model can be used for countertop
and drop-in use. The rectangular model is available with a flange
for drop-in use or without for countertop applications.
Capacity is 1½ gallons (or 6 L). Maximum stroke yields 1 oz (30
mL). Easy-to-adjust portion control reduces yield in ¼ oz (7 mL)
increments. Exclusively uses a pouch with 16mm fitment. The
Server Express™ System achieves up to 98% evacuation.
STANDARD FEATURES
• Holds 1½ gallon (or 6 L) pouch (with 16mm fitment)
• Brushed stainless steel vessel, and a stainless steel lid
• New Server pump is constructed of surgical-quality plastic
parts—quick to breakdown and completely dishwasher safe
• Pump is ADA compliant, requiring less than 5 lbs of pressure
to dispense
• Maximum stroke yields 1 ounce (30 mL)
• Easy-to-adjust portion control in ¼ ounce (7 mL) increments
• Discharge tube fitting — new design works with ketchup,
mustard and mayonnaise
SE- SS 07125
SE-SS 07020
ACCESSORY ITEMS
Replacement Pump 07794
Decal Set: Ketchup, Mustard, Mayonnaise 07131
Single Drip Tray Assembly 07291
TWO YEAR WARRANTY
Server Products equipment is backed by a two-year limited
warranty against defects in materials and workmanship. For a
copy of our complete warranty statement, please refer to
server-products.com.
SPECIFICATIONS ON RE VERSE SIDE
PUMPS: POUCHED PRODUCTS
EXPRESS™ SINGLES
Model SE-SS
SERVER EXPRESS™ STAINLESS STEEL
07030
5
/8"
9
24.4 cm
141/16"
35.7 cm
1
/8"
10
2 5 . 7 c m
16 ¾"
42.5 cm
SERVER EXPRESS™ STAINLESS STEEL
07020 & 07125
41/8"
10.5 cm
6 11/16"
15.3 cm
5 1/8"
13 c m
MODELS SE-SS
07030
Capacity 1.5 gal
6 L
Height
16
3
/4"
42.5 cm
Width
9
5
/8"
24.4 cm
Depth
14
1
/16"
35.7 cm
Cutout Size
8½" (21.6 cm)
diameter
Weight
FOB RICHFIELD, WISCONSIN 53076
9 lb (4.1 kg)
SE-SS
07020
1.5 gal
6 L
10 7/16"
26.5 cm
6 3/8"
16.2 cm
13 3/16"
33.5 cm
3
/8" x 8½"
6
(16.2 x 21.6 cm)
SE-SS
0712 5
1.5 gal
6 L
17 9/16"
44.6 cm
6 3/8"
16.2 cm
13 3/16"
33.5 cm
CAD LIBRARY
Individual CAD images can be downloaded free of charge
from our website. Our complete collection of CAD files, along
with more than 100 other manufacturers, can be purchased
through Kochman Consultants, Ltd. at kclcad.com.
6 3/8"
16.2 cm
17 9/16"
44.6 cm
107/16"
26.5 cm
13 3/16"
33.5 cm
4 ¼"
10.8 cm
7 1/16"
17. 9 c m
5 7/16"
13.8 c m
Server Products, Inc. | PO Box 98 | Richfield WI 53076 | 800.558.8722
262.628.5600 | F: 262.628.5110 | spsales@server-products.com | server-products.com
Serve r Produc ts, Inc. re serves the right to m odify specifications without obligation. P rinted in USA 10.2013 Stock 020 43
