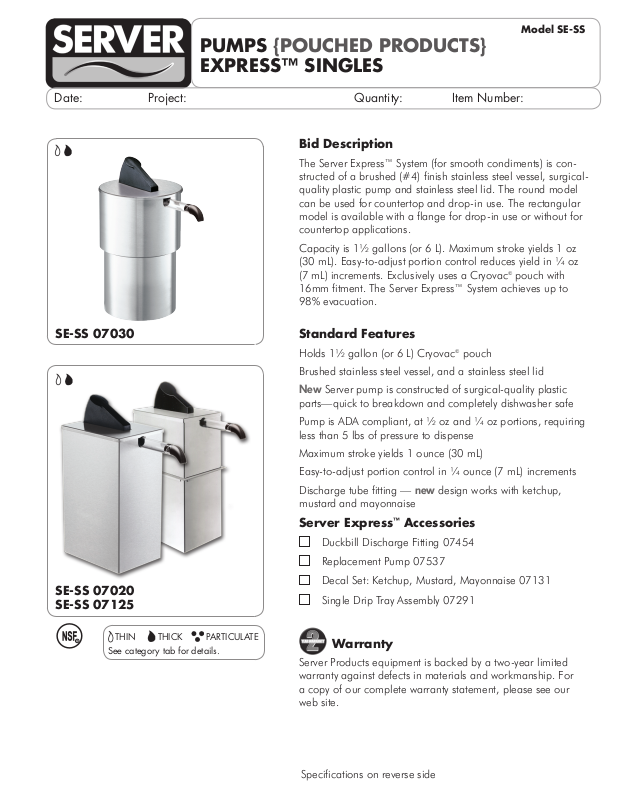

Server Products SE 07020 Specifications
PUMPS {POUCHED PRODUCTS}
EXPRESS™ SINGLES
Date: Project: Quantity: Item Number:
Bid Description
The Server Express™ System (for smooth condiments) is constructed of a brushed (#4) finish stainless steel vessel, surgicalquality plastic pump and stainless steel lid. The round model
can be used for countertop and drop-in use. The rectangular
model is available with a flange for drop-in use or without for
countertop applications.
Capacity is 1½ gallons (or 6 L). Maximum stroke yields 1 oz
(30 mL). Easy-to-adjust portion control reduces yield in ¼ oz
(7 mL) increments. Exclusively uses a Cryovac© pouch with
16mm fitment. The Server Express™ System achieves up to
98% evacuation.
SE-SS 07030
Standard Features
Model SE-SS
SE-SS 07020
SE-SS 07125
THIN THICK PARTICULATE
See category tab for details.
Holds 1½ gallon (or 6 L) Cryovac© pouch
Brushed stainless steel vessel, and a stainless steel lid
New Server pump is constructed of surgical-quality plastic
parts—quick to breakdown and completely dishwasher safe
Pump is ADA compliant, at ½ oz and ¼ oz portions, requiring
less than 5 lbs of pressure to dispense
Maximum stroke yields 1 ounce (30 mL)
Easy-to-adjust portion control in ¼ ounce (7 mL) increments
Discharge tube fitting — new design works with ketchup,
mustard and mayonnaise
Server Express™ Accessories
Duckbill Discharge Fitting 07454
Replacement Pump 07537
Decal Set: Ketchup, Mustard, Mayonnaise 07131
Single Drip Tray Assembly 07291
Warranty
Server Products equipment is backed by a two-year limited
warranty against defects in materials and workmanship. For
a copy of our complete warranty statement, please see our
web site.
Specifications on reverse side
PUMPS {POUCHED PRODUCTS}
EXPRESS™ SINGLES
Model SE-SS
Server Express™ Stainless Steel
07030
5
/8"
9
24.4 cm
141/16"
35.7 cm
1
16 ¾"
42.5 cm
/8"
10
25.7 cm
4½"
11.4 cm
47/8"
12.4 cm
Specifications
Construction Stainless steel base and lid, surgical-quality
plastic pumps and black polypropylene
levers.
Capacity 1½ gallon (or 6 L) per pump section
Models SE-SS SE-SS SE-SS
07030 07020 07125
Height in 16 3/
cm 42.5 26.4 44.5
Width in 9 5/
8
cm 24.4 18.4 18.4
Depth in 14 1/
cm 35.7 34.5 33.3
Weight lb 9 9 9
kg 4.1 4.1 4.1
Cutout Size 07030: 8 ½" (21.6 cm) diameter
07020: 6 3/8" x 8½" (16.2 x 21.6 cm)
Cryovac© is a registered trademark and a trade name of Cryovac Inc.
FOB Richfield, Wisconsin 53076
10 3/
4
16
7 1/4
139/
8
16
17 ½
7 1/4
131/8
Server Express™ Stainless Steel
07020 & 07125
13 9/16"
34.5 cm
103/8"
26.4 cm
7 ¼"
18.4 cm
17 ½"
44.5 cm
45/8"
11.8 cm
CAD Library
Individual CAD images can be downloaded from product
pages on our web site. We are also a member of The KCL
CADalog with more than 100 other manufacturers. Our
complete collection of CAD files can be purchased through
Kochman Consultants, Ltd. at kclcad.com.
5 ¼"
13.3 cm
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 9.2009/1M Stock 02043
