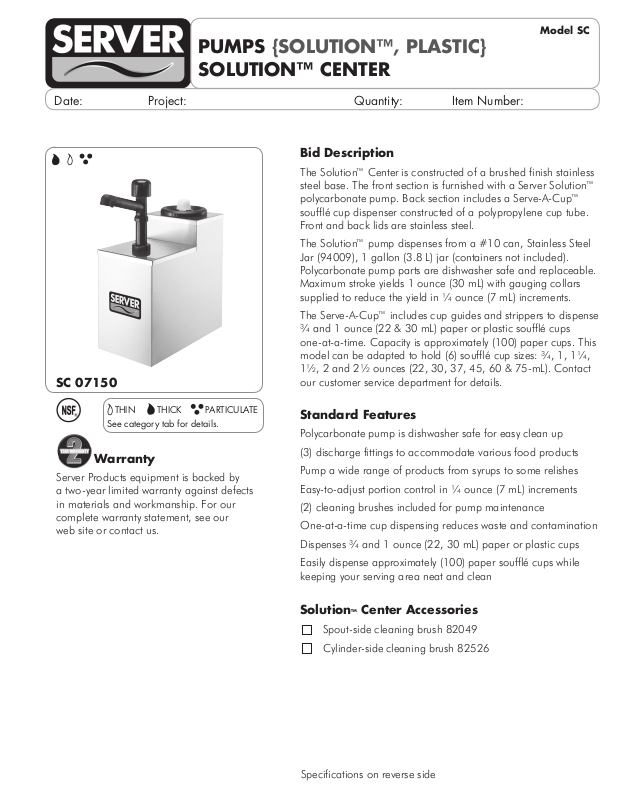

Server Products SC 07150 Specifications
PUMPS {SOLUTION™, PLASTIC}
SOLUTION™ CENTER
Date: Project: Quantity: Item Number:
Bid Description
The Solution™ Center is constructed of a brushed finish stainless
steel base. The front section is furnished with a Server Solution™
polycarbonate pump. Back section includes a Serve-A-Cup™
soufflé cup dispenser constructed of a polypropylene cup tube.
Front and back lids are stainless steel.
The Solution™ pump dispenses from a #10 can, Stainless Steel
Jar (94009), 1 gallon (3.8 L) jar (containers not included).
Polycarbonate pump parts are dishwasher safe and replaceable.
Maximum stroke yields 1 ounce (30 mL) with gauging collars
supplied to reduce the yield in ¼ ounce (7 mL) increments.
The Serve-A-Cup™ includes cup guides and strippers to dispense
¾ and 1 ounce (22 & 30 mL) paper or plastic soufflé cups
one-at-a-time. Capacity is approximately (100) paper cups. This
model can be adapted to hold (6) soufflé cup sizes: ¾, 1, 1¼,
SC 07150
1½, 2 and 2½ ounces (22, 30, 37, 45, 60 & 75-mL). Contact
our customer service department for details.
Model SC
THIN THICK PARTICULATE
See category tab for details.
Warranty
Server Products equipment is backed by
a two-year limited warranty against defects
in materials and workmanship. For our
complete warranty statement, see our
web site or contact us.
Standard Features
Polycarbonate pump is dishwasher safe for easy clean up
(3) discharge fittings to accommodate various food products
Pump a wide range of products from syrups to some relishes
Easy-to-adjust portion control in ¼ ounce (7 mL) increments
(2) cleaning brushes included for pump maintenance
One-at-a-time cup dispensing reduces waste and contamination
Dispenses ¾ and 1 ounce (22, 30 mL) paper or plastic cups
Easily dispense approximately (100) paper soufflé cups while
keeping your serving area neat and clean
SolutionTM Center Accessories
Spout-side cleaning brush 82049
Cylinder-side cleaning brush 82526
Specifications on reverse side
PUMPS {SOLUTION™, PLASTIC}
FOOD CONTAINER PUMPS
Model SC
SolutionTM Center
SC 07150
17 5/
16
44 cm
7"
17.8 cm
"
15
15
/16"
40.5 cm
Specifications
Model SC 07150
Construction Stainless steel base and lids. Includes
polycarbonate Solution™ pump and
polypropylene (tube) soufflé cup dispenser.
Capacity Front well holds a #10 can, 3 qt (2.8 L) jar
(94009) 1 gal (3.8 L) jar. Cup dispenser holds
approximately (100) paper cups.
Dimensions Height Width Depth
in 17 5/16 7 1515/
16
cm 44 17.8 40.5
Weight 11 lb (5 kg)
FOB Richfield, Wisconsin 53076
CAD Library
Individual CAD images can be downloaded from product pages
on our web site. We are also a member of The KCL CADalog
with more than 100 other manufacturers. Our complete
collection of CAD files can be purchased through Kochman
Consultants, Ltd. at kclcad.com.
2 9/16"
6.5 cm
15 5/16"
38.9 cm
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 10-2008/.5M Stock #02067
