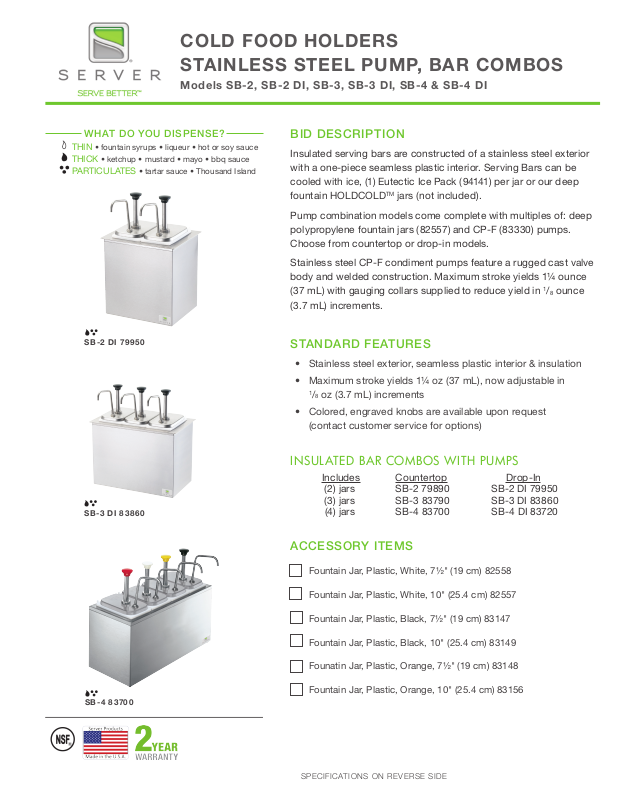

Server Products SB-3 User Manual
COLD FOOD HOLDERS
STAINLESS STEEL PUMP, BAR COMBOS
Models SB-2, SB-2 DI, SB-3, SB-3 DI, SB-4 & SB-4 DI
WHAT DO YOU DISPENSE?
THIN • fountain syrups • liqueur • hot or soy sauce
THICK • ketchup • mustard • mayo • bbq sauce
PARTICULATES • tartar sauce • Thousand Island
SB-2 DI 799 50
BID DEScrIPTION
Insulated serving bars are constructed of a stainless steel exterior
with a one-piece seamless plastic interior. Serving Bars can be
cooled with ice, (1) Eutectic Ice Pack (94141) per jar or our deep
fountain HOLDCOLDTM jars (not included).
Pump combination models come complete with multiples of: deep
polypropylene fountain jars (82557) and CP-F (83330) pumps.
Choose from countertop or drop-in models.
Stainless steel CP-F condiment pumps feature a rugged cast valve
body and welded construction. Maximum stroke yields 1¼ ounce
(37 mL) with gauging collars supplied to reduce yield in
1
/8 ounce
(3.7 mL) increments.
STANDArD FEATUrES
• Stainless steel exterior, seamless plastic interior & insulation
• Maximum stroke yields 1¼ oz (37 mL), now adjustable in
1
/8 oz (3.7 mL) increments
• Colored, engraved knobs are available upon request
(contact customer service for options)
SB-3 DI 83860
SB-4 83700
Insulated Bar ComBos wIth PumPs
Includes Countertop Drop-In
(2) jars SB-2 79890 SB-2 DI 79950
(3) jars SB-3 83790 SB-3 DI 83860
(4) jars SB-4 83700 SB-4 DI 83720
AccESSOrY ITEmS
Fountain Jar, Plastic, White, 7½" (19 cm) 82558
Fountain Jar, Plastic, White, 10" (25.4 cm) 82557
Fountain Jar, Plastic, Black, 7½" (19 cm) 83147
Fountain Jar, Plastic, Black, 10" (25.4 cm) 83149
Founatin Jar, Plastic, Orange, 7½" (19 cm) 83148
Fountain Jar, Plastic, Orange, 10" (25.4 cm) 83156
SPECIFICATIONS ON RE VERSE SIDE
COLD FOOD HOLDERS
STAINLESS STEEL PUMP, BAR COMBOS
Models SB-2, SB-2 DI, SB-3, SB-3 DI, SB-4 & SB-4 DI
SERvINg BAR - COUNTERTOP
A
B
SERvINg BAR - DROP-IN
B
SERvINg BAR - COUNTERTOP & DROP-IN
counter
E
11 5/8"
29.5 cm
counter
Jar Capacity Shallow
2 qt
1.9 L
COUNTERTOP (2 ) JAR (3 ) JAR (4) JAR
A-Height 19 3/8"
49.2 cm
7
B-Width 10
/8"
27.6 cm
C-Depth 8 13/16"
22.4 cm
D-Spout
(Depth)
DROP-IN ( 2) JAR ( 3) JAR (4) JAR
3 ¼"
8.3 cm
E-Height 6 7/16"
16.4 cm
7
B-Width 10
/8"
27.6 cm
C-Depth 8 13/16"
22.4 cm
F-Spout
(Depth)
2 13/16"
7.1 cm
Deep
3½ qt
3.3 L
19 3/8"
49.2 cm
15 ½"
39.4 cm
8 13/16"
22.4 cm
3 ¼"
8.3 cm
6 7/16"
16.4 cm
15 ½"
39.4 cm
8 13/16"
22.4 cm
2 13/16"
7.1 cm
HOLDCOLD™
2¼ qt
2.1 L
19 3/8"
49.2 cm
20 1/8"
51.1 cm
8 13/16"
22.4 cm
3 ¼"
8.3 cm
6 7/16"
16.4 cm
20 1/8"
51.1 cm
8 13/16"
22.4 cm
2 13/16"
7.1 cm
Cutout Size:
7
SB-2 DI 11" x 8
/8" (27.9 cm x 22.5 cm)
SB-3 DI 15 5/8" x 8 7/8" (39.7 cm x 22.5 cm)
SB-4 DI 20 ¼" x 8 7/8" (51.4 cm x 22.5 cm)
FOB RICHFIELD, WISCONSIN 53076
counter
TWO YEAr WArrANTY
Server Products equipment is backed by a two-year limited
D
warranty against defects in materials and workmanship. For a
copy of our complete warranty statement, please refer to
server-products.com.
cAD LIBrArY
F
C
C
Server Products, Inc. | PO Box 98 | Richeld WI 53076 | 800.558.8722
262.628.5600 | F: 262.628.5110 | spsales@server-products.com | server-products.com
Serve r Products, Inc. reserves the right to mo dify specications with out oblig ation. Pri nted in USA 3.2013 Stock 02114
Individual CAD images can be downloaded free of charge from
our website. Our complete collection of CAD les, along with
more than 100 other manufacturers, can be purchased through
Kochman Consultants, Ltd. at kclcad.com.
