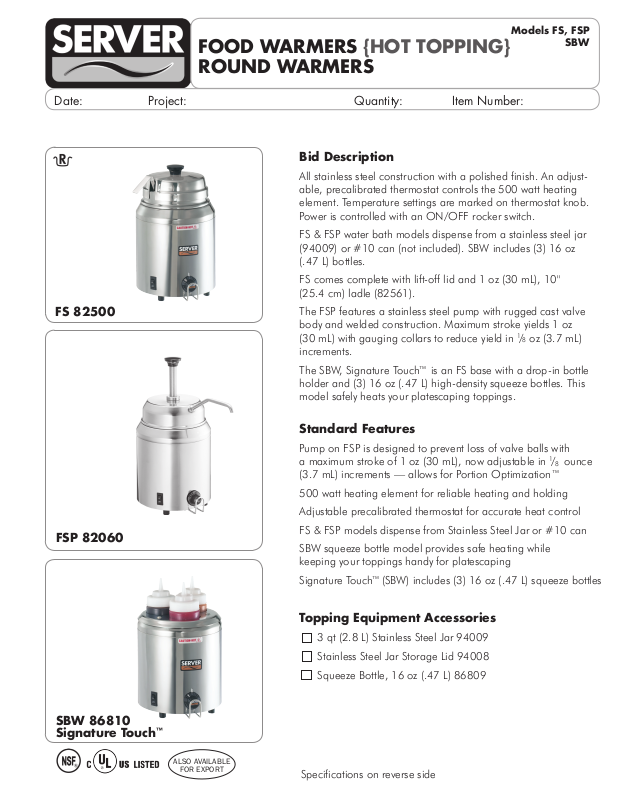

Server Products FS 82510, FSP User Manual
Models FS, FSP
FOOD WARMERS {HOT TOPPING}
ROUND WARMERS
Date: Project: Quantity: Item Number:
Bid Description
All stainless steel construction with a polished finish. An adjustable, precalibrated thermostat controls the 500 watt heating
element. Temperature settings are marked on thermostat knob.
Power is controlled with an ON/OFF rocker switch.
FS & FSP water bath models dispense from a stainless steel jar
(94009) or #10 can (not included). SBW includes (3) 16 oz
(.47 L) bottles.
FS comes complete with lift-off lid and 1 oz (30 mL), 10"
FS 82500
(25.4 cm) ladle (82561).
The FSP features a stainless steel pump with rugged cast valve
body and welded construction. Maximum stroke yields 1 oz
(30 mL) with gauging collars to reduce yield in 1/8 oz (3.7 mL)
increments.
SBW
FSP 82060
The SBW, Signature Touch™ is an FS base with a drop-in bottle
holder and (3) 16 oz (.47 L) high-density squeeze bottles. This
model safely heats your platescaping toppings.
Standard Features
Pump on FSP is designed to prevent loss of valve balls with
a maximum stroke of 1 oz (30 mL), now adjustable in 1/8 ounce
(3.7 mL) increments — allows for Portion Optimization™
500 watt heating element for reliable heating and holding
Adjustable precalibrated thermostat for accurate heat control
FS & FSP models dispense from Stainless Steel Jar or #10 can
SBW squeeze bottle model provides safe heating while
keeping your toppings handy for platescaping
Signature Touch™(SBW) includes (3) 16 oz (.47 L) squeeze bottles
Topping Equipment Accessories
3 qt (2.8 L) Stainless Steel Jar 94009
Stainless Steel Jar Storage Lid 94008
SBW 86810
Signature Touch
™
Also AvAilAble
for export
Squeeze Bottle, 16 oz (.47 L) 86809
Specifications on reverse side
Models FS, FSP
FOOD WARMERS {HOT TOPPING}
ROUND WARMERS
SBW
Fudge Server
FS 82500
3
12
/
"
8
31.4 cm
7 ¾"
19.7 cm
Fudge Server with Pump
FSP 82060
3
15
/
"
8
39.1 cm
"
13
8
/
16
22.4 cm
13
33.2 cm
1
/
"
16
1
5
/
8
13 cm
Specifications
Construction All stainless steel with a polished finish.
FS includes lift-off lid with ladle; FSP is with
stainless steel pump; SBW includes drop-in
bottle holder with (3) squeeze bottles.
Electrical 120V, 60Hz, 500W, 4.2A 72" (183 cm)
cord set NEMA 5-15P, 15A, 125V PLUG
Models FS FSP SBW
82500 82060 86810
Height in 12 3/
cm 31.4 39.1 29.5
Width in 7 ¾
8
15 3/
7 ¾
8
cm 19.7 19.7 19.7
Depth in 8 13/16 13 1/
16
cm 22.4 33.2 22.4
Capacity 3 qt 3 qt 48 oz
2.8 L 2.8 L 1.4 L
Weight 8 lb 9 lb 8 lb
"
3.6 kg 4.1 kg 3.6 kg
FOB Richfield, Wisconsin 53076
5
11
/
8
7 ¾
8 13/16
7
11
/
"
16
29.1 cm
7 ¾"
19.7 cm
Signature Touch™ Topping Warmer
SBW 86810
5
11
/
"
8
29.5 cm
8¾"
22.2 cm
13
8
/
"
7 ¾"
19.7 cm
16
22.4 cm
NSF Listed as a rethermalization unit to ensure food is
quickly heated to a safe temperature before bacteria has
an opportunity to grow.
CAD Library
Individual CAD images can be downloaded from product
pages on our web site. We are also a member of The KCL
CADalog with more than 100 other manufacturers. Our
complete collection of CAD files can be purchased through
Kochman Consultants, Ltd. at kclcad.com.
Warranty
Server Products equipment is backed by a two-year limited
warranty against defects in materials and workmanship. For
our complete warranty statement, please see our web site.
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 9.2009/1M Stock 02049
