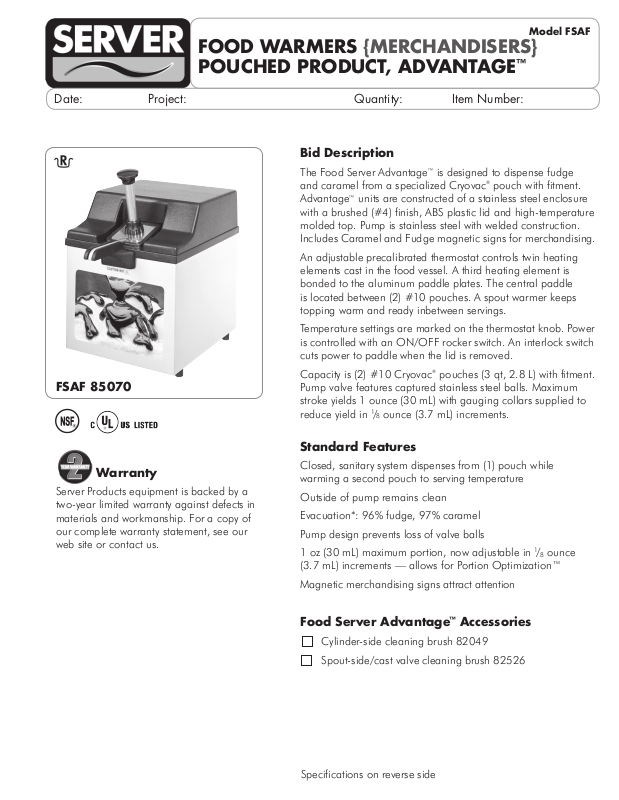

Server Products FSAF 85070 Specifications
FOOD WARMERS {MERCHANDISERS}
POUCHED PRODUCT, ADVANTAGE
Date: Project: Quantity: Item Number:
Bid Description
The Food Server Advantage™ is designed to dispense fudge
and caramel from a specialized Cryovac® pouch with fitment.
Advantage™ units are constructed of a stainless steel enclosure
with a brushed (#4) finish, ABS plastic lid and high-temperature
molded top. Pump is stainless steel with welded construction.
Includes Caramel and Fudge magnetic signs for merchandising.
An adjustable precalibrated thermostat controls twin heating
elements cast in the food vessel. A third heating element is
bonded to the aluminum paddle plates. The central paddle
is located between (2) #10 pouches. A spout warmer keeps
topping warm and ready inbetween servings.
Model FSAF
™
FSAF 85070
Warranty
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship. For a copy of
our complete warranty statement, see our
web site or contact us.
Temperature settings are marked on the thermostat knob. Power
is controlled with an ON/OFF rocker switch. An interlock switch
cuts power to paddle when the lid is removed.
Capacity is (2) #10 Cryovac® pouches (3 qt, 2.8 L) with fitment.
Pump valve features captured stainless steel balls. Maximum
stroke yields 1 ounce (30 mL) with gauging collars supplied to
reduce yield in 1/8 ounce (3.7 mL) increments.
Standard Features
Closed, sanitary system dispenses from (1) pouch while
warming a second pouch to serving temperature
Outside of pump remains clean
Evacuation*: 96% fudge, 97% caramel
Pump design prevents loss of valve balls
1 oz (30 mL) maximum portion, now adjustable in 1/8 ounce
(3.7 mL) increments — allows for Portion Optimization™
Magnetic merchandising signs attract attention
Food Server Advantage™ Accessories
Cylinder-side cleaning brush 82049
Spout-side/cast valve cleaning brush 82526
Specifications on reverse side
Model FSAF
FOOD WARMERS {MERCHANDISERS}
POUCHED PRODUCT, ADVANTAGE
™
Food Server Advantge
15 7/16"
39.2 cm
9 15/16"
25.2 cm
16 7/8"
42.9 cm
TM
Specifications
Model FSAF 85070 Fudge & Caramel
Construction Stainless steel enclosure, ABS plastic lid, and
high-temperature molded top. Stainless steel
pump with welded construction. Pump design
prevents loss of valve balls. Includes magnetic
Caramel & Fudge signs.
Capacity (2) #10 pouches of 3 quarts each, 6 quart
total (or 2.8 L each, 5.6 L total)
Dimensions Height Width Depth
in 15 7/
cm 39.2 25.2 42.9
Electrical 120V, 60Hz, 450W, 3.8A
72 in (183 cm) cord set
NEMA 5-15P, 15A, 125V PLUG
Weight 28 lb (12.7 kg)
®
Cryovac
is a registered trademark and a trade name of Cryovac Inc.
FOB Richfield, Wisconsin 53076
9 15/16 16 7/
16
8
4"
10 cm
9 7/16"
24 cm
NSF Listed as a rethermalization unit to ensure food is quickly
heated to a safe temperature before bacteria has an opportunity
to grow.
CAD Library
Individual CAD images can be downloaded from product
pages on our web site. We are also a member of The KCL
CADalog with more than 100 other manufacturers. Our
complete collection of CAD files can be purchased through
Kochman Consultants, Ltd. at kclcad.com.
* Test results on file
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 8.2009/1M Stock 02057
