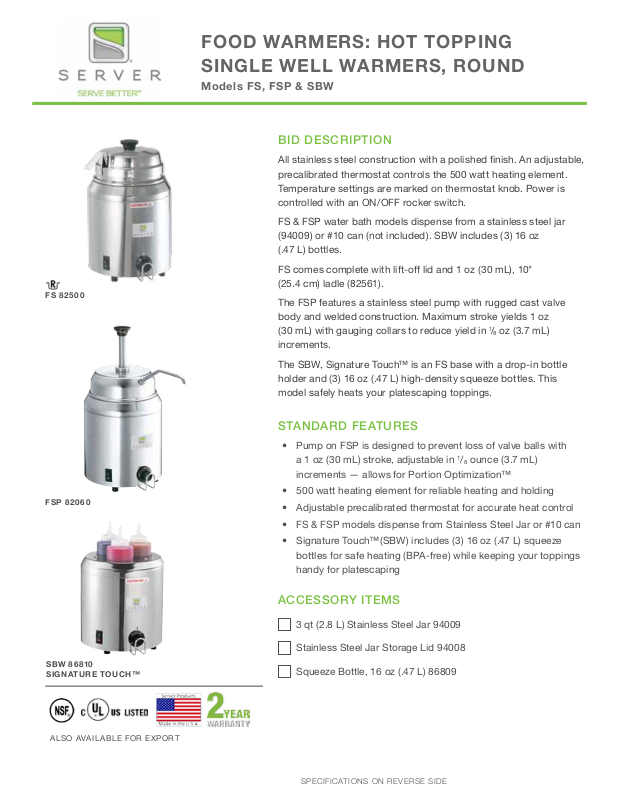

Server Products FS-82500 User Manual
FS 82500
FOOD WARMERS: HOT TOPPING
SINGLE WELL WARMERS, ROUND
Models FS, FSP & SBW
Bid description
All stainless steel construction with a polished finish. An adjustable,
precalibrated thermostat controls the 500 watt heating element.
Temperature settings are marked on thermostat knob. Power is
controlled with an ON/OFF rocker switch.
FS & FSP water bath models dispense from a stainless steel jar
(94009) or #10 can (not included). SBW includes (3) 16 oz
(.47 L) bottles.
FS comes complete with lift-off lid and 1 oz (30 mL), 10"
(25.4 cm) ladle (82561).
The FSP features a stainless steel pump with rugged cast valve
body and welded construction. Maximum stroke yields 1 oz
(30 mL) with gauging collars to reduce yield in 1/8 oz (3.7 mL)
increments.
FSP 82060
SBW 8 6810
SIGNATURE TOUcH™
The SBW, Signature Touch™ is an FS base with a drop-in bottle
holder and (3) 16 oz (.47 L) high-density squeeze bottles. This
model safely heats your platescaping toppings.
standard Features
• Pump on FSP is designed to prevent loss of valve balls with
a 1 oz (30 mL) stroke, adjustable in 1/8 ounce (3.7 mL)
increments — allows for Portion Optimization™
• 500 watt heating element for reliable heating and holding
• Adjustable precalibrated thermostat for accurate heat control
• FS & FSP models dispense from Stainless Steel Jar or #10 can
• Signature Touch™(SBW) includes (3) 16 oz (.47 L) squeeze
bottles for safe heating (BPA-free) while keeping your toppings
handy for platescaping
accessory items
3 qt (2.8 L) Stainless Steel Jar 94009
Stainless Steel Jar Storage Lid 94008
Squeeze Bottle, 16 oz (.47 L) 86809
ALSO AVAILABLE FOR EXPORT
SPECIFICATIONS ON RE VERSE SIDE
FOOD WARMERS: HOT TOPPING
SINGLE WELL WARMERS, ROUND
Models FS, FSP & SBW
FUDGE SERvER
FS 82500
12 3/8"
31.4 c m
7 ¾"
19.7 cm
FUDGE SERvER WITH PUMP
FSP 82060
15 3/8"
3 9.1 c m
8 13/16"
22.4
13 1/16"
33.2 cm
5 1/8"
13
MODELS FS
82500
Height 12 3/8"
31.4 cm
Width 7 ¾"
19.7 cm
Depth
8
13
/16"
22.4 cm
Capacity 3 qt
2.8 L
Weight 8 lb
3.6 kg
FSP
82060
15 3/8"
39.1 cm
7 ¾"
19.7 cm
13 1/16"
33.2 cm
3 qt
2.8 L
9 lb
4.1 kg
SBW
86810
11 5/8"
29.5 cm
7 ¾"
19.7 cm
8 13/16"
22.4 cm
48 oz
1.4 L
8 lb
3.6 kg
Electrical 120V, 60Hz, 500W, 4.2A, 72"
(183 cm) cord set NEMA 5-15P, 15A,
125V PLUG
FOB RICHFIELD, WISCONSIN 53076
NSF LISTED AS A RETHERMALIZATION UNIT TO ENSURE
FOOD IS QUICKLY HEATED TO A SAFE TEMPERATURE
BEFORE BACTERIA HAS AN OPPORTUNITY TO GROW.
cad LiBrary
7 ¾"
19.7 cm
SIGNATURE TOUcH™ TOPPING WARMER
11 5/8"
29.5
7 ¾"
19.7 cm
8 13/16"
22.4 c m
11 7/16"
2 9.1 c m
Individual CAD images can be downloaded from our website.
We are also a member of The KCL CADalog with more than 100
other manufacturers. Our complete collection of CAD files can be
purchased through Kochman Consultants, Ltd. at kclcad.com.
two year warranty
Server Products equipment is backed by a two-year limited
warranty against defects in materials and workmanship. For a
copy of our complete warranty statement, please refer to
server-products.com.
Server Products, Inc. | PO Box 98 | Richfield WI 53076 | 800.558.8722
262.628.5600 | F: 262.628.5110 | spsales@server-products.com | server-products.com
Serve r Products, Inc. reserves the right to mo dify specifications with out oblig ation. Pri nted in USA 5.2013 Stock 0 2049
