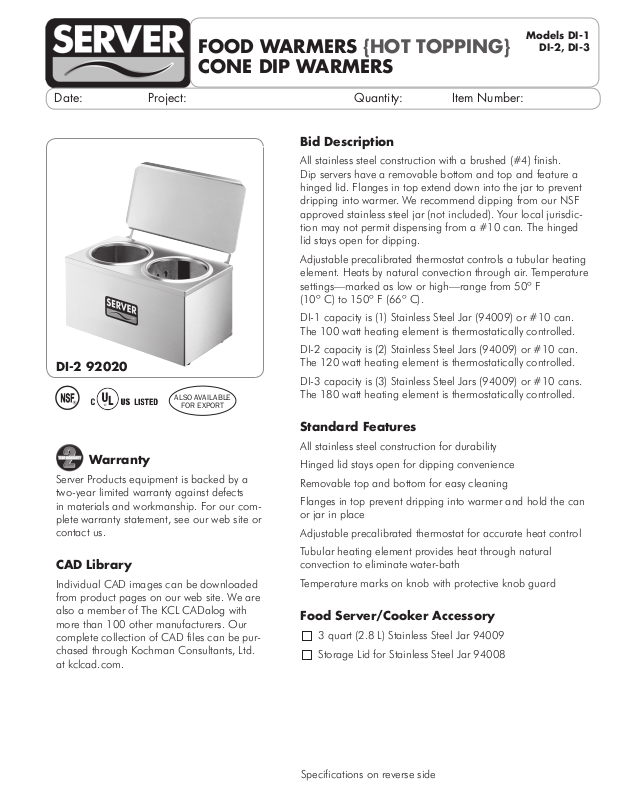

Server Products DI-1 92000 Specifications
FOOD WARMERS {HOT TOPPING}
CONE DIP WARMERS
Date: Project: Quantity: Item Number:
Bid Description
All stainless steel construction with a brushed (#4) finish.
Dip servers have a removable bottom and top and feature a
hinged lid. Flanges in top extend down into the jar to prevent
dripping into warmer. We recommend dipping from our NSF
approved stainless steel jar (not included). Your local jurisdiction may not permit dispensing from a #10 can. The hinged
lid stays open for dipping.
Adjustable precalibrated thermostat controls a tubular heating
element. Heats by natural convection through air. Temperature
settings—marked as low or high—range from 50º F
(10º C) to 150º F (66º C).
DI-1 capacity is (1) Stainless Steel Jar (94009) or #10 can.
The 100 watt heating element is thermostatically controlled.
Models DI-1
DI-2, DI-3
DI-2 92020
Also AvAilAble
for export
Warranty
Server Products equipment is backed by a
two-year limited warranty against defects
in materials and workmanship. For our complete warranty statement, see our web site or
contact us.
CAD Library
Individual CAD images can be downloaded
from product pages on our web site. We are
also a member of The KCL CADalog with
more than 100 other manufacturers. Our
complete collection of CAD files can be purchased through Kochman Consultants, Ltd.
at kclcad.com.
DI-2 capacity is (2) Stainless Steel Jars (94009) or #10 can.
The 120 watt heating element is thermostatically controlled.
DI-3 capacity is (3) Stainless Steel Jars (94009) or #10 cans.
The 180 watt heating element is thermostatically controlled.
Standard Features
All stainless steel construction for durability
Hinged lid stays open for dipping convenience
Removable top and bottom for easy cleaning
Flanges in top prevent dripping into warmer and hold the can
or jar in place
Adjustable precalibrated thermostat for accurate heat control
Tubular heating element provides heat through natural
convection to eliminate water-bath
Temperature marks on knob with protective knob guard
Food Server/Cooker Accessory
3 quart (2.8 L) Stainless Steel Jar 94009
Storage Lid for Stainless Steel Jar 94008
Specifications on reverse side
FOOD WARMERS {HOT TOPPING}
CONE DIP WARMERS
Models DI-1
DI-2, DI-3
Dip Servers
1
8
/
"
8
20.6 cm
7
14
/
"
8
37.8 cm
Width
Specifications
Model DI-1 92000
Construction All stainless steel with a brushed (#4) finish.
Capacity (1) stainless steel jar or #10 can holds
3 quarts (2.8 L).
Dimensions Height Width Depth Open Depth
in 8 1/
cm 20.6 19.4 24.6 29.4
Electrical 120V, 60Hz, 100W, .8A
72 in (183 cm) cord set
NEMA 5-15P, 15A, 125V PLUG
Ship Weight 7 lb (3.2 kg)
Model DI-2 92020
Same as above except:
Capacity (2) stainless steel jars or #10 cans hold
3 quarts (2.8 L) each; 6 quart (5.7 L) total.
Dimensions Height Width Depth Open Depth
in 8 1/
cm 20.6 37.1 24 28.7
8
14 5 /8 9 7/
8
7 5 /8 9 11/
16
16
11 9/16
11 5/16
Electrical 120V, 60Hz, 120W, 1A
Ship Weight 9 lb (4.1 kg)
Model DI-3 92040
Open
Depth
Depth
Same as above except:
Capacity (3) stainless steel jars or #10 cans hold
3 quarts (2.8 L) each; 9 quart (8.5 L) total.
Dimensions Height Width Depth Open Depth
in 8 1/
21 5 /8 9 7/
8
16
11 5/16
cm 20.6 55 24 28.7
Electrical 120V, 60Hz, 180W, 1.5A
Ship Weight 12 lb (5.4 kg)
FOB Richfield, Wisconsin 53076
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 10-2008/.1M Stock #02007
