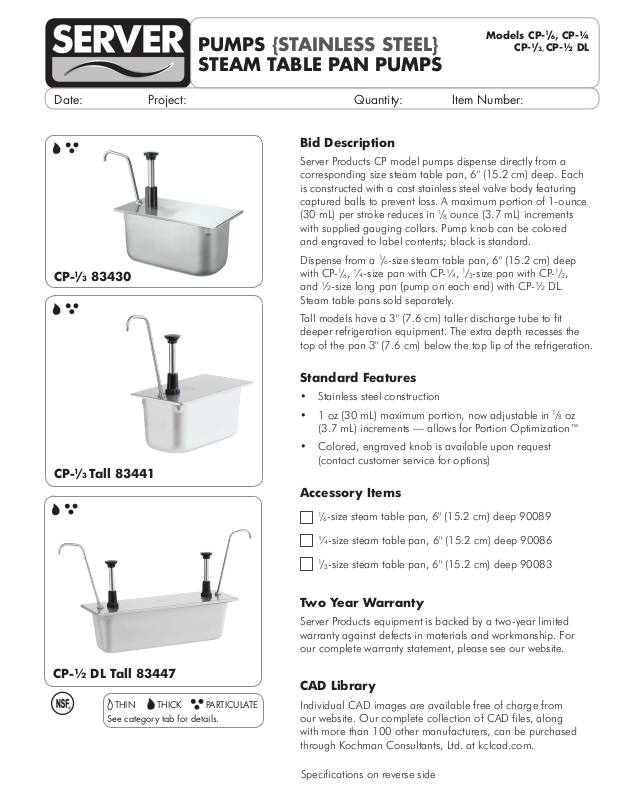

Server Products CP-One Half Long 83480 Specifications

Models CP-1/6, CP-¼
PUMPS {STAINLESS STEEL}
CP-1/
STEAM TABLE PAN PUMPS
Date: Project: Quantity: Item Number:
Bid Description
Server Products CP model pumps dispense directly from a corresponding size steam table pan, 6" (15.2 cm) deep. Each is constructed with a cast stainless steel valve body featuring captured balls to prevent loss. A maximum portion of 1-ounce (30 mL) per stroke reduces in 1/8 ounce (3.7 mL) increments with supplied gauging collars. Pump knob can be colored and engraved to label contents; black is standard.
3,
CP-½ DL
CP-1/3 83430
CP-1/3 Tall 83441
Dispense from a 1/6-size steam table pan, 6" (15.2 cm) deep with CP-1/6, ¼-size pan with CP-¼, 1/3-size pan with CP-1/3, and ½-size long pan (pump on each end) with CP-½ DL. Steam table pans sold separately.
Tall models have a 3" (7.6 cm) taller discharge tube to fit deeper refrigeration equipment. The extra depth recesses the top of the pan 3" (7.6 cm) below the top lip of the refrigeration.
Standard Features
• Stainless steel construction
• 1 oz (30 mL) maximum portion, now adjustable in 1/8 oz (3.7 mL) increments — allows for Portion Optimization™
• Colored, engraved knob is available upon request (contact customer service for options)
Accessory Items
1/6-size steam table pan, 6" (15.2 cm) deep 90089
¼-size steam table pan, 6" (15.2 cm) deep 90086
CP-½ DL Tall 83447
THIN THICK PARTICULATE
See category tab for details.
1
/3-size steam table pan, 6" (15.2 cm) deep 90083
Two Year Warranty
Server Products equipment is backed by a two-year limited warranty against defects in materials and workmanship. For our complete warranty statement, please see our website.
CAD Library
Individual CAD images are available free of charge from our website. Our complete collection of CAD files, along with more than 100 other manufacturers, can be purchased through Kochman Consultants, Ltd. at kclcad.com.
Specifications on reverse side
PUMPS {STAINLESS STEEL} STEAM TABLE PAN PUMPS
Models CP-1/6, CP-¼
CP-1/
CP-½ DL
3,
CP-1/6 83400, CP-1/4 83420 & CP-1/3 83430
6 1/4"
15.9 cm
4"
10.2 cm
Depth
CP-1/2 Double Long 83480
6 1/4"
15.9 cm
Depth
11.7 cm
3 5/8"
9.2 cm
4 5/8"
45/8"
11.7 cm
Specications
Construction Stainless steel pump with cast valve body and welded construction.
Dimensions Measurements are shown above pan.
Models CP-1/
6
83400
Capacity 2.7 qt
2.6 L
Width 6 7/16"
17.5 cm
Depth 7 1/16"
17.9 cm
Weight 3 lb
1.4 kg
Models CP-1/6 Tall
83433
Capacity 2.7 qt
2.6 L
Width 6 7/16"
17.5 cm
Depth 7 1/16"
17.9 cm
Weight 3 lb
1.4 kg
CP-¼
83420
4.5 qt
4.3 L
6 5/8"
16.8 cm
10½"
26.7 cm
3 lb
1.4 kg
CP-¼ Tall
83437
4.5 qt
4.3 L
6 5/8"
16.8 cm
10½"
26.7 cm
3 lb
1.4 kg
CP-1/
3
83430
6.1 qt
5.8 L
7 1/8"
18.1 cm
13 1/16"
33.2 cm
3 lb
1.4 kg
CP-1/3 Tall
83441
6.1 qt
5.8 L
7 1/8"
18.1 cm
13 1/16"
33.2 cm
3 lb
1.4 kg
CP-½ DL
83480
10 qt
9.5 L
6 9/16"
16.7 cm
20 15/16"
53.2 cm
5 lb
2.3 kg
CP-½ DL Tall
83447
10 qt
9.5 L
6 9/16"
16.7 cm
20 15/16"
53.2 cm
5 lb
2.3 kg
Tall Pumps: CP-1/6 83433, CP-1/4 83437 & CP-1/3 83441
6 1/4"
15.9 cm
4 1/16"
10.2 cm
Depth
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722 P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 11.2010 Stock 02003
7 5/8"
19.4 cm
FOB Richfield, Wisconsin 53076
CP-1/
Double Long (Pan)
2
Tall 83447
6 1/4"
15.9 cm
Depth
spsales@server-products.com
7 5/8"
19.4 cm
311/16"
9.4 cm
server-products.com
