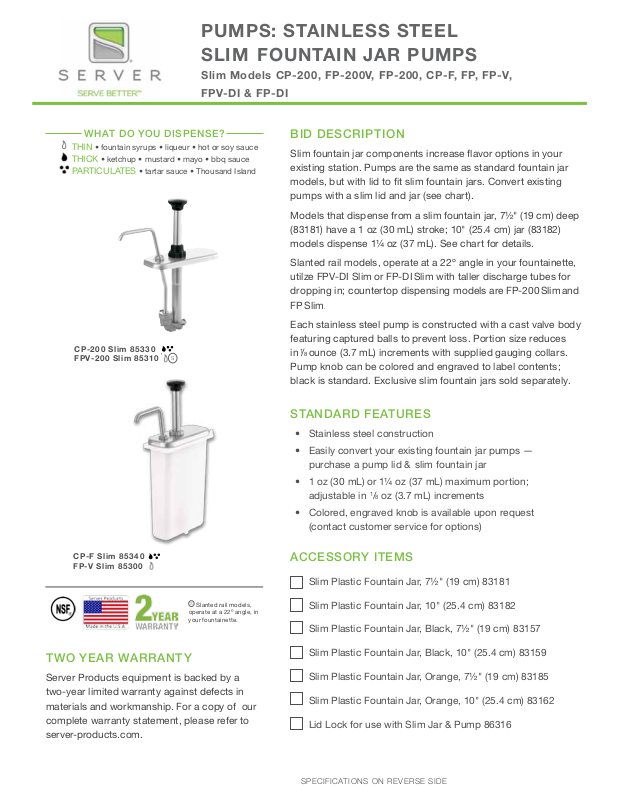

PUMPS: STAINLESS STEEL
SLIM FOUNTAIN JAR PUMPS
Slim Models CP-200, FP-200V, FP-200, CP-F, FP, FP-V,
FPV-DI & FP-DI
WHAT DO YOU DISPENSE?
THIN • fountain syrups • liqueur • hot or soy sauce
THICK • ketchup • mustard • mayo • bbq sauce
PARTICULATES • tartar sauce • Thousand Island
CP-20 0 Slim 85330
FPV-200 Slim 8 5 310
S
BID DEScrIPTION
Slim fountain jar components increase avor options in your
existing station. Pumps are the same as standard fountain jar
models, but with lid to t slim fountain jars. Convert existing
pumps with a slim lid and jar (see chart).
Models that dispense from a slim fountain jar, 7½" (19 cm) deep
(83181) have a 1 oz (30 mL) stroke; 10" (25.4 cm) jar (83182)
models dispense 1¼ oz (37 mL). See chart for details.
Slanted rail models, operate at a 22º angle in your fountainette,
utilze FPV-DI Slim or FP-DI Slim with taller discharge tubes for
dropping in; countertop dispensing models are FP-200 Slim
and
F P S l i m.
Each stainless steel pump is constructed with a cast valve body
featuring captured balls to prevent loss. Portion size reduces
in 1/8 ounce (3.7 mL) increments with supplied gauging collars.
Pump knob can be colored and engraved to label contents;
black is standard. Exclusive slim fountain jars sold separately.
STANDArD FEATUrES
CP-F Slim 85340
FP-V Slim 8530 0
S
Slante d rail models,
operate at a 22º angle, in
your fountainette.
TWO YEAr WArrANTY
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship. For a copy of our
complete warranty statement, please refer to
server-products.com.
• Stainless steel construction
• Easily convert your existing fountain jar pumps —
purchase a pump lid & slim fountain jar
• 1 oz (30 mL) or 1¼ oz (37 mL) maximum portion;
adjustable in 1/8 oz (3.7 mL) increments
• Colored, engraved knob is available upon request
(contact customer service for options)
AccESSOrY ITEmS
Slim Plastic Fountain Jar, 7½" (19 cm) 83181
Slim Plastic Fountain Jar, 10" (25.4 cm) 83182
Slim Plastic Fountain Jar, Black, 7½" (19 cm) 83157
Slim Plastic Fountain Jar, Black, 10" (25.4 cm) 83159
Slim Plastic Fountain Jar, Orange, 7½" (19 cm) 83185
Slim Plastic Fountain Jar, Orange, 10" (25.4 cm) 83162
Lid Lock for use with Slim Jar & Pump 86316
SPECIFICATIONS ON REVERSE SIDE
PUMPS: STAINLESS STEEL
SLIM FOUNTAIN JAR PUMPS
Slim Models CP-200, FP-200V, FP-200, CP-F, FP, FP-V,
FPV-DI & FP-DI
CP-20 0 Slim 85330, FP-20 0V Slim 85310 &
FP-200 Slim 85350; SLANTED RAIL
Height
CP-F Slim 853 40, FP-V Slim 85300 &
FP- Slim 85360; SLANTED RAIL
Height
S
Dim B
(85300)
Dim
Dim
Dim A
(85300)
S
Dim
Dim B
(85360)
FOOD KEY
MODEL
COMPLETE
Lid (OnLy)
CP-20 0
Slim
85330
83196
Jar Used Shallow
83181
Full Portion
1 oz
30 mL
Height
5
1
/8"
13 cm
Dim. A
3
7
/8"
9.8 cm
Dim. B
4
1
/16"
10.3 cm
Weight
Cutout Size
Dimensions
(above jar)
Capacity
3
Fountain jar, 10" (15.2 cm) deep holds 3½ qt (3.3 L);
FP-200V Slim
85310
83188
Shallow
83181
1 oz
30 mL
5 1/8"
13 cm
2 7/8"
7.3 cm
2 5/16"
5.9 cm
CP-F Slim
85340
83195
Deep
83182
1¼ oz
37 mL
5 1/8"
13 cm
3 7/8"
9.8 cm
4 1/16"
10.3 cm
FP-V Slim
3 lb (1.4 kg)
13
/16" x 7" (7.1 x 17.8 cm)
2
1
/16 (7.8 cm) Wide x 7 1/8" (18.1 cm) Deep
7½" (19 cm) jar holds 2 qt (1.9 L).
85300
83187
Deep
83182
1¼ oz
37 mL
5 1/8"
13 cm
2 7/8"
7.3 cm
2 9/16"
6.5 cm
Dim A
(85360)
FPV-DI Slim 85380 &
FP-DI Slim 85370 ; SLANTE D RAIL
Height
Height
(85380)
Dim
Dim A
(85380)
Dim A
S
Dim
Dim B
(85380)
FOOD KEY
MODEL
COMPLETE
Lid (OnLy)
Jar Used
Full Portion
Height
Dim. A
Dim. B
Weight
Cutout Size
Dimensions
(above jar)
FP-200
85350
83192
Shallow
83181
1 oz
30 mL
5
13 cm
2
5.4 cm
2
7.3 cm
1
1
7
S
Slim
FP
/8"
/8"
/8"
2
1
"
/
(7.8 cm) Wide x 7 1/8" (18.1 cm) Deep
3
16
S
Slim
FP-DI Slim
85360
83191
Deep
83182
1¼ oz
37 mL
5 1/8"
13 cm
1 7/8"
4.8 cm
3"
7.6 cm
85370
83193
Deep
83182
1¼ oz
37 mL
5 1/8"
13 cm
2 ¼"
5.7 cm
8 ¾"
22.2 cm
3 lb (1.4 kg)
13
/16" x 7" (7.1 x 17.8 cm)
S
FPV-DI Slim
85380
83194
Deep
83182
1¼ oz
37 mL
5 1/8"
13 cm
3"
7.6 cm
8 ½"
21.6 cm
Capacity Fountain jar, 10" (15.2 cm) deep holds 3½ qt (3.3 L);
7½" (19 cm) jar holds 2 qt (1.9 L).
FOB RICHFIELD, WISCONSIN 53076
