Server Products BCS-81500 Accessories

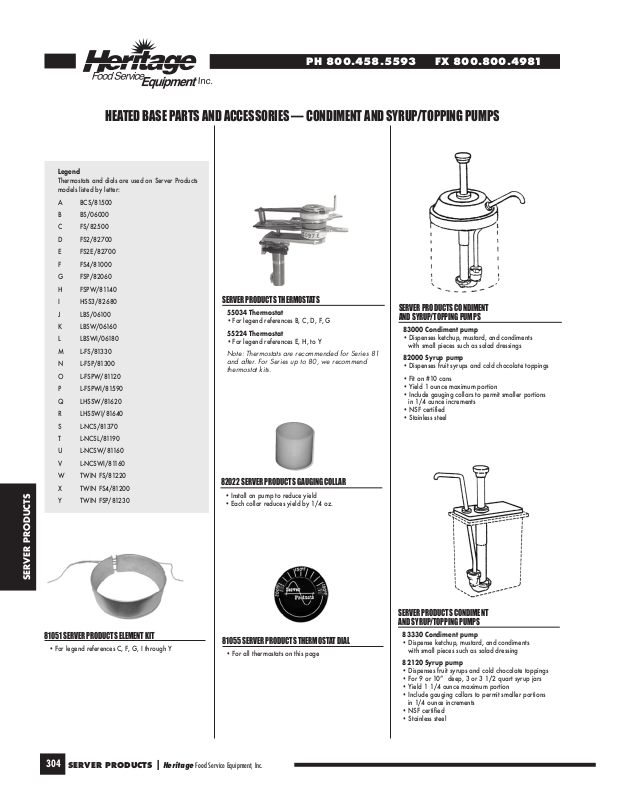

HEATED BASE PARTS AND ACCESSORIES — CONDIMENT AND SYRUP/TOPPING PUMPS
egend
L
hermostats and dials are used on Server Products
T
odels listed by letter:
m
BCS/81500
A
B BS/06000
C FS/82500
FS2/82700
D
FS2E/82700
E
F FS4/81000
G FSP/82060
H FSPW/81140
HSS3/82680
I
LBS/06100
J
LBSW/06160
K
L LBSWI/06180
M L-FS/81330
N L-FSP/81300
O L-FSPW/81120
P L-FSPWI/81590
Q LHSSW/81620
R LHSSWI/81640
S L-NCS/81370
T L-NCSL/81190
U L-NCSW/81160
V L-NCSWI/81160
W TWIN FS/81220
X TWIN FS4/81200
Y TWIN FSP/81230
PH 800.458.5593 FX 800.800.4981
SERVER PRODUCTS THERMOSTATS
5034 Thermostat
5
• For legend references B, C, D, F, G
5224 Thermostat
5
• For legend references E, H, to Y
Note: Thermostats are recommended for Series 81
and after. For Series up to 80, we recommend
thermostat kits.
82022 SERVERPRODUCTS GAUGING COLLAR
• Install on pump to reduce yield
• Each collar reduces yield by 1/4 oz.
SERVER PRODUCTS CONDIMENT
AND SYRUP/TOPPING PUMPS
3000 Condiment pump
8
• Dispenses ketchup, mustard, and condiments
ith small pieces such as salad dressings
w
82000 Syrup pump
• Dispenses fruit syrups and cold chocolate toppings
• Fit on #10 cans
• Yield 1 ounce maximum portion
• Include gauging collars to permit smaller portions
in 1/4 ounce increments
• NSF certified
• Stainless steel
SERVER PRODUCTS
81051SERVER PRODUCTSELEMENT KIT
• For legend references C, F, G, I through Y
304
SERVER PRODUCTS|Heritage Food Service Equipment, Inc.
81055 SERVERPRODUCTS THERMOSTAT DIAL
• For all thermostats on this page
SERVER PRODUCTS CONDIMENT
AND SYRUP/TOPPING PUMPS
83330 Condiment pump
• Dispense ketchup, mustard, and condiments
with small pieces such as salad dressing
82120 Syrup pump
• Dispenses fruit syrups and cold chocolate toppings
• For 9 or 10” deep, 3 or 3 1/2 quart syrup jars
• Yield 1 1/4 ounce maximum portion
• Include gauging collars to permit smaller portions
in 1/4 ounce increments
• NSF certified
• Stainless steel
OLD STYLE PUMP DESIGN — CONDIMENT AND SYRUP/TOPPING PUMPS
egend
L
A BCS/81520
BPI/88000
B
CP1/6/83400
C
CP1/4/83420
D
E CP1/3/83430
F CP5/83920
G CP61/2/83200
H CP81/2/83220
CP10/83000
I
J CP101/2/83240
K CP200/83300
CPF/83330
L
CP-G-89MM/83130
M
CP-G-110MM/83120
N
O CP-G-120MM/83110
P CPSSI/67020
CPSSR/67030
Q
CSM/94010
R
FP/82070
S
T FP-DI/82990
U FSP/82065
V FPV/82120
W FPV-DI/82520
LBS/06110
X
LFSP/81320
Y
LHSSW/81660
Z
AA L-NCS/81320
BB MMS/94080
CC SP/82000
DD SP81/2/82980
SERVER PRODUCTS
Ref No. Item No. Description For Legend
1 82015 Washer All
2 82013 Piston and stem - 7 " L A C TO K M N O R U X Y Z AA to DD
2 82076 Piston and stem - 9" L L S T V W
2 83115 Piston and stem - 8 15/16" L M N O P Q (old)
3 83003 Seal assembly with o-ring All (from 1-1-81)
3a 82014 7/8" o-ring All (to 12-31-80)
4 6022 Check ball All
5 82016 Spring A C TO K M N O R U X Y Z AA to DD
5 82077 Spring L S T V W
5 82108 Spring M N O P Q (old)
6 82023 Pump knob All
7 82035 Knob o-ring All
8 82021 Locking collar All except B C D E K
9 82017 Head tube All except B L S T V W
10 82018 Head insert All except B
11 82027 Locking o-ring All except B
12 82031 Plug with o-ring S to Y AA CC
13 82029 O-ring only S to Y AA CC
14 82026 Ball retaining pin All except B R X
15 6021 Inner valve cage All except B
16 6024 O-ring All except B
17 6026 Inner valve assembly All except B R X Z BB
18 82009 Small brush All
19 82049 Large brush All
20 82323 O-ring 1 5/16" O.D. All
21 5127 O-ring 1" O.D. All
22 82022 Gauging collar All
SERVER PRODUCTS
Heritage Food Service Equipment, Inc.|SERVER PRODUCTS
305
