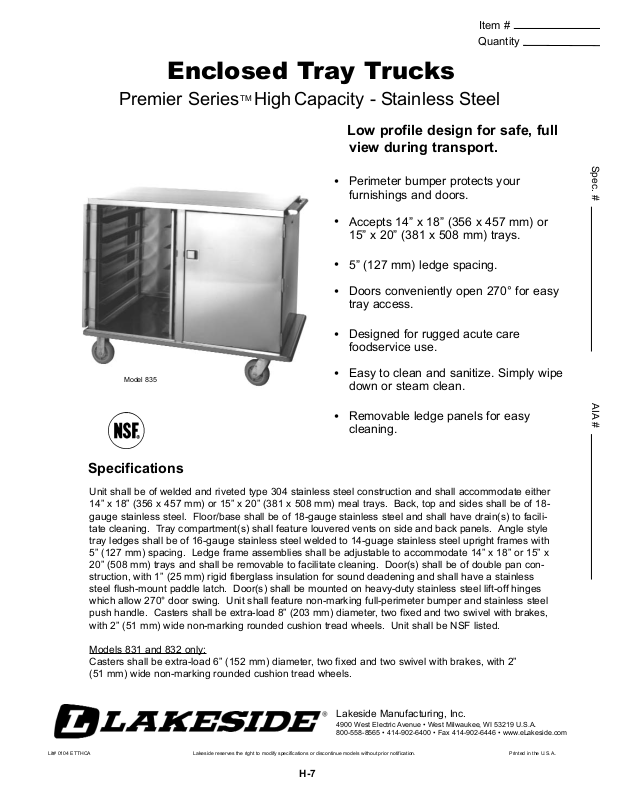

Server Products 835 Specifications
Enclosed Tray Trucks
Premier Series
TM
High Capacity - Stainless Steel
Low profile design for safe, full
view during transport.
•
Perimeter bumper protects your
furnishings and doors.
•
Accepts 14” x 18” (356 x 457 mm) or
15” x 20” (381 x 508 mm) trays.
•
5” (127 mm) ledge spacing.
•
Doors conveniently open 270° for easy
tray access.
•
Designed for rugged acute care
foodservice use.
•
Easy to clean and sanitize. Simply wipe
down or steam clean.
•
Removable ledge panels for easy
cleaning.
Spec. # AIA #
Specifications
Unit shall be of welded and riveted type 304 stainless steel construction and shall accommodate either
14” x 18” (356 x 457 mm) or 15” x 20” (381 x 508 mm) meal trays. Back, top and sides shall be of 18gauge stainless steel. Floor/base shall be of 18-gauge stainless steel and shall have drain(s) to facilitate cleaning. Tray compartment(s) shall feature louvered vents on side and back panels. Angle style
tray ledges shall be of 16-gauge stainless steel welded to 14-guage stainless steel upright frames with
5” (127 mm) spacing. Ledge frame assemblies shall be adjustable to accommodate 14” x 18” or 15” x
20” (508 mm) trays and shall be removable to facilitate cleaning. Door(s) shall be of double pan construction, with 1” (25 mm) rigid fiberglass insulation for sound deadening and shall have a stainless
steel flush-mount paddle latch. Door(s) shall be mounted on heavy-duty stainless steel lift-off hinges
which allow 270° door swing. Unit shall feature non-marking full-perimeter bumper and stainless steel
push handle. Casters shall be extra-load 8” (203 mm) diameter, two fixed and two swivel with brakes,
with 2” (51 mm) wide non-marking rounded cushion tread wheels. Unit shall be NSF listed.
Models 831 and 832 only:
Casters shall be extra-load 6” (152 mm) diameter, two fixed and two swivel with brakes, with 2”
(51 mm) wide non-marking rounded cushion tread wheels.
Lit# 0104 ETTHCA Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
Model 835
H-7
Item #
Quantity
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
Enclosed Tray Trucks
Spec. # AIA #
Dimensions
Lit# 0104 ETTHCA Lakeside reserves the right to modify specifications or discontinue models without prior notification. Printed in the U.S.A.
Optional Accessories
• 8“ diameter casters (Models 831 and 832)
• Extra push handle
• Identification card holder
• Decorative laminate door panels
AutoCAD drawings available through KCL CADalog
W
H
D
D
W
2 Compartment
Top View
1 Compartment
Top View
Model Tray Capacity
Ledge
Spacing
# of
Interior
Compart-
ments
Overall Size
Lake-Glide®
Casters
Case
Weight
W D H Type Dia. lb. (kg.)
831 18 ea.
14” x 18”
(356 x 457)
15” x 20”
(381 x 508)
or
5”
(127)
1
36-3/4”
(908)
26-1/8”
(664)
56”
(1422)
2 swivel,
2 fixed
6” 200 (90.7)
832 20 ea.
835
836
837
24 ea.
28 ea.
32 ea.
14” x 18”
(356 x 457)
14” x 18”
(356 x 457)
14” x 18”
(356 x 457)
14” x 18”
(356 x 457)
or
or
or
or
15” x 20”
(381 x 508)
15” x 20”
(381 x 508)
15” x 20”
(381 x 508)
15” x 20”
(381 x 508)
5”
(127)
5”
(127)
5”
(127)
5”
(127)
1
2
2
2
51-1/8”
(1299)
34-1/8”
(867)
41”
(1041)
46”
(1168)
51”
(1295)
61”
(1549)
36-3/4”
(908)
26-1/8”
(664)
51-1/8”
(1299)
51-1/8”
(1299)
34-1/8”
(867)
34-1/8”
(867)
2 swivel,
2 fixed
2 swivel,
2 fixed
2 swivel,
2 fixed
2 swivel,
2 fixed
6”
8”
8”
8”
220
250
260
270
(99.8)
(113.4)
(117.9)
(122.5)
Measurements in ( ) denote metric millimeters, unless otherwise specified.
H-7
Lakeside Manufacturing, Inc.
4900 West Electric Avenue • West Milwaukee, WI 53219 U.S.A.
800-558-8565 • 414-902-6400 • Fax 414-902-6446 • www.eLakeside.com
Premier Series
TM
High Capacity - Stainless Steel
