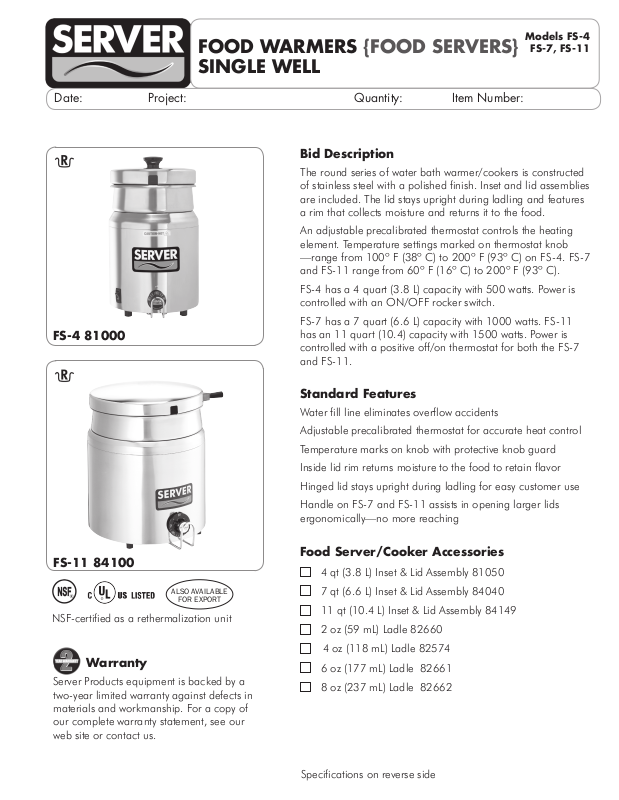

Server Products 81000 Specifications
FOOD WARMERS {FOOD SERVERS}
SINGLE WELL
Date: Project: Quantity: Item Number:
Bid Description
The round series of water bath warmer/cookers is constructed
of stainless steel with a polished finish. Inset and lid assemblies
are included. The lid stays upright during ladling and features
a rim that collects moisture and returns it to the food.
An adjustable precalibrated thermostat controls the heating
element. Temperature settings marked on thermostat knob
—range from 100º F (38º C) to 200º F (93º C) on FS-4. FS-7
and FS-11 range from 60º F (16º C) to 200º F (93º C).
FS-4 has a 4 quart (3.8 L) capacity with 500 watts. Power is
controlled with an ON/OFF rocker switch.
FS-7 has a 7 quart (6.6 L) capacity with 1000 watts. FS-11
FS-4 81000
has an 11 quart (10.4) capacity with 1500 watts. Power is
controlled with a positive off/on thermostat for both the FS-7
and FS-11.
Models FS-4
FS-7, FS-11
FS-11 84100
Also AvAilAble
for export
NSF-certified as a rethermalization unit
Warranty
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship. For a copy of
our complete warranty statement, see our
web site or contact us.
Standard Features
Water fill line eliminates overflow accidents
Adjustable precalibrated thermostat for accurate heat control
Temperature marks on knob with protective knob guard
Inside lid rim returns moisture to the food to retain flavor
Hinged lid stays upright during ladling for easy customer use
Handle on FS-7 and FS-11 assists in opening larger lids
ergonomically—no more reaching
Food Server/Cooker Accessories
4 qt (3.8 L) Inset & Lid Assembly 81050
7 qt (6.6 L) Inset & Lid Assembly 84040
11 qt (10.4 L) Inset & Lid Assembly 84149
2 oz (59 mL) Ladle 82660
4 oz (118 mL) Ladle 82574
6 oz (177 mL) Ladle 82661
8 oz (237 mL) Ladle 82662
Specifications on reverse side
FOOD WARMERS {FOOD SERVERS}
SINGLE WELL
Models FS-4,
FS-7, FS-11
Food Server/Cooker Series
A
B
Note: ON/OFF switch and
lid knob is on FS-4 only.
Specifications
Construction Stainless steel units with a polished finish.
Includes exclusive inset and lid assembly.
Electrical 120V, 60Hz, 72" (183 cm) cord set
NEMA 5-15P, 15A, 125V PLUG
Models FS-4 FS-7 FS-11
81000 84000 84100
Capacity qt 4 7 11
L 3.8 6.6 10.4
A–Height in 13 5/16 14 3/
16
cm 33.8 36 36.1
B–Width in 7 ¾ 9 9/
16
19.7 24.3 29.4
C–Depth in 8 13/16
11 13
cm 22.4 27.9 33
D–Depth in 2 ½ 2 3/
16
cm 6.4 5.6 5.6
E–Height in 19 3/8 22 9/16 24 9/
cm 49.2 57.3 62.4
Electrical 500 watts 1000 watts 1500 watts
4.1 amps 8.3 amps 12.5 amps
Weight 9 lb 13 lb 16 lb
4.1 kg 5.9 kg 7.3 kg
14 1/4
11 9/
16
2 3/
16
16
E
FOB Richfield, Wisconsin 53076
NSF Listed as a rethermalization unit to ensure food is
quickly heated to a safe temperature before bacteria has an
D
opportunity to grow.
CAD Library
Individual CAD images can be downloaded from product
pages on our web site. We are also a member of The KCL
CADalog with more than 100 other manufacturers. Our
C
Server Products, Inc. • P.O. Box 98 • Richfield, WI 53076 • Toll Free: 800-558-8722
P: 262-628-5600 • F: 262-628-5110 •
Server Products, Inc. reserves the right to modify specifications without obligation. Printed in USA 10-2008/.1M Stock #02008
complete collection of CAD files can be purchased through
Kochman Consultants, Ltd. at kclcad.com.
