Server DFD-C-ST Service Manual

Page 1
CerealServ
CEREAL DISPENSERS
MODELS: DFD-C DFD-C-ST DFD-C-2 DFD-C-3
Thank You
SERVE CEREAL—BETTER
Configurations vary.
See page 3.
Page 2
SAFETY
According to food and safety regulations, most foods must be stored and/or served at certain temperatures or they could become hazardous. Check with local food and safety regulators for specific guidelines.
Be aware of the product you are serving and the temperature the product is required to maintain. Server Products, Inc. cannot be responsible for the serving of potentially hazardous product.
NSF International listed.
Does not require a twisting wrist motion or tight grasping to dispense.
CLEANING
CLEAN
1
After disassembling, clean all washable parts with soap and hot water.
IMPORTANT
Clean, rinse, sanitize, and dry parts daily or regularly to comply with local sanitization requirements.
CAUTION
Keep fingers clear of all moving parts to prevent operator injury when dispensing product, during cleaning, assembly and disassembly.
YES!
Use dishwashing soap and hot water
2
3
4
Page 2
RINSE
fully with clear water.
SANITIZE
all parts according to local sanitization requirements. All parts in contact with food must be sanitized.
AIR DRY
all parts fully.
Care of Countertop Stand & Drip Tray:
• External surfaces may be wiped clean with a clean damp cloth.
• Glass and surface cleaners approved for use in food contact areas may be used.
• Do not use abrasive, caustic or ammonia based cleansers.
• Do not use metal scrapers or cleaning pads that could scratch surfaces.
Plastic Drip Tray: HAND WASH ONLY
Page 3
CONFIGURATIONS
WALL-MOUNTED
DFD-C-2 | DFD-C-3
1.5 LITER DISPENSERS 88930
88950 Triple with mounting bracket
3 LITER DISPENSERS 88940
88960 Triple with mounting bracket
COUNTERTOP
DFD-C-ST
Double with mounting bracket
Double with mounting bracket
1.5 LITER DISPENSERS 88890
88910 Triple with countertop stand
3 LITER DISPENSERS 88900
88920 Triple with countertop stand
Double with countertop stand
Double with countertop stand
Page 3
Page 4

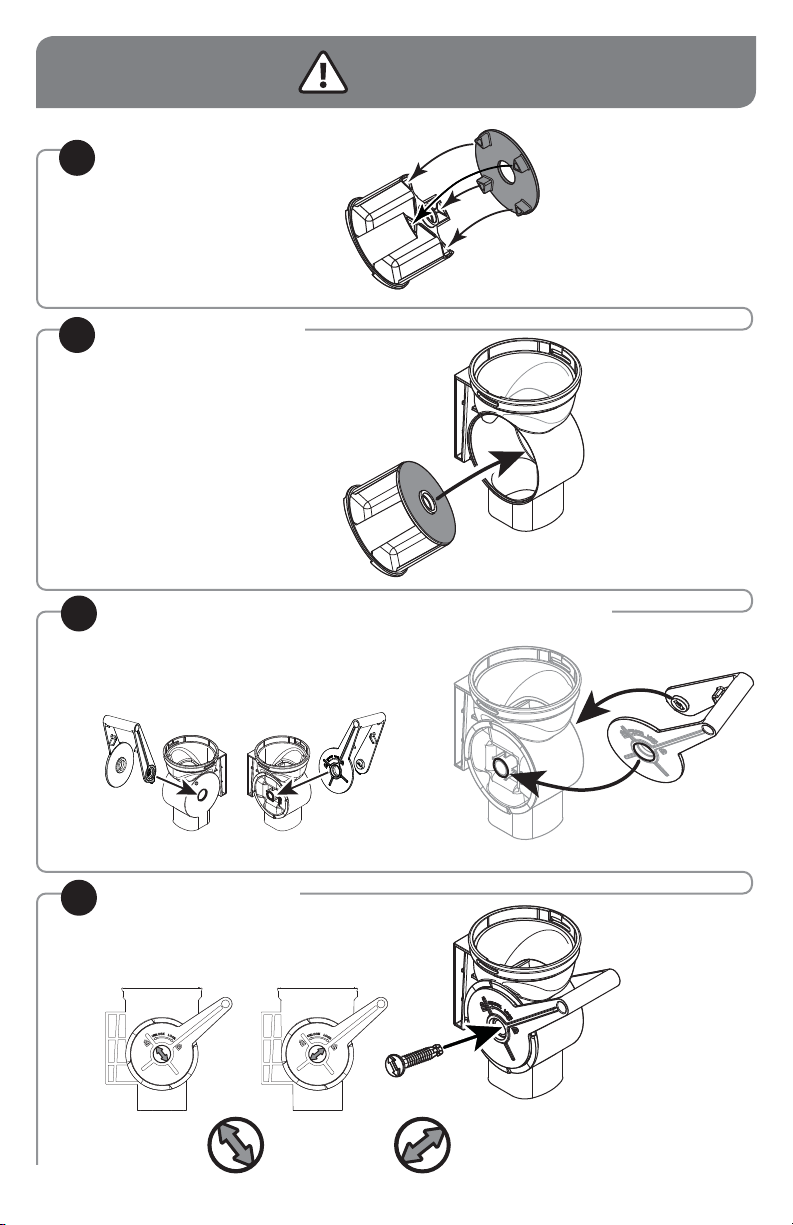

ASSEMBLY
ATTACH FRICTION PAD
1
Insert four triangular tabs on friction pad into matching slots in cylinder.
INSTALL CYLINDER
2
Slide cylinder into the opening of dispenser body.
INSTALL HANDLE ONTO BODY & CYLINDER
3
Slide handle over both sides of body and cylinder.
Snap handle centers into holes on each side.
PROPERLY BEFORE USE.
PRACTICE SAFETY. WASH ALL PARTS
See page 2.
4
Page 4
INSTALL PIVOT PIN
Slide pivot pin into center hole on left side of handle.
Align arrow on the pin with the unlock position.
Push pin in. Rotate to the locked position.
Page 5
ADD HOPPER TUBE
5
Insert tabs of hopper into slots on body.
Turn clockwise until secure.
Hopper snaps into place.
FILL UNIT WITH CEREAL
6
PUT THE LID ON TOP OF HOPPER
7
MOUNTING
COUNTERTOP STAND
Slide dispenser into bracket of stand.
WALL BRACKET INSTALLATION
YOU WILL NEED:
• Screwdriver
• (4) screws &
• (4) anchor bolts (if needed)
Select wall location or sturdy vertical surface for mounting.
Determine proper mounting hardware you will need to supply.
Secure bracket to wall stud(s), anchor bolts in wall, or sturdy vertical surface.
or
Page 5
Page 6

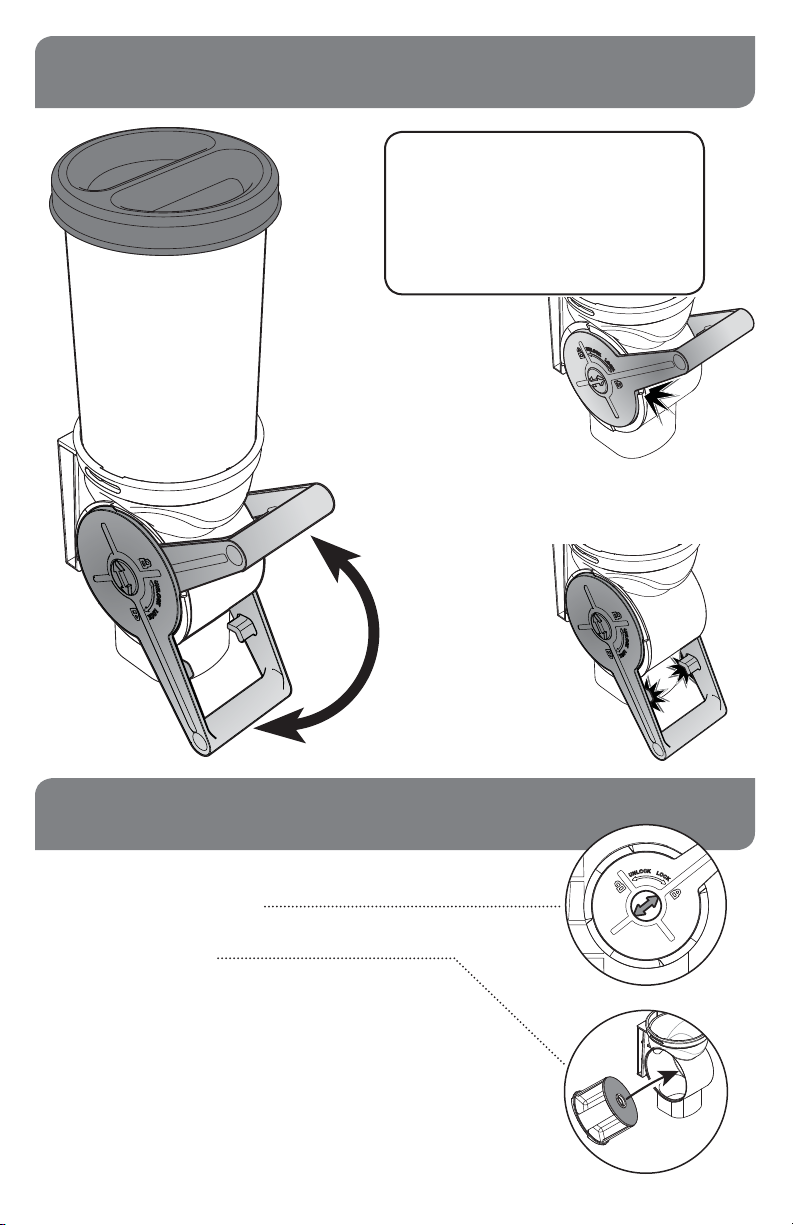

USE
For cylinder to advance and serve a portion, the handle must travel its full range of motion up and down.
SWING HANDLE UP FULLY
to load the cylinder chamber.
Handle CLICKS above side notch.
SWING HANDLE DOWN FULLY
to dispense the serving.
Angled tabs inside handle TAP bottom.
TROUBLESHOOTING
Make sure the handle is installed correctly with the pivot pin locked in place.
Make sure the friction pad and cylinder are properly installed.
Make sure there is enough product remaining to dispense and that the product is free to move to the bottom.
Make sure you are dispensing the right kind of product. The CerealServ™ dispenser is designed for free-flowing foods. Don’t use it for sticky, gummy or powdered ingredients.
Page 6
Page 7

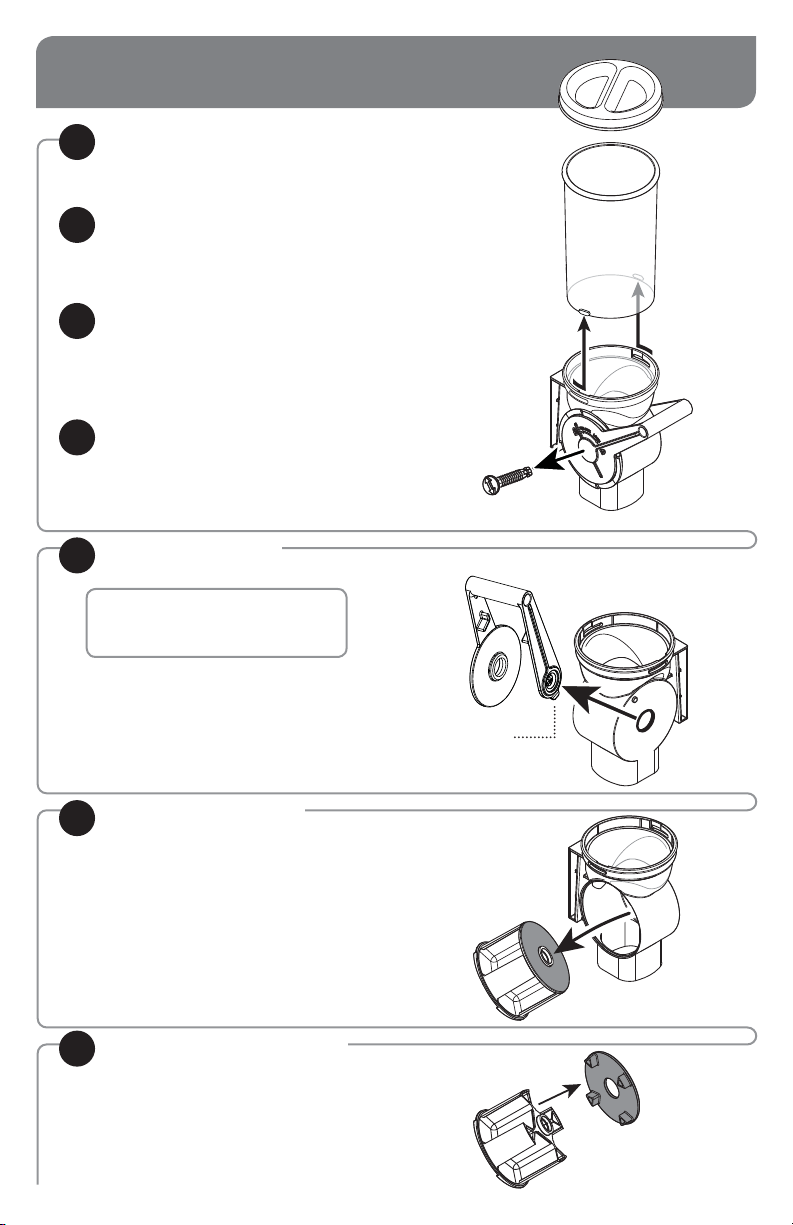

DISASSEMBLY
REMOVE LID
1
EMPTY INGREDIENTS
2
FROM UNIT
REMOVE HOPPER
3
Turn hopper counterclockwise to remove tabs from slots on body.
REMOVE PIVOT PIN
4
Rotate pin to the unlock position and take it out.
REMOVE HANDLE
5
Lift handle upward to the position just before it would click. This makes the handle easier to remove.
REMOVE CYLINDER
6
REMOVE FRICTION PAD
7
Use the pull-tab on right side to assist.
Page 7
Page 8

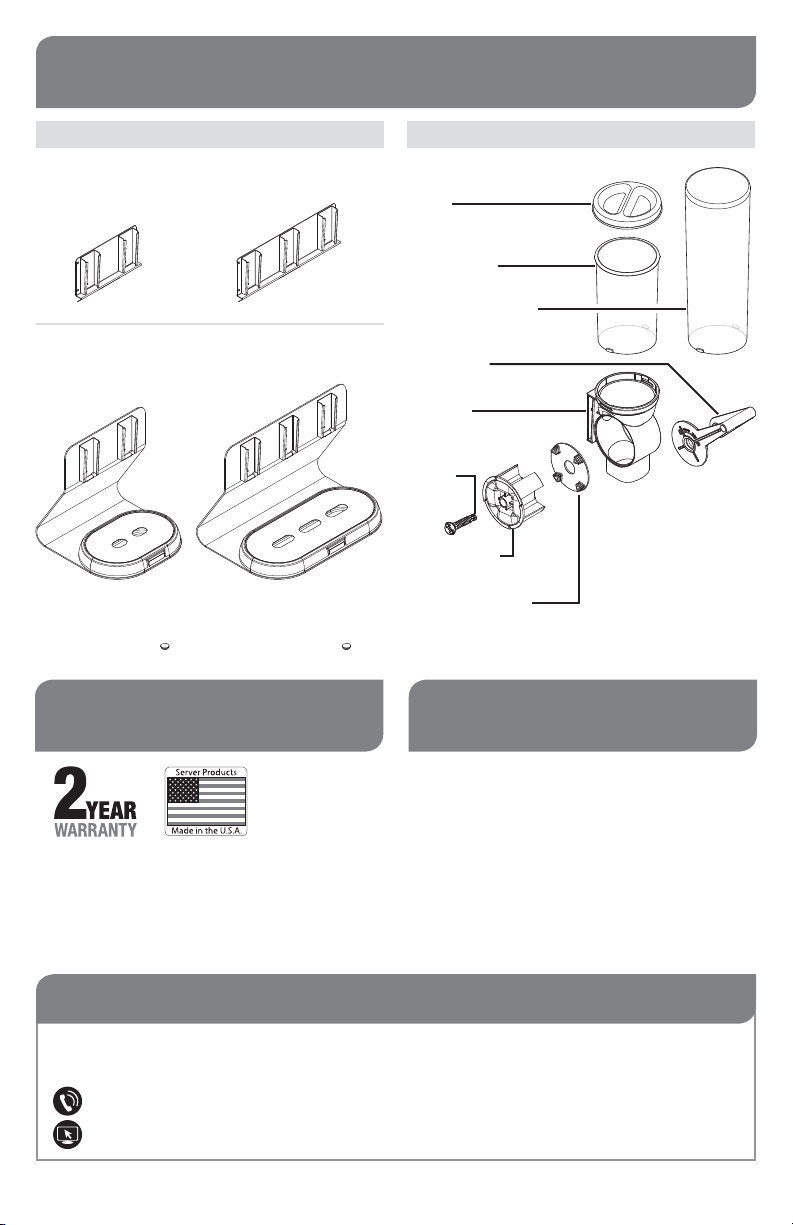

CEREALSERV ™
MOUNTING PARTS DISPENSER PARTS
DOUBLE WALL MOUNTING BRACKET 89003
DOUBLE CEREALSERV STAND 88918
INCLUDES
DRIP TRAY ASSEMBLY 89014 & RUBBER FEET
84393
TRIPLE WALL MOUNTING BRACKET 89005
TRIPLE CEREALSERV STAND 88919
INCLUDES
DRIP TRAY ASSEMBLY 89015 & RUBBER FEET
84393
SERVER PRODUCTS LIMITED WARRANTY
LID 89002
HOPPER TUBE,
1.5 LITER 88963
HOPPER TUBE, 3 LITER 89001
HANDLE
88754
BODY 88964
PIVOT PIN
88776
CYLINDER
88753
FRICTION PAD
88761
GENERAL SERVICE, REPAIR OR RETURNS
Server Products equipment is backed by a two-year limited warranty against defects in materials and workmanship. For complete warranty information go to:
www.Server-Products.com
NEED HELP?
Server Products Inc.
3601 Pleasant Hill Road Richfield, WI 53076 USA
262.628.5600 | 800.558.8722
SPSALES@SERVER-PRODUCTS.COM
Page 8
Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired and ship out within 48 hours of receipt.
Merchandise being returned for credit must be in new and unused condition and not more than 90 days old and will be subject to a 20% restocking charge.
Please be prepared with your Model and Series Number. These are found on the side of the dispenser body and the stand or bracket.
Certain components are also marked with individual Part Numbers.
Manual #01937-RevA 021418
