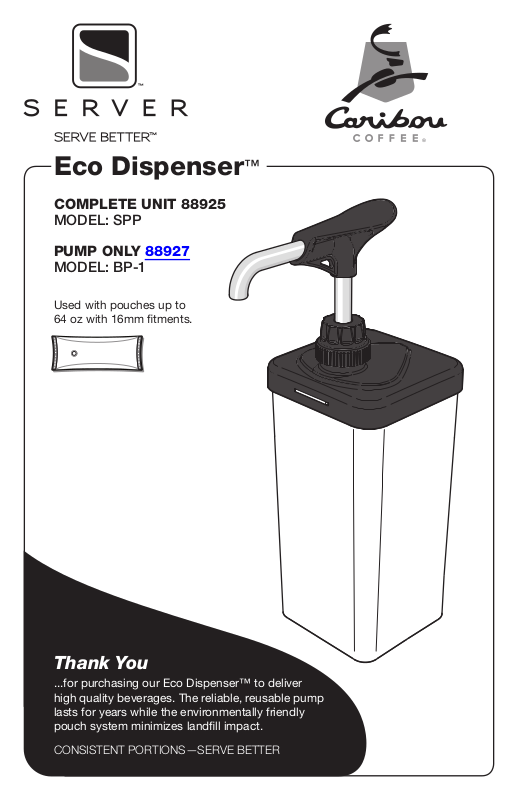

Server 89205 Service Manual

Eco Dispenser

COMPLETE UNIT 88925

MODEL: SPP

PUMP ONLY 88927

MODEL: BP-1

Used with pouches up to
64 oz with 16mm fitments.

™

Thank You

...for purchasing our Eco Dispenser™ to deliver
high quality beverages. The reliable, reusable pump
lasts for years while the environmentally friendly
pouch system minimizes landfill impact.

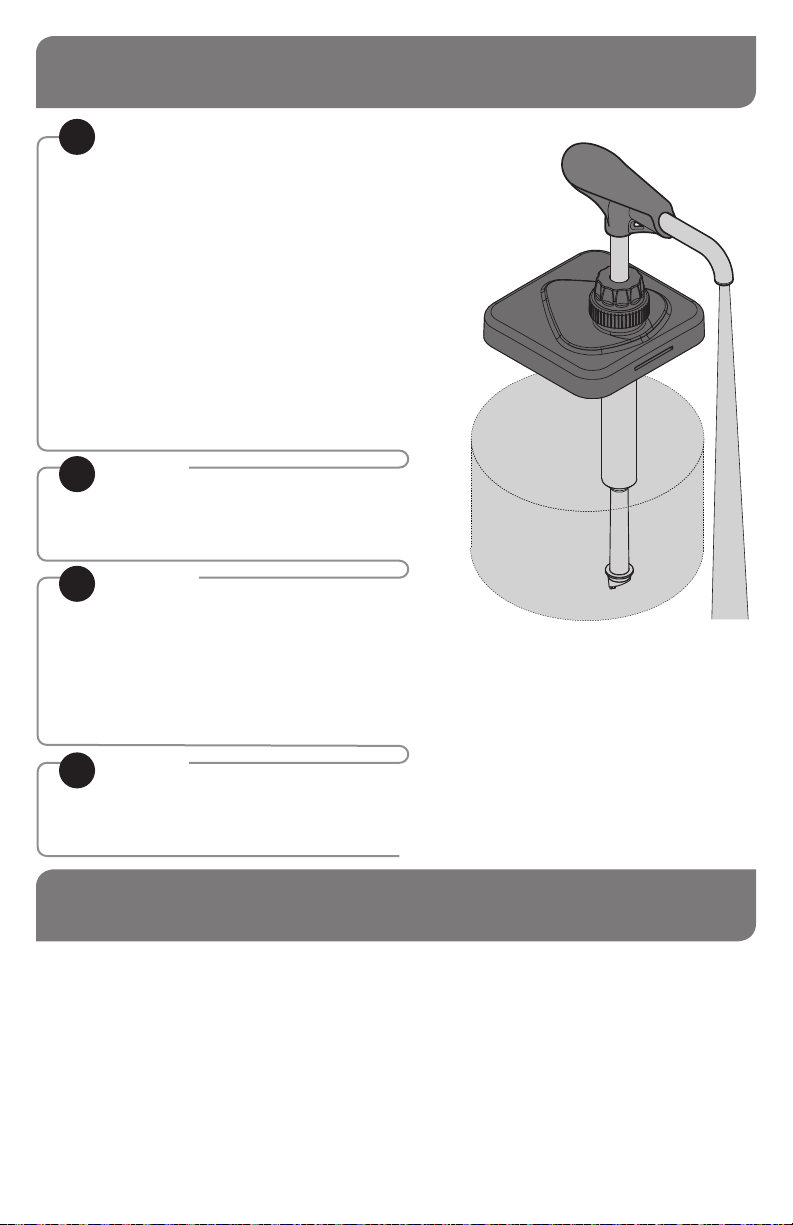

CONSISTENT PORTIONS—SERVE BETTER

ECO DISPENSER™ PARTS

PUMP MODEL: BP-1

PUMP 88927

GAGING COLLAR

88928

Add to head assembly to adjust
portion size from 1 fl oz to 7/16 fl oz

HEAD
ASSEMBLY

88931

DISCHARGE TUBE

LOCKING COLLAR

PISTON

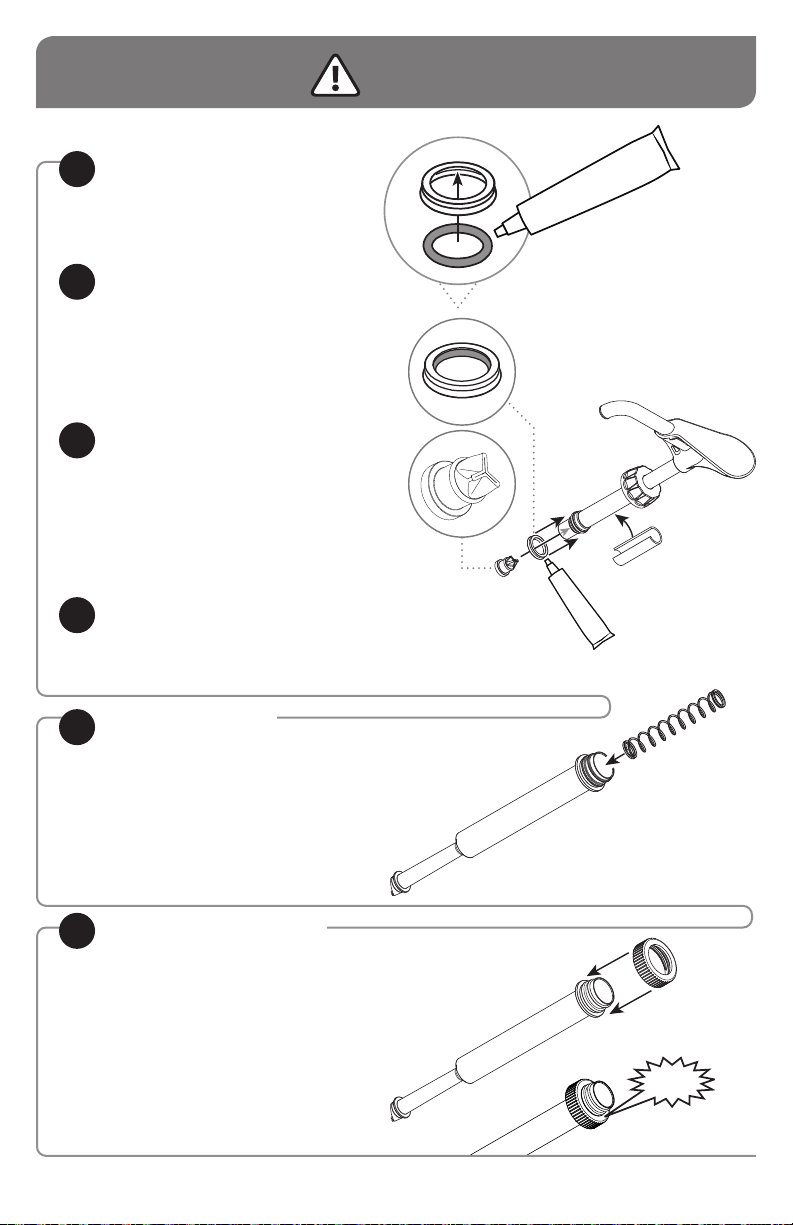

SEAL ASSEMBLY
(Seal & O-Ring) 83003

PINCH VALVE

88203

SPRING

88395

UNIT MODEL: SPP

COMPLETE UNIT 88925

PUMP

LID

88681

CYLINDER
ASSEMBLY

88549

FOOD EQUIPMENT LUBRICANT 40179

11" BRUSH 82049

21" BRUSH 84257

CAP

88016

CYLINDER

88553

STAINLESS STEEL BALL
1/2" DIAMETER

06022

(Ball snaps inside cylinder and
can always remain installed,
even during cleaning.)

Page 2

SHROUD

88682

DISASSEMBLY

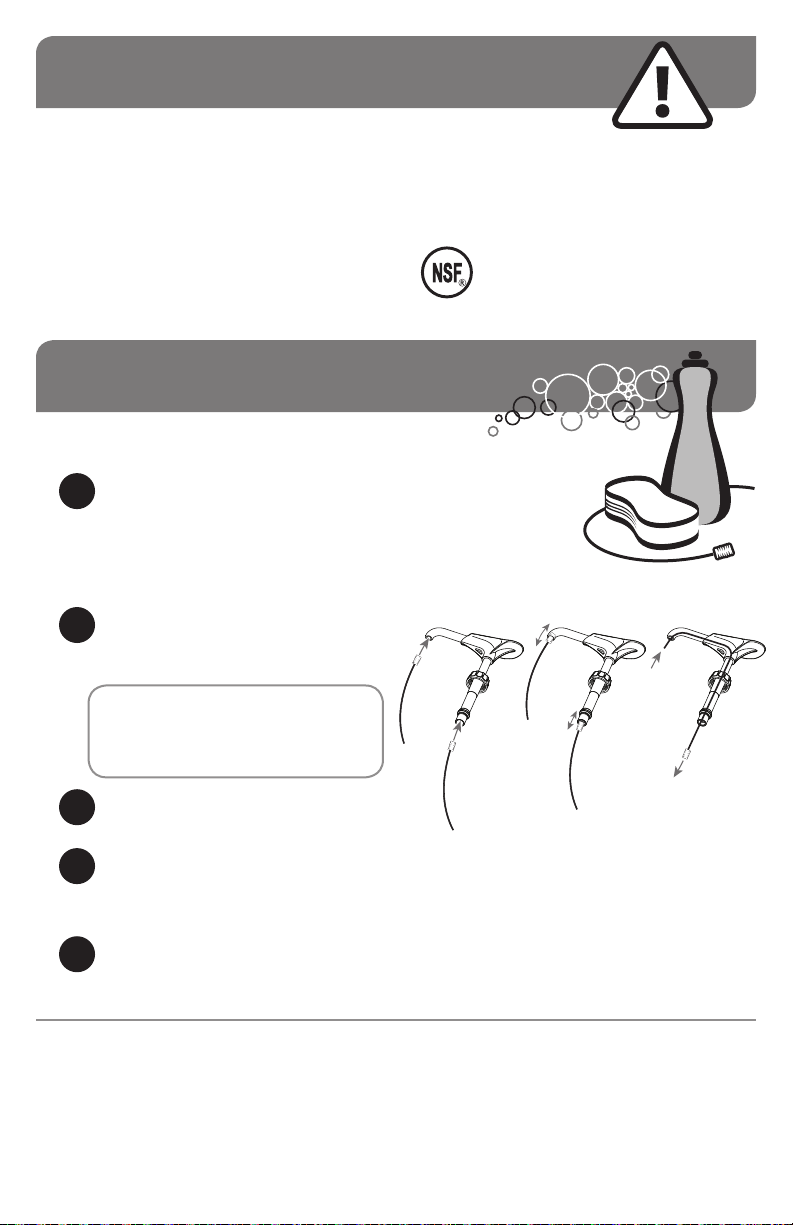

DISASSEMBLE AND WASH ALL PARTS
PROPERLY BEFORE USE. See page 4.

During disassembly, collect small parts
in a container to prevent loss.

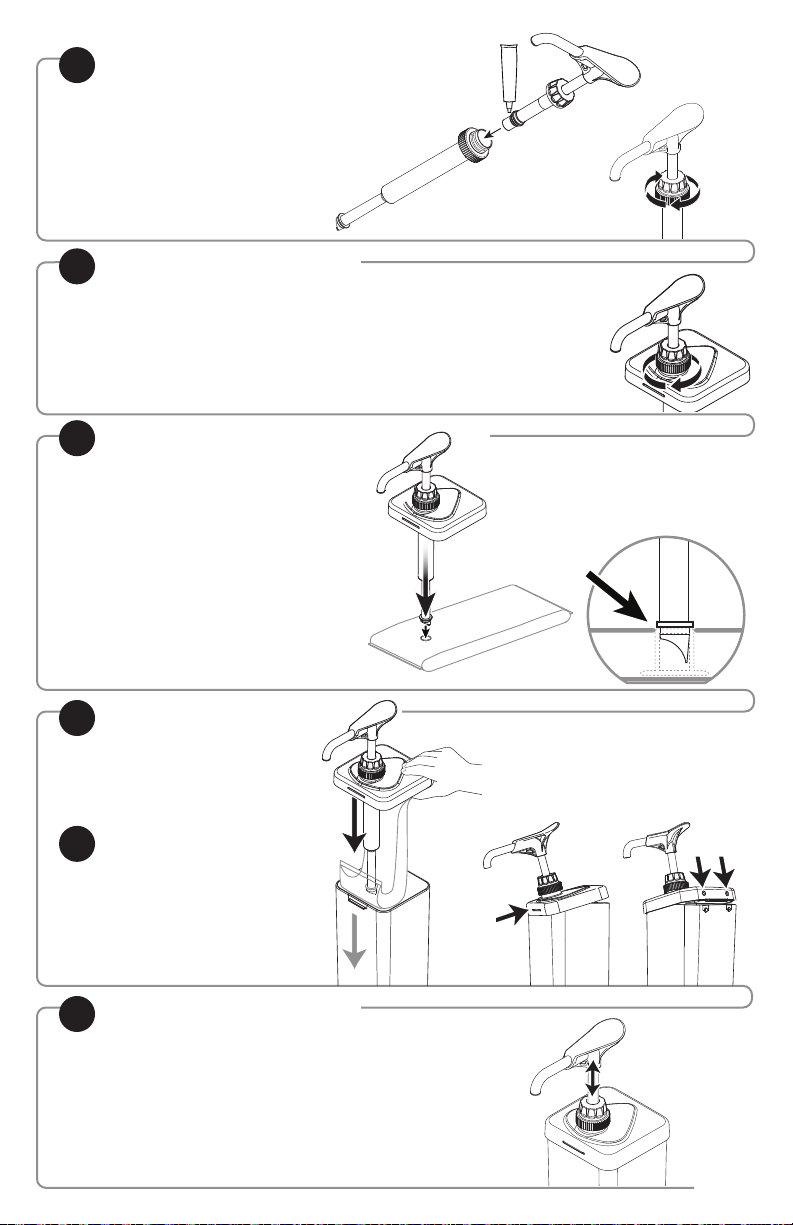

REMOVE LID, PUMP & POUCH

1

from shroud.
Push up back tab of lid to release lid from
pair of pegs.

DETACH POUCH

2

from bottom of pump.

UNSCREW CAP FROM LID

3

to remove pump.

SEPARATE CYLINDER

4

ASSEMBLY & HEAD

Loosen locking collar to release.

REMOVE SPRING & CAP

5

FROM CYLINDER

REMOVE PINCH VALVE

6

from head assembly.

REMOVE SEAL

7

from head assembly by pressing it
down and off with thumb.
Do not use a sharp tool.

REMOVE O-RING

8

FROM SEAL

REMOVE GAGING COLLAR

9

Page 3
