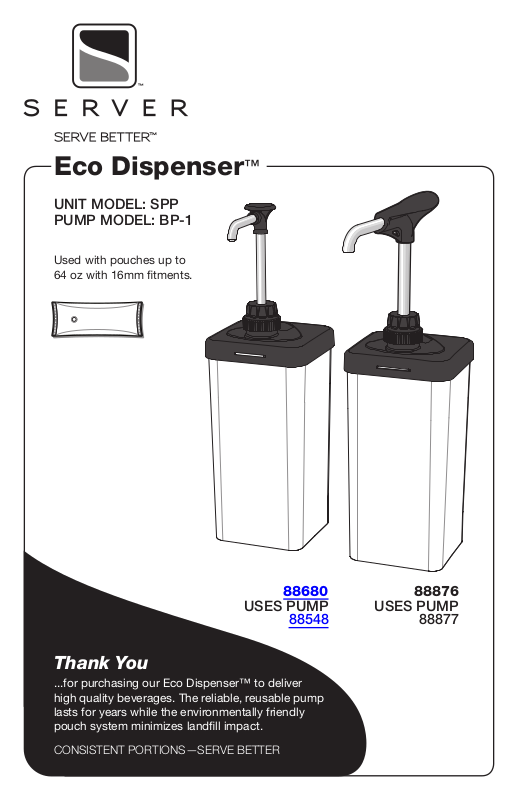

Eco Dispenser
UNIT MODEL: SPP
PUMP MODEL: BP-1
Used with pouches up to
64 oz with 16mm fitments.
™
88680
USES PUMP
88548
Thank You
...for purchasing our Eco Dispenser™ to deliver
high quality beverages. The reliable, reusable pump
lasts for years while the environmentally friendly
pouch system minimizes landfill impact.
CONSISTENT PORTIONS—SERVE BETTER
88876
USES PUMP
88877
Page 2

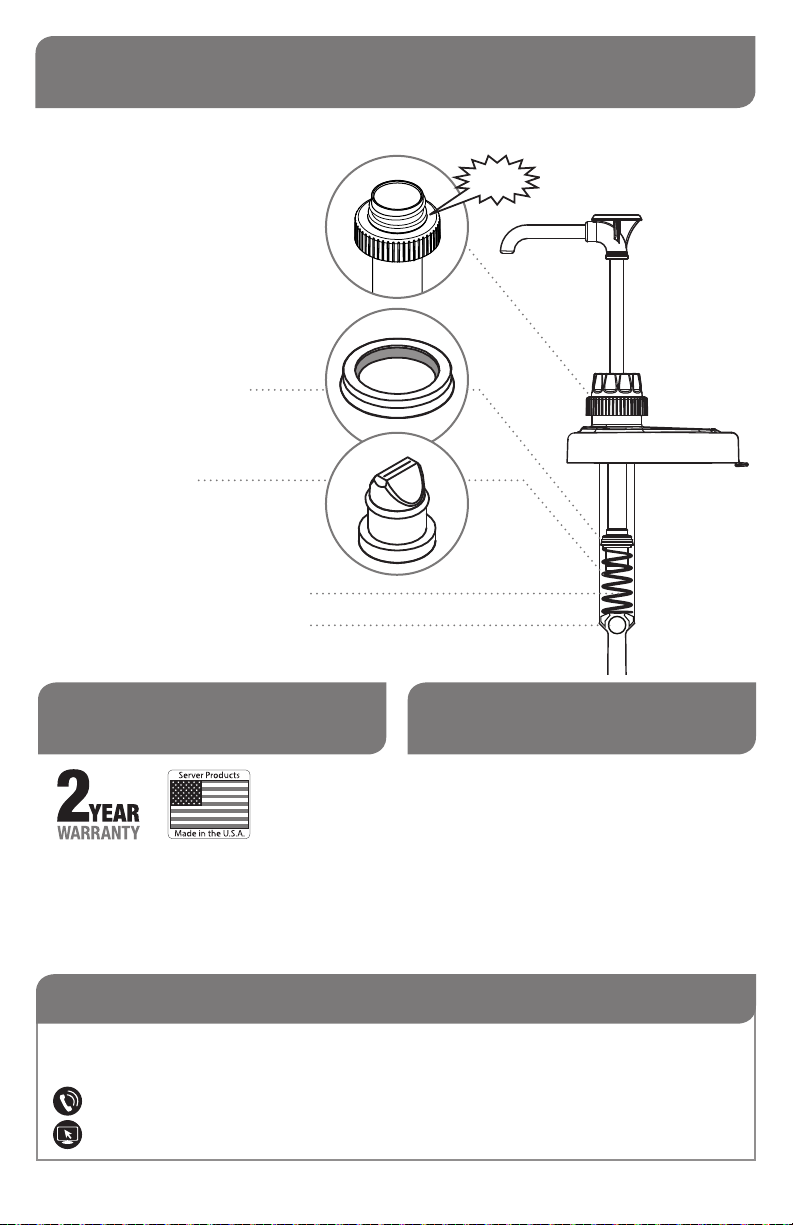

ECO DISPENSER™ PARTS
COMPLETE UNIT
88680 OR 88876
UNIT 88680
USE
PUMP 88548
UNIT 88876
USE
PUMP 88877
PUMP 88548 OR 88877
PUMP DELIVERS 1 OZ PORTIONS
To reduce portion, add optional
GAGING COLLAR(S) onto side of head assembly
PUMP PUMP
88548 88877
Small collar: 1/8 oz reduction 88313 88887
Medium collar: 1/4 oz reduction 88204 88888
Large collar: 1/2 oz reduction 88205 88879
HEAD
ASSEMBLY
PUMP 88548
USE
88545
PUMP 88877
USE
88718
DISCHARGE TUBE
LOCKING COLLAR
PUMP 88548:
STOP COLLAR
88409
PISTON
SEAL ASSEMBLY
(Seal & O-Ring) 83003
PINCH VALVE
88202
SPRING
PUMP 88548 USE 88166
PUMP 88877 USE 88395
Page 2
LID
88681
SHROUD
88682
CYLINDER
ASSEMBLY
88549
FOOD EQUIPMENT LUBRICANT 40179
11" BRUSH 82049
21" BRUSH
PUMP 88548 USE 88166
PUMP 88877 USE 84257
CAP
88016
CYLINDER
88553
STAINLESS STEEL BALL
1/2" DIAMETER
06022
(Ball snaps inside cylinder and
can always remain installed,
even during cleaning.)
Page 3
DISASSEMBLY
DISASSEMBLE AND WASH ALL PARTS
PROPERLY BEFORE USE.
During disassembly, collect small parts
in a container to prevent loss.
REMOVE LID, PUMP & POUCH
1
from shroud.
Push up back tab of lid to release lid from
pair of pegs.
DETACH POUCH
2
from bottom of pump.
UNSCREW CAP FROM LID
3
to remove pump.
SEPARATE CYLINDER
4
ASSEMBLY & HEAD
Loosen locking collar to release.
See page 4.
REMOVE SPRING & CAP
5
FROM CYLINDER
REMOVE PINCH VALVE
6
from head assembly.
REMOVE SEAL
7
from head assembly by pressing it
down and off with thumb.
Do not use a sharp tool.
REMOVE O-RING
8
FROM SEAL
REMOVE STOP COLLAR
9
& ANY GAGING COLLAR(S)
if necessary for cleaning.
Page 3
Page 4
SAFETY
According to food and safety regulations, most
foods must be stored and/or served at certain
temperatures or they could become hazardous.
Check with local food and safety regulators for
specific guidelines.
Be aware of the product you are serving and the
temperature the product is required to maintain.
Server Products, Inc. cannot be responsible for the
serving of potentially hazardous product.

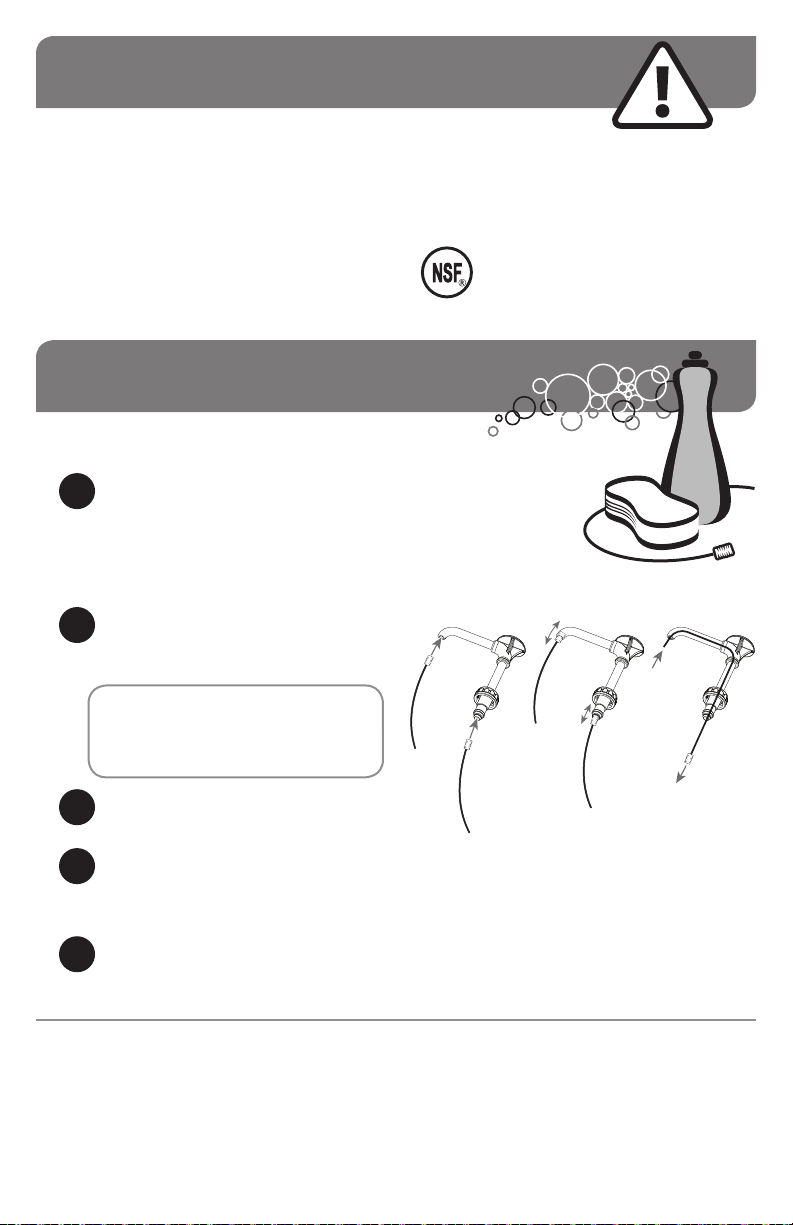

CLEANING
PUMP CLEANING
FLUSH & RINSE
1
all pump surfaces with hot water.
Place lower end of pump into container
of hot water and operate pump until all
remaining product is expelled and only hot
water is discharged.
DISASSEMBLE & CLEAN
2
all washable parts with soap and hot water
(See DISASSEMBLY on page 3.)
USE SUPPLIED BRUSH
to thoroughly clean inside discharge
tube and any confined areas.
IMPORTANT
Clean, rinse, sanitize, and dry parts daily or regularly
to comply with local sanitization requirements.
NSF International lists this pump as:
“Not acceptable for dispensing potentially
hazardous foods.”
YES!
Use dishwashing
soap, hot water
and nylon brush
Pump is dishwasher safe.
3
4
5
Page 4
RINSE
fully with clear water.
SANITIZE
all parts according to local sanitization
requirements. All parts in contact with food
must be sanitized.
AIR DRY
all parts fully.
LID & SHROUD CLEANING
Lid & Shroud may be wiped clean with
dishwashing soap & hot water.
Page 5

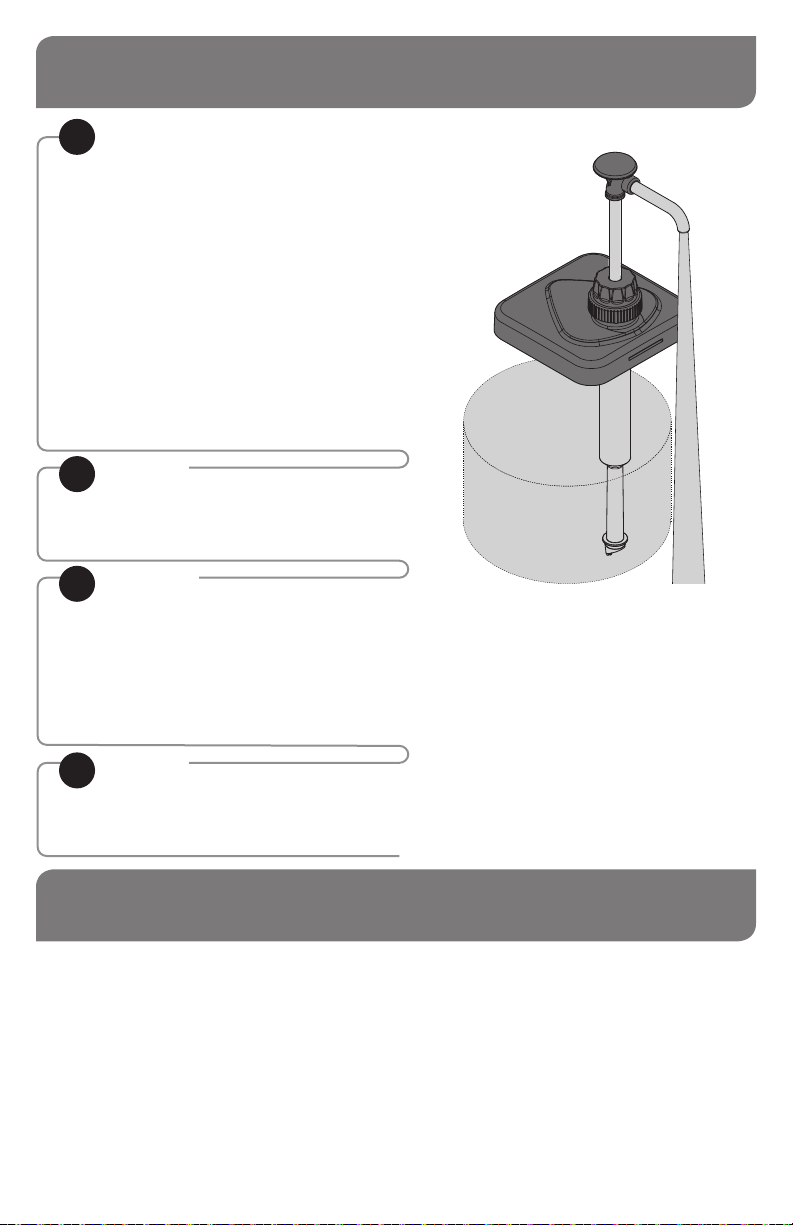

CLEAN-IN-PLACE PROCEDURE FOR PUMPS
CLEAN
1
• Pump out all (if any) remaining food
product from inside pump body.
• Wash and rinse off outside of pump body.
• Flush out and rinse inside of pump.
• Place lower end of pump into container
full of water and operate pump until all (if
any) remaining product is expelled
and only warm water flows from discharge
tube.
• Mix 1 tsp (5 mL) of dishwashing detergent
with 1 quart (.95 L) of hot tap water
(approximately 110°F/43°C).
• Place lower end of pump into cleaning
mixture. Pump until all cleaning mixture is
expelled.
RINSE
2
• Place lower end of pump into 2 cups
(.5 L) of hot tap water (approximately
110°F/43°C) and pump until all tap
water is expelled.
SANITIZE
3
• Mix one 1 oz (30 mL) packet of KAY-5
Sanitizer/Cleaner (EPA REG No. 5389-
15) with 2.5 gallons (9.5 L) of tap water
(approximately room temperature).
• Place lower end of pump into this
sanitizing mixture and repeatedly operate
pump until 1 quart (.95 L) sanitizing
mixture is pumped through pump.
RINSE
4
• Place lower end of pump into 1 cup
(.24 L) of hot tap water (approximately
110°F/43°C) and pump until all tap
water is expelled.
CARE OF STAINLESS STEEL
This durable pump includes
stainless steel components.
If you notice corrosion beginning on any
stainless steel surface, you may need to change
the cleansing agent, sanitizing agent, or the
cleaning procedures you are using.
• A mildly abrasive nylon or brass brush may
be used to remove any stubborn deposits.
• Fully rinsing and drying all parts can help
prevent corrosion. Elements and minerals in
tap water can accumulate on stainless steel
parts and create corrosion.
• Do not use abrasive, caustic or ammonia
based cleansers.
• Do not use products containing acids,
alkalines, chlorine, or salt. These agents can
corrode stainless steel.
• Do not use metal scrapers or cleaning pads
that could scratch surfaces.
Page 5
Page 6

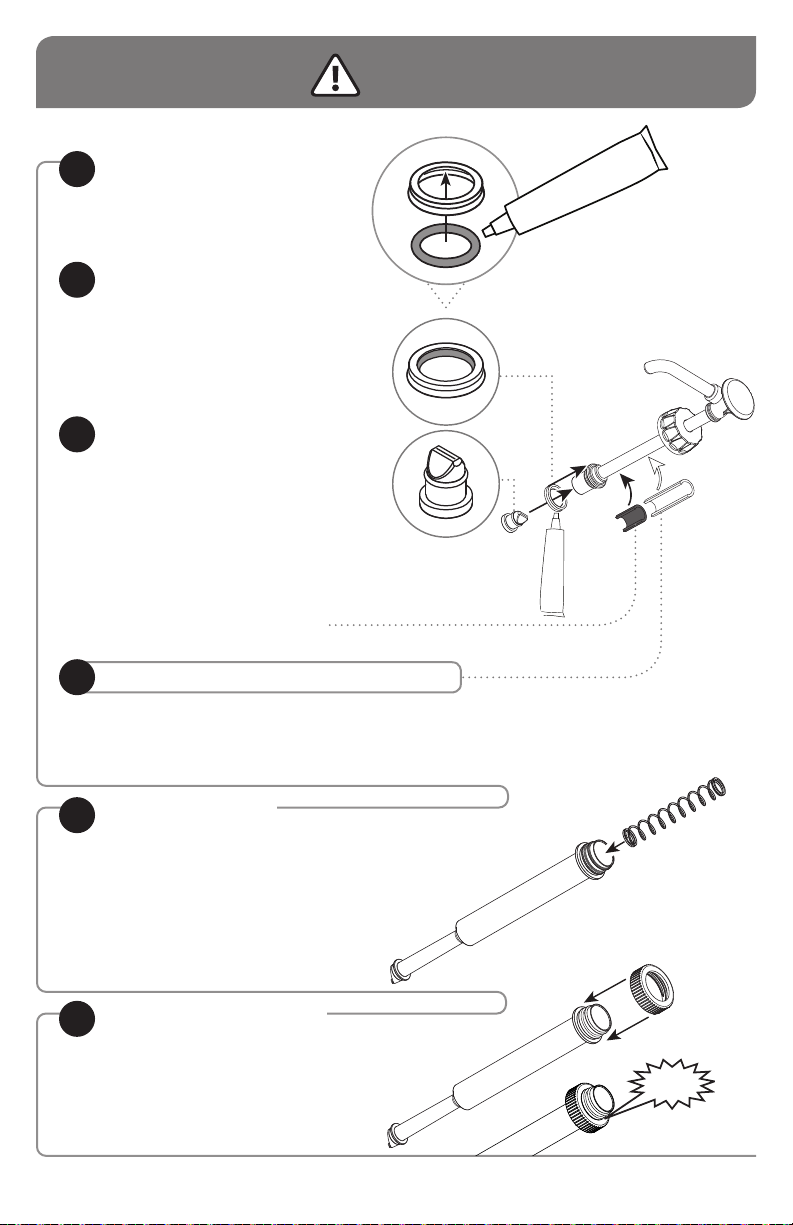

ASSEMBLY
INSTALL O-RING
1
into seal.
Apply food equipment lubricant
on O-ring
INSTALL SEAL
2
onto head assembly piston.
Apply small amount of food equipment
lubricant inside seal.
TIP: Flared end of seal should face
away from piston head.
INSTALL PINCH VALVE
3
TIP: Squeeze the pinch valve open
before installation to ensure it isn’t
stuck shut.
Install pinch valve into bottom of piston.
Press pinch valve securely to seal end.
PUMP 88548:
INSTALL STOP COLLAR
onto side of head assembly piston.
OPTIONAL: ADD GAGING COLLAR(S)
4
to reduce portion size.
Small collar: 1/8 oz reduction
Medium collar: 1/4 oz reduction
Large collar: 1/2 oz reduction
PRACTICE SAFETY. WASH ALL PARTS
PROPERLY BEFORE USE.
See page 4.
5
6
Page 6
INSERT SPRING
INTO CYLINDER
SNAP CAP ONTO
CYLINDER
Press firmly to secure cap down
over all threading on cylinder.
SNAP!
Page 7
INSTALL HEAD ASSEMBLY
7
INTO CYLINDER
Apply a small amount of food equipment
lubricant to the outside of seal.
Slide locking collar down onto cylinder
threading.
Tighten firmly to secure head assembly
to cylinder.
SECURE PUMP INTO LID
8
Tighten cap very firmly onto lid
threading.
ATTACH PUMP TO POUCH
9
• Place pouch on countertop with
pouch fitment circle facing upward.
• Position pump connector directly
over center of pouch fitment.
• Press pump connector down to pierce
through film in pouch fitment.
INSERT PUMP, LID &
10
POUCH COMBINATION
INTO BASE
Pump connector is fully
engaged when top surface
of pouch fitment touches
pump connector rim.
SECURE LID
11
Insert front slot of lid into tab
on face of base.
Push lid down to snap onto
back pegs on shroud.
PRIME PUMP
12
Press pump several times until any air
bubbles are eliminated and only product
is dispensed.
Page 7
Page 8
TROUBLESHOOTING
PRODUCT OOZES OUT FROM LOCKING COLLAR?
•
Ensure that the cap is securely snapped
into place past all threads on the cylinder.
INCONSISTENT PORTIONS?
• Clean pump.
• Ensure product container is not empty
and has enough product to pump.
• Ensure unit is
assembled correctly.
TIP: Seal has a slight taper.
Install with flat side towards
top, flared side down.
• Ensure pinch valve is
installed correctly.
TIP: Squeeze the pinch valve
open before installation to
ensure it isn’t stuck shut.
• Ensure that the spring is functional.
Replace broken spring if necessary.
• Ensure that the stainless steel ball
is snapped in place below tabs.
SNAP!
SERVER PRODUCTS
LIMITED WARRANTY
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship.
For complete warranty information go to:
www.Server-Products.com
NEED HELP?
Server Products Inc.
3601 Pleasant Hill Road
Richfield, WI 53076 USA
262.628.5600 | 800.558.8722
SPSALES@SERVER-PRODUCTS.COM
Page 8
GENERAL SERVICE,
REPAIR OR RETURNS
Before sending any item to Server Products
for service, repair, or return, contact Server
Products customer service to request a Return
Authorization Number. Merchandise must be
sent to Server Products with this number. Service
is extremely prompt. Typically, units are repaired
and ship out within 48 hours of receipt.
Merchandise being returned for credit must be in
new and unused condition and not more than 90
days old and will be subject to a 20% restocking
charge.
Please be prepared with your Series Number and
Description located on the back of the unit.
Please refer to page 2 for individual Part Numbers.
