Server 88548 Service Manual

HERSHEY’S®
Classic Syrup
Dispenser

COMPLETE UNIT 87952

MODEL: SPPH

PUMP ONLY 88548

MODEL: BP-1

Used with Hershey’s
64 oz pouches
with 16mm fitments.

Thank You

...for purchasing this dispenser.
The reliable, reusable pump lasts for years
while the environmentally friendly pouch system
minimizes landfill impact.

CONSISTENT PORTIONS—SERVE BETTER

87952 DISPENSER PARTS

PUMP MODEL: BP-1

PUMP 88548

PUMP DELIVERS 1 OZ PORTIONS

To reduce portion, add optional

GAGING COLLAR(S)

onto side of head assembly

88313 Small collar: 1/8 oz reduction
88204 Medium collar: 1/4 oz reduction
88205 Large collar: 1/2 oz reduction

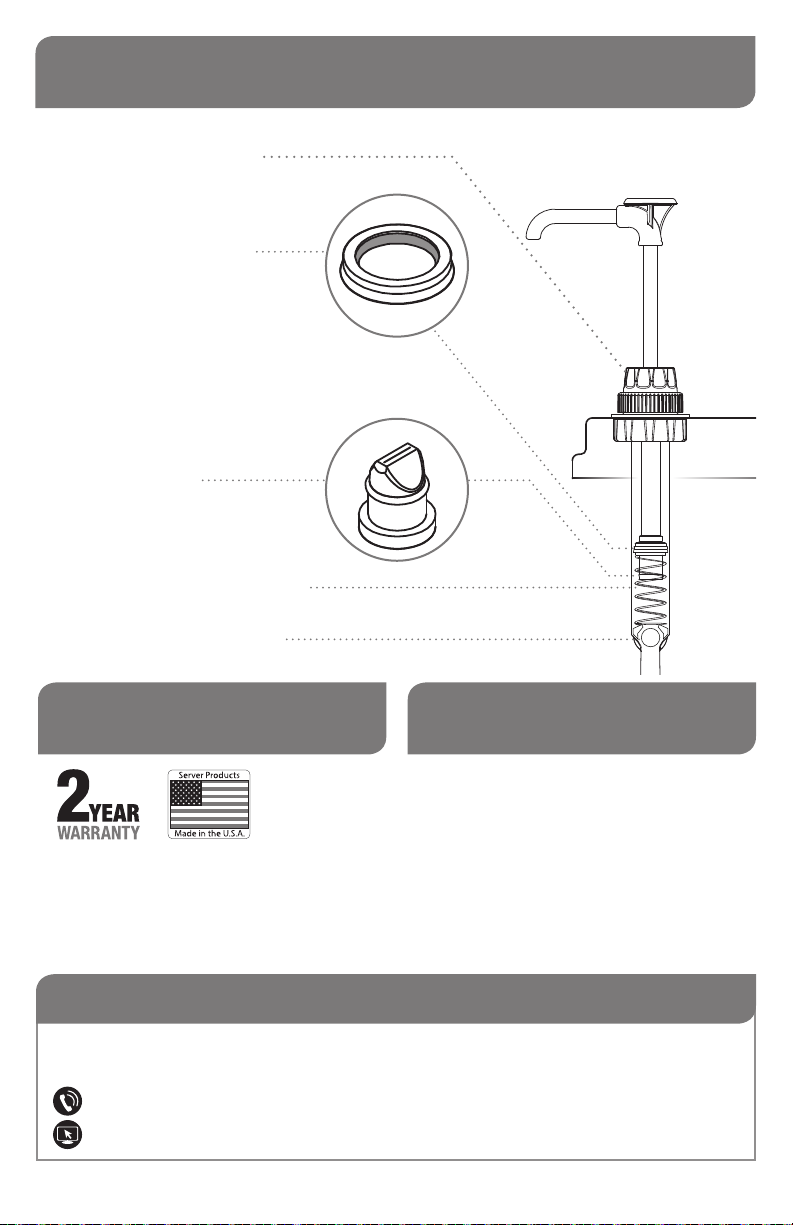

HEAD
ASSEMBLY
88545

DISCHARGE TUBE

LOCKING COLLAR

STOP COLLAR

88409

PISTON

SEAL ASSEMBLY
(Seal & O-Ring) 83003

PINCH VALVE

88202

SPRING

88166

UNIT MODEL: SPPH

COMPLETE UNIT 87952

PUMP

88548

THREADED
INSERT
87956

LID
87955

CYLINDER
ASSEMBLY

88549

Page 2

CAP

88016

CYLINDER

88553

STAINLESS STEEL BALL
1/2" DIAMETER

06022

(Ball snaps inside cylinder and
can always remain installed,
even during cleaning.)

FOOD EQUIPMENT LUBRICANT 40179

11" BRUSH 82049

21" BRUSH 82526

LOWER
COLLAR

87957

VESSEL
WITH
DECAL
87958

DISASSEMBLY

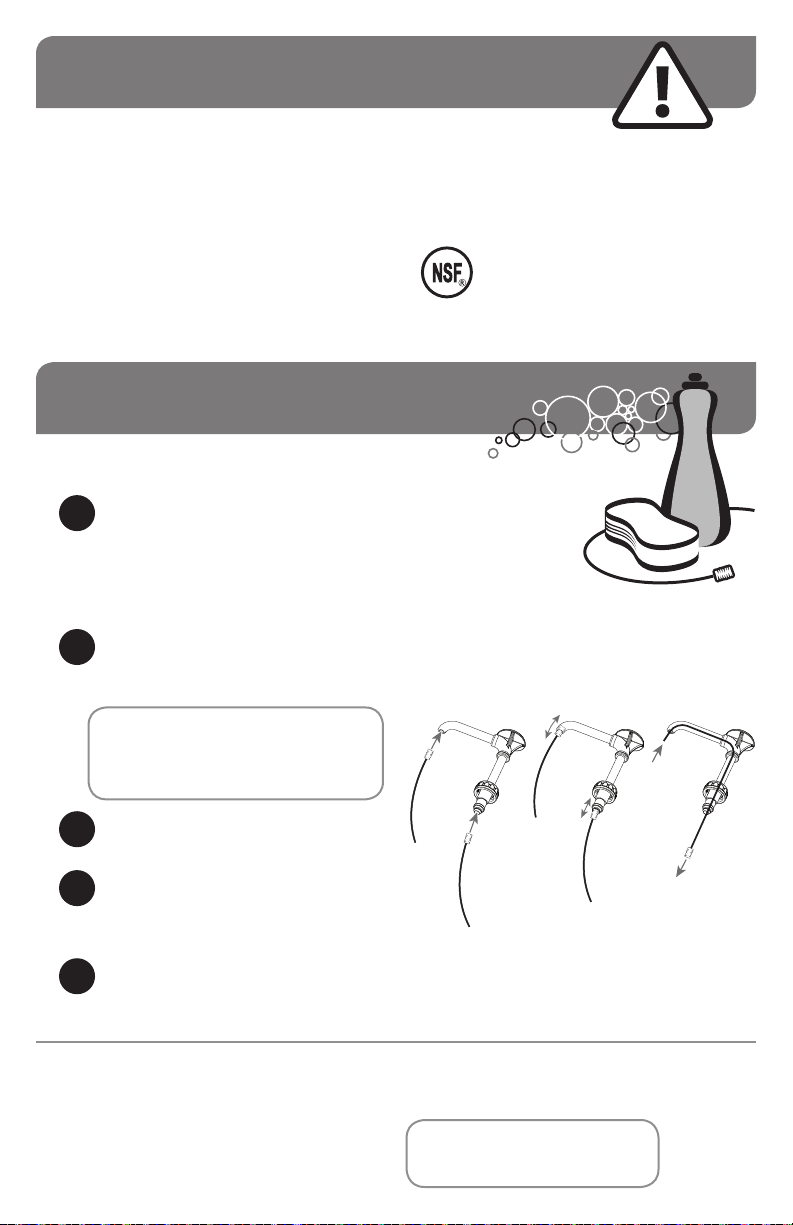

DISASSEMBLE AND WASH ALL PARTS
PROPERLY BEFORE USE. See page 4.

During disassembly, collect small parts
in a container to prevent loss.

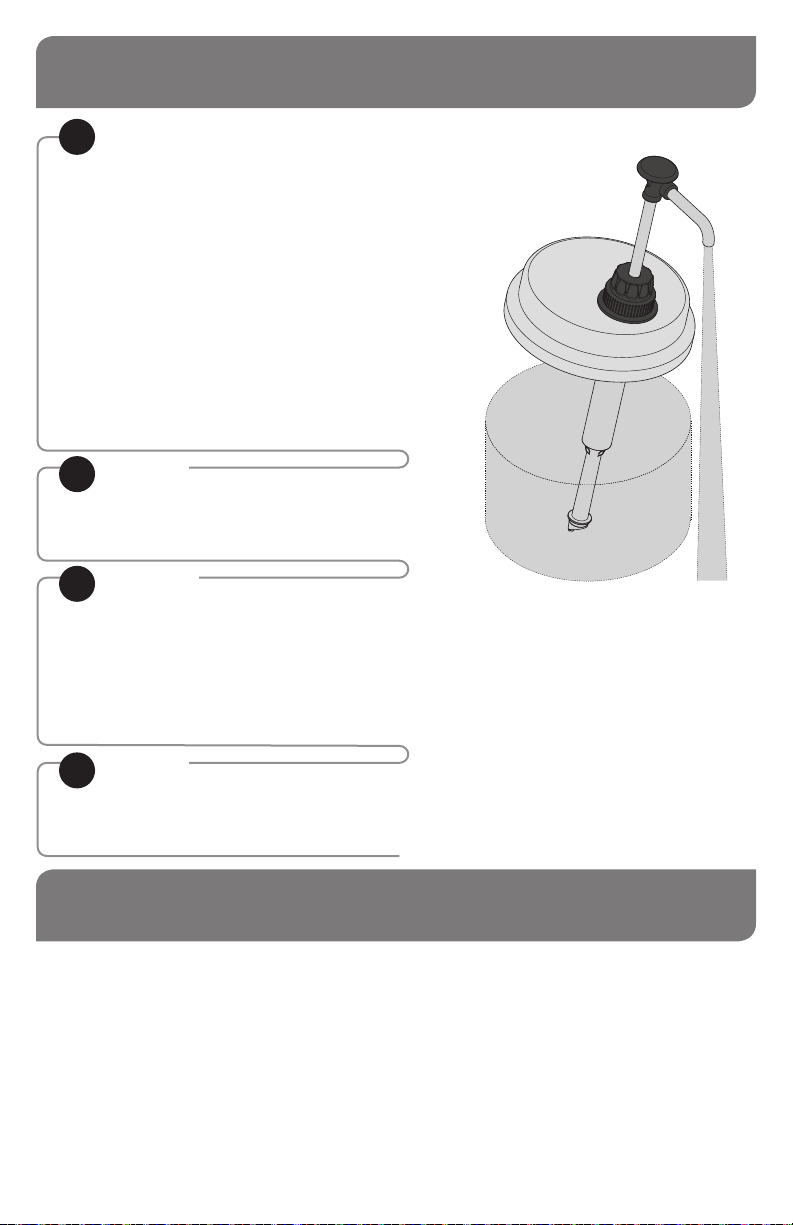

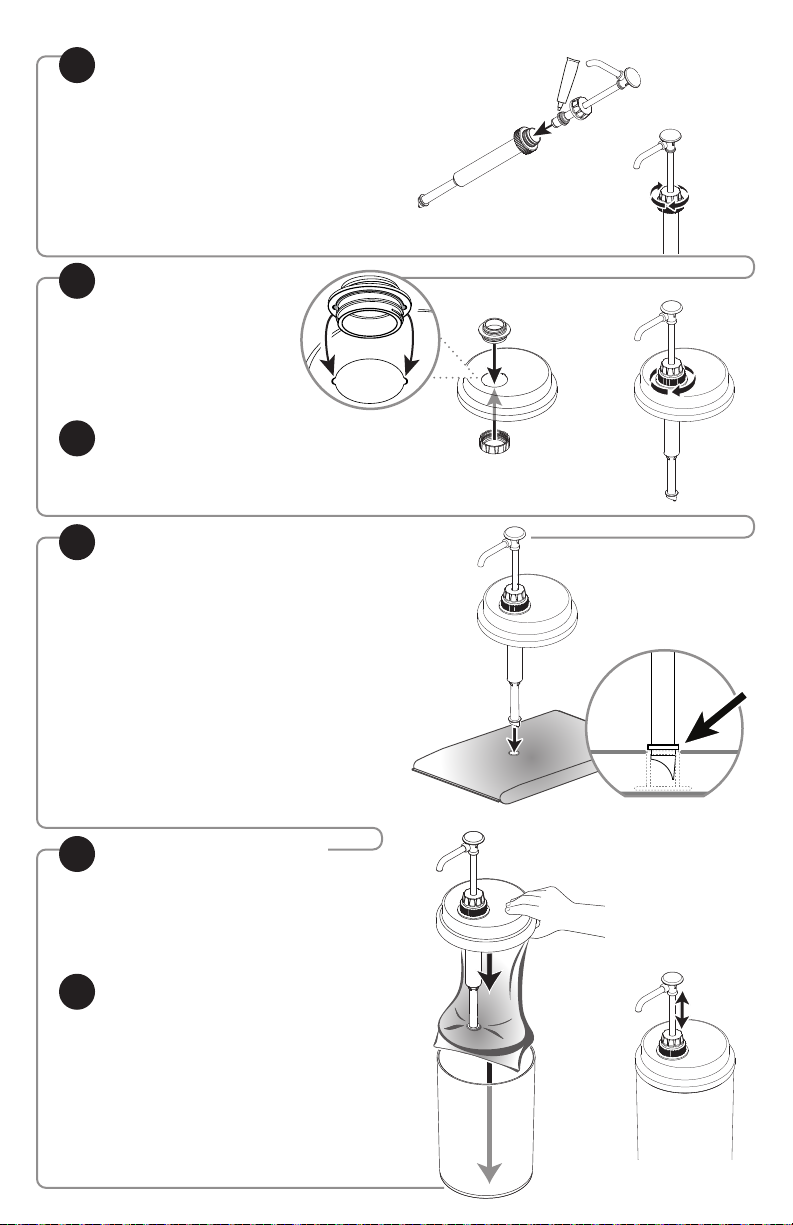

REMOVE LID, PUMP & POUCH

1

from vessel.

DETACH POUCH

2

from bottom of pump.

SEPARATE LID FROM PUMP

3

Unscrew cap from threaded insert in lid
to remove pump.

SEPARATE LID PARTS

4

Unscrew lower collar from
threaded insert to release parts.

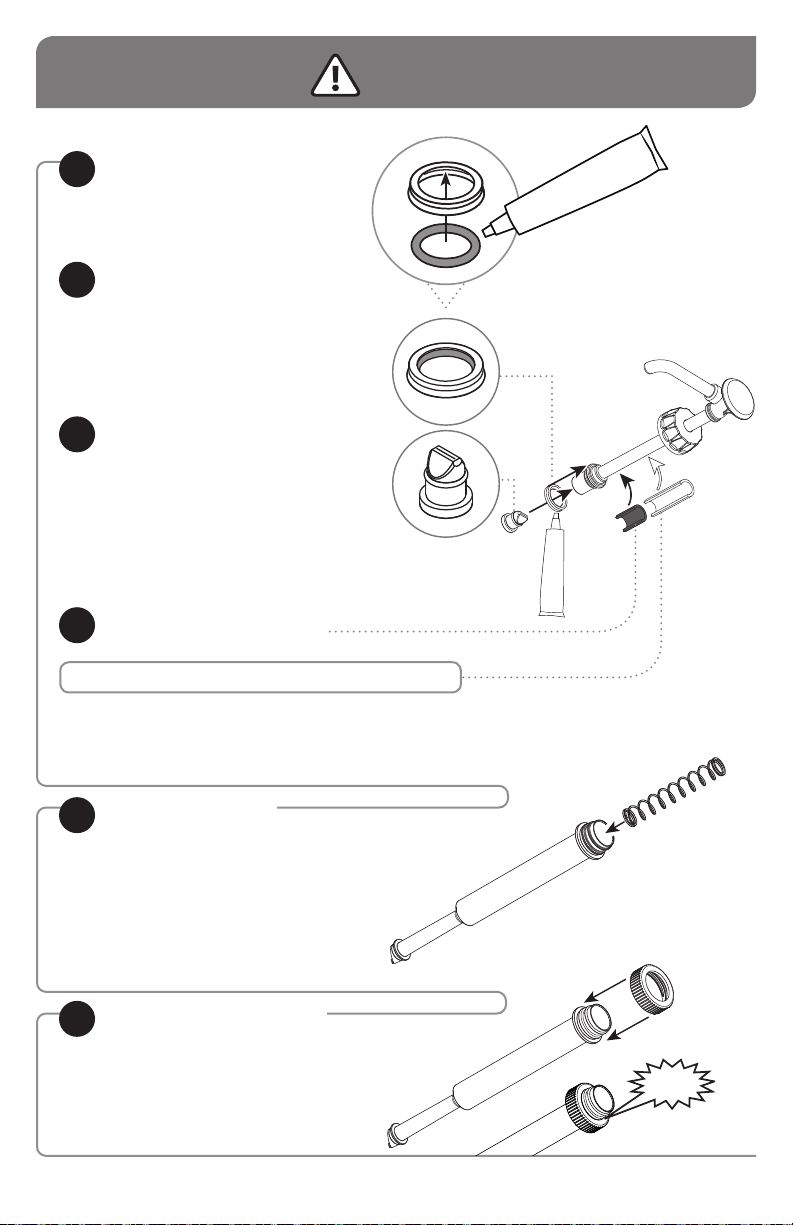

SEPARATE CYLINDER

5

ASSEMBLY & HEAD

Loosen locking collar to release.

REMOVE SPRING & CAP

6

FROM CYLINDER

REMOVE PINCH VALVE

7

from head assembly.

REMOVE SEAL

8

from head assembly by pressing it
down and off with thumb.
Do not use a sharp tool.

REMOVE O-RING

9

FROM SEAL

REMOVE STOP COLLAR

10

& ANY GAGING COLLAR(S)

if necessary for cleaning.

Page 3
