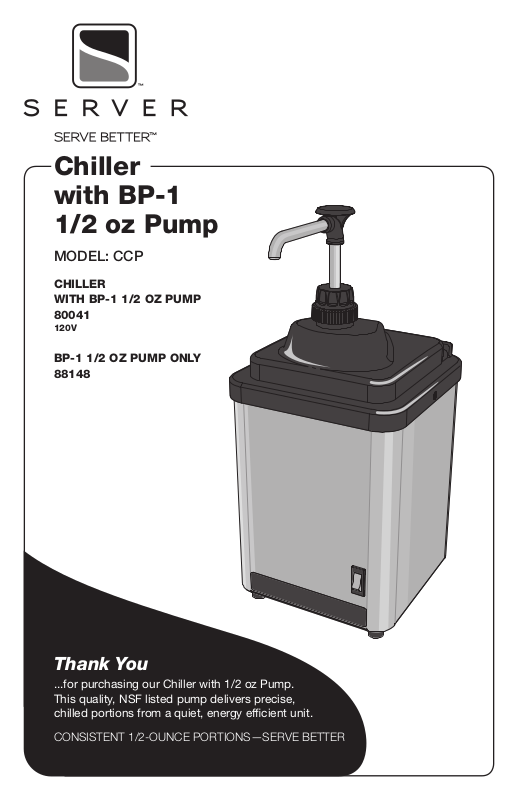

Page 1
Chiller
with BP-1
1/2 oz Pump
MODEL: CCP
CHILLER
WITH BP-1 1/2 OZ PUMP
80041
120V
BP-1 1/2 OZ PUMP ONLY
88148
Thank You
...for purchasing our Chiller with 1/2 oz Pump.
This quality, NSF listed pump delivers precise,
chilled portions from a quiet, energy efficient unit.
CONSISTENT 1/2-OUNCE PORTIONS—SERVE BETTER
Page 2
PUMP FOR CHILLER
BP-1 1/2 OZ CHILLER PUMP
88148
LOCKING COLLAR
PISTON
SEAL
83005
PINCH VALVE
88202
SPRING
88166
GAGING COLLARS:
1/8 OZ REDUCTION
88313
1/4 OZ REDUCTION
88204
1/2 OZ REDUCTION
88205
STOP COLLAR
88409
CAP
CYLINDER ASSEMBLY
88348
STAINLESS STEEL BALL
06022
(Ball snaps inside cylinder
and can always remain installed.)
CHILLER LID
86255
FOOD EQUIPMENT
LUBRICANT
40179
11" BRUSH
82049
21" BRUSH
82526
Page 2
BP TOOL
88129
(Assists with
disassembly.
See page 9.)
Page 3
CHILLER WITH PUMP
CHILLER WITH 1/2 OZ PUMP
MODEL: CCP
80041
BP-1 1/2 OZ
CHILLER
PUMP
88148
VESSEL
WITH THERMOMETER STRIP
86144
TOP
86938
CORD WITH CONNECTOR
86584
12V ROCKER SWITCH
86032
CHILLER FAN
86007
FILTER (PACK OF 5)
86067
(Replacement feet available.
Order part number 81058.)
Page 3
Page 4
SAFETY
WARNING-
ELECTRICAL SHOCK COULD OCCUR
This unit must be earthed or grounded.
This requires all three prongs (terminals) on cord
plug to be plugged into power source.
NSF International list this pump as
“Not acceptable for dispensing
potentially hazardous foods.”
FOOD SAFETY-
According to food and safety regulations, most
foods must be stored and/or served at certain
temperatures or they could become hazardous.
Check with local food and safety regulators for
specific guidelines.
It is the responsibility of the user to ensure
that any product is held and served at a
safe temperature.
Be aware of the product you are serving and the
temperature the product is required to maintain.
Server Products, Inc. can not be responsible for
the serving of potentially hazardous product.
Server Products, Inc. claims no responsibility for
actual serving temperature of product.
Page 4
Page 5
PUMP ASSEMBLY
SNAP ON GAGING COLLAR(S)
1
To set portion size to 1/2 oz:
Attach largest gaging collar
(1/2 oz reduction) and black stop collar
between locking collar and piston.
(Other gaging collars may be added to
decrease portions by 1/8 and 1/4 oz.)
INSTALL SEAL
2
onto head assembly piston.
Apply small amount of food equipment
lubricant inside seal.
Flared end of seal should face away from
piston head.
INSTALL PINCH VALVE
3
Apply small amount of food equipment
lubricant inside bottom of piston.
Install pinch valve into bottom of piston.
Rotate pinch valve to spread lubricant
evenly.
Press pinch valve securely to seal end.
INSTALL SPRING INTO
4
CYLINDER
CLEAN PUMP THOROUGHLY
BEFORE EVERY USE. See page 9.
SNAP CAP ONTO CYLINDER
5
INSTALL HEAD ASSEMBLY
6
INTO CYLINDER
Apply a small amount of food equipment
lubricant inside top of cylinder and outside
of seal.
Slide locking collar down onto cylinder
threading and tighten to secure head
assembly to cylinder.
INSERT PUMP INTO LID
7
Tighten threaded cap to secure.
Page 5
Page 6
UNIT SETUP
PLUG CORD IN
1
Connect unit, adapter and plug into outlet.
PRESS SWITCH ON
2
PRE-COOL FOR 20 MINUTES
3
REMOVE PUMP
4
CLEAN UNIT THOROUGHLY
BEFORE EVERY USE. See page 8.
5
6
Page 6
INSERT VESSEL
• Product being served must always
be inside vessel.
Never place food directly
into basin of unit.
• For best performance, product placed
in vessel should already be chilled to
desired temperature.
• Vessel maximum capacity is 2 quarts.
• Do not overfill.
INSTALL PUMP
Monitor temperature
for food safety and quality.
View thermometer strip on vessel.
FOR BEST COOLING
• Keep unit on all day and all night
to prevent undesired temperatures.
• Unit should remain on continuously,
as a refrigerator.
Page 7
UNIT TAKE-DOWN
PRESS SWITCH OFF
1
UNPLUG CORD
2
REMOVE PUMP
3
REMOVE VESSEL
4
CLEANING OR REPLACING FILTER
CLEAN FILTER REGULARLY FOR BEST PERFORMANCE
Change or clean filter at least once per month.
SEE "UNIT TAKE-DOWN" ABOVE
1
Ensure unit is OFF and unplugged.
REMOVE FILTER DRAWER
2
Slide out from beneath unit.
SEPARATE FILTER GUARDS
3
REMOVE FILTER
4
CLEAN FILTER
5
• Wash with hot water and
dishwashing detergent.
• Fully rinse.
IF NECESSARY, CLEAN FAN COVER
• Dampen cloth with dishwashing liquid
or mild sanitizing detergent.
• Wring out any excess water.
• Wipe down fan cover on underside of unit.
OR
REPLACE FILTER
Packs of 5 replacement filters are available.
Order Server Products Part 86067.
262.628.5600 | 800.558.8722 | spsales@server-products.com
WARNING-
ELECTRICAL SHOCK COULD OCCUR
Never allow water into fan area.
Liquid in unit could result in
electrical shock or damage to unit.
Page 7
Page 8
CLEAN-IN-PLACE PROCEDURE FOR PUMPS
CLEAN
1
• Pump out all (if any) remaining food product from
inside pump body.
• Wash and rinse off outside of pump body.
• Flush out and rinse inside of pump.
• Place lower end of pump into container full of water
and operate pump until all (if any) remaining
product is expelled and only warm water flows from
discharge tube.
• Mix 1 tsp (5 mL) of dishwashing detergent with
1 quart (.95 L) of hot tap water
(approximately 110°F/43°C).
• Place lower end of pump into cleaning mixture.
Pump until all cleaning mixture is expelled.
RINSE
2
• Place lower end of pump into 2 cups (.5 L) of hot
tap water (approximately 110°F/43°C) and pump
until all tap water is expelled.
SANITIZE
3
• Mix one 1 oz (30 mL) packet of KAY-5 Sanitizer/
Cleaner (EPA REG No. 5389-15) with 2.5 gallons
(9.5 L) of tap water (approximately room
temperature).
• Place lower end of pump into this sanitizing mixture
and repeatedly operate pump until 1 quart (.95 L)
sanitizing mixture is pumped through pump.
RINSE
4
• Place lower end of pump into 1 cup (.24 L) of hot
tap water (approximately 110°F/43°C) and pump
until all tap water is expelled.
CLEAN THE CHILLER
WARNINGELECTRICAL SHOCK COULD OCCUR
• Electrical components of unit could be
damaged from water exposure or any liquid.
• Never immerse unit into water or any liquid.
• Never use any water jet or pressure sprayer
on unit.
• Ensure unit is “OFF” and unplugged.
Page 8
CLEAN EXTERNAL SURFACES
• Wipe daily with a clean damp cloth.
• Dry with a clean soft cloth.
• Glass and surface cleaners approved for use
in food contact areas may be used.
Page 9
PUMP DISASSEMBLY
During disassembly, collect small parts
in a container to prevent loss.
THE BP TOOL
may be used to remove the
pinch valve and seal from the piston.
CLEAN THE PUMP
FLUSH & RINSE
1
all pump surfaces with hot water.
Place lower end of pump into container
of hot water and operate pump until all
remaining product is expelled and only hot
water is discharged.
DISASSEMBLE & CLEAN
2
all washable parts with soap and hot water
(See PUMP DISASSEMBLY above.)
USE SUPPLIED BRUSH
to thoroughly clean inside discharge
tube and any confined areas.
RINSE
3
fully with clear water.
SANITIZE
4
all parts according to local sanitization
requirements. All parts in contact with food
must be sanitized.
AIR DRY
5
all parts fully.
YES!
Use dishwashing
soap, hot water
and nylon brush
Pump is dishwasher safe.
Page 9
Page 10
TROUBLESHOOTING
UNIT DISPENSES LITTLE OR NO PRODUCT?
INCONSISTENT PORTIONS?
• Clean pump.
• Ensure vessel is not empty
and has enough product to pump.
• Ensure unit is
assembled correctly.
TIP: Seal has a slight taper.
Install with flat side towards
top, flared side down.
Top of seal has writing:
"INSERT PISTON THIS SIDE"
• Ensure pinch valve is
installed correctly.
TIP: Squeeze the pinch valve
open before installation to
ensure it isn’t stuck shut.
• Ensure that the spring is functional.
Replace broken spring if necessary.
• Ensure that the stainless steel ball
is snapped in place below tabs.
If ball is not captured within tabs,
use long rod of BP tool to pop ball back into place.
UNIT DOES NOT COOL?
• Ensure that the cord is securely plugged in.
Verify that the cord is plugged into the unit,
the power supply adapter, and the outlet.
• Ensure that power is available from the source.
• Ensure that fan is running.
• Ensure that filter is clean.
Replace if needed. (See page 7.)
• Do not add warm product to vessel.
Food product should already be at a
chilled temperature when added to vessel.
Page 10
Page 11
WIRING
1
P1
P2C P3 P6 P4
8
6
BLACK
RED
5
3
1
2
3
27
4
Chiller Circuit Board, 3.35V
1
Chiller Fan
2
Lighted Rocker Switch, 12V
3
Power Inlet Assembly Connector
4
Power Supply, 5", 5A, 4 Pin Connector
5
Thermistor
6
Chip Assembly
7
Wire Harness, Ground
8
Page 11
Page 12
CARE OF STAINLESS STEEL
This chiller is constructed of
stainless steel— one of the
best materials for food serving
and storage.
If you notice corrosion beginning on any stainless
steel surface, you may need to change the
cleansing agent, sanitizing agent, or the cleaning
procedures you are using.
SERVER PRODUCTS
LIMITED WARRANTY
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship.
For complete warranty information go to:
www.Server-Products.com
• A mildly abrasive nylon or brass brush may
be used to remove any stubborn deposits on
interior surfaces of unit.
• Fully rinsing and drying all parts can help
prevent corrosion. Elements and minerals in
tap water can accumulate on stainless steel
parts and create corrosion.
• Do not use abrasive, caustic or ammonia
based cleansers.
• Do not use products containing acids,
alkalines, chlorine, or salt. These agents can
corrode stainless steel.
• Do not use metal scrapers or cleaning pads
that could scratch surfaces.
GENERAL SERVICE,
REPAIR OR RETURNS
Before sending any item to Server Products
for service, repair, or return, contact Server
Products customer service to request a Return
Authorization Number. Merchandise must be
sent to Server Products with this number. Service
is extremely prompt. Typically, units are repaired
and ship out within 48 hours of receipt.
Merchandise being returned for credit must be in
new and unused condition and not more than 90
days old and will be subject to a 20% restocking
charge. Electrical parts (thermostats, heating
elements, etc.) are not returnable.
Servicing Cord: Specific tools are required for
safe and proper power supply cord removal
and installation. If cord must be replaced, only
a representative of the OEM (original equipment
manufacturer) or a qualified technician may
replace cord. Cord must meet code designation
H05 RN-F requirements.
HELP or ORDERING REPLACEMENT PARTS
Server Products Inc.
3601 Pleasant Hill Road
Richfield, WI 53076 USA
262.628.5600 | 800.558.8722
SPSALES@SERVER-PRODUCTS.COM
Page 12
Please be prepared with your Series Number and
Description located on the back of unit.
Individual Part Numbers listed on pages 2 and 3.
Manual #01766-RevA 062416
Loading...
