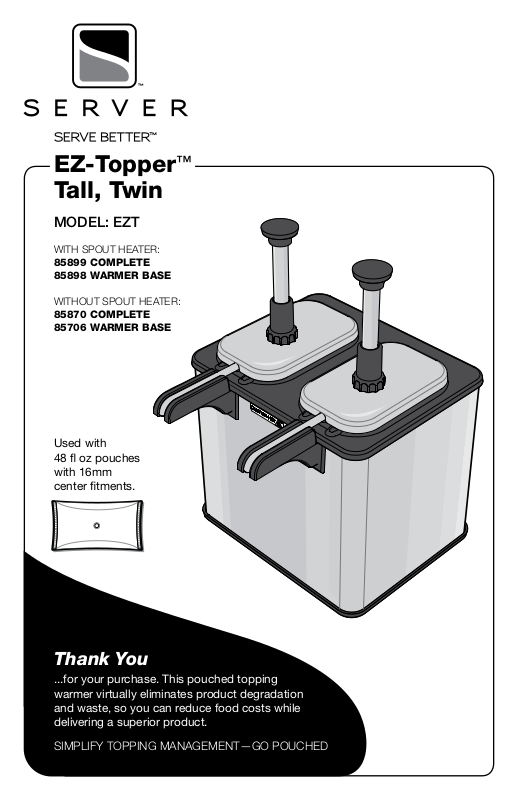

Page 1
EZ-Topper™
Tall, Twin
MODEL: EZT
WITH SPOUT HEATER:
85899 COMPLETE
85898 WARMER BASE
WITHOUT SPOUT HEATER:
85870 COMPLETE
85706 WARMER BASE
Used with
48 fl oz pouches
with 16mm
center fitments.
Thank You
...for your purchase. This pouched topping
warmer virtually eliminates product degradation
and waste, so you can reduce food costs while
delivering a superior product.
SIMPLIFY TOPPING MANAGEMENT—GO POUCHED
Page 2
PARTS
CARAMEL KNOB
82023-024
FUDGE KNOB
82023-015
EZ-TOPPER PUMPS (2)
85820
POUCH SUPPORTS (2)
85819
OPTIONAL:
USE KNOBS TO
QUICKLY IDENTIFY
PUMP CONTENTS
WARMER BASE
WITH HEATED SPOUTS 85898 (SHOWN)
WITHOUT HEATED SPOUTS 85706
Units 85899
& 85898
include
MAGNETIC DECAL
84974
Page 2
FOOT
07429
Page 3
SAFETY
According to food and safety regulations, most
foods must be stored and/or served at certain
temperatures or they could become hazardous.
Check with local food and safety regulators for
WARNING-
ELECTRICAL SHOCK COULD OCCUR
This unit must be earthed or grounded.
This requires all three prongs (terminals) on cord
plug to be plugged into power source.
specific guidelines.
Be aware of the product you are serving and the
temperature the product is required to maintain.
Server Products, Inc. can not be responsible for
the serving of potentially hazardous product.
PRE-HEATING PRODUCT POUCHES
• Install pump with pouch.
(See UNIT SETUP, pg. 4.)
• Adjust thermostat to food manufacturer's
recommended serving temperature.
Make change-outs a cinch.
Place a reserve pouch in the bottom
of the base.
When the primary pouch is emptied,
the reserve pouch is pre-heated
and ready for use.
Cutaway view shows:
Reserve Pouch
in base bottom
Pouch Support
in base bottom
Page 3
Page 4
WASH ALL PARTS PROPERLY
UNIT SETUP
BEFORE EVERY USE.
SEE SEPARATE PUMP MANUAL FOR PUMP SETUP.
See page 6.
INSERT INTO BASE: POUCH SUPPORTS RESERVE POUCHES
1
IMPORTANT: A pouch
support or reserve pouch
gives the primary pouch the
proper elevation to dispense
all product and heat evenly.
ATTACH EACH PUMP
2
OR
TO EACH PRIMARY POUCH
• Place pouch on countertop with
pouch fitment circle facing upward.
• Position pump connector directly
over center of pouch fitment.
• Press pump connector down to
pierce through film in pouch fitment.
INSTALL PUMPS WITH
3
SNAP
Pump is fully engaged when
top surface of pouch fitment
touches pump connector rim.
POUCHES INTO BASE
4
5
6
Page 4
PLUG CORD into power source.
PRESS SWITCH to the “ON” position.
SET THERMOSTAT KNOBS
to food manufacturer's recommended
serving temperature(s).
• Dial indicators use increments of 5º F.
• Thermostat maximum is 210º F/99º C.
Page 5
UNIT TAKE-DOWN
PRESS SWITCH to the “OFF” position.
1
UNPLUG CORD
2
CAUTION- HOT
Allow unit to cool before continuing or
use proper care with hot surfaces.
REMOVE PUMPS
3
WITH POUCHES
REMOVE POUCH SUPPORTS
4
OR RESERVE POUCHES
DETACH POUCHES
5
from bottom of pumps.
FLUSH AND RINSE PUMPS
6
Thoroughly rinse all inside and outside
surfaces of pumps with hot water.
DISASSEMBLE AND CLEAN PUMPS.
7
SEE SEPARATE PUMP MANUAL FOR PUMP CLEANING.
Page 5
Page 6
CLEANING
SEE SEPARATE PUMP MANUAL
FOR PUMP INSTRUCTIONS.
WARNING-
ELECTRICAL SHOCK COULD OCCUR
• Electrical components of unit could be
damaged from water exposure or any liquid.
• Never immerse unit into water or any liquid.
• Never use any water jet or pressure sprayer
on unit.
• Ensure unit is “OFF” and unplugged.
CAUTION- HOT
Allow unit to cool before cleaning.
CLEAN EXTERNAL SURFACES
• Wipe daily with a clean damp cloth.
• Dry with a clean soft cloth.
• Glass and surface cleaners approved for use
in food contact areas may be used.
CARE OF STAINLESS STEEL
This warmer and accessories are
constructed of stainless steel—
one of the best materials for food
serving and storage.
If you notice corrosion beginning on any stainless
steel surface, you may need to change the
cleansing agent, sanitizing agent, or the cleaning
procedures you are using.
Page 6
• A mildly abrasive nylon or brass brush may
be used to remove any stubborn food or
mineral deposits on interior surfaces of unit.
• Fully rinsing and drying all parts can help
prevent corrosion. Elements and minerals in
tap water can accumulate on stainless steel
parts and create corrosion.
• Do not use abrasive, caustic or ammonia
based cleansers.
• Do not use products containing acids,
alkalines, chlorine, or salt. These agents can
corrode stainless steel.
• Do not use metal scrapers or cleaning pads
that could scratch surfaces.
Page 7
WIRING
UNITS 85898, 85706 | 120V | USA
GROUND
STANDOFF PIN
OTHER VESSEL
ASSEMBLY
TOP (USING
10068 SCREW)
8
GROUND
STANDOFF PIN
(EITHER ONE)
9
10
6
GROUND STUD
CONTROL
PANEL
23
5
2 1
4
2 2
7
1 1
1
GREEN
WHITE
BLACK
21
5
6
7
Cord Assembly
1
Bushing/Strain Relief
2
Wire Nut
3
4" Wire Assembly, Black
4
Snap-In Rocker Switch
5
6" Wire Assembly, Black
6
Thermostat
7
Heating Element
8
6" Wire Assembly, Green
9
18" Wire Assembly, Green
10
Page 7
Page 8
TROUBLESHOOTING
UNIT DOES NOT HEAT?
• Ensure cord is securely plugged in.
• Ensure unit is on.
• Ensure thermostat knob is set correctly.
• Ensure power is available from source.
• Do not allow any of the electrical components
to get wet. Moisture may cause the unit to
trip breaker or GCFI. If moisture is suspected,
discontinue use. Allow unit to fully air dry.
SERVER PRODUCTS
LIMITED WARRANTY
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship.
For complete warranty information go to:
www.Server-Products.com
POUCH DOES NOT EVACUATE
ALL PRODUCT?
• Ensure
that the pouch is properly connected
with pump.
• Ensure that the pouch being dispensed is raised
to proper height. Always use either a pouch
support or a reserve pouch beneath
primary pouch.
GENERAL SERVICE,
REPAIR OR RETURNS
Before sending any item to Server Products for service,
repair, or return, contact Server Products customer
service to request a Return Authorization Number.
Merchandise must be sent to Server Products with this
number. Service is extremely prompt. Typically, units
are repaired and ship out within 48 hours of receipt.
Merchandise being returned for credit must be in new
and unused condition and not more than 90 days
old and will be subject to a 20% restocking charge.
Electrical parts (thermostats, heating elements, etc.)
are not returnable.
Servicing Cord: Specific tools are required for safe
and proper power supply cord removal and installation.
If cord must be replaced, only a representative of the
OEM (original equipment manufacturer) or a qualified
technician may replace cord. Cord must meet code
designation H05 RN-F requirements.
NEED HELP?
Server Products Inc.
3601 Pleasant Hill Road
Richfield, WI 53076 USA
262.628.5600 | 800.558.8722
SPSALES@SERVER-PRODUCTS.COM
Page 8
Please be prepared with your Model, Part and
Series Numbers. This information and other
important data is located on the lid and/or base
of the unit.
Manual #01745-RevD 020717
