Server 85782 Installation Manual

01884-RevB-062512

imPoRtant instRuCtions

PumP PaRts

KNOB

LOCKING COLLAR

GAGING COLLARS (Portion Control)
Each collar added reduces
portion served by .25 oz

HEAD TUBE

HEAD INSERT

SPRING

WASHER

.125 oz

model:

CP-RP

CP Remote PumP,
tall, shoRt CylindeR

Series 10A

85951

PISTON

SEAL ASSEMBLY

DISCHARGE TUBE

DISCHARGE TUBE NUT

DISCHARGE TUBE O-RING (1”D)

VALVE BODY

SEAL
SEAL O-RING

LID

CYLINDER

CYLINDER O-RING

5

/

(1

” D)

16

Clean-in-PlaCe PRoCeduRe
foR PumPs

cleAn-in-plAce iS A BASic four Step pump fluShing
proceSS: cleAn, rinSe, SAnitize, And rinSe.

Clean:

1 pump out All (if Any) remAining food product

from inSide pump Body.

2 WASh And rinSe off outSide of pump Body.
3 fluSh out And rinSe through inSide of pump.

• place lower end of pump into container full of
water and operate pump until all (if any) remaining

product is expelled and only warm water ows from

discharge tube.

4 mix 2 oz (5 ml) of diShWAShing detergent

(dAWn diShWAShing liquid) With 1 quArt
(.95 l) of hot tAp WAter (ApproximAtely
110°f/43°c).

5 plAce loWer end of pump into thiS cleAning

mixture And repeAtedly operAte pump until
All cleAning mixture iS pumped through pump.

Rinse:

6 plAce loWer end of pump into 2 cupS (.5 l) of

hot tAp WAter (ApproximAtely 110°f/43°c) And
repeAtedly operAte pump until All tAp WAter
iS pumped through pump.

sanitize:

7 mix one 1 oz (30 ml) pAcket of kAy-5

SAnitizer/cleAner (epA reg no. 5389-15) With

2.5 gAllonS (9.5 l) of tAp WAter (ApproximAtely
room temperAture).

8 plAce loWer end of pump into thiS SAnitizing

mixture And repeAtedly operAte pump until
1 quArt (.95 l) SAnitizing mixture iS pumped
through pump.

Rinse:

9 plAce loWer end of pump into 1 cup (.24 l) of

hot tAp WAter (ApproximAtely 110°f/43°c) And
repeAtedly operAte pump until All tAp WAter
iS pumped through pump.

Clean-in-PlaCe:
flush PumP With soaP, sanitizeR, and
hot WateR

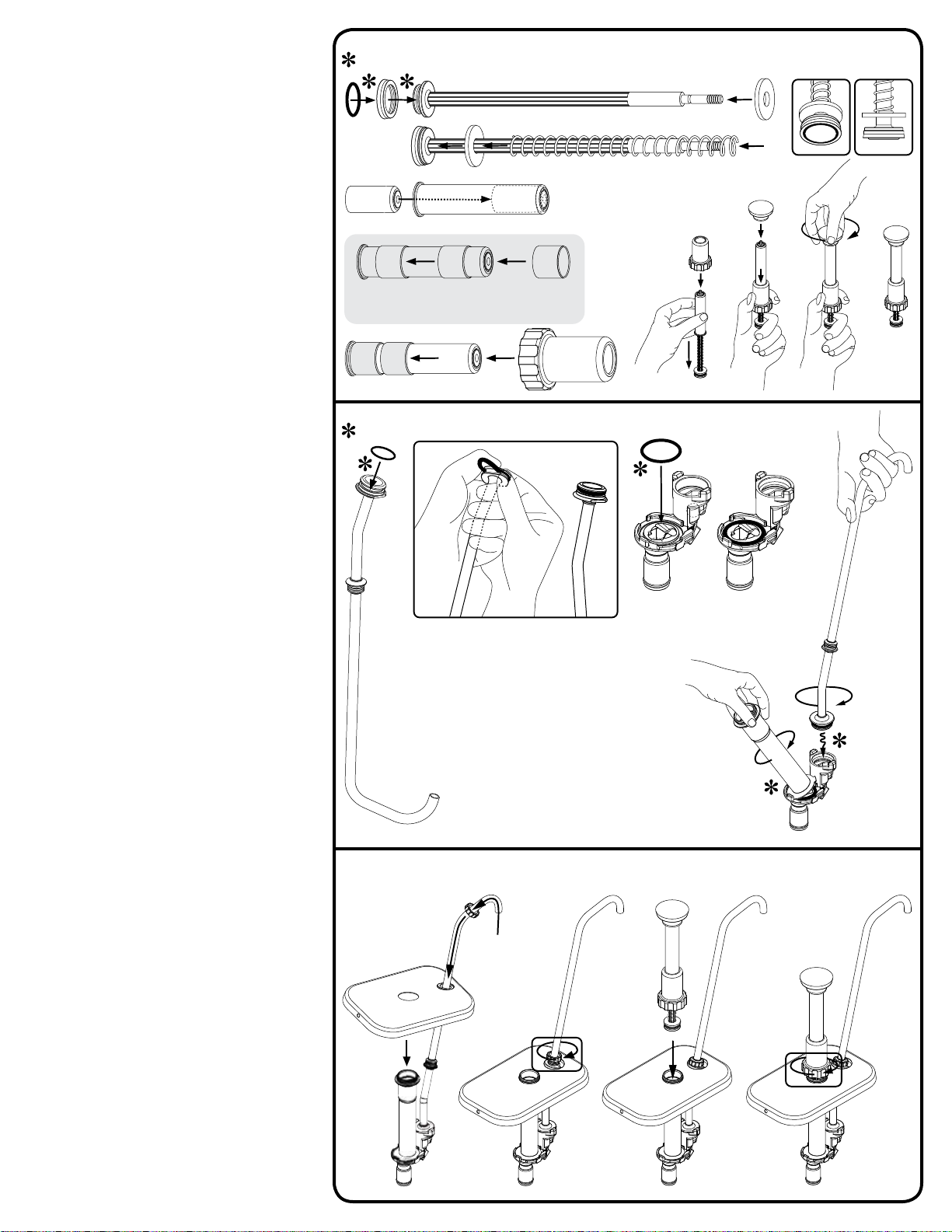

PumP disassemBly

Before firSt uSe And After uSe dAily, diSASSemBle
And cleAn pump.

1 pump out All (if Any) remAining food product

from inSide pump Body.

2 WASh And rinSe off outSide of pump Body.
3 fluSh out And rinSe through inSide of pump.

• place lower end of pump into container full of
water and operate pump until all (if any) remaining

product is expelled and only warm water ows from

discharge tube. then remove pump from container
of water to disassemble.

• use a container to collect small parts of pump to
prevent any loss.

4 remove plunger ASSemBly And lid from

pump Body By turning locking collAr And
diSchArge tuBe nut counterclockWiSe.

5 remove cylinder And diSchArge tuBe from

vAlve Body By rotAting counterclockWiSe to
releASe from SlotS in vAlve Body.

6 remove lArge o-ring from vAlve Body.
7 remove SmAll o-ring from diSchArge tuBe.

• Be careful not to damage o-ring when prying it off
of discharge tube.

8 remove knoB from plunger ASSemBly By

rotAting counterclockWiSe.

• firmly hold head tube towards piston head while
unscrewing knob. pressure on spring will release
and push knob off rapidly.

9 remove locking collAr from heAd tuBe.

• remove gaging collar(s), if used, from head tube by
sliding them off.

J remove heAd inSert from inSide heAd tuBe.
K remove Spring from piSton.
L remove WASher from piSton.
M remove SeAl ASSemBly from piSton heAd.

• Be careful not to damage seal when prying it off of
piston head.

N remove o-ring from inSide SeAl

• Be careful not to damage o-ring when prying it out
of seal.

imPoRtant PumP aReas to Clean:
Clean inside valve Body,
all sides of stainless steel Balls,
all valve Body PassageWays, and
all valve Body oPenings

PumP Cleaning

Before firSt uSe And After uSe dAily, diSASSemBle
And cleAn pump.
StAinleSS Steel pArtS cAn corrode.
it iS importAnt to cleAn, rinSe, SAnitize, And dry
theSe pArtS dAily And properly.
fAilure to comply With Any of theSe
inStructionS mAy void unit WArrAnty.

1 See pump diSASSemBly.
2 WASh And ScruB All pArtS With diShWAShing

detergent And hot WAter dAily.

• Wash small parts in a pan or other container
to prevent part loss.

• Use supplied brushes to clean all conned
areas. Maintain a clean and efcient pump

by using the brushes supplied with pump to
prevent product build up inside pump.

• imPoRtant PumP aReas to Clean: Clean
inside cylinder thoroughly with brush 82049.
Clean inside discharge tube and valve body
thoroughly with brush 82526.

• do not use abrasive cleansers, scrapers, steel pads,
steel wool, or other cleaning tools that can scratch
surfaces.

• A general purpose, nonabrasive cleaner may be
used on hard to remove food deposits.

• do not use cleansing agents with high
concentrations of acid, alkaline or chlorine.
these agents can corrode stainless steel.

• do not use ammonia to clean pump parts.
Ammonia can damage plastic parts.

• A nontoxic glass cleaner may be used for cleaning
any stainless steel parts.

3 fully rinSe All pArtS thoroughly With cleAr

WAter.

• fully rinsing all parts can help prevent corrosion.

4 dry All StAinleSS Steel pArtS With A cleAn

Soft cloth.

• various elements and minerals, such as chlorides in
tap water, can accumulate on stainless steel parts
and create corrosion.

• to prevent corrosion on any stainless steel parts,
it is important to fully dry with a clean soft cloth
regularly.

5 SAnitize pArtS folloWing your locAl

SAnitizAtion requirementS.
All pArtS in contAct With food muSt Be
SAnitized.

• Allow parts to fully air dry after sanitization.

• dishwasher safe.

FOOD EQUIPMENT
LUBRICANT 40179

1

BRUSH 82049 (1

/

” D)

4

BRUSH 82526 (21”)

imPoRtant PumP aReas to Clean:
Clean inside disChaRge tuBe and
taPeRed end of disChaRge tuBe
