Server 85480 Owner’s Manual

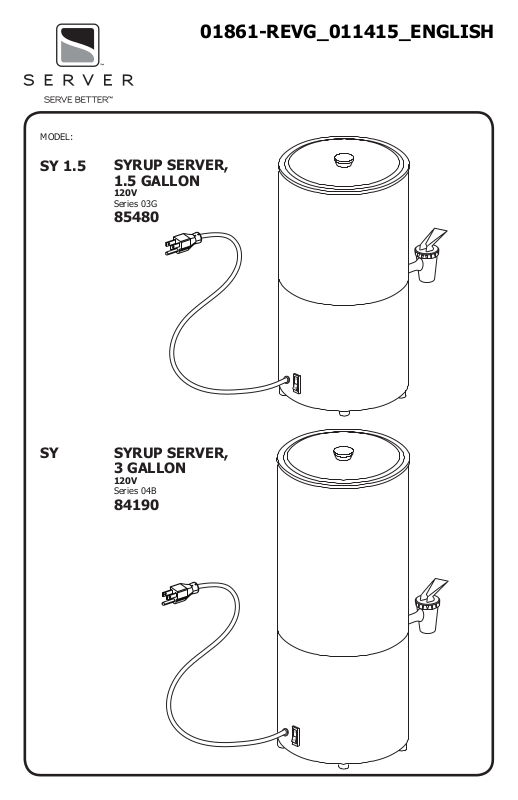

MODEL:
01861-REVG_011415_ENGLISH
SY 1.5
SY
SYRUP SERVER,
1.5 GALLON
120V
Series 03G
85480
SYRUP SERVER,
3 GALLON
120V
Series 04B
84190
ON
OFF
ON
OFF
SAFETY GUIDELINES WHEN
USING THIS UNIT:
C EWarning- Electrical shock could occur:
• This unit must be earthed or grounded.
• This requires all three prongs (terminals) on
cord plug to be plugged into power source.
According to food and safety regulations, most foods
must be stored and/or served at certain temperatures or
they could become hazardous. Check with local food and
safety regulators for specic guidelines.
Be aware of the product you are serving and the
temperature the product is required to maintain.
Server Products, Inc. can not be responsible for
the serving of potentially hazardous product.
Stainless steel is one of the best materials for food
serving and storage, but there are many products which
can corrode it. If you notice corrosion beginning on
any stainless steel surface, you may need to change
the cleansing agent, sanitizing agent, or the cleaning
procedures you are using.
• Products containing: acids, alkalines, chlorine,
or salt can corrode stainless steel.
• Sauerkraut and Au Jus sauces corrode stainless
steel. Server Products, Inc. regrets that we can not
honor Warranty claims on stainless steel parts that
have been affected by sauerkraut
or Au Jus.
SAFETY GUIDELINES WHEN
CLEANING THIS UNIT:
Ensure unit is “OFF” and unplugged.
Caution- Hot:
• If unit has already been in use, unit may still
be hot. Allow unit to cool before continuing.
C EWarning- Electrical shock could occur:
• Electrical components of unit could be
damaged from water exposure or any liquid.
• Never immerse unit into water or any liquid.
• Never use any water jet or pressure sprayer
on unit.
UNIT TAKE-DOWN
1 PRESS SWITCH TO “OFF” POSITION.
2 UNPLUG CORD.
Caution- Hot:
• If unit has already been in use, unit may
still be hot. Allow unit to cool before
continuing.
3 REMOVE COVER FROM UNIT.
4 EMPTY PRODUCT OUT OF VESSEL BY POURING
CONTENTS OUT OVER A DRAIN OR INTO A
STORAGE CONTAINER.
5 REMOVE FAUCET FROM UNIT BY UNSCREWING
FROM BASE OF UNIT.
6 DISASSEMBLE FAUCET BY UNSCREWING BONNET
FROM TOP OF BODY. THEN REMOVE CUP SEAT
FROM STEM.
IMPORTANT: FAUCET MUST BE FULLY
DISASSEMBLED AND CLEANED DAILY
TO PREVENT DRIPPING.
UNIT SET-UP
ALWAYS CLEAN UNIT AND FAUCET THOROUGHLY
BEFORE EACH USE. SEE UNIT TAKE-DOWN,
SAFETY GUIDELINES AND CLEANING.
1 MAKE SURE FAUCET IS CORRECTLY ASSEMBLED
AND SECURED ONTO BASE PRIOR TO FILLING
VESSEL WITH PRODUCT.
Thermostat Lock is preset at 140°F (60°C),
but is adjustable up to 180°F (82°C):
2 IF NECESSARY, ADJUST THERMOSTAT LOCK
TO RECOMMENDED PRODUCT SERVING
TEMPERATURE.
• Prior to lling vessel with product, or when vessel
is empty, set unit upside down on a work surface.
• Remove screw on thermostat lock by unscrewing
it counterclockwise.
• Set thermostat lock to desired temperature.
Thermostat lock rotates like a dial.
• Secure thermostat lock with screw. Rotate screw
clockwise to tighten.
3 FILL VESSEL WITH PRODUCT TO BE SERVED.
4 INSTALL COVER ONTO UNIT.
5 PLUG CORD INTO POWER SOURCE.
6 PRESS SWITCH TO THE “ON” POSITION.
Server Products Inc. claims no responsibility
for actual serving temperature of product. It is
the responsibility of the user to ensure that any
product is held and served at a safe temperature.
FAUCET ASSEMBLY 85487
1 INSTALL CUP SEAT INTO FAUCET STEM.
2 INSTALL BONNET ONTO TOP OF FAUCET BODY.
3 SECURE BONNET TO FAUCET BODY BY ROTATING
BONNET CLOCKWISE. IF BONNET IS WET, IT WILL
ASSEMBLE MUCH EASIER.
4 INSTALL CONICAL SHAPED RUBBER WASHER ONTO
THREADED SHANK OF FAUCET.
5 INSTALL FAUCET INTO HOLE.
6 INSTALL NUT ONTO FAUCET THREADED SHANK.
BE CAREFUL NOT TO CROSS THREAD.
7 SECURE NUT, WASHER, AND FAUCET TIGHTLY
TOGETHER BY ROTATING NUT CLOCKWISE.
IMPORTANT:
• Conical shaped rubber washer must be positioned
with larger side facing faucet.
• Do not over tighten nut. Overtightening nut will
strip faucet threads and cause washer to leak.
• Overtightening nut will squeeze conical shaped
washer at against server vessel and will cause
it to leak.
• Conical shaped rubber washer seals on inside of
hole.
• It is a exible seal, therefore it is possible to move
or rotate faucet and not create a leak.
• Do not attempt to rotate faucet and atten conical
shaped rubber washer with intent to tighten seal.
