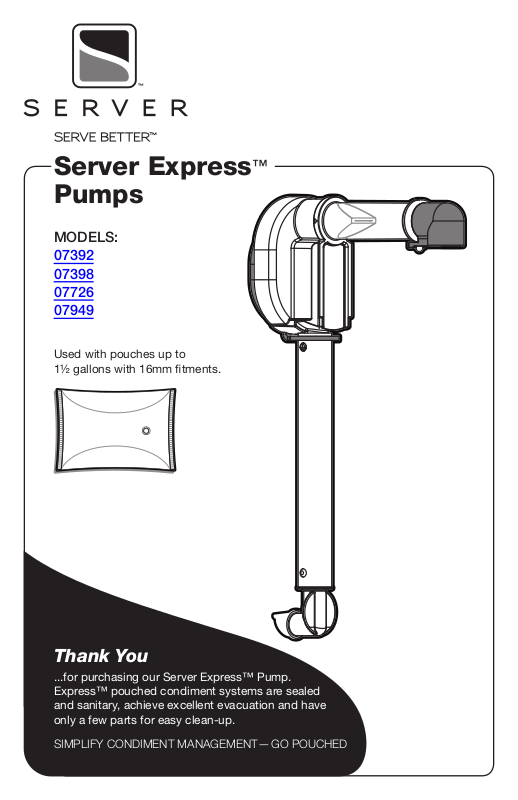

Server 07398 Service Manual

Server Express
Pumps

MODELS:

07392
07398
07726
07949

Used with pouches up to
1½ gallons with 16mm fitments.

™

Thank You

...for purchasing our Server Express™ Pump.
Express™ pouched condiment systems are sealed
and sanitary, achieve excellent evacuation and have
only a few parts for easy clean-up.

SIMPLIFY CONDIMENT MANAGEMENT— GO POUCHED

ASSEMBLY

INSERT PINCH VALVE

1

into pump housing.

TIP: Squeeze the pinch valve
open before installation to
ensure it isn’t stuck shut.

INSTALL DOME

2

Press dome into
housing fully.

Ensure valve flap
covers bottom
opening.

INSTALL TUBE

3

Lubricate with a small amount of clean water.

Rotate and position until both pegs on
housing fit into holes on tube.

WASH ALL PARTS
PROPERLY BEFORE USE. See page 3.

Wrap loop
around lower
opening to
secure dome.

4

5

6

Page 2

INSERT CONNECTOR

Lubricate with a small amount of clean water.

Rotate and position until both pegs on
connector fit into holes on tube.

Connector must point away from end of
discharge tube.

SELECT DISCHARGE FITTING

if applicable. Page 4 lists discharge fitting
size(s) included with each pump model.

CONSISTENCY OF
WHAT YOU DISPENSE

THIN (hot sauce)
THICK (ketchup or mustard)
PARTICULATES (relish or tartar sauce)

SUGGESTED
FITTING SIZE

SMALL
MEDIUM
LARGE

INSERT DISCHARGE FITTING

into pump housing discharge tube.

Place loop of fitting around peg on end of
discharge tube to secure.

Fittings are marked small,
medium or large on bottom.
