Reference Guide
2
Parts list and Exploded views
The parts list and the exploded views for the
Serpent 950R are separate from the Instruction
manual. The exploded views show all the parts
for a particular assembly step, together with the
Serpent part number. In the parts list at the back
of this booklet you will find with the part number
the name of the part. Besides all the Serpent 950R
parts as used in this car kit, you will also find in the
part list all the optional parts for the Serpent 950R,
as well as a listing of general items like fasteners
and promotional items.
Serpent will regularly update the Serpent 950R
parts list and will make it available on the Serpent
950R product page on myTSN, check under
‘Downloads’. This product page can be accessed
directly at the following address:
www.myTSN.com/Serpent950R
Make sure to check out the Serpent 950R product
page on myTSN frequently. All information about
your car can be found here: publications, news
items, set-ups, FAQ’s, images, downloads, video’s
and interesting forums in several languages. MyTSN
provides you with an enormous amount of interesting and often valuable information about the
Serpent 950R, information provided by Serpent, its
factory and team drivers, and experienced users
from around the world. Often this information is
even available in several languages! If you’re not
a member of myTSN.com yet, sign up today and
experience why Serpent excels not only on the
track, but also on the Internet.
Introduction
Contents
PERFORMANCE THROUGH EVOLUTION
Description Page
1. Shock Assembly 3
2. Front Assembly 4
3. Rear Assembly 5
4. Radio Plate Assembly 6
5. Radio Plate Mounting 7
6. Gearbox Assembly 8
7. Centax Assembly 8
8. Final Assembly 9
9. Parts List 10
3

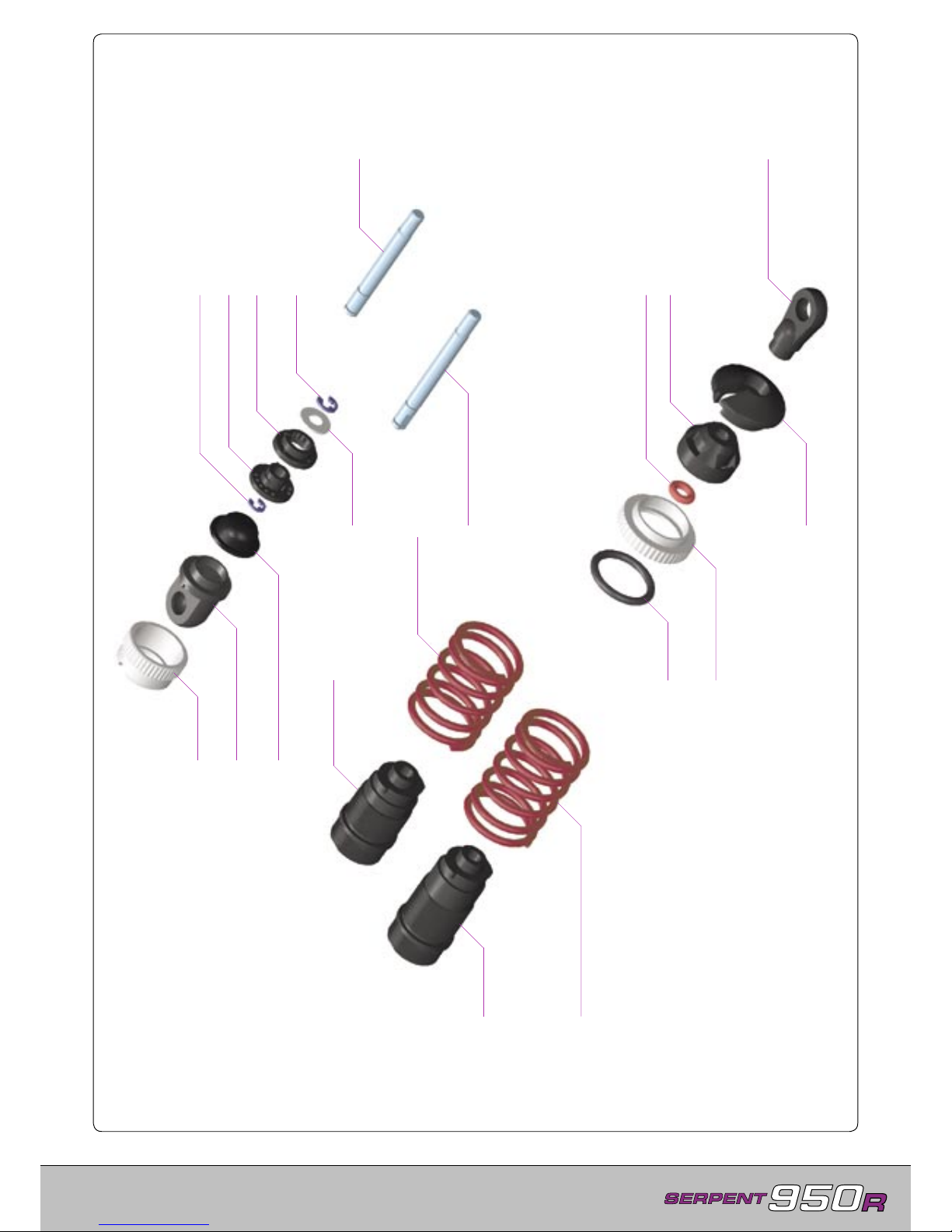

Shock Assembly
909442
909441
909407
909441
1202
909441
909441
1201
909441
909444
909407
909406
909441
6431
909405
909405
909441
909417 - Red
909441
Complete Shock absorber set - #909440
909402
909404
909403
6442
909414 - Orange*
909415 - White*
909416 - Yellow*
909418 - Blue*
909417 - Red
909414 - Orange*
909415 - White*
909416 - Yellow*
909418 - Blue*
* - Optional
4

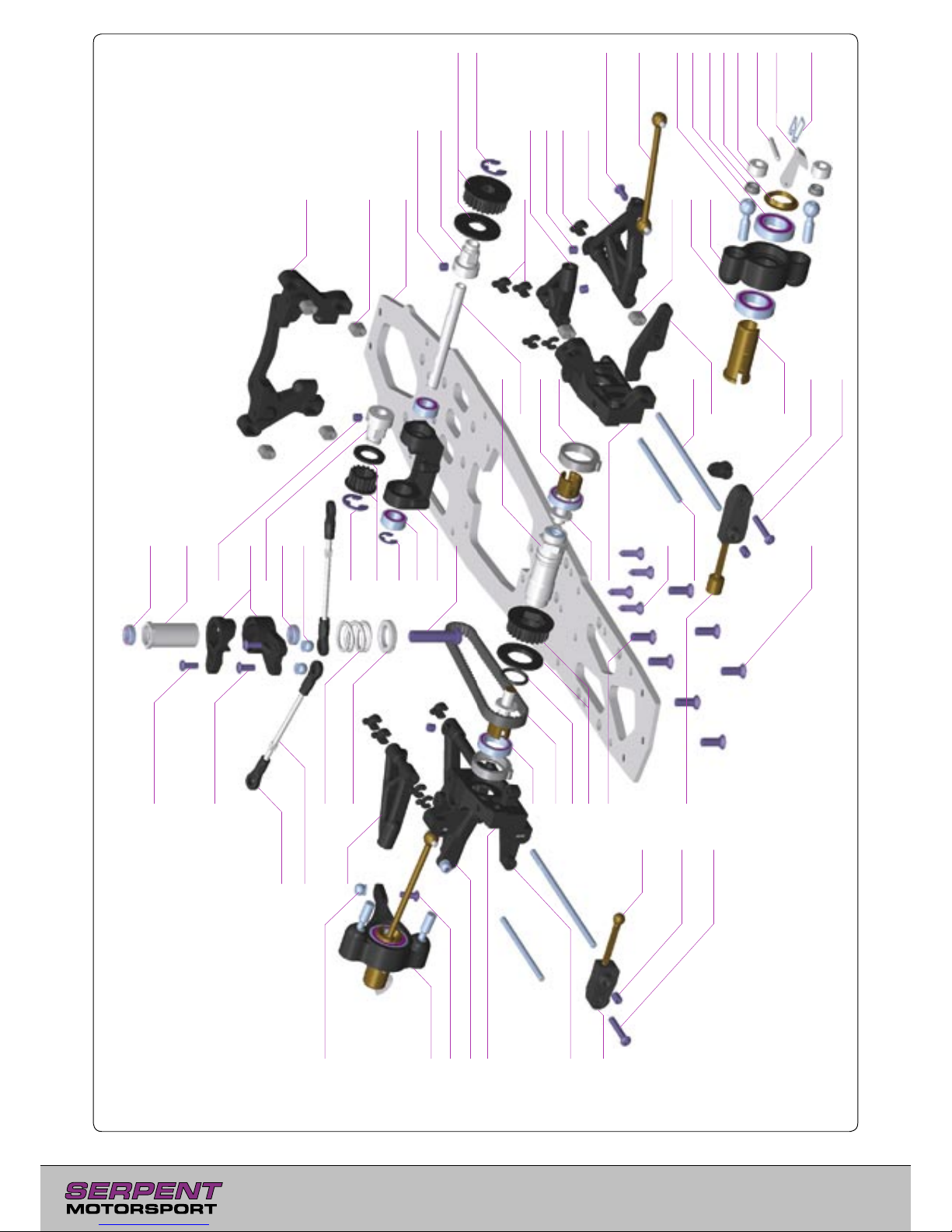

Front Assembly
902223
902231
902141
1257
909250
909245
1207
909220
1240
902227
808214
1257
6337
909326
808344
808340
808346
909211
1347
1347
9226
909228
909222
902229
902232
801245
1242
909396
9212
902252
808214
902225
902231
902250
1342
1205
1207
909236
1321
902134
902131
1321
1650
902221
1283
901185
909225
902135
902136
9213
1089
1065
6361
902133
1346
902128
1660
1240
1240
909212
******
902226
1258
1242
909216
902222
902228
1240
902229
801245
1257
909250
909217
902233
1273
5

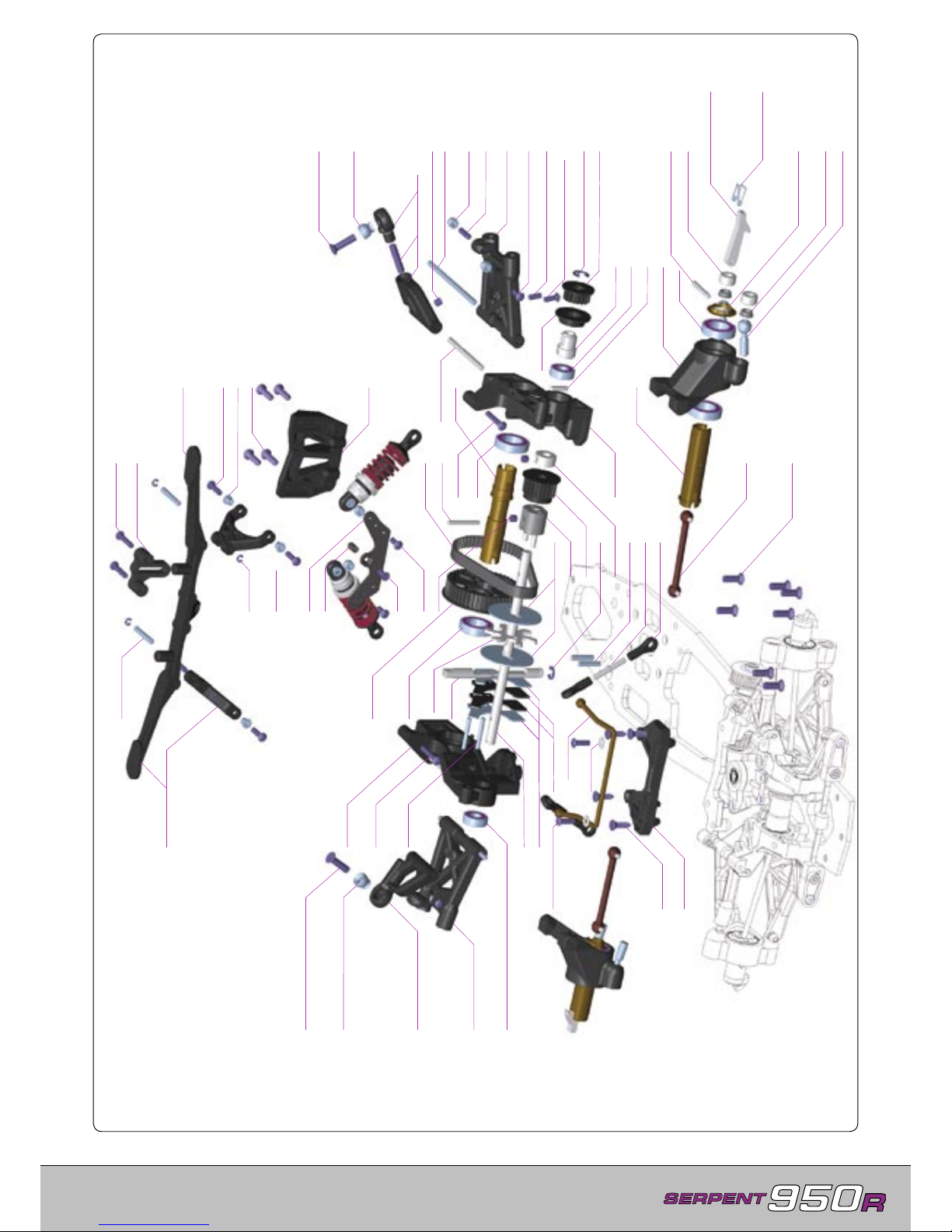

Rear Assembly
6337
909325
1274
902304
902303
902308
1256
902305
1650
808344
909326
909228
1240
1261
1245
1207
909238
9216
808340
808346
1347
909315
1257
1343
9619
909321
909370
909311
9611
909242
9618
1347
1234
902301
901185
902307
1283
909326
909373
909345
1242
909342
1202
1239
808152
909347
1270
909372
909354
9612
1347
909248
1204
909361
902138
1660
1257
1243
909366
909367
909344
1234
909326
902302
902306
902304
1343
902309
1274
902432
901356
909350
1283
909330
1095
901355
1240
9620
909322
909365
6

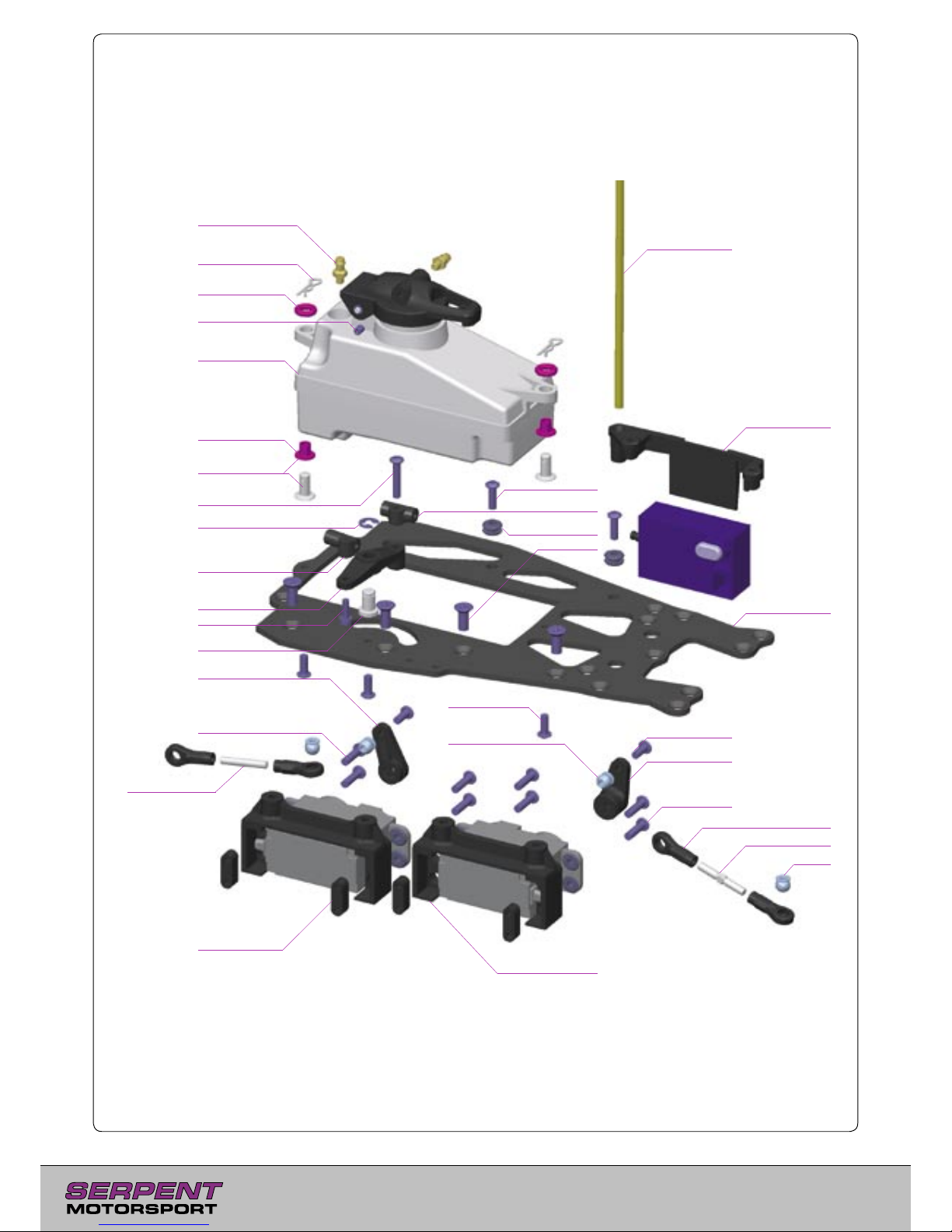

Radio Plate Assembly
902119
1493
902121
1242
902151
902138
1660
1650
1240
902123
1242
1602
902116
1609
902110
902116
902115
1250
1240
909155
901185
901164
1650
1240
1619
902172
1226
902170
1204
1262
1242
902171
902124
902125
901158
901159
901160
7

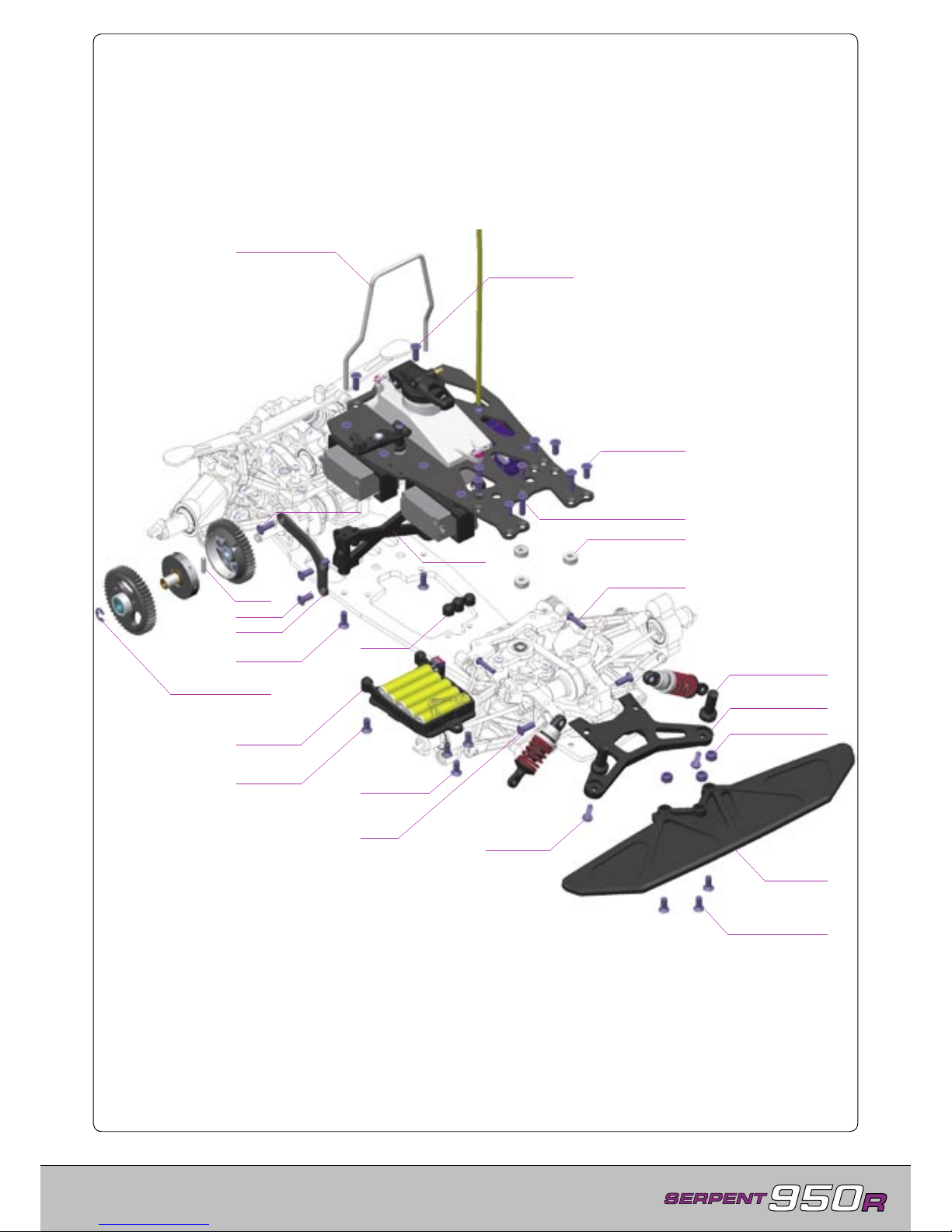

Radio Plate Mounting
901185
902152
1205
901185
902157
902421
901185
1234
902146
1273
902127
901185
901185
1273
902105
1298
902106
808144
1248
902127
902155
1273
1274
1273
8

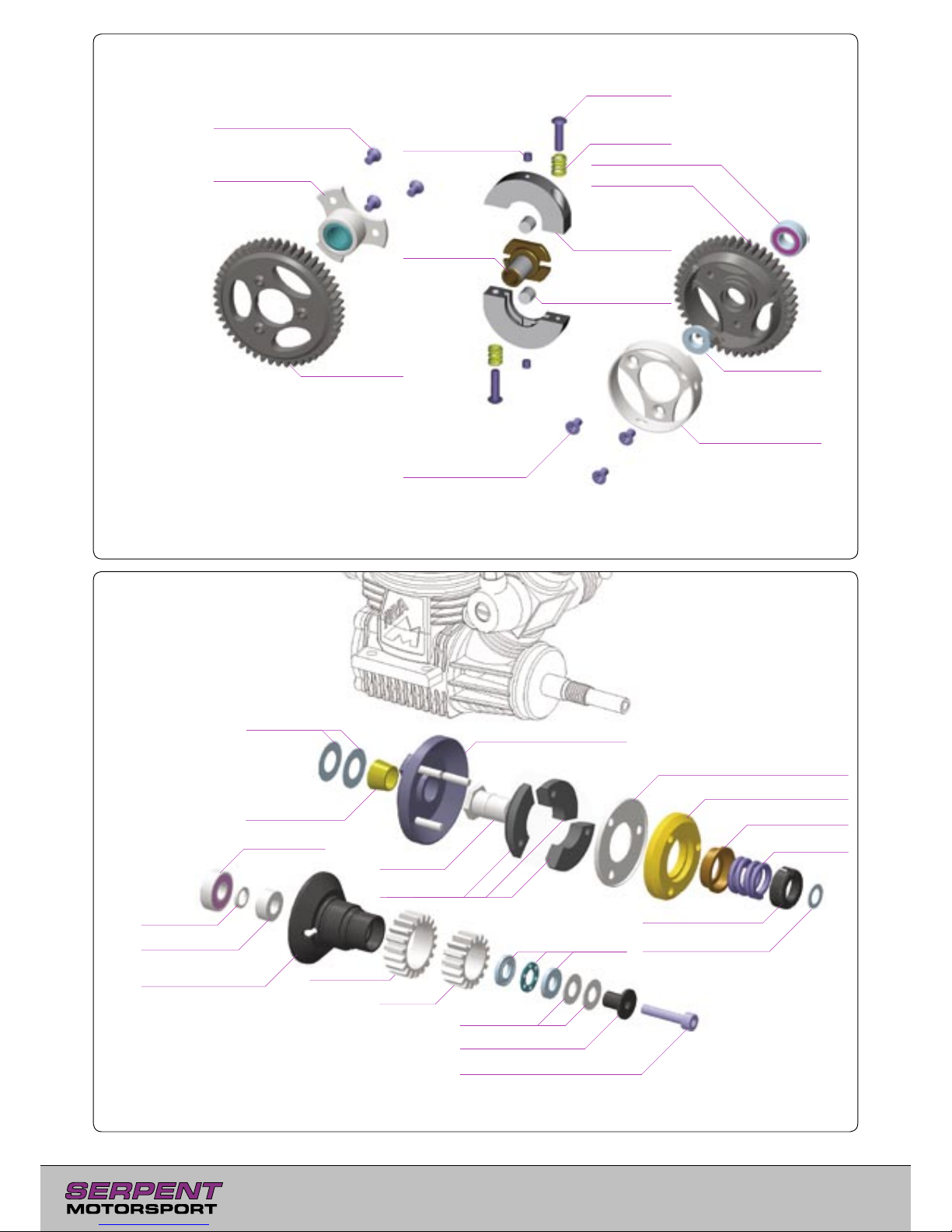

Gearbox AssemblyCentax Assembly
902411
902412
902448 - 48T
1242
6626
1342
902445 - 45T
902420
1320
902413
1268
902415
2 Speed gearbox LC (no shaft incl.) - #902410
6599
6503
1340
909514
1315
909512
909559 - 19T
909556 - 16T
909519
909516
1238
1377
6583
909519
909518
6584
6587XP
6585
909515
6582
6579
Centax-II clutch set (excl. flywheel) - #909510
2 Speed shaft 950 - #902430
1249
1268
902447 - 47T*
902449 - 49T*
902444 - 44T*
902446 - 46T*
902450 - 50T*
909555 - 15T*
909557 - 17T*
909558 - 18T*
909560 - 20T*
* - Optional
* - Optional
9

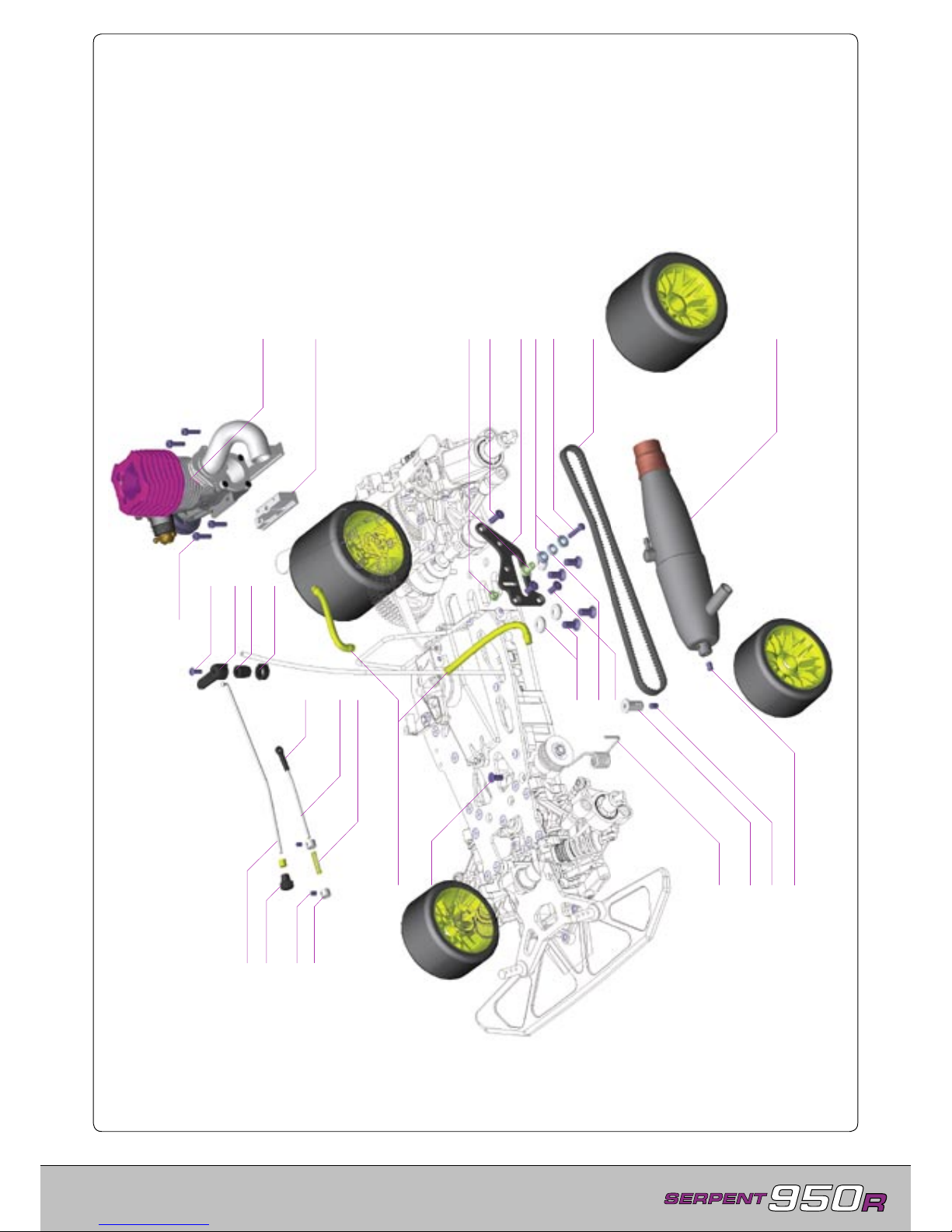

Final Assembly
1243
1639
Not Included
1599
1237
902340
1595
1258
901185
1240
909356
909356
909356
1250
1637
1637
1636
1636
1615
1494
6571
1312
902145
901255
901185
1273
6364
1311
Not Included
1259
10
To ensure that you have the most up to date parts
list you can download the latest version from the
internet by simply typing in the following URL and
selecting the file from the ‘downloads’ section.
www.myTSN.com/Serpent950R
ART No. DESCRIPTION
902004 Serpent 950-R 1/8 4WD
Manual & Decals
902193 Instructions & set-up 950-R
902194 Reference-guide 950-R
902195 Decal-sheet black/white
Radio Installation
902119 Mounting bracket receiver
902127 Battery-case and holder
902121 Mounting bracket steering servo
901164 Servo mounting blocks
902123 Steering-servo lever 23T
902124 Steering-servo lever 24T
902125 Steering-servo lever 25T
902170 Shaft throttle-brake lever
902171 Throttle brake-lever
902172 Throttle slide part
901158 Servo-lever 23T
901159 Servo-lever 24T
901160 Servo-lever 25T
808338 Linkage-set M3x20 (2)
902138 Rod threaded L+R (2)
1650 Balls 6mm/setscrews hex(4)
1660 Ball-joints 6mm (20)
1611 Servo lever 23T (2)
1612 Servo lever 25T (2)
1613 Servo lever 24T (2)
1636 Throttle linkage set
1637 Brake-linkage set
1619 Wire-guider nylon
1604 Antenna rods pink (2)
Servo saver and steering system
902128 Track-rod set (2)
902130 Servo-saver set 950
902131 Servo-saver nylon parts
902133 Servo-saver shaft inner
902134 Servo-saver shaft outer
902135 Servo-saver pre-tension nut
902136 Servo-saver spring
Fuel tank and parts
902110 Fueltank 125ccm with AFL-cap
902115 Mounting-pin tank + rubber cap (2)
902116 Cap rubber for mounting pin tank (2)
1602 Tank-clips small (10)
1431 Rubber tank seals (4)
1493 Pressure nipple
1494 Silicone tubing 50cm white
1495 Silicone tubing 50cm yellow
1496 Silicone tubing 50cm orange
1497 Silicone tubing 50cm green
Ball Bearings
1311 Ball bearing 5x8
1312 Ball bearing 5x8 flanged
1320 Ball bearing 6x10 flanged
1321 Ball bearing 6x10x3 (2)
1315 Ball bearing 5x10
1377 Thrustbearing 5X10
1340 Ball-bearing 5X13 HS Purple (2)
1342 Ball-bearing 6X13 HS Purple (2)
1343 Ball-bearing 6X15 HS Purple (2)
1346 Ball-bearing 12X18 HS Purple (2)
1347 Ball-bearing 12X21 HS Purple (2)
Shock Absorbers
909440 Shock-set 4-STEP KEY FR+RR (2)
909441 Shock-parts nylon 4-step (2)
909402 Pivot point top shockabsorber (2)
909403 Ball-joint short lower shockabsorber (4)
909405 Shock-adj nut alu + o-rings (4)
909406 Shock-cap-nut alu. (2)
909442 Pistons rod FR key hardened (2)
909444 Pistons rod RR key hardened (2)
6431 Membranes (4)
909407 O-ring set + washers
909404 Spring support washers (4)
909414 Spring-set D=1.5 L=27-22.7 orange (4)
909415 Spring-set D=1.5 L=27-22.7 white (4)
909416 Spring-set D=1.6 L=27-22.7 yellow (4)
909417 Spring-set D=1.7 L=27-22.7 red (4)
909418 Spring-set D=1.8 L=27-22.7 blue (4)
Serpent H-Q Shockabsorber oil
1670 Silicone shock-oil 20W
1674 Silicone shock-oil 25W
1671 Silicone shock-oil 30W
1675 Silicone shock-oil 35W
1672 Silicone shock-oil 40W
1676 Silicone shock-oil 45W
1673 Silicone shock-oil 50W
Chassis & Radio plate
902141 Chassisplate 5mm 7075 alu
902151 Radioplate carbon 2.5mm
902152 Spacer radioplate (3)
902145 Chassis stiffener carbon L
902146 Chassis stiffener carbon R
902155 Radioplate bracket
902157 Roll-bar chrome
Bodymounts
902106 Bodymount plate front
808144 Bodymount universal
909365 Rear body-support set
909366 T-bracket rear body support
808152 Centering bushing threaded
909342 Nylon arms short (2)
909344 Pivot pins bodymount upper (2)
909345 Pivot bushings rear bodymount (4)
1601 Body clips (10)
Front Section
902105 Bumper
902221 Bearing block front left
902222 Bearing block front right
902223 Cross-bracket front
909396 Bearing eccenter (2)
902225 Wishbones front upper left
902226 Wishbones front upper right
902227 Wishbones front lower left
902228 Wishbones front lower right
902229 Up-stop lever L + R
902231 Pivot inserts (8)
909211 Steeringblock left WOS
909212 Steeringblock right WOS
902232 Pivot pins front lower (2)
902233 Pivot pins front upper (2)
808214 Caster spacer set (2)
808340 Nylon cup 8.5mm
808344 Adj.nut alu M10 (4)
808346 Pivot balls steel 8.5mm (2)
801245 Anti-roll bar levers + exc.
909216 Anti-roll bar blade male
909217 Anti-roll bar blade female
9213 Pully / flange 24T
9212 Inner driveshaft adaptors (2)
1089 Shim nylon adaptor FR 6.1x11x1 (4)
909220 Driveshafts front (2)
909222 Wheel-axles steel front (2)
909228 Wheel-shim conical (4)
909225 Front axle alu. with one ways
1065 O-ring for alu front axle (10)
9226 Lever alu quick-change (2)
6337 Spring quick change system
6361 Belt short 6mm
Middle Section
902250 Middle shaft bracket
902252 Middle shaft steel
909250 Pully adaptor alu. (2)
909236 Pully / flange 16T
909238 Pully / flange 18T
909242 Pully / flange 22T
909244 Pully / flange 24T
909245 Pully / flange 25T
6364 Drive- belt long 6mm
901255 Belt-tensioner shaft and nut
909248 Brake-pully adaptor alu.
Rear Section
902307 Rear plate
902301 Bearingblock rear left
902302 Bearingblock rear right
902303 Wishbone rear upper left adj
902304 Wishbone rear upper right adj
902305 Wishbone rear lower left
902306 Wishbone rear lower right
909311 Pivot pin rear upper (2)
902308 Pivot pin rear lower 3.5mm (2)
909315 Up-right (1)
808312 Pivot ball 9mm with screws (2)
909321 Driveshaft rear short (2)
909322 Wheel-axles steel rear (2)
909325 Quick-change levers alu rear (2)
909326 Pins 2.5x21.8 (4)
909330 Rear anti-roll bar set 3mm
902138 Rod threaded L+R (2)
1095 Shims nylon rear anti-roll bar (2)
909347 Shocktower rear carbon
909228 Wheel-axle washers conical (4)
9619 Pulley adapter alu 19T
Brake-System
909350 Brake bracket
9612 Ventilated brake-disk
901356 Brake-plates steel (3)
9611 Steel brake disks (2)
901355 Brake pads black (4)
909354 Disk brake cam alu hard anodised
909356 Brake-cam / spring-set
909360 Support pins brake 2.5x20 (2)
909361 Chassis/brake positioning pins 3x16 (2)
9618 Alu.collar brake pulley
909326 Pins 2.5x21.8 (4)
Transmission
909370 Solid axle with 50T pully
909372 Pully 50T
909373 Kevlar drive-belt 8mm
2-Speed Gearbox
902410 2-speed gearbox LC (no shaft incl)
902430 2-speed axle 4WD 950
902416 2-speed clutch shoes set LC
902444 2-speed gear 44T (2ND) LC
902445 2-speed gear 45T (2ND) LC
902446 2-speed gear 46T (2ND) LC
902447 2-speed gear 47T (1ST) LC
902448 2-speed gear 48T (1ST) LC
902449 2-speed gear 49T (1ST) LC
6626 Springs / screws 2-speed
902411 Drive-flange alu with owb LC
902413 Clutch bell alu LC
902412 Adaptor 2-speed LC
902420 Needle steel 5X5 (2)
902421 Needle 3x13.8 (4)
Clutch System
909510 Centax II clutch-set (excl. Flywheel)
909512 Centax II clutch-housing universal
909555 Centax gear-pinion alu. 15T
909556 Centax gear-pinion alu. 16T
909557 Centax gear-pinion alu. 17T
909558 Centax gear-pinion alu. 18T
909559 Centax gear-pinion alu. 19T
Parts List - Serpent 950R
909560 Centax gear-pinion alu. 20T
6504 Conus flywheel (3)
6582 Centax clutch-nut
6585 Centax thrust washer
6584 Centax spring cup
6583 Centax pre-load adjusting nut
909514 Centax II bearing spacer 5x7
909516 Centax II spacer thrustbearing
6579 Centax flywheel 38mm
909518 Centax II coilspring 1.8
909515 Centax II centrifugal shoes (3)
6587N Centax clutch shoe
6599 Centax shim-set 7x13 (10)
909519 Centax 5x10 shim-set 0.1 (2) 0.3 (1)
1377 Centax II thrust-bearing 5x10
Engine Mounts
902340 Engine mounts M21
6571 Engine mounting screws/washers
1599 Exhaust mounting wire
1595 Mount alu exhaust wire
Wheels
909812 Quick-change wheels front yellow (2)
909842 Quick-change wheels rear yellow (2)
909851 Tire savers 1/8 (10)
Optionals
1015 Engine mount scews Torx / washers (4)
1017 Engine mount screws hex-flanged (4)
1360 Ballbearing 6x13 PHQ (2)
1362 Ballbearing 12x21 PHQ (2)
1605 Antenna rods green (2)
1606 Antenna rods black (2)
1607 Antenna rods blue (2)
1608 Antenna rods orange (2)
1609 Antenna rods purple (2)
9605 Brake disc steel ultra cool
9606 Brake disk steel ventilated (2)
9607 Race brake-padset L+R
9623 Collar brake-pulley alu light
808251 Middle shaft bracket alu purple
901231 Rocker front left
901232 Rocker front right
901235 Tie-rod 54mm (2)
901236 Turnbuckle 52mm titanium (2)
901240 Rockers front lineair complete set
902126 Battery-set 5-cell 750mA S-950
902129 Turnbuckle 65mm titanium (2)
902144 Belt-tensioner-bracket carbon L
902156 Radioplate bracket alu
902161 Rocker shafts PRS (2)
902162 Bushing rockers PRS (2)
902166 Push-rod set front suspension
902167 Push-rod x-bracket front alu
902224 Cross-bracket front alu
902309 Pivot ball 9mm alu PTFE (2)
909128 Shocktower carbon FR MSP
909218 Anti-rollbar levers alu front (2)
909223 Wheelaxle front WOS + alu spacer (2)
909226 Front axle alu + Pro bearings
909251 Pulley-adaptor alu light (2)
909323 Wheel-axle set rear light / WOS (2)
909328 Wheeladaptors set alu fixed F+R
909329 Wheelflange alu f+r (2+2)
909335 Rear anti-roll bar set adjustable
909336 Rear anti-roll bar ball-rod
909351 Brake bracket alu
909395 Pulley solid axle 51T
909396 Eccenter ballbearing (2)
909397 Conversion 51T pulley-eccenter-bearing
909410 Shock-housing alu PTFE coated front (2)
909411 Shock-housing alu PTFE coated rear (2)
909445 Shock-piston-set fixed + adj (2)
909446 Shock membrames soft + inserts (4)
909447 Inserts shock-cap foam (4)
909513 Centax II clutch-housing universal LIGHT
909575 Centax gear-pinion steel 15T
909576 Centax gear-pinion steel 16T
909577 Centax gear-pinion steel 17T
909578 Centax gear-pinion steel 18T
909579 Centax gear-pinion steel 19T
909580 Centax gear-pinion steel 20T
6123A Body post alu short (2)
909422 Pre-tension spring cup 1/8 alu (2)
909423 Pre-tension spring-set (3 sets)
Bodies and wings
1754 Body Group C Porsche 962 MS EV2
1756 Body VDS Lola MS EV2
1751 Body Mc Laren GT1 MS
1753 Body Porsche GT1 MS
1601 Bodyclips (10)
1722 Trim-strip + nylon mounts
1723 Bodywashers Silicone (5)
1724 Body-stiffener Lexan (2)
1725 Side-wing support Foam (2)
1727 Body inserts lexan - set
1721 Wing 26 cm Group-C
1791 Steel wing wire 3mm
Tools
1016 Torx wrench
909590 Gear pinion wrench
1460 Camber gauge
909593 Clutch housing gripper
902310 Mounting-tool pivotball
Accessories
1400G Powerstart compact starterbox grey
1428 Brackets startbox S-950
1395 Glow-plug starter 1300 mAh /w. cable
1396 Glowtronic; electronic glowplug igniter
3400 Break-in bench model-engines
1680 One way lube 25ml
1690 Cleaning putty 200 gram
Merchandising
1911 Serpent Team jacket grey 2-tone
1990 Team cap Serpent grey 2-tone deluxe
1999 Team cap NovaMega deluxe
1980 Kit-bag Serpent black large
1981 Kit-bag Serpent black small
Fastening Materials
901185 Screw set alu M4X10 (25)
1646 Steel balls 6mm M3 (4)
1647 Steel balls 6mm (4)
1650 Balls 6mm/setscrews hex(4)
1660 Ball-joints 6mm (20)
1201 E-clip 1,9 (10) R1
1202 E-clip 2,3 (10) R2
1203 E-clip 3,2 (10) R3
1204 E-clip 4.0 (10) R4
1205 E-clip 5.0 (10) R5
1207 E-clip 7.0 (10) R7
1208 Cir-clip 10X1 (10) T10
1209 G-clip 14X1 (10) S14
1212 Screw RH PH 2.9X9.5 (10) A5
1213 Screw RH PH 2.9X13 (10) A6
1214 Screw RH PH 2.9X16 (10) A7
1215 Screw RH PH 2.9X19 (10) A8
1216 Screw RH PH 2.9X25 (10) A10
1217 Screw RH PH 3.5X9.5 (10) A12
1218 Screw RH PH 3.5X13 (10) A13
1219 Screw RH PH 3.5X16 (10) A14
1220 Screw RH PH 3.5X19 (10) A15
1225 Screw RH M2X6 (10) C2
1226 Screw RH M2X6 (10) C5
1227 Screw RH PH M3X8 (10) D11
1228 Screw RH PH M3X12 (10) D13
1235 Screw CH allen M3X6 (10) F10
1236 Screw CH allen M3X10 (10) F12
1237 Screw CH allen M3X12 (10) F13
1238 Screw CH allen M3X16 (10) F14
1239 Screw RH allen M3X6 (10) E10
1240 Screw RH allen M3X8 (10) E11
1241 Screw RH allen M3X12 (10) E12
1242 Screw RH allen M3X14 (10) E13
1243 Screw RH allen M3X16 (10) E14
1234 Screw RH allen M3X20 (10) E15
1244 Screw RH allen M4X6 (10) E17
1245 Screw RH allen M4X8 (10) E18
1246 Screw RH allen M4X16 (10) E21
1249 Grubscrew 3x3 (10) J8
1250 Grubscrew M3X4 (10) J9
1251 Grubscrew M3X6 (10) J10
1252 Grubscrew M4X10 (10) J19
1255 Grubscrew M3X10 (10) H12
1256 Grubscrew M3X12 (10) H13
1257 Grubscrew M4X4 (10) H16
1258 Grubscrew M4X6 (10) H17
1259 Grubscrew M5X5 (10) H24
1260 Grubscrew M5X6 (10) H25
1261 Grubscrew M4X10 (10) H17
1262 Grubscrew M3X20 (10) H15
1268 Screw CSH PH M3X6 (10) G10
1269 Screw CSH PH M3X16 (10) G14
1270 Screw CSH PH M3X8 (10) G11
1271 Screw CSH PH M4X8 (10) G18
1272 Screw CSH PH M4X10 (10) G19
1273 Screw CSH PH M4X12 (10) G20
1274 Screw CSH PH M4X16 (10) G21
1275 Screw CSH PH M5X12 (10) G27
1278 Screw CSH ALLEN M4X20 (10)
1279 Screw CSH ALLEN M4X25 (10)
1280 Screw CSH PH 2,2X6,5 (10) B2
1281 Screw CSH PH 2,9X9,5 (10) B5
1282 Screw CSH PH 3,5X9,5 (10) B12
1283 Screw CSH PH 3,5X13 (10) B13
1284 Screw CSH PH 3,5X16 (10) B14
1285 Screw CSH PH 4,2X13 (10) B20
1290 Washer 3.2X7 (10) N3
1291 Washer 2.5X6 (10) N4
1292 Spring washer 6,2X14X0,9
1293 Spring washer 7,2X14X0,8
1295 Lock washer 3.2x8 (10) o3
1297 Nut nylock M3 (10) L3
1298 Nut nylock M4 (10) L4
11
P.O. Box 180, 2100 AD Heemstede
The Netherlands, Europe.
Tel:
(31) 23 529 2068
Fax:
(31) 23 528 4950
E-mail:
info@serpent.com
Serpent USA, Inc.
West Park Center,
2830 NW 79th Avenue,
Miami, Florida 33122, USA.
Tel:
(305) 639 9665
Fax:
(305) 639 9658
E-mail: info@serpent-usa.com
www.myTSN.com/Serpent950R
#902194 - Version 1
Loading...
