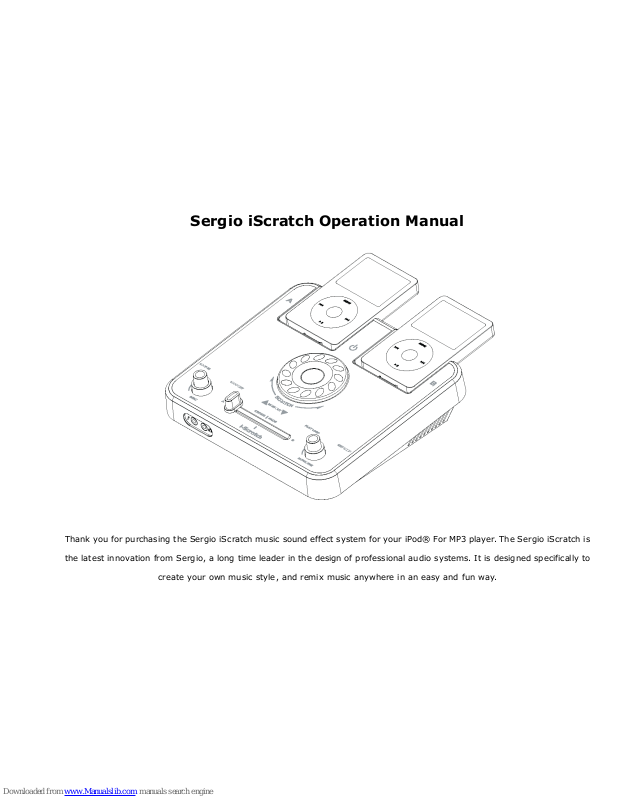

Sergio iScratch Operation Manual
1
Sergio iScratch Operation Manual
Thank you for purchasing the Sergio iScratch music sound effect system for your iPod® For MP3 player. The Sergio iScratch is
the latest innovation from Sergio, a long time leader in the design of professional audio systems. It is designed specifically to
create your own music style, and remix music anywhere in an easy and fun way.
1
IMPORTANT
Read Before Proceeding
Please read through this operating instruction so you will know how to operate this product properly. After you have finished
reading the instruction, put it in a safe place for future reference.
In some countries or regions, the shape of power plug or power outlet may sometimes differ from that shown in the
explanatory drawings. However the method of connecting and operating the unit is the same.
2
Table of Contents
Table of Content
1. Package Contents
…………………………………………………………………………………………………………………………. 3
2. Features
……………………………………………………………………………………………………………………………………..… 4
3. Quick Start
…………………………………………………………………………………………………………………………………… 5
4. Controls and Indicators
…………………………………………………………………………………………………………………… 7
5. iPod / MP3 Player
………………………………………………………………………………………………………………………… 10
6. Using iScratch
……………………………………………………………………………………………………………………………… 12
7. Wiring Diagrams
…………………………………………………………………………………………………………………………… 15
8. Specification
………………………………………………………………………………………………………………………………… 16
9. Consumer Guide to Product Safety
……………………………………………………………………………………………………… 17
10. Trouble Shooting
…………………………………………………………………………………………………………………………… 19
11. Warranty
……………………………………………………………………………………………………………………………………… 22
3
Package Contents
The iScratch package includes the following:
1. iScratch sound effect unit
2. A headphone set (with microphone)
3. A power adaptor
4. Operation manual CD
4
Features
iPod / MP3 Player
The iScratch can be used with three different combinations of signal sources:
iPod + iPod
MP3 player + MP3 player
iPod + MP3 player
The iPod will be charged when inserted into iScratch, provided the iScratch is on
Two universal iPod docking stations accept all iPod models (Top Surface)
Two line-in 3.5mm plugs for MP3 players (Rear)
Music Mix
Scratch effect with (24 seconds scratch recording time)
Loop programs
Cross-fade music mix from source A to source B. Simultaneous occurrence of a fade-in and a fade-out. The cue
channel will allow the headphones (only) to monitor the player that is „faded out‟
5
Quick Start

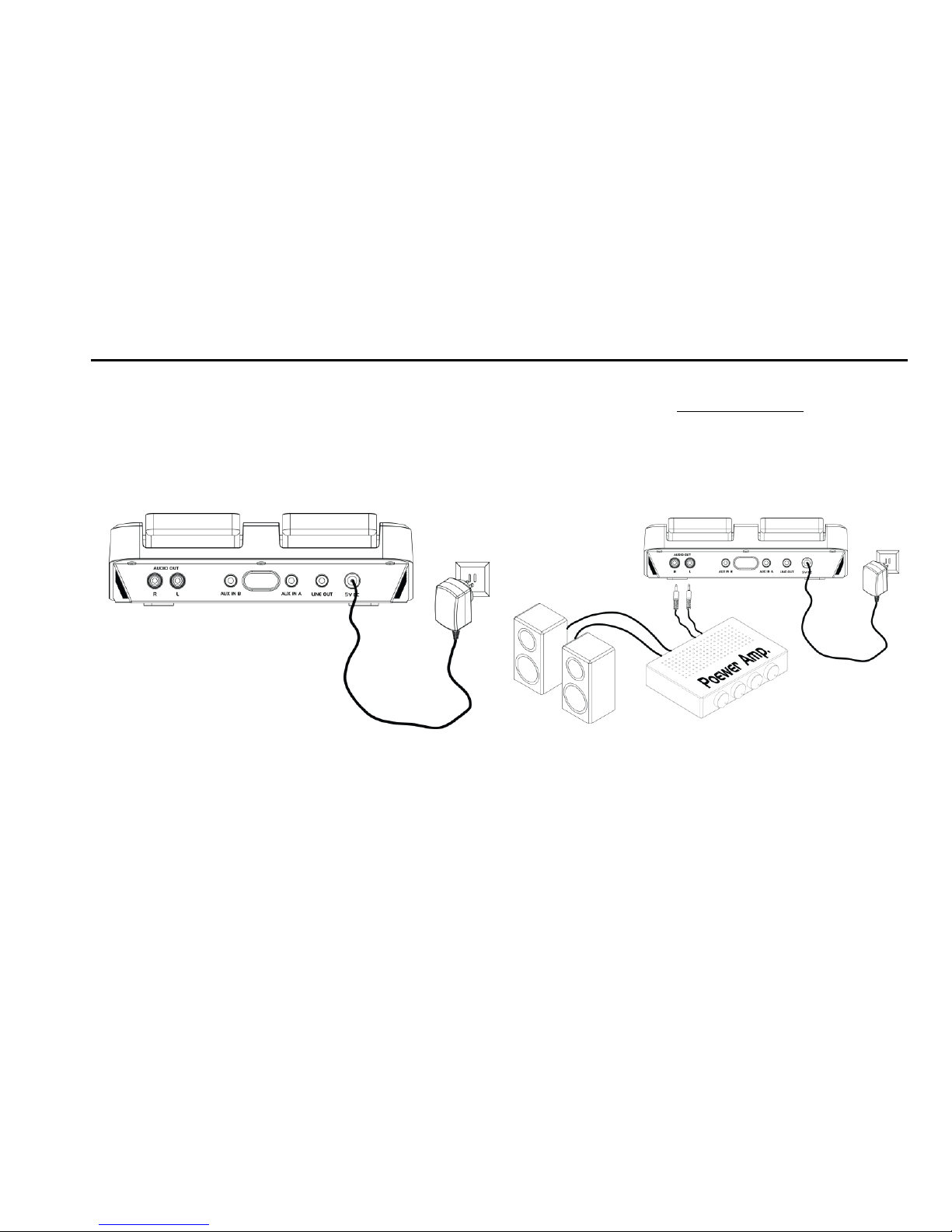

1. Connect the included wall-mount power supply to the
jack marked „5VDC‟ for iScratch.
2. Connect AV cord from your sound system to the iScratch
output jacks (RCA type).
Note: Connect the iScratch outputs to a suitable sound
system. This may be powered speakers, a professional
sound system, or the audio inputs of a television.
6

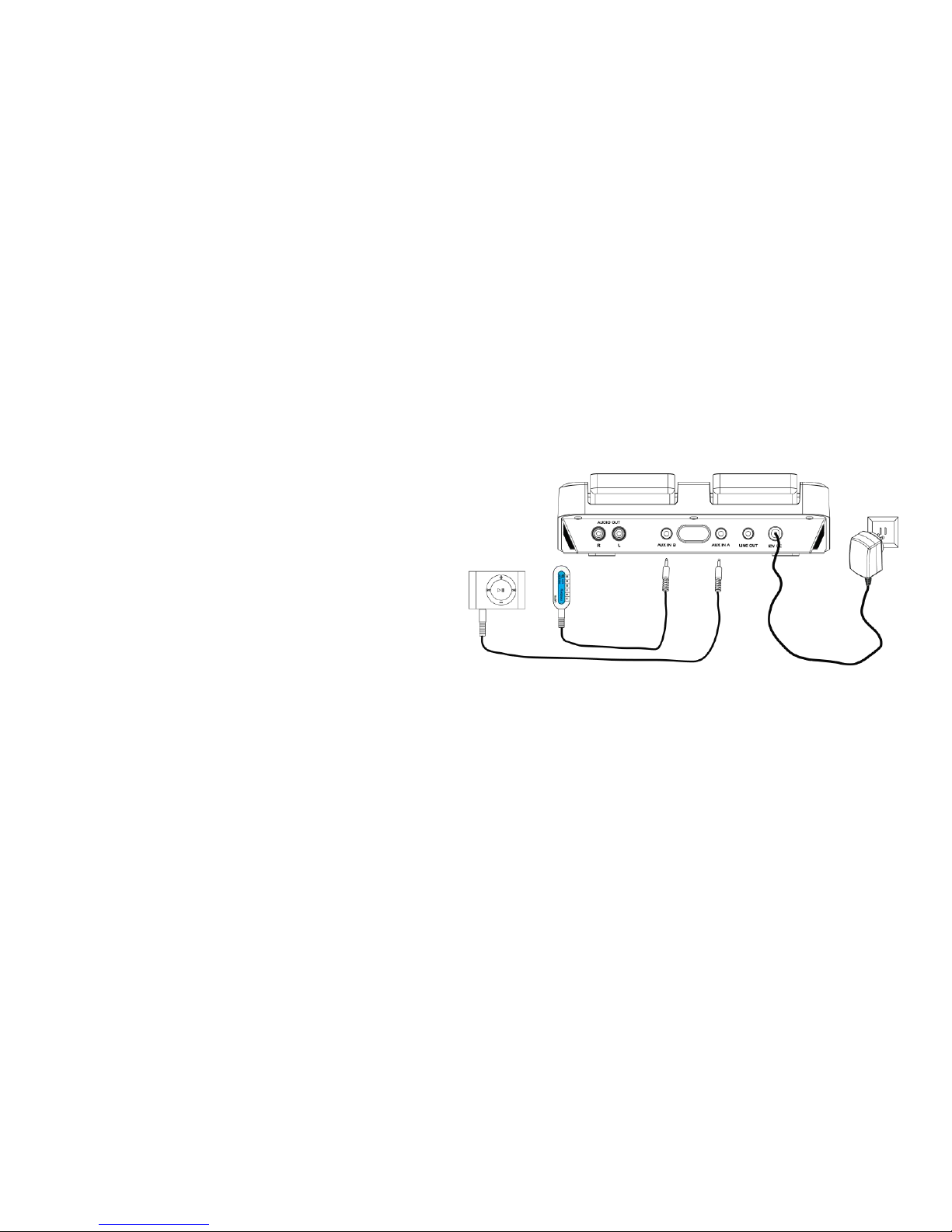

3. Insert iPod devices into the docking connectors or connect an MP3
player into the line-in jacks (rear).
iPod
Mini
iPod 4, 5th
generation
iPod nano
iPod
Classic
iPod Touch
4GB,
6GB
20GB
30GB
40GB
60GB
80GB
1st Gen
1, 2 and 4GB
2nd Gen
2, 4 and 8GB
3rd Gen
4 and 8GB
4th Gen
8 and 16GB
80GB
160GB
1st Gen
8, 16 and 32GB
2nd Gen
8,16 and 32GB
3rd Gen
32 and 64GB
4. Switch Power On.
7

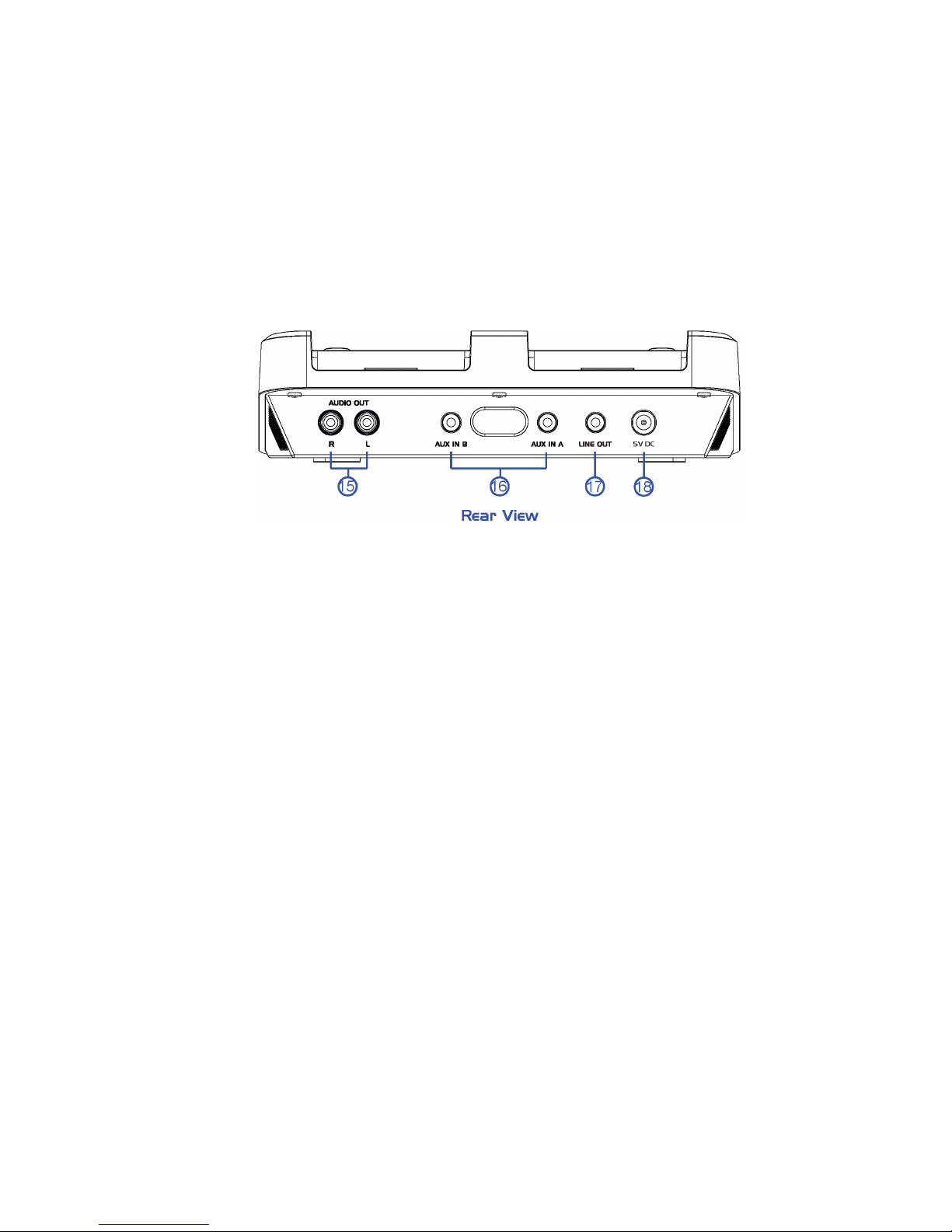

Controls and Indicators
1. Microphone Jack (3.5mm dia.)
2. Headphone Jack (3.5mm dia.)
8
3. Loop In Feature Touch Pad
4. Microphone Volume Knob
5. Loop Out Feature Touch Pad
6. CROSS | FADE
7. Main Output Volume Touch Pad
8. Play Loop Touch Pad
9. Headphone Volume Knob
10. Exit Loop Touch Pad
11. iPod / MP3 player Source A
12. Scratch Knob
13. Power ON/OFF Switch
14. iPod / MP3 player Source B
