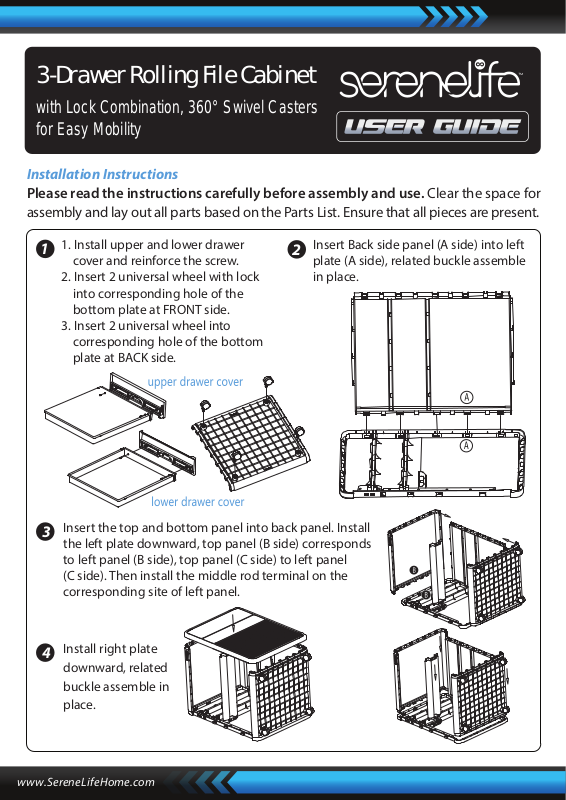

Page 1
3-Drawer Rolling File Cabinet
with Lock Combination, 360° Swivel Casters
for Easy Mobility
Installation Instructions
Please read the instructions carefully before assembly and use. Clear the space for
assembly and lay out all parts based on the Parts List. Ensure that all pieces are present.
1. Install upper and lower drawer
1
cover and reinforce the screw.
2. Insert 2 universal wheel with lock
into corresponding hole of the
bottom plate at FRONT side.
3. Insert 2 universal wheel into
corresponding hole of the bottom
plate at BACK side.
Insert the top and bottom panel into back panel. Install
3
the left plate downward, top panel (B side) corresponds
to left panel (B side), top panel (C side) to left panel
(C side). Then install the middle rod terminal on the
corresponding site of left panel.
Insert Back side panel (A side) into left
2
plate (A side), related buckle assemble
in place.
Install right plate
4
downward, related
buckle assemble in
place.
www.SereneLifeHome.com
Page 2
Let the door and main body in 90 degrees,
5
install the shaft hole corresponds to the
door axis from top to bottom.
Steps to set the code of the cipher lock
1. The initial code is 0000.
2. Switch the lever from Point B to Point A,
after conrm about the initial code.
Install the upper and lower drawer on
6
the related track.
Password setting diagram:
Pull out the upper drawer, then set the
3. Set your own code
4. Switch the lever from Point A to Point B, after the code is set.
5. Please memorize the code that you set and follow step 2, step 3 and step 4 to set a new code.
Note: For safety purpose, this box does not reserve any
position for outer unlock device in its structural design
and is not easy to dismantle after assembly. Please pay
full attention to each steps of code setting, make sure
the 4 digits lock codes set is exactly in parallel line, then
put the code set lever back to "B" position, do not forget
your set codes to avoid any inconvenience.
password in the inner lock.
