INSTALLATION AND SAFETY INSTRUCTIONS

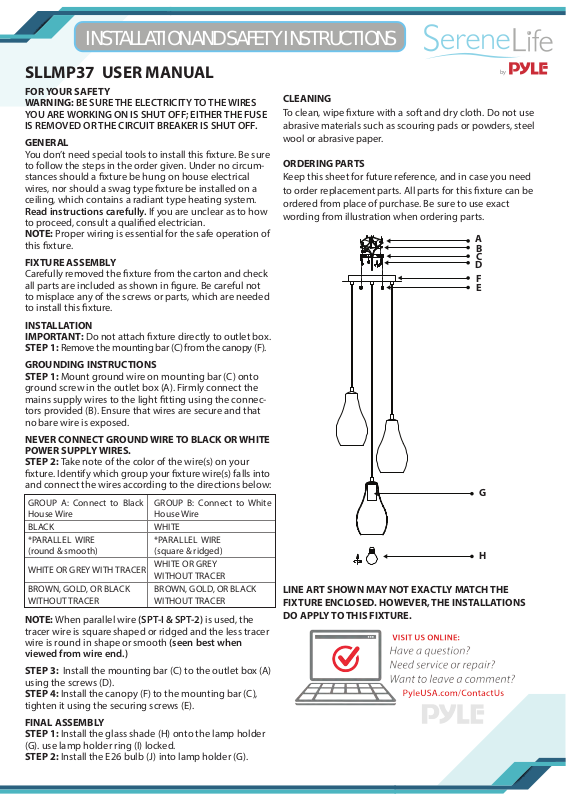

SLLMP37 USER MANUAL
FOR YOUR SAFETY WARNING: BE SURE THE ELECTRICITY TO THE WIRES
YOU ARE WORKING ON IS SHUT OFF; EITHER THE FUSE IS REMOVED OR THE CIRCUIT BREAKER IS SHUT OFF.
GENERAL
You don’t need special tools to install this xture. Be sure to follow the steps in the order given. Under no circum­stances should a xture be hung on house electrical wires, nor should a swag type xture be installed on a ceiling, which contains a radiant type heating system. Read instructions carefully. If you are unclear as to how to proceed, consult a qualied electrician. NOTE: Proper wiring is essential for the safe operation of this xture.
FIXTURE ASSEMBLY
Carefully removed the xture from the carton and check all parts are included as shown in gure. Be careful not to misplace any of the screws or parts, which are needed to install this xture.
INSTALLATION IMPORTANT: Do not attach xture directly to outlet box. STEP 1: Remove the mounting bar (C) from the canopy (F).
GROUNDING INSTRUCTIONS STEP 1: Mount ground wire on mounting bar (C) onto
ground screw in the outlet box (A). Firmly connect the mains supply wires to the light tting using the connec­tors provided (B). Ensure that wires are secure and that no bare wire is exposed.
CLEANING
To clean, wipe xture with a soft and dry cloth. Do not use abrasive materials such as scouring pads or powders, steel wool or abrasive paper.
ORDERING PARTS
A B C
D
F
E
NEVER CONNECT GROUND WIRE TO BLACK OR WHITE POWER SUPPLY WIRES. STEP 2: Take note of the color of the wire(s) on your
xture. Identify which group your xture wire(s) falls into and connect the wires according to the directions below:
GROUP A: Connect to Black House Wire
BLACK *PARALLEL WIRE
(round & smooth)
WHITE OR GREY WITH TRACER
BROWN, GOLD, OR BLACK WITHOUT TRACER
GROUP B: Connect to White House Wire
WHITE *PARALLEL WIRE
(square & ridged) WHITE OR GREY
WITHOUT TRACER BROWN, GOLD, OR BLACK
WITHOUT TRACER
NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer wire is square shaped or ridged and the less tracer wire is round in shape or smooth (seen best when
viewed from wire end.)
STEP 3: Install the mounting bar (C) to the outlet box (A) using the screws (D). STEP 4: Install the canopy (F) to the mounting bar (C), tighten it using the securing screws (E).
G
H

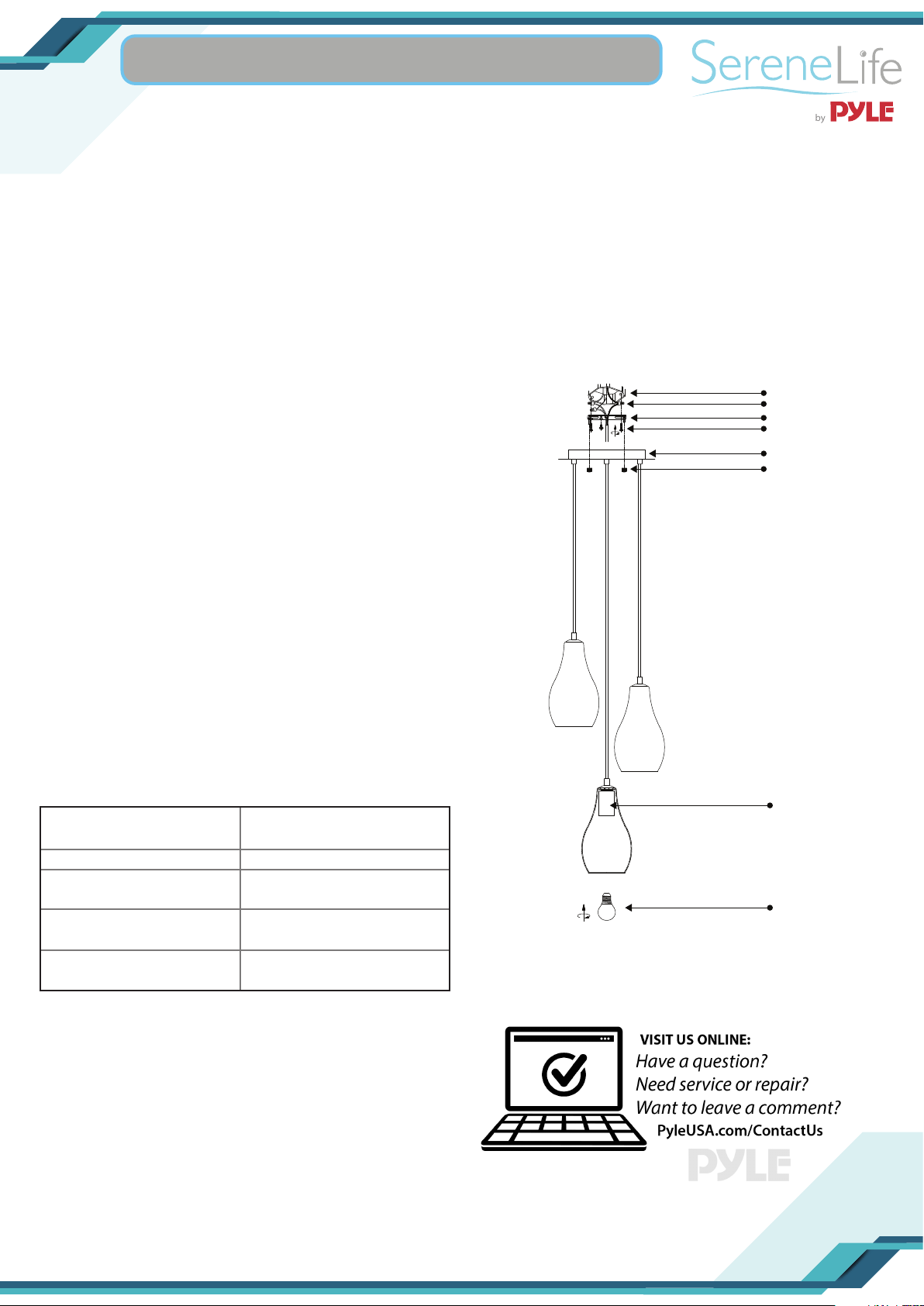

LINE ART SHOWN MAY NOT EXACTLY MATCH THE FIXTURE ENCLOSED. HOWEVER, THE INSTALLATIONS DO APPLY TO THIS FIXTURE.
FINAL ASSEMBLY STEP 1: Install the glass shade (H) onto the lamp holder
(G). use lamp holder ring (I) locked.
STEP 2: Install the E26 bulb (J) into lamp holder (G).
