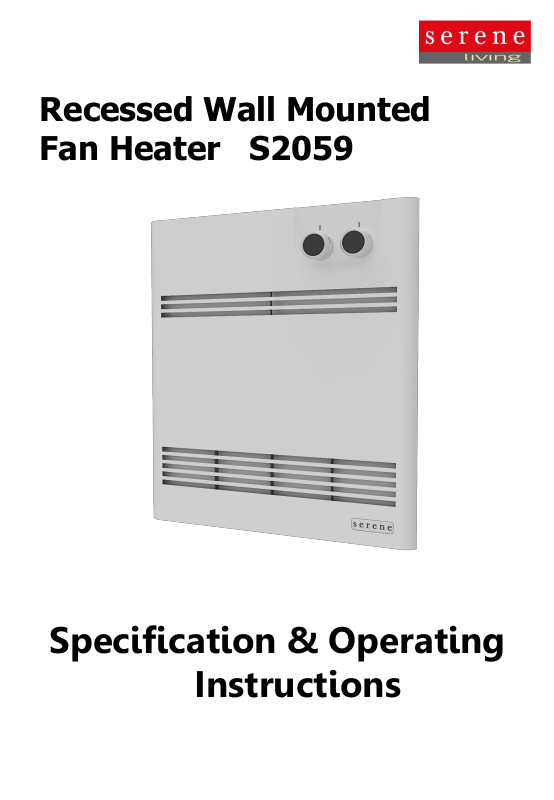

Recessed Wall Mounted
Fan Heater S2059

Specification & Operating

Instructions

Introduction

Designed for easy installation, your Serene S2059 Recessed Wall Mounted Fan Heater is

designed to fit easily into existing walls and is designed to fit most existing Skope cut­outs.

Important
Safety Information

• When using any electrical appliance, safety precautions should always be observed.

Read these instructions carefully, and retain for future reference. For service, contact
your nearest authorised service agent.

• Under no circumstances should an unauthorised person open the heater to adjust
the thermostat.

• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
Do NOT use this appliance other than for its intended use.

• Use this appliance only with the voltage specified on the rating label.

• Be very careful not to touch hot surfaces or moving parts.

• Do NOT cover the grilles or place any object or material up against the unit as this

may block the entry or exhaust of airflow.

• Do NOT probe any opening to remove fluff. To ensure trouble-free performance, it is
recommended that the unit be isolated from the power supply and a vacuum cleaner
used to remove dust and fluff from the inlet and outlet grilles on a regular basis.

• If Hard Wiring Installation, this must be performed by a licensed electrician.
Regulations require that electrical work be carried out only by properly qualified
person. For your own safety and that of others, ensure this is done.

• Do NOT allow any supply cord to come into contact with heated surfaces during
operation.

• If the supply cord becomes damaged, it must be replaced by a qualified Electrician
in order to avoid a hazard.

Distances:

This heater is NOT designed to be mounted high.
The heater must be mounted minimum distances of 200mm from floor level and 300
mm from any adjacent wall.

Installation:

This appliance MUST be installed in accordance with relevant wiring rules and

regulations which cover installation of appliances and accessories in damp situations,

such as bathrooms, showers, laundries and other areas, fixed water containers.

For additional protection, it is strongly recommended that the use of a residual
current device (RCD) with a tripping current not exceeding 30mA be used on the
circuit supplying this product.

The S2059 recessed model wall fan heaters are designed to be permanently wired
and recessed into the wall.

To install the heater, follow the instructions

below:

• Cut a hole in the wall. (fig 1) The positioning and hole dimensions are shown in

the installation diagram. The minimum required height from the floor to the base
of the heater and the distance from any adjacent wall is 300mm.

The hole must be between wall studs.

Adjacent wall

Hole in wall dimensions

Floor level

Minimum 200 min.

380

300 mm

Fixing screws (6)

Min 94mm deep

Fig 1

HEATER BODY

• It is recommended to
line top and bottom of the hole
with Gibraltar board or hardboar
d for the best result. If the cut­out is not to the recommended
size, the wall studs may need to
be packed out with timber to
provide firm fixing surfaces.

Installation (cont):

• Remove the 4 screws from the front panel (per fig 2 below)
This will allow the front panel to be pulled away from the body.

• Once the front panel is loose disconnect the 2 connecters as shown (per fig 3) below.
The front panel is then totally disconnected from the body.

• Line top and bottom of the hole with Gibraltar board or hardboard.

• If the cutout is not to the recommended size, the wall studs may need packed out with

timber to provide firm fixing surfaces Fit the heater body into the hole by screwing

the 6 fixing screws into the sides of the hole (screws provided)

• Connect the mains cable as needed.

• Reconnect the 2 wiring connectors. Ensuring that they are properly in place.

• Replace the front panel into position and insert the 4 fixing screws in place ensuring that

they are tightened.

Position of screws

Fig 2

Connector 2

Disconnect connectors

Fig 3

Operation:

On/ Off and
fan speed
heat control

Thermostat Temperature
Rotational Control

ON light

Thermostat
light

Push knobs

inwards to recess

flush to front.

Push again to
extend

• The operation of the heater is controlled by the HI/ MED/LOW/OFF control knob.

• The adjustable thermostat knob is located on left of the heater.

• The blue LED indicators light when the heater is operating.

• The heat output is regulated by a built-in thermostat. The thermostat

maintains the required ambient temperature by automatically turning
the heat on and off as needed.

Starting from the lowest position, turn the thermostat knob

clockwise until you hear a ‘click’. The heater will then start heating and

the LED indicator will light up. The more the thermostat knob is turned
clockwise, the higher the ambient temperature will be.

• If the ambient temperature is close to 35°C or more, the heater may not
turn on even if the thermostat is set on maximum. Alternatively, if the
ambient temperature is below 5°C, the heater may operate in ‘frost guard ‘mode
continuously even if the thermostat is set on minimum.

To set the thermostat:

• Turn the thermostat knob clockwise to maximum and wait until a comfortable
ambient temperature is reached.

• Turn the thermostat knob anti-clockwise until you hear a ‘click’ and the heater

turns off.

• Fine adjustments can then be made as needed.

Safety Cutout:

Your Serene S2059 Wall Fan Heater is fitted with an auto-reset thermal cutout and a
fusible link. Either of these devices will automatically switch off the elements and the
motor, should the unit reach an abnormal temperature.

Should this occur, disconnect the heater from power supply, check for blockage of the air
inlet and outlet, and use a vacuum cleaner to clean if necessary.
If the heater still fails to operate, contact your supplier after first checking that there is

power to the unit and that the thermostat is not set to maximum or minimum..

Specifications: Serene S2059:

Electrical
Supply 230-240 volts A.C. 50 Hz

Wattage 2200-2400W, thermostatically controlled.
Wiring Permanent connection. Earth required.
Ingress Protection Rating IP20

Dimensions

Height 435 mm
Width Front panel 380 mm
Width back 345 mm

Depth main unit 88 mm
Depth front panel 28 mm - including knobs extended

Weight 4.8kg

Serene Industries Limited reserves the right to alter both design and specifications without notice.
Serene offers a full replacement warranty. We do NOT supply any spare parts or include any service guarantee.
