Instructions &
Operation Manual
Model S2044
Wall Mounted Space Heater
Safety Information:
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
When using any electrical appliance, safety precautions should always be
observed. Read these instructions carefully, and retain for future
reference.
When used by, or near, young children or infirm persons, supervision is
necessary - young children should be supervised to ensure that they do
not play with the appliance.
Use this appliance only with the voltage specified on rating label.
Do NOT use this appliance other than for its intended use.
Do NOT touch hot surfaces or moving parts.
Do NOT cover the grilles or place any object or material up against the
unit, as this may block entry or exhaust of air.
Do NOT probe any opening.
To ensure trouble free performance it is recommended that on a regular
basis the unit be isolated from the power supply and a vacuum cleaner
used to remove dust from the inlet and outlet grilles.
Caution:
When the heater is operated ensure the heater is not obstructed in
any way. Ensure the heater can operate safely, should the heater switch on
when the ambient temperature drops, or a timer activates the heater.
Do NOT allow the supply cord to come into contact with heated
surfaces during operation.
Regulations require that electrical work be carried out by authorised
persons. For your own safety and that of others, ensure this is done.
If the supply cord becomes damaged, it must be replaced by a
qualified person, in order to avoid a hazard
Positioning
This heater is water resistant to IP24. It can therefore be used in
bathrooms or other areas subject to humidity, The heater must be
installed so that switches and other controls cannot be touched by a
person in the bath or shower.
The heater must be mounted on the wall, with a minimum height of 300mm
above the floor or any other objects heated below it, and a minimum
distance of 400mm below the ceiling and from adjacent walls.
The heater must not be located immediately below a socket outlet.
Ensure that the heater is not mounted in a situation where the heated air is
directed over an open door, curtains, or any towel rail, creating a fire risk.
Leave at least 1 metre of space in front of the heater to allow correct air
delivery.
The heater must be mounted a minimum distance of:
300mm above floor level or any other objects heated below it
Wall
Floor
Wall
400mm
Min.
400mm
Min.
300mm
Min.
Thermostat
The heat output is regulated by a built-in thermostat. The thermostat maintains the
required ambient temperature by automatically turning the heater on and off.
Starting from the ‘Freeze Guard’ position, turn the thermostat knob
clockwise until you hear a ‘click’. The heater will then start heating and the LED
indicator will light up. The more the thermostat knob is turned clockwise, the higher
the ambient temperature will be.
If the ambient temperature is close to 30°C or more, the heater may not turn on even
if the thermostat is set on maximum. Alternatively, if the ambient temperature is below
5°C, the heater may operate continuously even if the thermostat is set on
minimum.
To set the thermostat:
1. Turn the thermostat knob clockwise
to maximum and wait until a
comfortable ambient temperature is
reached.
2.Turn the thermostat knob anticlockwise until you hear a ‘click’ and
the heater turns off.
3. Fine adjustments can then be made.
Freeze Guard
When the thermostat knob is turned fully anti-clockwise, pointing to the
‘Freeze Guard’ symbol, the heater will operate if the room
temperature falls below 5°C.
Note: This heater does not have an on/off switch. To turn the heater off it
must be turned off at the wall switch.
LED Indicator
Freeze Guard
Thermostat Knob

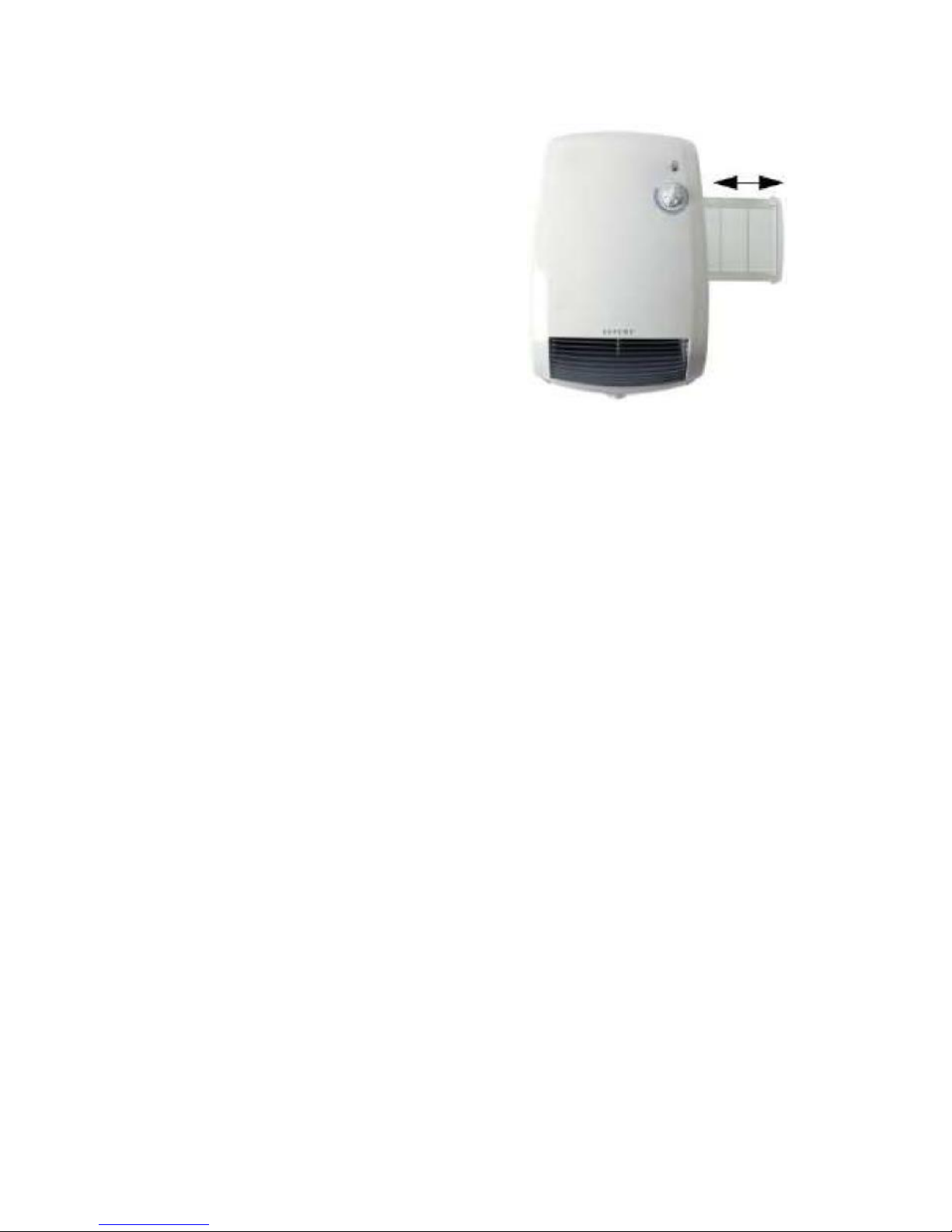

Filter
This heater is fitted with an air filter to
protect the heating elements from dust
and dirt. The filter is removable and can
be fitted from either the left or right hand
side of the heater.
To keep the heater operating efficiently,
remove and clean the filter once every six
months. Ensure the filter is always
fitted before operating the heater.
Safety Cutout
Air Filter
This heater is fitted with a thermal safety cutout device. In the case of over-heating,
the safety cutout automatically switches off the heating elements and fan motor. As
a result, the heater stops working but the LED indicator stays on.
Note: If the heater switches off, the LED indicator may also turn off when the
room temperature reaches the thermostat setting.
If the safety cutout is activated:
1. Turn the heater off at the wall switch and leave to cool for
approximately 30 minutes.
2. Check the air filter and clean if necessary. Ensure the filter is fitted
again before operating the heater.
3. Eliminate any other possible reason for overheating (such as
obstacles in front of the air inlet and outlet grille).
4. Turn the heater on and check operation. If the heater still fails to
operate, contact your nearest authorised service agent.
Care
The heater is best wiped down from time to time with a damp cloth. Do not
use any abrasive cleaners.
Specifications
Dimensions
Height: 430mm
Width: 270mm
Depth: 135mm
Weight: 3.0 kg
Electrical
Wattage: 2000-2200 Watts
Supply: 230-240 Volts a.c. 50 Hz.
Wiring: Permanent connection. Double Insulated - no earth required.
Ingress Protection Rating: IP24
