Sercomm RC8510A Users Manual

Indoor Full HD

Wi-Fi Camera

User’s Guide

Table of Contents

CHAPTER 1 INTRODUCTION .......................................................................................... 1

Overview ....................................................................................................................... 1

Physical Details - Indoor Full HD Wi-Fi Camera ........................................................ 2

Package Contents .......................................................................................................... 4

CHAPTER 2 BASIC SETUP ............................................................................................... 5

System Requirements ................................................................................................... 5

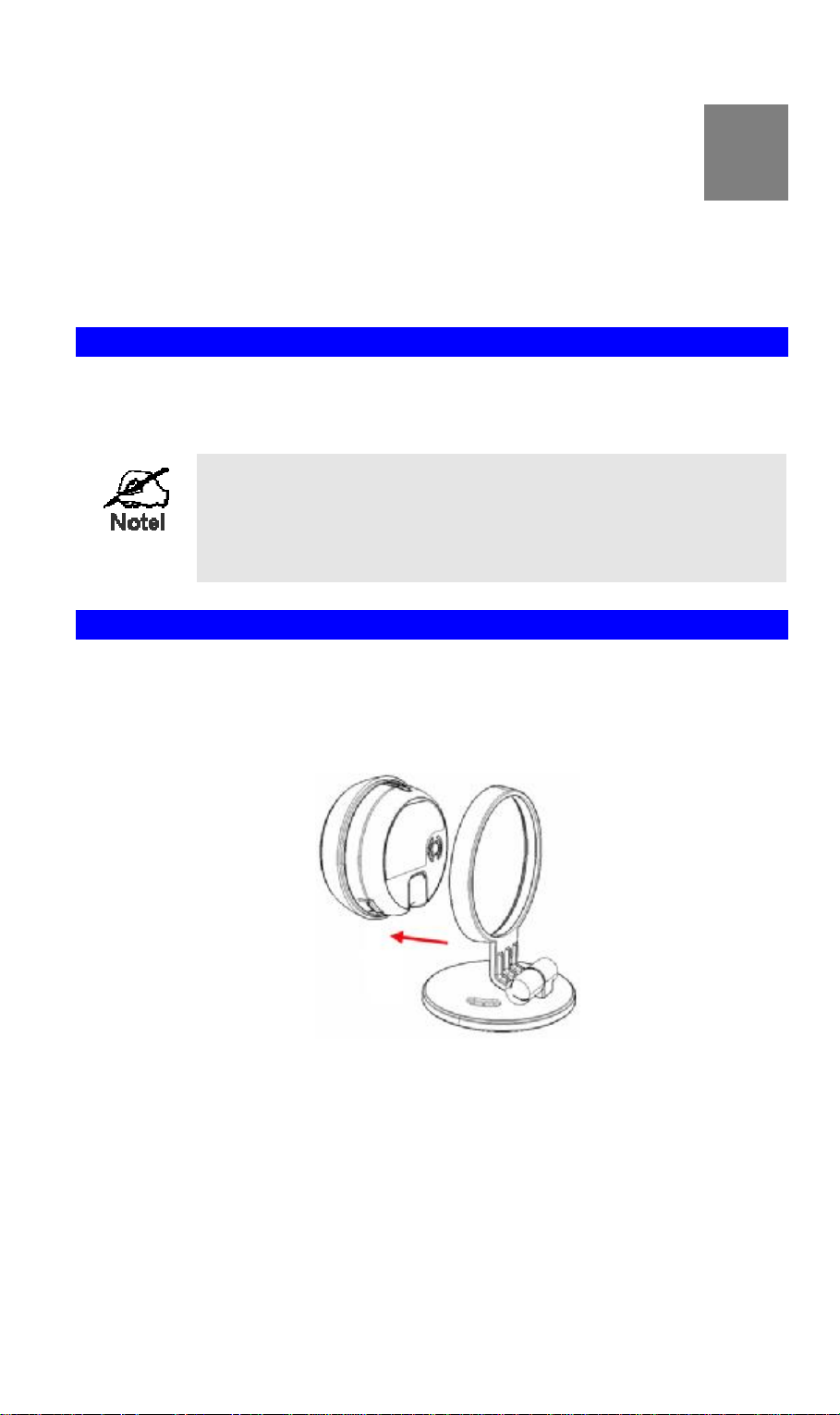

Installation .................................................................................................................... 5

Wall/Ceiling Mounting ................................................................................................. 7

Micro SD Card Installation .......................................................................................... 8

CHAPTER 3 VIEWING LIVE VIDEO ............................................................................... 9

Overview ....................................................................................................................... 9

Requirements ................................................................................................................ 9

Connecting to a Camera on your WLAN ..................................................................... 9

APPENDIX A SPECIFICATIONS .................................................................................... 11

Indoor Full HD Wi-Fi Camera ................................................................................... 11

Regulatory Approvals ................................................................................................. 11

Copyright  2017. All Rights Reserved.
Document Version: 1.0

All trademarks and trade names are the properties of their respective owners.

i

1

Chapter 1

Introduction

This Chapter provides information of the Indoor Full HD Wi-Fi Camera's
features, components and capabilities.

Overview

Congratulations on the purchase of your new Indoor Full HD Wi-Fi Camera. The Camera is a
True Day/Night Indoor Full HD Wi-Fi Camera with 1080p resolution and 802.11n WiFi
connectivity.

Moreover, the duo-hinge and compact design of the camera can be extended from the
wall/ceiling and easily moved around, while still being firm enough to hold for odd angles.

Features

• Standalone Design. The Indoor Full HD Wi-Fi Camera is a standalone system with

built-in CPU and Video encoder. It requires only a power source and a connection to your
Wireless iHub.

• Dual Video Support. The Indoor Full HD Wi-Fi Camera can support H.264 and MJEPG

video for different image compression.

• Suitable for Home, Business or Public Facilities. Whether for Home, Business or

Public Facility surveillance, or just for entertainment and fun, the Indoor Full HD Wi-Fi
Camera has the features you need.

• Day/Night Switch. With the day/night switching feature, you are able to view and

record better images even in the dark of night.

• Micro SD Card Slot. With the slot, you can insert the Micro SD card to store recording

files.

• Audio Support. You can listen as well as look! Audio is encoded with the video if

desired. With built-in microphone, it is useful for bi-direction voice conversation.

Wireless Features

• Supports 802.11n Wireless Standard. The 802.11n standard provides backward

compatibility with the 802.11b and g standards. The camera can work with all 802.11n,

802.11b and 802.11g Wireless stations.

• WPS Support. WPS (WiFi Protected Setup) can simplify the process of connecting any

device to the wireless network by using the push button configuration (PBC) on the Indoor
Full HD Wi-Fi Camera, or entering a PIN code if there's no button.

1

Physical Details - Indoor Full HD Wi-Fi Camera

Front Panel

Figure 1: Front Panel

Power/Network/WPS
LED (Green/Red)

Lens Ensure that the lens cover is clean. The image quality is degraded

Microphone The built-in microphone is useful for bi-direction voice

Light Sensor

Off - Power off.
On (Green) - Power is on and wireless connection is available.
Flashing (Green) - Device is booting.
Fast Flashing (Green) - WPS association is in process.
On (Red) - Wireless connection is not available.
Flashing (Red) - WPS association fails.
Flashing (Green/Red) - Device is upgrading.

if the lens cover is dirty or smudged.

conversation.
This is hardware sensor to detect LUX.

2

Side Panel

Figure 2: Side Panel

WPS/Reset Button Push the WPS button on the camera and on your other wireless

device to perform WPS function that easily creates an encryption­secured wireless connection automatically.

• WPS PBC Mode. When pressed and released (less then 3

seconds), the Indoor Full HD Wi-Fi Camera will be in the
WPS PBC mode (Auto link mode).

• WPS Pin Code Mode. When pressed and held for over 3

seconds, the Indoor Full HD Wi-Fi Camera will be in the
WPS Pin Code mode.

• Reset to manufacturer default valued and reboot. When

pressed and held over 10 seconds, the settings of Indoor Full
HD Wi-Fi Camera will be set to their default values.

Micro USB Port Connect the supplied 5V USB power adapter here. Do not use

other power adapters; doing so may damage the camera.

Micro SD Card

Insert the Micro SD card into the slot, if required.

3
