Sercel 0500A User Manual
WTU-518
USER MANUAL
Rev 30-2015 Page 1
Europe
Nantes, France
Sales; Customer Support;
Manufacturing & Repair.
B.P. 30439, 16 rue de Bel Air
44474 Carquefou Cedex
Tel: +33 2 40 30 11 81, Fax: +33 2 40 30 19 48
Hot-Line: Land: +33 2 40 30 58 88
Marine: +33 2 40 30 59 59
Navigation: +33 2 40 30 69 87
E-mail: sales.nantes@sercel.com
customersupport.land@sercel.com
customersupport.marine@sercel.com
customersupport.navigation@sercel.com
repair.france@sercel.com
streamer.repair@sercel.com
www.sercel.com
St Gaudens, France
Vibrator Customer Support;
Vibrator Manufacturing & Repair;
Streamer Manufacturing & Repair.
Tel: +33 5 61 89 90 00, Fax: +33 5 61 89 90 33
Hot Line: +33 5 61 89 90 91
E-mail: customersupport.vib@sercel.com
customersupport.vsp@sercel.com
Les Ulis, France
Sales; Customer Support
Tel: +33 1 69 93 83 60, Fax: +33 1 69 81 78 09
E-mail: vspsupport@sercel.com
Hot Line: +33 6 15 54 13 96
Brest, France
Sales; Customer Support
Tel: +33 2 98 05 29 05; Fax: +33 2 98 05 52 41
E-mail: sales.nantes@sercel.com
Toulon, France
Sales; Customer Support
Tel: +33 4 94 21 69 92; Fax: +33 4 94 21 73 44
E-mail: SalesMSBU@sercel.com
SupportMSBU@sercel.com
Toulouse, France
Sales; Customer Support
Tel: +33 5 61 34 80 74; Fax:+33 5 61 34 80 66
E-mail: support@metrolog.com
sales@metrolog.com, info@metrolog.com
Alfreton, U. K.
Streamer Manufacturing & Repair;
Customer Support.
Tel: +44 1 773 605 078, Fax: +44 1 773 541 778
E-mail: streamer.repair@sercel.com
Trondheim, Norway (Optoplan AS)
Tel: +47 73820500, Fax: +47 73820599
Dortmund, Germany
Manufacturing.
DE REGT Tel: +49 2 31 65 55 64 11.
Russia
Customer Support; Repair.
Moscow, Russia
Tel: +7 495 644 08 05, Fax: +7 495 644 08 04
E-mail: repair.cis@geo-mail.org
support.cis@geo-mail.org
Surgut, Russia
Tel: +7 3462 28 92 50
North America
Houston, Texas, USA
Sales; Customer Support;
Manufacturing & Repair;
Tel: +1 281 492 66 88, Fax: +1 281 579 75 05
Hot-Line: +1 281 492 66 88
E-mail:
sales.houston@sercel.com
HOU_Customer.Support@sercel.com
HOU_Training@sercel.com
HOU_Customer.Repair@sercel.com
Tulsa, Oklahoma, USA
Tel: +1 918 834 96 00, Fax: +1 918 838 88 46
E-mail:
support@sercel-grc.com
sales@sercel-grc.com
Calgary, Alberta, Canada
Sales; Customer Support; Manufacturing.
Tel: +1 403 275 3544, Fax: +1 403 295 1805
E-mail:
Cal_Customer.Support@sercel.com
Middle East
Dubai, U. A. E.
Sales, Customer Support, Repair.
Tel: +971 4 8832142, Fax: +971 4 8832143
Hot Line: +971 50 6451752
E-mail: dubai@sercel.com
repair.dubai@sercel.com
Far East
Beijing, P. R. of China
R & D.
Tel: +86 106 43 76 710, Fax: +86 106 43 76 367
E-mail: support.china@geo-mail.com
repair.china@geo-mail.com
Xian, P. R. of China
Manufacturing & Repair.
Tel / Fax: +86 29 8222 9504
Xushui, P. R. of China
Manufacturing & Repair.
Tel:+86 312 8648355, Fax:+86 312 8648441
Singapore
Streamer Manufacturing & Repair;
Customer Support.
Tel:+65 64 17 70 00, Fax:+65 6 545 1418
To contact Sercel
Rev 30-2015 Page 2
IMPORTANT
Guidelines for Safe and Efficient Use:
Read this information before using your WTU-518.
Warnings, Cautions, and Important notices throughout this manual guide you to avoid injury, prevent equipment
damage, and determine equipment use when varying components or configurations exist. Notes provide tips or
additional information.
SERCEL is not responsible for damages or injuries that result from failure to observe the information provided.
When a Warning or Caution appears with an exclamation-point icon, as shown in this example,
this is to indicate possible equipment damage or potential risk of misuse and incorrect operation.
Important notices appear in the manual to highlight information that does not affect the risk of
bodily injury, death, or equipment damage, but is nevertheless important. These notices appear with
a stop-sign icon, as shown in this example.
Warranty is void if the product shows evidence of being damaged as a result of
disassembly/reassembly by anyone other than qualified, service-trained personnel authorized by
SERCEL.
Rev 30-2015 Page 3
TABLE DES MATIERES :
DESCRIPTION: ............................................................................................................................................................................. 5
DEPLOYMENT: ............................................................................................................................................................................ 6
LEDS FUNCTION: ................................................................................................................................................................................ 6
POWER / ETHERNET PORT: .................................................................................................................................................................... 6
INPUT GEOPHONE PORT: ....................................................................................................................................................................... 6
CONFIGURING THE WTU-518: ..................................................................................................................................................... 7
GPS configuration: ...................................................................................................................................................................................... 7
WLAN configuration: .................................................................................................................................................................. 7
Set WLAN Regulatory Domain: ................................................................................................................................................................... 7
Set WLAN Access Point Scanning Channel List: ........................................................................................................................................... 7
Set WLAN SSID: ........................................................................................................................................................................................... 7
Radio configuration: ................................................................................................................................................................... 7
Radio data rates: ......................................................................................................................................................................................... 7
Set Radio Regulatory Domain: .................................................................................................................................................................... 8
Set Radio frequencies: ................................................................................................................................................................................ 8
Set Radio Security Keys : ............................................................................................................................................................................. 8
Description of radio protocol: ..................................................................................................................................................... 9

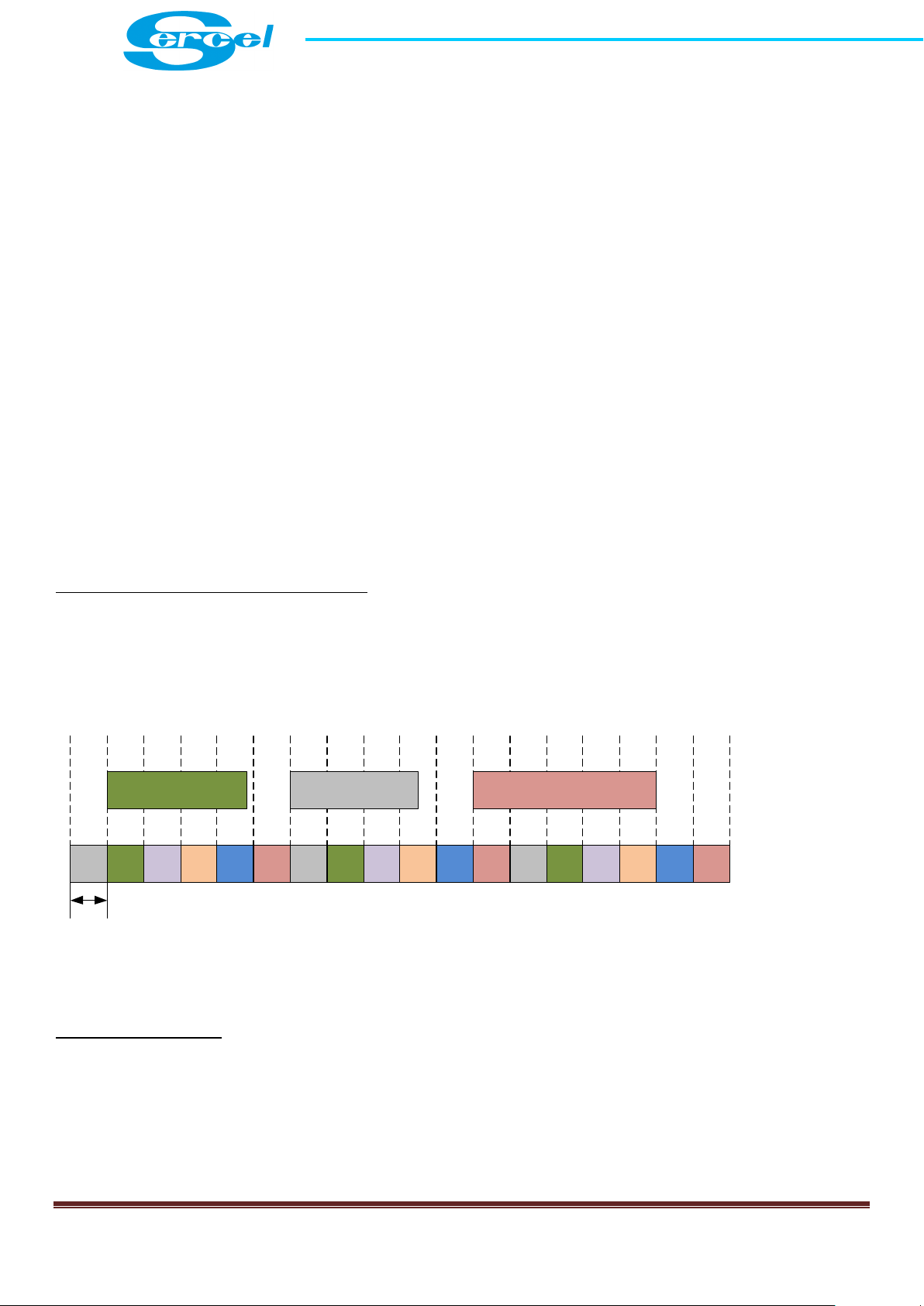

FREQUENCY HOPPING SPREAD SPECTRUM (FHSS) ..................................................................................................................................... 9
LISTEN BEFORE TALK (LBT) ................................................................................................................................................................... 9
REPAIRS: ................................................................................................................................................................................... 11
WTU-518 DISASSEMBLY INSTRUCTIONS: ............................................................................................................................................... 11
...................................................................................................................................................................................................... 11
INTERNAL BATTERY REPLACEMENT: ........................................................................................................................................................ 12
FUSE REPLACEMENT: .......................................................................................................................................................................... 13
RAU 2G A MAIN BOARD FUSE ACCESS: ................................................................................................................................................. 13
WTU-518 CONNECTORS:........................................................................................................................................................... 14
POWER / ETHERNET CONNECTOR: ........................................................................................................................................................ 14
INPUT GEOPHONE CONNECTOR: ............................................................................................................................................................ 14
SPECIFICATIONS: ...................................................................................................................................................................... 15
REGULATORY INFORMATION: .................................................................................................................................................. 16
Rev 30-2015 Page 4
WTU-518
Integrated GPS
synchronization
2.4GHz proprietary radio communication for
synchronization redundancy
Integrated WLAN 2,4GHz
-Data retrieval
2 reporting LEDs
BATTERY, etc.)
Geophone connector
analog or digital sensors
Power Ethernet connector
- external battery connection
Internal battery
day configured)
High memory capacity
configured)
Description:
The WTU-518 acquires and stores data coming from the analog or digital sensor plugged on its geophone connector.
By WLAN or LAN communication links, the WTU-518 transmits these stored data to recorder or field unit’s
equipment. State Of Health are transmitted through the UNITE system via a 2.4GHz radio communication link.
State of Health (SOH) management and GPS
- Settings and data retrieval
Non volatile - longer than
four weeks’ autonomy
(12-hour working days
Immediate status for
fast check (GPS,
SENSOR, WLAN,
high-accuracy clock
and 5GHz high-speed
wireless communication
-Settings
Longer than
four weeks’
autonomy (12hour working
Rev 30-2015 Page 5
Power ON/Power OFF by
connecting/disconnecting
IMPORTANT
Whenever any connector is unused, put its connector protective cap in place.
Two LEDs flashing in
red
acquisition not started or issue
after TTFF timeout
Two LEDs flashing
every 1s in green
Harvest and acquisition is
running.
GPS is locked or unlocked.
Two LEDs flashing
every 4s in green
Acquisition is running.
GPS is locked.
CAUTION
Deployment:
LEDs Function:
Power / Ethernet port:
This port has two main functions:
- configure the WTU-518 and harvest datas by connecting the Ethernet cable supplied by Sercel
- Power the WTU-518 when there is no internal battery, by plugging an external battery, or charge the
internal battery by an external battery or a stabilized power supply. This power input works between 11 and
16.8Vdc.
Two kinds of batteries can be plugged on this port:
Lead-acid battery
Lithium-ion battery
Use only the power/Ethernet cable, supplied with the WTU-518, to connect it to the battery or other
tools.
Input geophone port:
- Power ON/Power OFF of the WTU-518 by connecting/ disconnecting the geophones, analog or digital.
- Automatic recognition of geophones’ types (analog or digital).
Rev 30-2015 Page 6
Loading...
