1 Introduction
When using HIKOB WISE COW, safety precautions must be taken to avoid injury and damages. Please read this guide before installing, using the product, or performing any maintenance operation. Failure to read, understand and follow herein instructions may result in
personnal injury. In no event shall HIKOB be held liable for any damages arising out of or
related to misunderstanding instructions detailed in this manual.
1.1 Symbols and conventions used in this guide
Read entirely this guide before using the product HIKOB WISE COW and
keep it handy for reference.
Caution – Indicates a potentially hazardous situation which, if instructions
are not followed, may result in damage to the equipement.
Electrical Hazard – Indicates a dangerous condition such that, if instructions are not followed may result in electric shock and physical injury.
– Carefully follow instructions and warnings given in this guide, as well as instructions
indicated on the product.
– Make sure you understand all instructions: refer to symbols definitions and conventions
used in the documentation.
– Should you have questions on using the product HIKOB WISE COW once you have
completely read this guide, contact the HIKOB suppport or your vendor.
1.2 Safety instructions
Do not disassemble or attempt to open the product. It does not con-
tain any serviceable parts inside. Only qualified staff is allowed to perform
maintenance operations on the HIKOB WISE COW product. Opening a
HIKOB WISE COW will void the waranty.
Do not attempt to change or recharge the batteries. HIKOB WISE COW
batteries are not replaceable nor rechargeable.
Do not overheat, do not dispose in fire, do not crush. Do not heat
above 80°C, incinerate, or expose content to water. HIKOB WISE COW
uses lithium batteries, such improper use may lead to leakage , explosion
or fire.
November 2015 · Page 3/ 14
HIKOB WISE COW
Version 1.1-2466
Modifications or changes on the product is stricly prohibited if it is
not expressly approved by HIKOB. Modifications or changes performed on
HIKOB WISE COW will void the user’s authority to operate the equipment.
1.3 Compliance and conformity
1.3.1 Europe
The HIKOB WISE COW product is certified to be compliant with the R&TTE
1999/5/CE directive.
Electromagnetic compatibility and radio spectrum
The product HIKOB WISE COW is certified to be compliant with the following standards:
– ETSI EN 301 489-1 V1.9.2 (2011-09) et ETSI EN 301 489-17 V2.2.1 (2012-09)
– ETSI EN 300 328 V1.8.1 et EN 62311 (2008)
Electrical safety:
The product HIKOB WISE COW is certified to be compliant with the following normalized
standards:
– IEC 60950-1:2005 + A1:2010 + A2:2013
– EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
The HIKOB WISE COW is certified to follow the IEC 60 950-22 Am2 outdoor safety standard. With exception for Finland, Norway and Sweden, countries where environment temperature can be far lower than the limit for operating and safety assurance temperatures for the
HIKOB WISE COW. Don’t install the HIKOB WISE COW outdoors in these areas.
1.3.2 Electromagnetic compatibility Japan
The HIKOB WISE COW product is certified to be compliant with Japan
Radio Law - Article 2 paragraph 1 Item 19.
1.3.3 USA
Information to user This device complies with part 15 of the FCC Rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
November 2015 · Page 4/ 14
HIKOB WISE COW
Version 1.1-2466
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception which can be determined by turning
the equipment off and on, the user is encouraged to try to correct interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
RF exposure This device complies with FCC RF radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least
20cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
1.3.4 Canada
Transmitter Antenna Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter
by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Licence-Exempt Radio Appartus This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
RF Exposure This device complies with Industry Canada RF radiation exposure limits set
forth for general population. This device must be installed to provide a separation distance
of at least 20cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
November 2015 · Page 5/ 14
HIKOB WISE COW
Version 1.1-2466
1.4 WEEE
Information on disposal for users of waste electrical electronical equipment:
This symbol on the product(s) and / or accompanying documents means
that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please
take this product(s) to designated collection points where it will be accepted
free of charge. Alternatively, in some countries you may be able to return your products to your local retailer upon purchase of an equivalent
new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste handling.
1.5 Technical Support
HIKOB SA
66 Boulevard Niels Bohr
CS 52132
69603 VILLEURBANNE CEDEX FRANCE
support@hikob.com
November 2015 · Page 6/ 14
HIKOB WISE COW
Version 1.1-2466
2 General description
The HIKOB WISE COW is a wireless magneto resistive sensor, ultra-compact, and energy
autonomous. This is one of the acquisition nodes composing the HIKOB wireless radio network aimed at instantaneously transfer information on presence of vehicles in parking lots, or
passing vehicles on traffic lines.
The HIKOB WISE COW Parking detects parked vehicles, and the HIKOB WISE COW Traffic
detects passing vehicles. Both detections are based on the earth’s magnetic field variations
measurements. Measures are broadcasted through the HIKOB radio network, possibly using
routers, and are treated by the HIKOB GATEWAY, platform supplying and managing data,
allowing monitoring.
Figure 1: External view of HIKOB WISE COW
The HIKOB WISE COW sensor is delivered already assembled, ready to be installed. The
HIKOB WISE COW casing is water resistant, IP 67 (EN 60529 protocol). The first number 6
identifies protection against complete ingress of dust, the second number 7, identifies protection against the effects of immersion in water under stated conditions of pressure and time.
Should you decide to perform cleaning tasks on the HIKOB WISE COW while it’s still not burried, don’t perform high pressure cleaning, prefer wiping with a dry cloth, or with a neutral
agent.
November 2015 · Page 7/ 14
HIKOB WISE COW
Version 1.1-2466
3 Data sheet
Power supply non-replaceable primary Lithium batteries Li/SOCL2 3.7V, 6Ah
Packaging IP67 according to EN 60529
Dimensions cylindrical: height 55mm, diameter 56.5mm
Weight 132g
Temperature Operating and Storage -40°C +80°C
Radio
Frequency Band 2.4GHz ISM
Protocol IEEE 802.15.4e
Antenna gain +3dBi
Input level sensivity -101dBm
Output power +4dBm
Range 30m1to router or gateway
1
Radio range given for a HIKOB WISE COW sensor once installed in the road, see section Installation.
November 2015 · Page 8/ 14
HIKOB WISE COW
Version 1.1-2466
4 Installation
You need one HIKOB WISE COW Parking sensor per parking spot, and two HIKOB WISE COW
Traffic sensors per traffic line to measure speed.
Here are HIKOB recommendations to draw your installation map:
Figure 2: Truck parking
Figure 3: Traffic
Figure 4: Urban traffic
November 2015 · Page 9/ 14
HIKOB WISE COW
Version 1.1-2466
4.1 Installation Procedure
Installing HIKOB WISE COW sensors requires the use of a specific polyurethane resin
provided by HIKOB. For good results in sealing, environment temperatures must not be below
+5°C.
4.2 Tools
Here are the tools you need to install HIKOB WISE COW sensors:
Spary paint
Core drilling machine / rotary hammer
65 mm drill / core drill
November 2015 · Page 10/ 14
HIKOB WISE COW
Version 1.1-2466
Vacuum cleaner
Blowtorch
Glue gun
4.3 Step-by-step installation procedure
1 Mark and protect your working area.
November 2015 · Page 11/ 14
HIKOB WISE COW
Version 1.1-2466
2 Locate the HIKOB WISE COW position on the ground
and and draw a sign, according to your installation documents.
3 Drill a hole: HIKOB WISE COW sensors are installed
in road pavements by core drilling the asphalt 65mm
deep, with a 65mm diameter minimum.

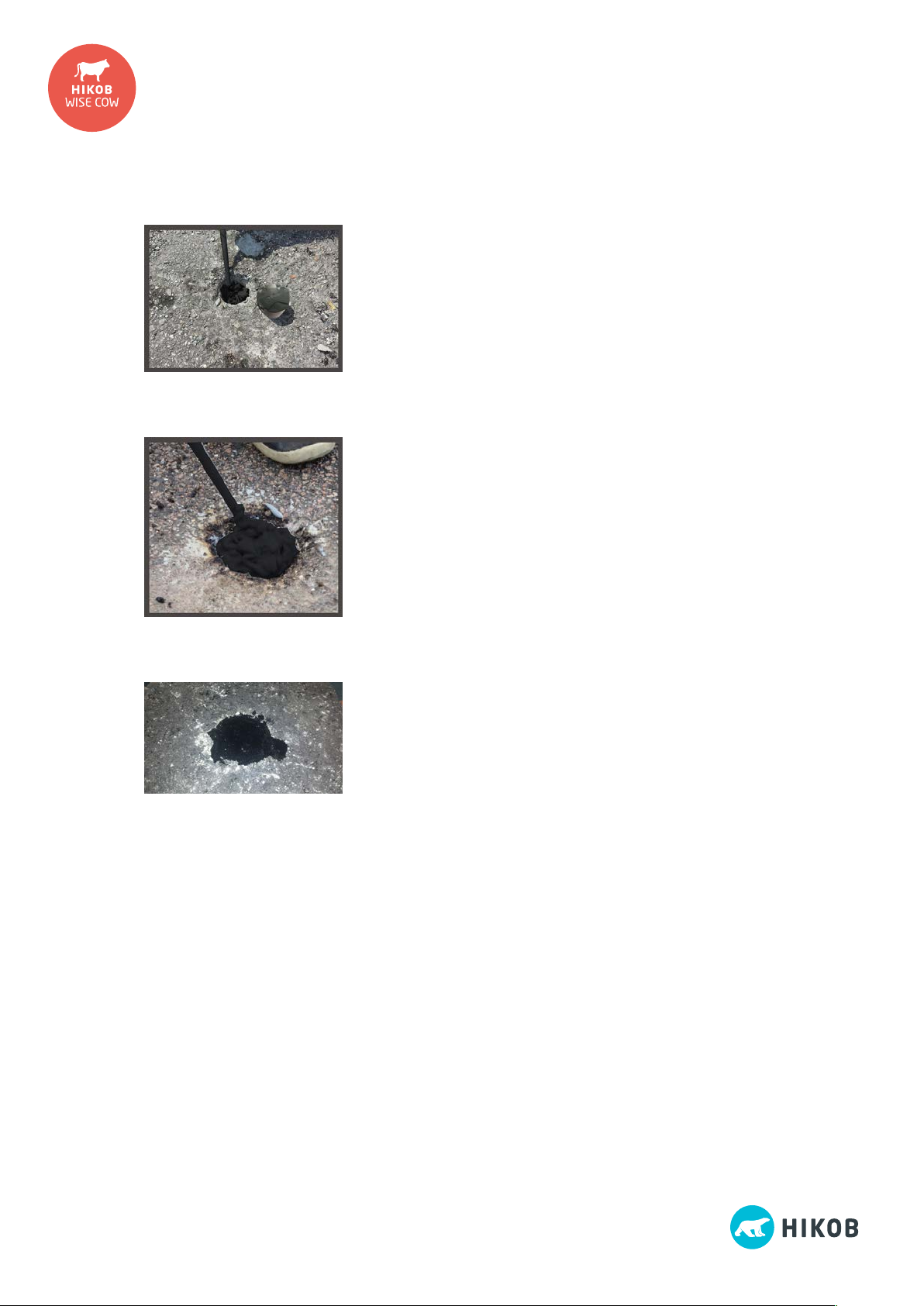

4 Clean the holes: they have to be perfectly cleaned out
from the hole saw drilling wreckage, preferably vacuumcleaned.
5 Dry the holes from all water used by wet drilling as
well, preferably with a blowtorch to ensure a good grip in
the sealing process.
November 2015 · Page 12/ 14
HIKOB WISE COW
Version 1.1-2466
6 Half-fill the hole with the provided HIKOB resin, and
note on your installation document the serial number of
the HIKOB WISE COW that goes on this hole.
7 Place the sensor in the hole, the side with the HIKOB
logo up. Place it so that the top surface of the sensor is
about 5mm below the top surface of the road. Don’t go
below 10mm from the road surface, because it will drastically alter radio transmission performances. Fill the rest
of the cavity with resin, up to the road surface level.
8 It takes about 15 minutes for the resin to dry, depending on environment temperatures.
November 2015 · Page 13/ 14
