SeQual Technologies ECLIPSE 1000 User Manual

Download

Page 1

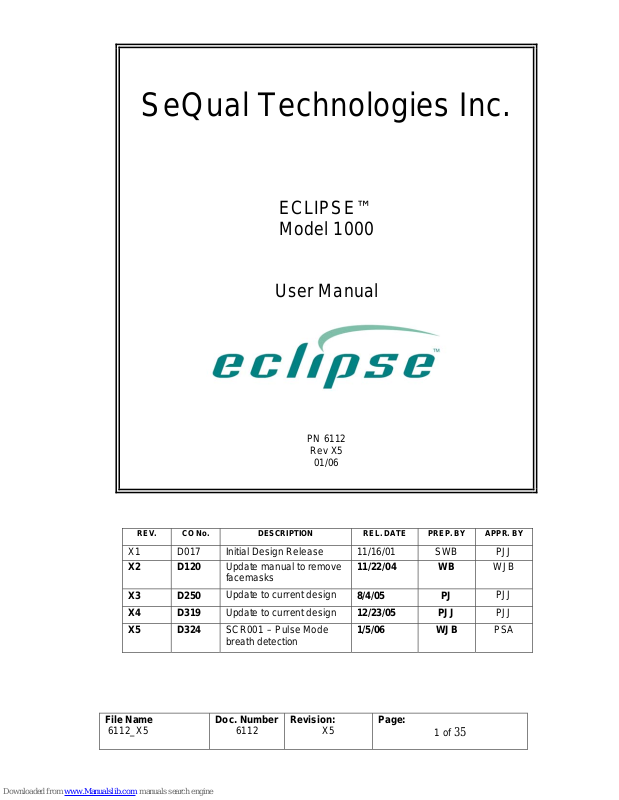

SeQual Technologies Inc.

ECLIPSE™ Model 1000

User Manual

PN 6112

Rev X5

01/06

REV. CO No. DESCRIPTION REL. DATE PREP. BY APPR. BY

X1 D017 Initial Design Release 11/16/01 SWB PJJ

X2 D120

X3 D250 X4 D319 X5 D324

Update manual to remove facemasks

Update to current design Update to current design SCR001 – Pulse Mode

breath detection

11/22/04 WB

8/4/05 PJ 12/23/05 PJJ 1/5/06 WJB

WJB

PJJ PJJ

PSA

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

1 of

Page 2

CONTENTS

MPORTANT SAFETY INSTRUCTIONS........................................................................................................3

Symbols........................................................................................................................................3

NDICATIONS FOR USE ..............................................................................................................................5

CONTRAINDICATIONS ............................................................................................................................... 5

AFETY GUIDELINES.................................................................................................................................6

Oxygen Therapy Safety................................................................................................................6

Operating Safety ........................................................................................................................... 7

Power Cartridge Safety.................................................................................................................8

NTRODUCTION TO YOUR ECLIPSE OXYGEN SYSTEM.........................................................................9

NDERSTANDING THE CONTROLS AND FRONT PANEL .......................................................................... 10

Description of the ECLIPSE .........................................................................................................10

Control Panel Features .................................................................................................................. 11

User Controls.................................................................................................................................11

Front Panel ICONS.........................................................................................................................11

System Status Indicators ................................................................................................................12

ECOMMENDED OPERATING ENVIRONMENTS........................................................................................ 13

The Proper Location......................................................................................................................13

PERATING INSTRUCTIONS...................................................................................................................... 14

Before Operating...........................................................................................................................14

Powering your ECLIPSE System..................................................................................................14

Operating your ECLIPSE System.................................................................................................18

LARM CONDITIONS AND TROUBLESHOOTING......................................................................................21

CCESSORIES ............................................................................................................................................23

CLEANING, CARE AND ROUTINE MAINTENANCE ................................................................................... 25

ECHNICAL DATA.....................................................................................................................................27

SUMMARY OF ALL WARNINGS AND CAUTIONS......................................................................................... 29

ELECTROMAGNETIC COMPATIBILITY..................................................................................................... 34

ISPOSAL OF EQUIPMENT AND ACCESSORIES ........................................................................................ 35

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

2 of

Page 3

Important Safety Instructions

Important Safety Instructions are shown Under the Following Headings:

SeQual® Technologies Inc. (SeQual) recommends that this User Manual be given to each patient receiving an Eclipse™ Oxygen System. This User Manual describes all the necessary information in order for a patient or caregiver to operate the Eclipse.

WARNING

CAUTION

DO NOT: Information to which you should pay special attention.

Important! Clarifying information, specific instructions, commentary, sidelights, or interesting

points.

Refer to this section for an explanation of the symbols and the warnings that accompany them.

IPX1

Important safety information for hazards that might cause serious injury.

Important information for preventing damage to the ECLIPSE Oxygen System.

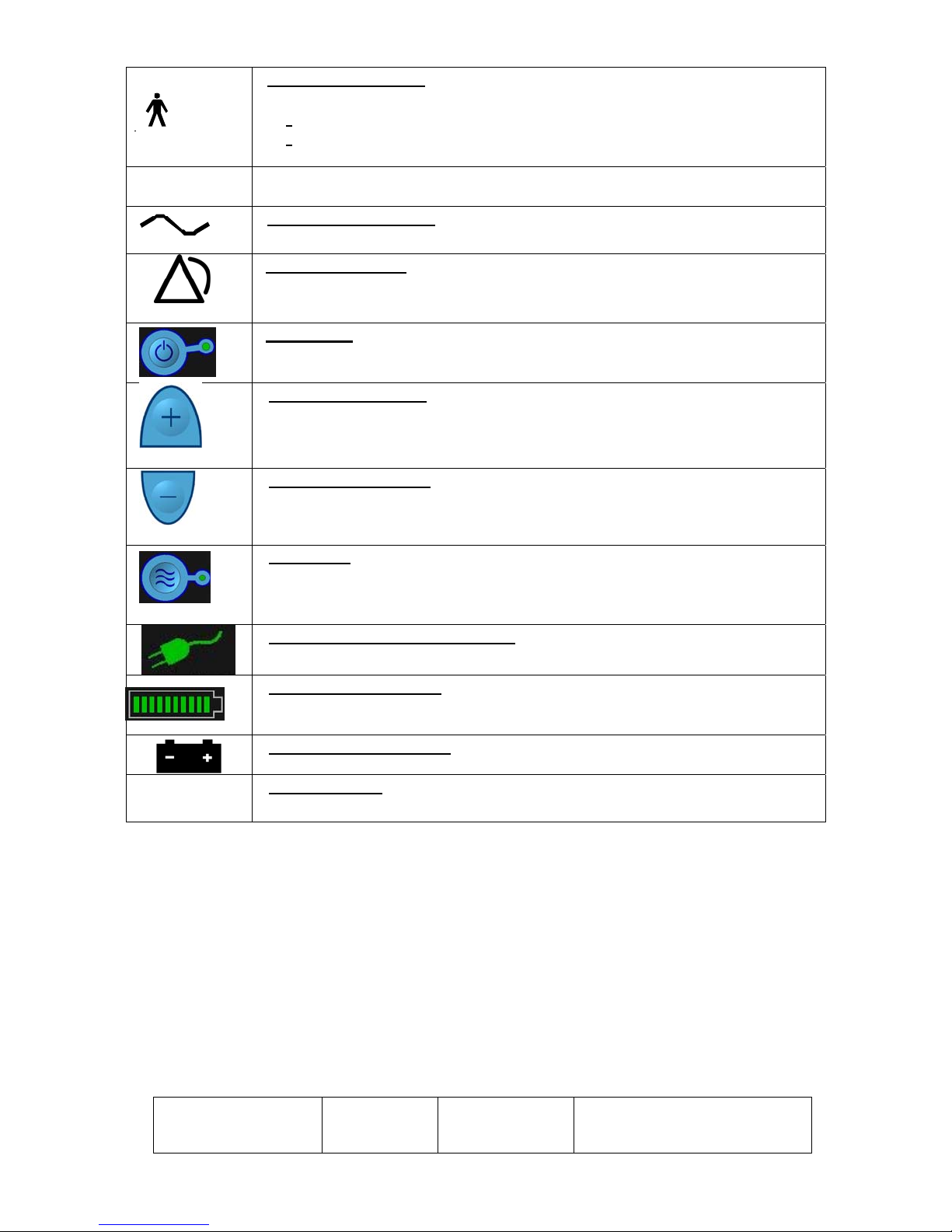

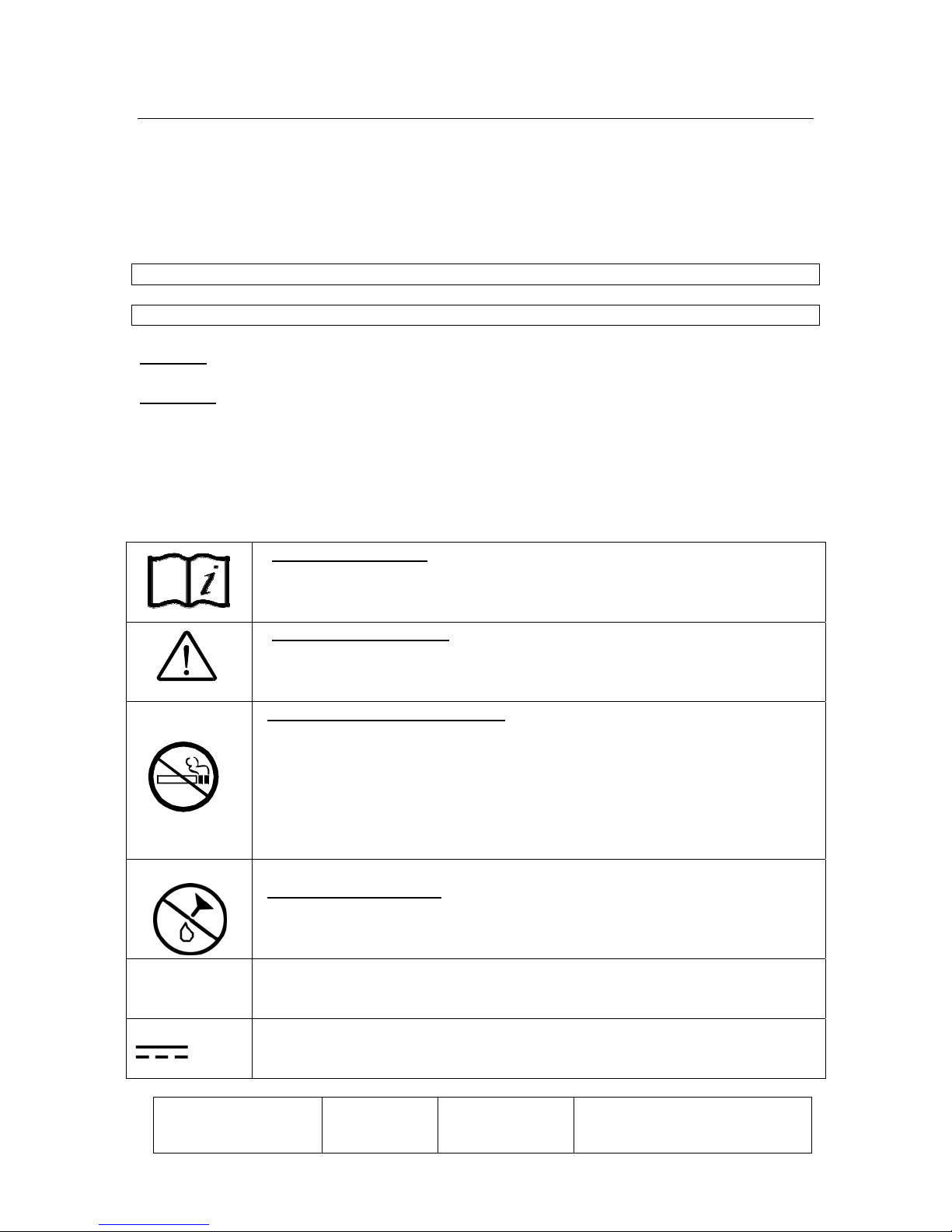

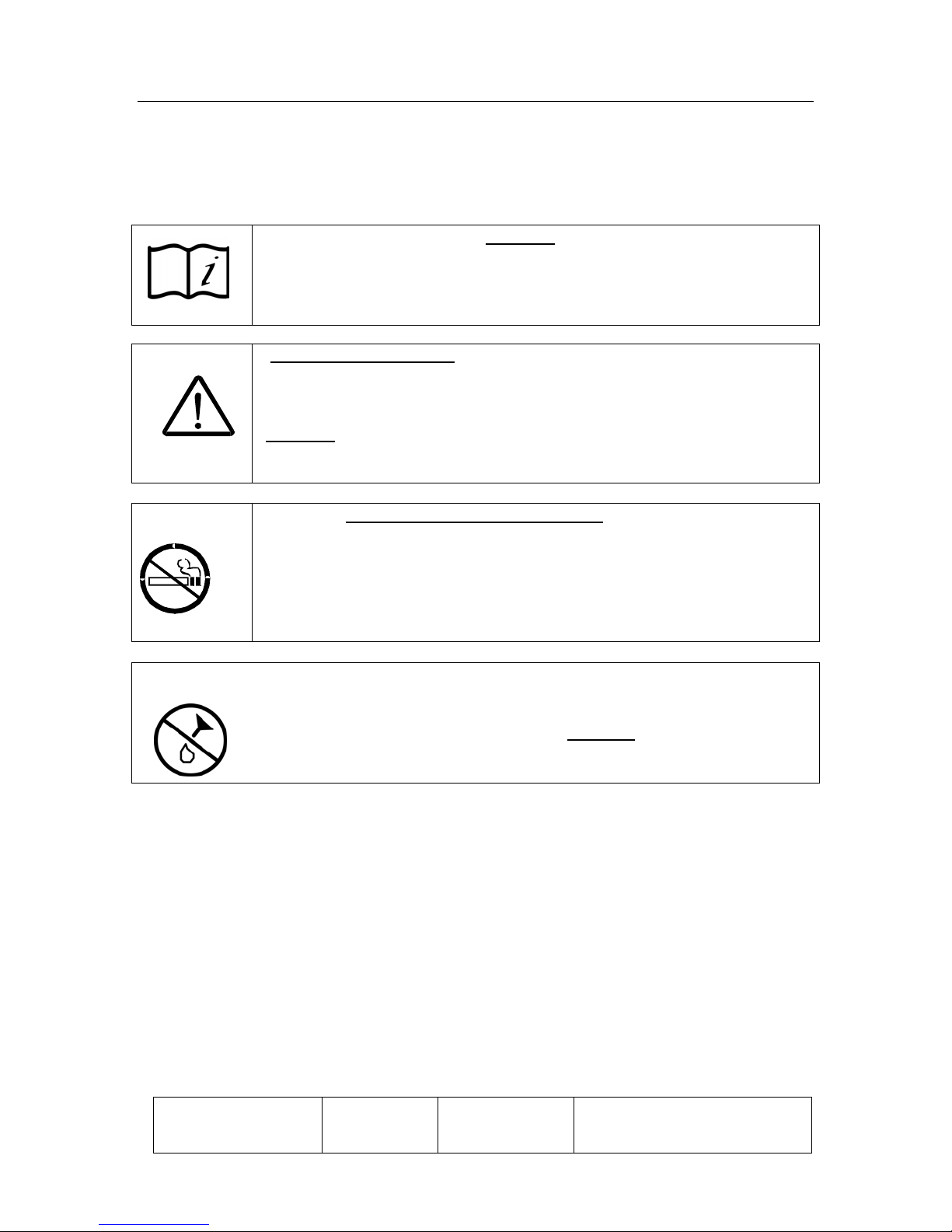

Symbols Used in User Manual and on Oxygen System

"Read Instructions": This symbol, when used alone or in conjunction with any of the following symbols, indicates the need to consult the operating instructions provided with the product. A potential risk exists if the operating instructions are not followed. "Attention or Caution": Consult accompanying documents. This symbol indicates important information that requires the user to take special precautions when certain conditions are present.

"No Smoking or Naked Flames": The use of oxygen therapy requires that special care be taken to reduce the risk of fire. Materials that burn in air, and even some materials that will not burn in air, are easily ignited and burn rapidly in high concentrations of oxygen. For safety concerns, all possible sources of ignition must be kept away from the oxygen concentrator and preferably out of the room in which it is being used. Smoking in the proximity of an operating

oxygen concentrator is dangerous, and can permanently damage the device and void the warranty.

"Use No Oil or Grease": Indicates important information about the possibility

of spontaneous and violent ignition that may occur if oil, grease or other petroleum based substances come into contact with oxygen under pressure.

Drip Proof Equipment-IPX1 Protection of liquid ingress. (IPX1, per IEC

60529)

IEC Icon for DC Power (Input)

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

3 of

Page 4

"Type B Equipment": Equipment providing a particular degree of protection

against electric shock, particularly regarding:

Allowable LEAKAGE CURRENT;

Reliability of the protective earth connection.

“Amperes”

"Alternating Current"

“Audible Alarm”: An audible indicator is provided to announce a reduction in oxygen concentration or when the power has been interrupted or lost.

“ON/OFF”: Turns the unit ON and OFF but does not directly disconnect the

mains power”.

Increase Flow Setting”: Increases the flow setting in 0.5 LPM increments

“ each time the button is pushed.

“

Decrease Flow Setting”: Decreases the flow setting in 0.5 LPM increments

each time the button is pushed.

“

Flow Mode”: Activates either Continuous Mode or Pulse Mode Operation.

External Power Present Indicator”: Indicates the presence of external

“ power to operate the concentrator.

“Power Cartridge Status” Shows the amount of charge remaining in the Power Cartridge.

“

Power Cartridge Symbol”: The symbol on the Power Cartridge pack.

“Oxygen Output” The port in which the oxygen flows out and where the tubing is attached.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

4 of

Page 5

INDICATIONS FOR USE

HE ECLIPSE OXYGEN SYSTEM IS INDICATED FOR THE ADMINISTRATION OF

SUPPLEMENTAL OXYGEN PROVIDE ANY PATIENT MONITORING CAPABILITIES.

OUR PHYSICIAN HAS PRESCRIBED A SPECIFIC OXYGEN FLOW RATE SETTING TO MEET YOUR

INDIVIDUAL NEEDS

ECOMMENDED OXYGEN FLOW RATES SHOULD BE ADJUSTED ONLY UNDER THE ADVICE OF A

PHYSICIAN

WARNING

EDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A

PHYSICIAN

. THE DEVICE IS NOT INTENDED FOR LIFE SUPPORT NOR DOES IT

CONTRAINDICATIONS

WARNING

THE ECLIPSE IS NOT INTENDED FOR LIFE SUPPORTING OR LIFE SUSTAINING APPLICATIONS, NOR DOES IT PROVIDE ANY PATIENT

MONITORING CAPABILITIES

WARNING

N CERTAIN CIRCUMSTANCES, THE USE OF NON-PRESCRIBED OXYGEN CAN

BE HAZARDOUS A PHYSICIAN

. THIS DEVICE SHOULD ONLY BE USED WHEN PRESCRIBED BY

WARNING

FOR ADULT USE ONLY. NOT QUALIFIED FOR USE ON PEDIATRIC PATIENTS.

OT FOR USE IN THE PRESENCE OF FLAMMABLE ANESTHETICS.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

5 of

Page 6

SAFETY GUIDELINES

This section of the manual provides warnings and cautions that apply to hazards or unsafe practices that could result in personal injury or property damage.

OXYGEN THERAPY SAFETY

WARNING

"Read Instruction Manual":

first reading and understanding this manual. If you are unable to understand the warnings and instructions, contact your authorized SeQual dealer/provider before attempting to use this oxygen system.

"Caution or Attention": In certain circumstances, oxygen therapy can be

hazardous; therefore, it is advisable to seek medical advice before using the oxygen system.

DO NOT deviate from prescribed flow rates. Adjust the flow only to your prescribed flow rate, unless otherwise instructed by your physician.

Warning:

requires that special care be taken to reduce the risk of fire. Oxygen enhances the combustion of flammable material. For safety concerns, all possible sources of ignition must be kept away from the oxygen system and preferably out of the room in which it is being used. Smoking in the proximity of an

operating oxygen concentrator is dangerous, and can permanently damage the device and void the warranty.

"Use No Oil or Grease": A spontaneous and violent ignition may occur if oil,

grease or other petroleum substances come into contact with oxygen under pressure. Keep these substances away from the oxygen system, tubing and connections and any other oxygen source. or other lubricants.

"No Smoking or Naked Flames”. The use of oxygen therapy

DO NOT operate this oxygen system without

DO NOT use any petroleum based

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

6 of

Page 7

OPERATING SAFETY

• Keep oxygen system and cord away from hot surfaces.

•

DO NOT use the oxygen system if it has a damaged cord or plug; contact your dealer/provider.

• Your oxygen system should be located in a well-ventilated area to allow for adequate air intake and to avoid the intake of airborne pollutants and fumes.

• Only use this device with accessories designed or recommended by SeQual Technologies Inc.

• If oxygen system has been dropped, damaged or exposed to water, contact your

dealer/provider for examination or repair.

•

DO NOT drop or insert any object into any opening.

• DO NOT soft surface, such as a bed or couch or car seat.

• DO NOT

manufacturer.

• When using ECLIPSE in a vehicle, make sure it is properly secured or restrained.

WARNING

CAUTION

block the air inlet or the exhaust vent of the oxygen concentrator when it is on a

cover unit with a blanket, towel, quilt, etc.

overfill the humidifier, if used. Fill with water only to the level shown by the

DO NOT

personnel should only remove the cover.

DO NOT DO NOT

injury may result.

remove the cover, no serviceable parts inside. Qualified service

operate device or accessories on wet surfaces or in standing water and

submerse or expose to water. Electrical shock and serious physical

Protect electrical cords from sharp edges. Electrical shock and serious physical injury may result.

Use only the SeQual AC Power Supply and DC Power Supply supplied with your ECLIPSE Oxygen System. Use of a non-SeQual Power Supply may be hazardous, cause damage to your oxygen system and will void the warranty.

Availability of an alternate source of oxygen is recommended in case of power outage or mechanical failure.

DO NOT

expose unit to temperature outside of specified operating or storage

temperatures as this may damage the unit.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

7 of

Page 8

CAUTION

Locate oxygen tubing and Power Supply cords to prevent tripping hazards.

DO NOT

closet, with cannula leading out of the enclosed space.

place ECLIPSE in a small, enclosed space, such as a bathroom or

OWER CARTRIDGE SAFETY

WARNING

CAUTION

This Power Cartridge may explode and cause potential injury if exposed to or disposed of in a fire.

DO NOT

objects, such as keys or coins. It may cause sparks or excessive heat.

DO NOT

Cartridge electrolytes may be toxic if swallowed and can be harmful to skin and eyes. Keep the Power Cartridge away from children.

Use of a damaged Power Cartridge may cause personal injury.

Exposing the Power Cartridge to water or other liquids may cause personal injury.

DO NOT

such as in a vehicle parked in the sun or on a hot day.

Charging the Power Cartridge below 50 F° (10° C) or above 104° F (40° C) may degrade the performance.

DO NOT

Only use the Power Cartridge for its intended purpose.

short-circuit the Power Cartridge’s metal contacts with metallic

disassemble, puncture, or crush the Power Cartridge. Power

expose the Power Cartridge to temperatures above 140° F (60°C),

drop the Power Cartridge or expose it to mechanical shock.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

8 of

Page 9

INTRODUCTION TO YOUR ECLIPSE OXYGEN SYSTEM

This User Manual will inform you about the use and care of the ECLIPSE Oxygen System and its accessories. Thoroughly read all the information in this manual in its entirety before operating your ECLIPSE. Contact your dealer/provider for proper training in the use of this device.

PLAN TREATMENT FOR CHRONIC HYPOXIA CAUSED BY CHRONIC OBSTRUCTIVE PULMONARY DISEASE DEVELOPMENT OF OXYGEN CONCENTRATORS PHYSICIANS TO SELECT A MODE OF OXYGEN THERAPY THAT SUITS THE PATIENT LIFESTYLE

YOUR PHYSICIAN HAS PRESCRIBED A SPECIFIC OXYGEN FLOW RATE SETTING TO MEET YOUR

INDIVIDUAL NEEDS NEED ADVICE OF A PHYSICIAN.

OUR PHYSICIAN HAS PRESCRIBED SUPPLEMENTAL OXYGEN AS PART OF A TREATMENT

. LONG TERM OXYGEN THERAPY IS NOW WIDELY ACCEPTED AS THE STANDARD

. OXYGEN THERAPY HAS BECOME MORE VERSATILE IN RECENT YEARS DUE TO THE

. THE ECLIPSE MAKES IT EASIER FOR

’S

HE ECLIPSE MAY BE USED IN HOME, INSTITIUTION, AND MOTOR VEHICLES.

. THIS FLOW RATE IS DETERMINED BY THE AMOUNT OF OXYGEN YOU

. RECOMMENDED OXYGEN FLOW RATES SHOULD BE ADJUSTED ONLY UNDER THE

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

9 of

Page 10

UNDERSTANDING THE CONTROLS AND FRONT PANEL

DESCRIPTION OF THE ECLIPSE

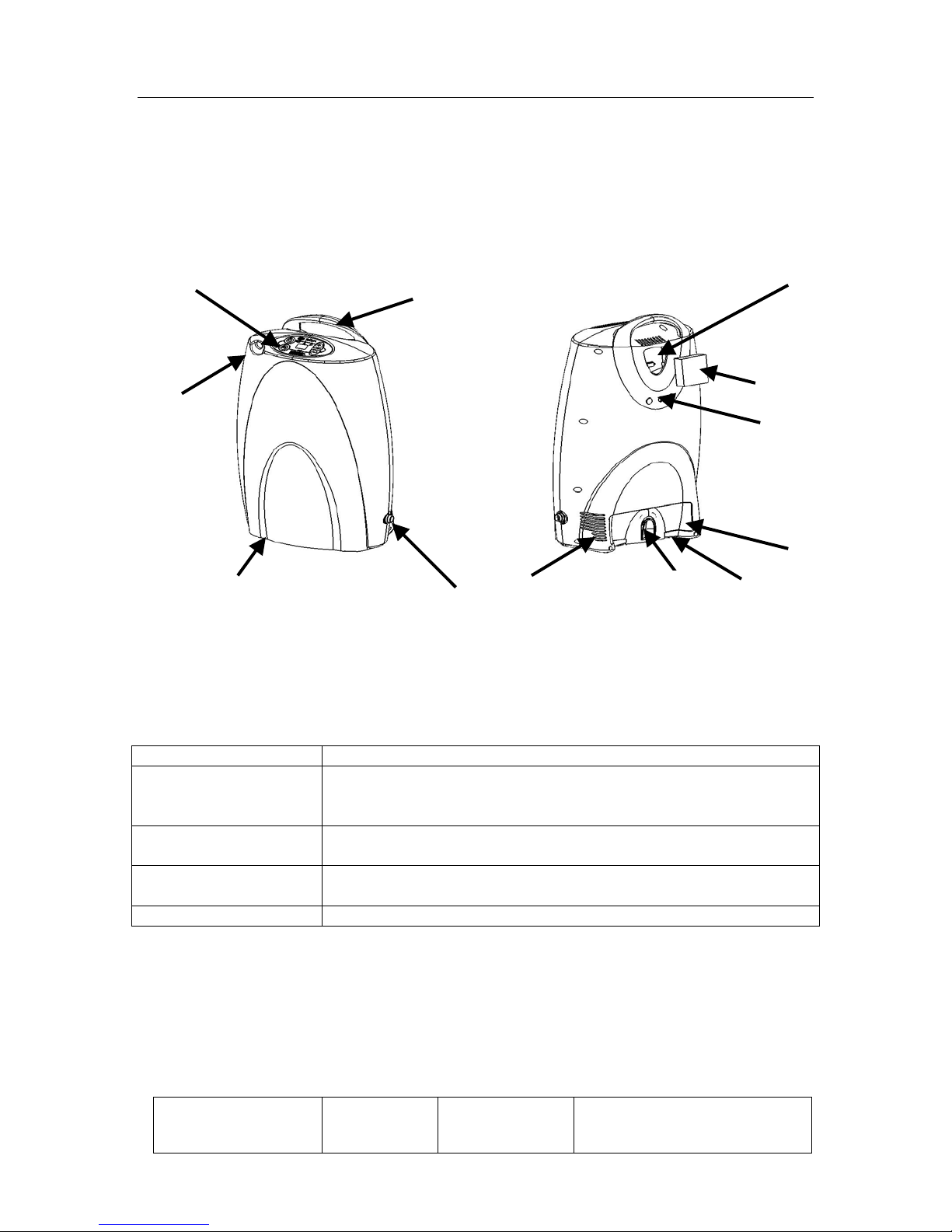

The key features of the ECLIPSE Oxygen System and control panel are important items to become familiar with.

Control Panel

Handle

Oxygen Outlet Port

Simplified User Instructions (Under Base)

Front

External Power Receptacle

Exhaust Ven

Input/Output Connections

Oxygen Outlet Port Extension tubing or a cannula is attached to this port. Air Inlet Filter Ambient air is drawn into the unit through the air inlet located on the

top/back of the unit. This filter prevents dust and debris from entering the Eclipse and should be cleaned regularly.

Service Port This connection allows service personnel to diagnose and monitor

Eclipse performance. It is not for patient use. External Power Receptacle Exhaust Vent Exhaust air from the Eclipse is expelled from this vent.

Either the Eclipse AC or DC power adapter output cords may be

connected to this receptacle.

Power

Cartridge Latch

Back

Service Port (Not for Patient Use)

Main/Rating Label (Under Base)

ir Inlet Filter

Cart Insert Screw

Power Cartridge

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

10 of

Page 11

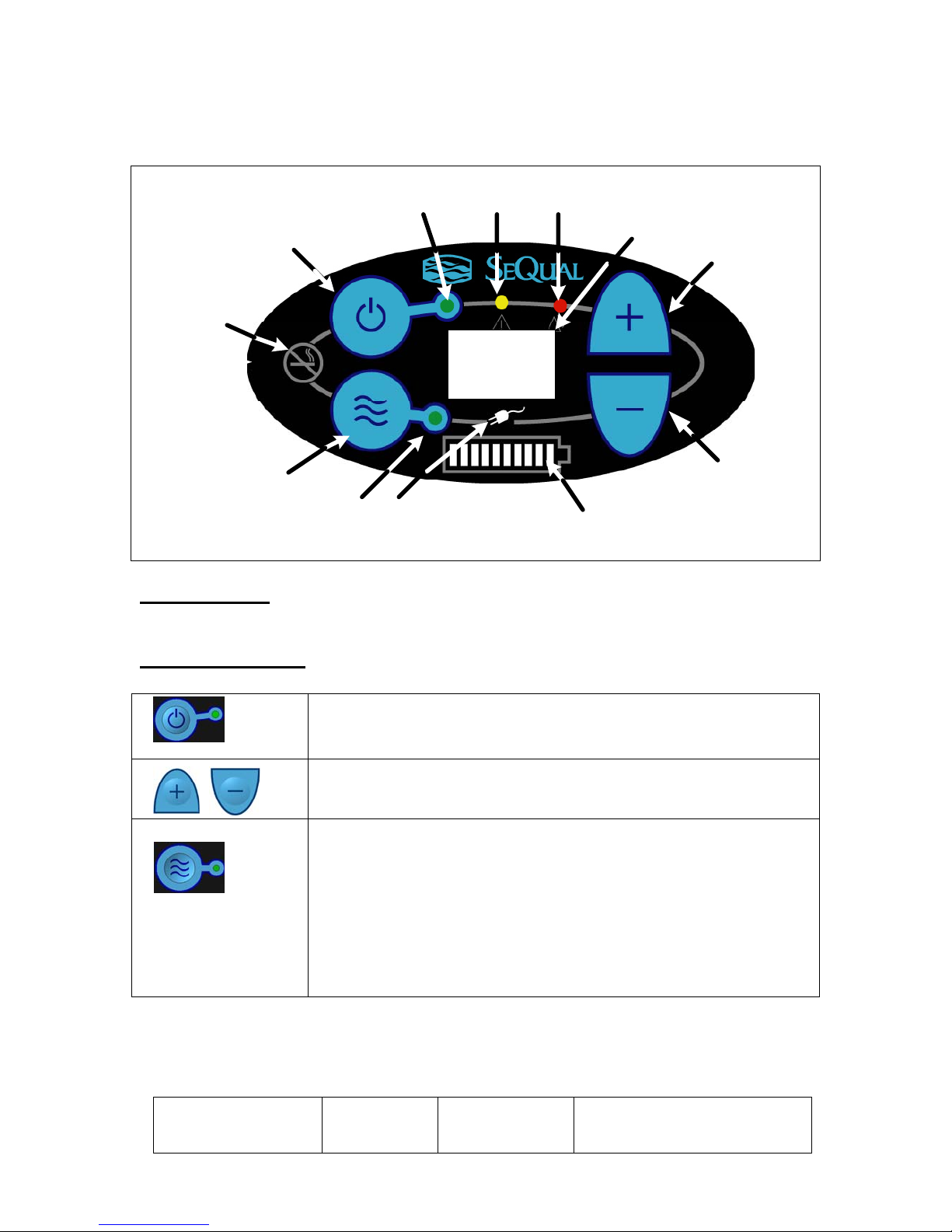

Control Panel Features

The ECLIPSE displays important operating information using the icons, numbers and visual indicators on the control panel. This section will help you understand these features.

Smoking

Icon

ON/OFF

Button

ON/OFF

Indicator (green)

Alert

Indicator (yellow)

Alarm

Indicator (red)

LPM Flow Rate Setting

(2 digits) (green)

Increase Flow Rate

Button

2.0

Flow Mode

Button

Pulse

Flow

Mode

Indicator

External Power Present Indicator

Power Cartridge Status

Gauge (green)

User Controls

This section describes the control buttons and function for your ECLIPSE Oxygen System.

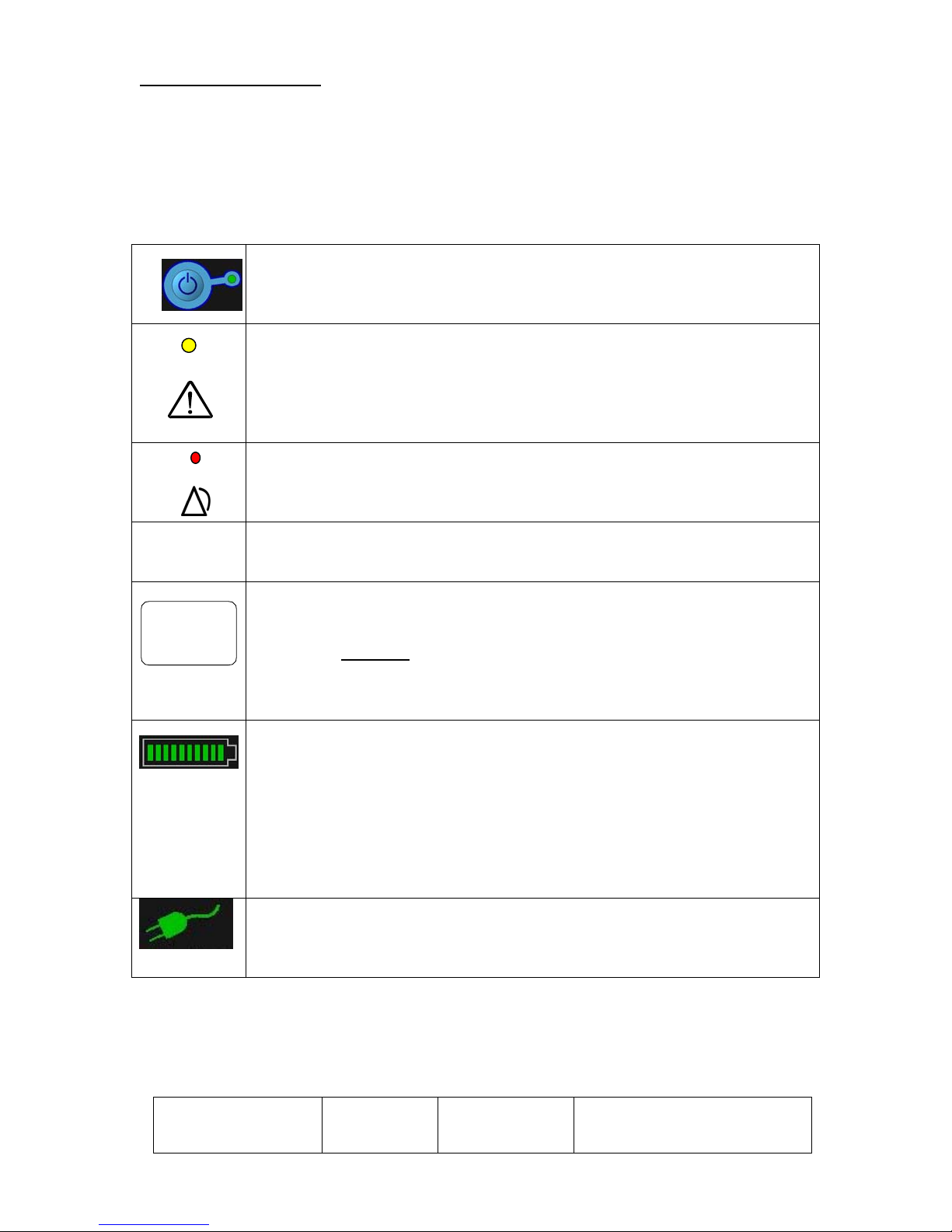

Front Panel Icons

ON/OFF Button and Indicator: This button turns the system ON or

OFF. The Green Indicator is lit when the unit is ON.

Decrease Flow Rate

Button

Increase or Decrease Flow Rate Button: Use these buttons to set the flow rate to your prescribed level.

Flow Mode Button and Indicator: The ECLIPSE contains a button to toggle between Continuous Flow and Pulse Flow mode. Pulse Flow mode allows a significant increase in the amount of time the system can operate from the Power Cartridge. When the Pulse Flow Mode is activated, the green Flow Mode indicator goes on and a pulse of oxygen is delivered upon inhalation. When the pulse of oxygen is delivered, the indicator briefly goes off. Only change your flow settings at the recommendation of your physician.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

11 of

Page 12

System Status Indicators

The ECLIPSE control panel displays important operating information. This section will help you understand these features.

Green, Yellow, and Red indicators on the front panel indicate the operating condition of the system. For more information on the indicators, see the Alarm Conditions and Troubleshooting table.

ON/OFF (Green) Indicator - System OK Indicates that the ECLIPSE is ON and operating properly.

ALERT (Yellow) Indicator - Low and Medium Priority Alerts

When steadily illuminated, this indicates a low priority awareness condition or Caution. Continue to use your system and refer to the Troubleshooting section

for the proper response. A flashing yellow indicates a medium priority alert. Prompt response is needed to deal with a condition. Refer to the Troubleshooting section.

ALARM (Red) Indicator – High Priority Alarms

Indicates a high priority alarm condition. Immediate response is necessary to deal with the condition. Refer to the Troubleshooting section and contact your

dealer/provider. Buzzer: An audible alarm (or buzzer) is used to alert you of the condition of the unit, either a warning or failure, and to confirm a valid key press.

Flow Rate Setting Indicator (Green): This is the main focus on your control panel. Your dealer/provider will set up your prescribed flow rates for your

2.0

Continuous Flow Mode and your Pulse Flow Mode, if pulse flow has been prescribed. DO NOT physician. Each time you turn the unit on, the last flow mode and flow setting

change these settings unless it is under the order of your

will be used.

Power Cartridge Status Gauge: This indicator displays the charge remaining in the Power Cartridge. When the Power Cartridge is fully charged all 10 bars are illuminated. Each bar represents approximately 10% of the total Power Cartridge charge. When the Power Cartridge is being charged, the charge indicator bars will blink in a waterfall fashion.

If the Power Cartridge is not installed, or if it is improperly installed, the Status Gauge will not light.

External Power Present Indicator: When the ECLIPSE system is properly plugged in using the AC or DC Power Supply, this indicator will appear on the Control Panel.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

12 of

Page 13

RECOMMENDED OPERATING ENVIRONMENTS

umidity: Up to 95% No

The following information recommends certain boundaries that will allow the ECLIPSE Oxygen System to operate at its full potential.

Operating

Temperature

50º F to 104º F (10º C to 40º C)

Operating Humidity

Transport/Storage

Temperature

10% - 95% at a 82.4° F (28° C) dew point

-4º F to 140º F (-20º C to 60º C) H

n-Condensin

Electrical Use no extension cords or electrical outlets controlled by a switch.

Altitude

Placement

0 – 13,123 feet (4,000 meters) DO NOT

block air inlet or bottom exhaust vent (keep at least 3 inches

away from walls, draperies, furniture, etc.)

Environment Smoke, pollutant, and fume free.

Operating Time

Up to 24 hours per day when connected to external power.

When moving the ECLIPSE from an extreme environment, allow time for your ECLIPSE to acclimate to the recommend operating environment.

WARNING

CAUTION

Operating your ECLIPSE outside the recommended operating environment may impact performance, cause damage and will void the warranty

Locate the unit in a well-ventilated room that provides adequate air flow and check if air is being prevented from entering or exiting the system by furniture, draperies, bedding, clothing or pets.

The Proper Location

Select a location that avoids fumes and pollutants and allows the oxygen system to draw in room air through the air inlet filter on the back of the cabinet and exhaust air out the vent at the bottom of the case without being restricted.

Locate the unit such that the alarms can be heard.

DO NOT

cover unit with a blanket, towel, quilt, or other covering, as the unit may overheat.

DO NOT

locate near flammable materials or in the direct path of any heat source, such as a heat

Keep the oxygen system at least five (5) feet (1.5 m) away from hot, sparking objects or open sources of flame.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

13 of

Page 14

OPERATING INSTRUCTIONS

BEFORE OPERATING

Your SeQual dealer/provider or authorized service representative will demonstrate how to operate the oxygen system. This manual serves as a supplemental reference to help you operate and maintain the unit. If you have any further questions or problems call your SeQual dealer/provider or authorized service representative.

Important! DO NOT

Guidelines" section of this manual. Follow all operating instructions. Observe all warnings on the product and in the operating instructions. To reduce the risk of fire, bodily injuries, and damage to the oxygen system, observe all safety precautions.

WARNING

CAUTION

POWERING YOUR ECLIPSE SYSTEM

The ECLIPSE is a lightweight, portable oxygen system capable of being operated directly from three different power sources: (1) an AC Power Supply, (2) a DC Power Supply, or (3) a rechargeable Power Cartridge.

The ECLIPSE charges the optional Power Cartridge when external power (AC or DC) is present

and when the Power Cartridge temperature is below a safe charging temperature. When external power is disconnected, the system will automatically switch over to the Power Cartridge, if installed. When external power is restored (by plugging into AC or DC outlets) the system will accept power from the external source and replenish the Power Cartridge while operating, if adequate power is available

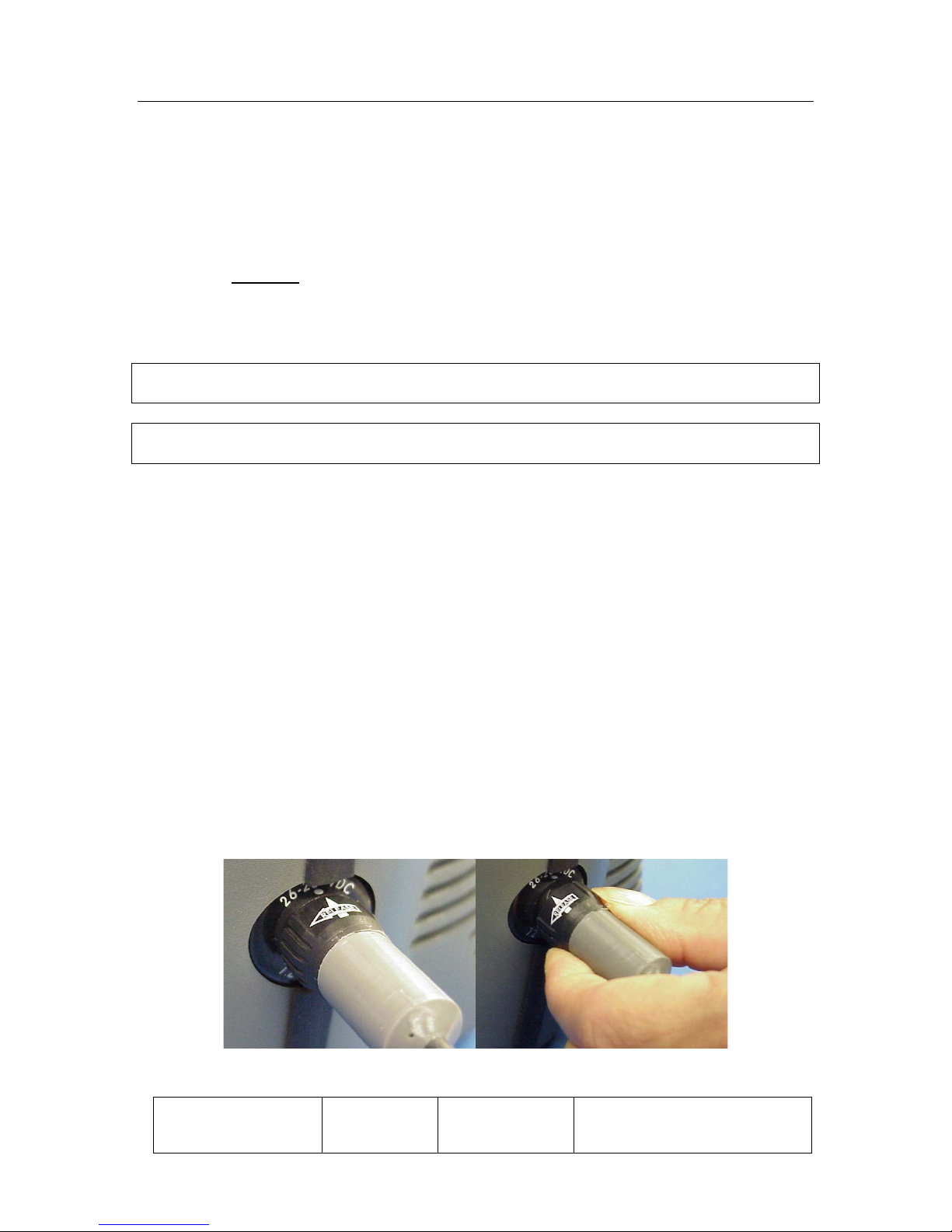

Connect the AC or DC Power Supply by aligning the connector with the dot on the receptacle on the unit. Disconnect by grasping the plug, twist counterclockwise and pull. Connect the AC Power Cord to a grounded power outlet.

attempt to operate the ECLIPSE System without first reading the "Safety

Possible Shock Hazard. Protect the ECLIPSE and AC/DC Power Supplies from fluid spills or drips.

Always check to see that the Air Inlet and the exhaust vent are not blocked and the air inlet filter is clean before using your system.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

14 of

Page 15

WARNING

DO NOT

in a fire or electrical shock hazard.

use any cord if damaged. Improper use of the power cord may result

WARNING

DO NOT

touch the Power Cartridge cavity connectors with the Power Cartridge removed while the unit is connected to an external power source. This may result in electrical shock.

(1) AC POWER SUPPLY: The ECLIPSE System includes a universal AC Power Supply for

use at home or where standard AC power is available. To plug into AC, make sure the AC Power Supply cord is securely inserted in the power receptacle on the side of the unit, and plug the AC Power Supply into an AC outlet. When the unit is plugged in properly, a green indicator on the AC Power Supply will light and the External Power Present

Indicator,

will appear on the control panel.

CAUTION

The AC power cord used with the ECLIPSE Oxygen System must meet the requirements of the country where the product is used.

CAUTION

Use with grounded, 3-pin receptacle. DO NOT Use only with SeQual supplied cords.

remove ground pin from cord.

CAUTION

DO NOT

controlled by a switch.

connect the ECLIPSE to an extension cord or electrical outlet

(2) DC P

OWER SUPPLY: A DC Power Supply allows the system to operate from DC

accessory outlets, such as those found in motor vehicles. You need to determine the Fuse rating in your motor vehicle

, either 15 AMP or 20 AMP. Consult your vehicle’s Operator’s Manual or look at your fuse box in the vehicle. Set the switch on the DC Power Supply to the appropriate one. Use the 10 AMP position on the DC Power Supply for a 15 AMP vehicle fuse and use the 15 AMP position for a 20 AMP or greater vehicle fuse. Start your vehicle. Insert the DC cord in the proper receptacle on the side of the unit. Next, insert the DC Power Supply into the DC accessory outlet in your vehicle. When the system is properly plugged in and receiving power from the DC source, a green

indicator light on the Power Supply, and the External Power Present indicator,

, on

the control panel will appear.

WARNING

Secure the ECLIPSE and the DC Power Supply in your vehicle and make sure the air inlet and exhaust airflow is not blocked. This may impact performance.

WARNING

DO NOT

leave the ECLIPSE or DC Power Supply plugged into the vehicle without the engine running or attempt to start the vehicle while the DC Power Supply is connected to the vehicle. This may drain the vehicle’s battery.

A buzzer in the DC Power Supply is intended to warn user when low vehicle power is present. Immediately disconnect the DC Power Supply from the vehicle for low voltage conditions.

WARNING

If the vehicle power source (vehicle accessory connector) drops below 11.5 Volts (brownout) the ECLIPSE will revert to Power Cartridge operation (if present). The External Power Present Indicator may remain on.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

15 of

Page 16

TYPICAL FLOW RATES AVAILABLE FOR EACH FUSE SETTING

10 AMP 15 AMP

Setting Continuous Pulse Continuous Pulse

0.5 Yes - Yes -

1.0 Yes Yes Yes Yes

1.5 Yes Yes Yes Yes

2.0 Yes Yes Yes Yes

2.5 NO Yes Yes Yes

3.0 NO Yes Yes Yes

3.5 - Yes - Yes

4.0 - Yes - Yes

4.5 - Yes - Yes

5.0 - Yes - Yes

5.5 - Yes - Yes

6.0 - Yes - Yes

Actual performance may vary dependent upon usage conditions and vehicle.

When operating in the 10 AMP switch position, flow rate settings above 2.0 LPM continuous flow will automatically switch to 2.0 LPM continuous flow when the DC Power Supply is connected.

Immediately disconnect the DC Power Supply from the motor vehicles’ accessory outlet if a low voltage alarm sounds.

(3) R

ECHARGEABLE POWER CARTRIDGE: The ECLIPSE system can also be powered

by a rechargeable Power Cartridge.

Installing the Power Cartridge: Align the Power Cartridge so that it will slide into the Power Compartment.. Push the Power Cartridge into the Power Compartment until it is secure and flush with the back of the system. When the Power Cartridge is properly inserted, the Power Cartridge Status Gauge Control Panel. (If you DO NOT

have a Power Cartridge installed, the Status Gauge

will appear on the

will not light up).

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

16 of

Page 17

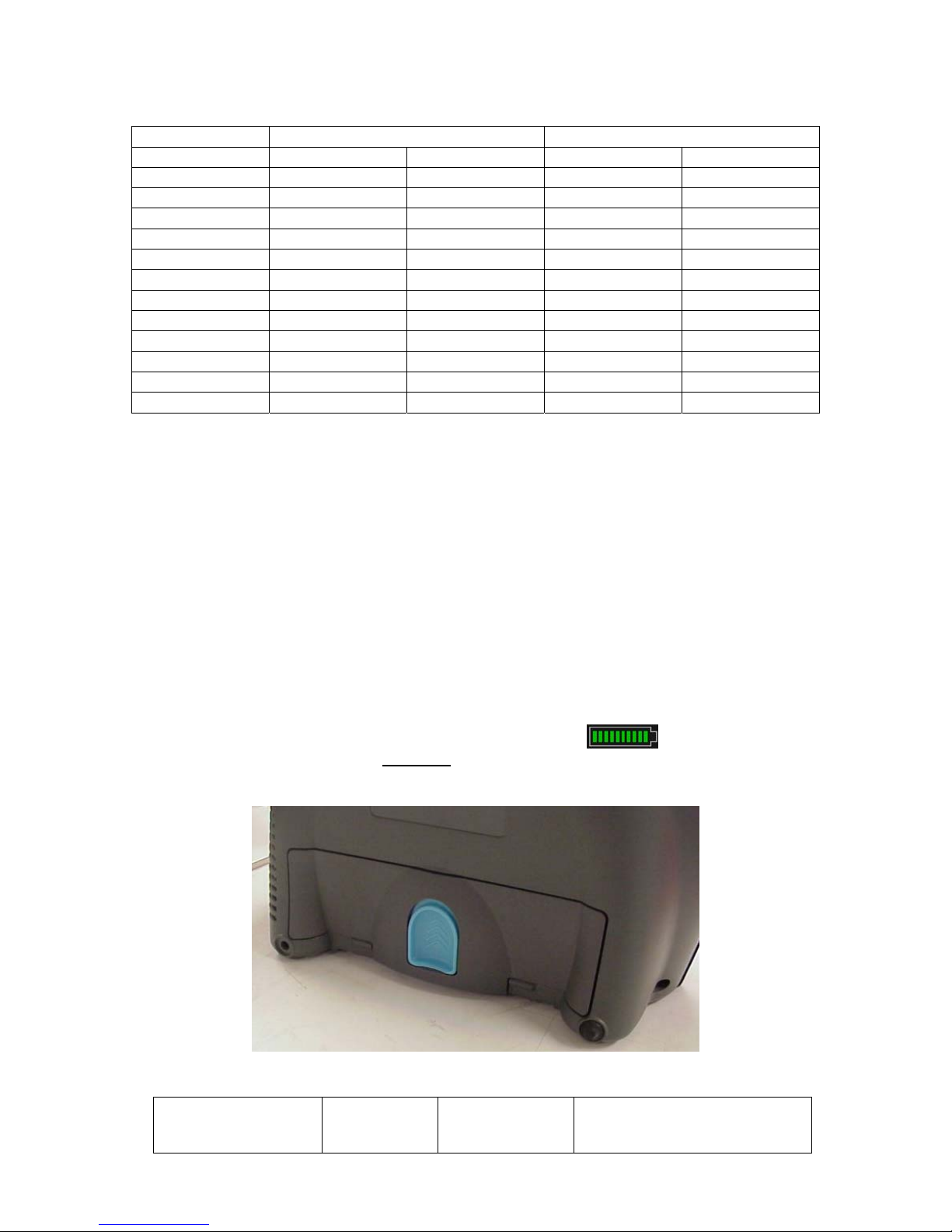

To remove the Power Cartridge, push up on the release lever on the Power Cartridge. The Power Cartridge will slide out so that you can grasp it for removal.

Power Cartridge Capacity: The capacity of the Power Cartridge is lit up on the control panel. A variety of factors, such as flow rate and Pulse or Continuous Flow Mode operation determine the duration of operating time. The following table provides estimates of amount of time that the ECLIPSE can operate on a fully charged Power Cartridge given certain flow rates and operating conditions.

YPICAL NEW POWER CARTRIDGE OPERATION TIME

CAUTION

Store your Power Cartridge in a cool, dry location. This will help to assure the longevity of your Power Cartridge.

CAUTION

DOT/UN Regulations require the removal of the Power Cartridge for international travel.

CAUTION

There are no serviceable parts inside the Power Cartridge. DO NOT

Replace the Power Cartridge with only SeQual approved Power Cartridge.

The Power Cartridge used in this device may present a risk of fire or chemical burn if mistreated. DO NOT C).

CAUTION

Return your Power Cartridge to your dealer/provider for proper disposal.

Keep your Power Cartridge away from children.

FLOWRATE

SETTING

0.5 3.9 hours -

1.0 3.5 hours 4.9 hours

2.0 2.1 hours 3.9 hours

3.0 1.3 hours 3.3 hours

4.0 - 2.8 hours

5.0 - 2.4 hours

6.0 - 2.2 hours

Power Cartridge ( )

Continuous

Flow Mode

(LPM)

Pulse Flow

Mode

(Setting)

Operating time will degrade with Power Cartridge

use and age.

disassemble, incinerate, or heat above 140° F (60°

open.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

17 of

Page 18

TYPICAL POWER CARTRIDGE RECHARGE TIME

The typical time to recharge your Power Cartridge to achieve 80% capacity from a fully discharged Power Cartridge is 1.4 hours to 5.0 hours, dependent upon the flow setting.

If the Power Cartridge is too warm, charging will not begin until it sufficiently cools.

The Power Cartridge may not charge or the charge time may increase when operating from the DC Power Supply set in the 10 AMP position.

INITIAL POWER CARTRIDGE OPERATION:

The new Power Cartridge packaged with your ECLIPSE Oxygen System is not fully charged. Before using your ECLIPSE Oxygen System for the first time, you must fully discharge the Power Cartridge.

1. Turn your ECLIPSE ON and allow the Power Cartridge to completely discharge. Unit

will sound a low Power Cartridge alert until the unit completely shuts down. This could continue for up to approximately 20 minutes. Connect the AC Power Supply and plug in the AC Power Cord to completely charge the

Power Cartridge. This may require up to five hours of uninterrupted charging. This completes the calibration of the Power Cartridge.

WARNING

DO NOT

tamper with, disassemble, crush or heat the Power Cartridge above 140° F (60° C). The Power Cartridge may present a risk of fire or explosion and will void the warranty.

CAUTION

Store the Power Cartridge in a cool, dry place when not in use.

CAUTION

DO NOT

the trunk during a hot day.

leave your ECLIPSE or your Power Cartridge in your vehicle or in

CAUTION

In the event of a power interruption, the ECLIPSE Oxygen System will automatically switch to the Power Cartridge operation. When power is restored the Power Cartridge will automatically start recharging. If the Power Cartridge is not present during a power interruption the ECLIPSE Oxygen System will stop operation. When power is restored, turn the system back ON to resume oxygen production.

The ECLIPSE system can only work with a SeQual Power Cartridge. Use of another Power Cartridge or Battery may damage the unit, present a risk of fire or explosion and will void the warranty.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

18 of

Page 19

OPERATING YOUR ECLIPSE

Step 1: Locating your ECLIPSE.

• Place the ECLIPSE in a well-ventilated place so that the air inlet and exhaust have clear access.

• Position the ECLIPSE so that any alarm can be heard.

• Check to see if the air inlet filter is in place before using. If the air inlet filter needs

to be cleaned, wash with soapy water and allow drying before using. If necessary, replace with a new air inlet filter.

• Plug unit into AC Power, DC Power, or make sure there is a charged Power Cartridge installed.

Step 2: Turn On the Unit and Allow to Warm Up

• Press the “ON/OFF” Button All the indicators are lit and a 3-second buzzer sounds, indicating the system is in working order.

• Warm-up Period

Oxygen Monitoring – The ECLIPSE Oxygen System has an oxygen monitoring

system with a yellow (alert) and red (alarm) visual indicator and buzzer. The buzzer will activate in the event of an internal fault or power outage (external power with no Power Cartridge installed). The red, yellow, and green (all OK) indicators will initially light up and then the red and yellow indicators sequentially go out when the oxygen purity is within specification.

After initially turning ON the unit, allow up to five (5) minutes for the unit to reach its specified performance. The control panel will indicate the unit is warming up. When the green ON indicator is lit, the system is ready for use.

Step 3: Connect the tubing to the Oxygen Outlet and the cannula per the instructions

from your Dealer/provider.

• Replace the cannula and tubing on a regular basis. Consult your dealer/provider for

cannula and tubing cleaning and replacement information.

Step 4: Select Flow Mode

• Press the Flow Mode button to select the flow delivery mode.

• Continuous Flow Mode Operation

o When operating in Continuous Flow Mode, a continuous supply of oxygen

will flow through your tubing and nasal cannula.

WARNING

When operating in Continuous Flow Mode, to ensure adequate flow, DO NOT use a tubing/cannula extension more than 50’ (15.2m) long.

to turn ON your ECLIPSE. A brief self-test will happen.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

19 of

Page 20

• Pulse Flow Mode Operation:

o Pulse Flow Mode should only be used under the direction of a qualified

clinician or physician.

o When operating in Pulse Flow Mode, an alarm will beep after 15 seconds if

inspiration is not detected. If another 15 seconds elapses and no inspiration is detected, the unit will switch to Continuous Flow Mode at the last Continuous Flow Mode rate setting used.

WARNING

Pulse Flow settings should be determined for each patient individually. Settings from Continuous Flow applications may not be applicable to Pulse Flow Mode.

WARNING

When operating in Pulse Flow Mode, to ensure adequate breath detection, the length of the tubing/cannula must not exceed 7 feet (2.1m).

WARNING

As with all conserving devices, the ECLIPSE may not be able to detect some respiratory efforts.

Step 5: Adjust Flow Rate to Prescribed Level

• Using the

Flow Rate Setting buttons, adjust the flow rate to the prescribed setting

supplied by your physician.

WARNING

DO NOT

qualified clinician.

change from prescribed flow rate setting without consulting with a

Step 6: Begin Use

• Breathe normally through the cannula.

• You will get longer operating time on your Power Cartridge if you operate your

ECLIPSE in Pulse Flow.

Step 7: Cart Operation

• The Cart is designed for use on pedestrian surfaces.

• Align the locator holes on the bottom of the unit to the tabs on the cart

• Align the screw to the insert on the back of the ECLIPSE and hand-tighten the knob

on the cart.

• Push the button on the cart handle to adjust the height.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

20 of

Page 21

ALARM CONDITIONS AND TROUBLESHOOTING

The table shows possible alarm conditions and suggests appropriate responses. If any other alarms occur, call your authorized SeQual dealer/provider.

Condition

“Warming Up. Please Wait.”

“2.0” (or flow

TYPICAL

CONDITIONS

setting) “Low or Warm

Battery” “O2 Concentration

< 85%”

“O2 Concentration < 70%”

“Flow Rate Error/Blocked Flow”

UNIT NEEDS ATTENTION

“No Inspiration Detected” (in Pulse Flow Mode only)

“Power Cartridge Shutdown or hot Power Cartridge ” (with no external power present)

“Loss of External Power” (without charged Power Cartridge installed)

SHUTDOWN CONDITIONS

“System Fault” Off Off On On

Green

Indicator

On On On None

On Off Off None

On Blinking Off Beeps

Off Blinking Off None

Off

Off Blinking Off Beeps

On On Off Beeps

Off Off Blinking On

Yellow

Indicator

Off Blinking Beeps

Red

Indicator

Audible

Alarm

What to do

Wait. The system typically takes 3 - 5 minutes to reach specified performance.

Nothing. The system is operating properly at the specified flow rate.

Plug into external power or replace with a charged battery.

Continue Use. Check or clean air intake filter. If condition persists, contact Dealer/Provider

Continue Use. Check or clean air intake filter. If condition persists, contact Dealer/Provider.

Check tubing and/or humidifier for obstruction. Check/clean air intake filter. If condition persists past 10 minutes, contact dealer/provider.

Make sure tubing does not exceed 7 ft (2.1m) when using Pulse Flow Mode. Audible alarm will beep after 15 seconds if no inspiration is detected. If no inspiration detected 15 seconds after that, the ECLIPSE will automatically switch to Continuous Flow Mode.

Seek external power source. If Power Cartridge Fault persists, contact dealer/ provider.

Seek an alternative oxygen supply until external power is restored or install a charged Power Cartridge.

Contact dealer/provider. Use back up oxygen supply.

WARNING

AVAILABILITY OF AN ALTERNATE SOURCE OF OXYGEN IS RECOMMENDED IN CASE OF POWER OUTAGE OR MECHANICAL FAILURE FOR THE TYPE OF BACK-UP SYSTEM REQUIRED. DO NOT IGNORE ALARMS.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

. CONSULT YOUR PHYSICIAN

21 of

Page 22

ALARM CONDITIONS AND TROUBLESHOOTING (CON’T)

YMPTOM PROBABLE CAUSE REMEDY

ECLIPSE does not power on when On/OFF button is pressed

No Oxygen

Low Oxygen Concentration

Malfunction Contact your dealer/provider Low Oxygen Flow

Malfunction Contact your dealer/provider No Oxygen delivered in Pulse Mode

Power Cartridge Status Gauge never indicates fully charged

No Power Cartridge installed Install Power Cartridge or plug

into external power Power Cartridge is discharged Plug into external power Malfunction Contact your dealer/provider Blocked or kinked tubing Check tubing or replace Filter Blocked Clean Air Inlet Filter Humidifier Check humidifier attachment and

tubing ECLIPSE not ON Turn ECLIPSE ON Tubing or cannula is not properly connected or kinked Power Cartridge is discharged or no external power is present Malfunction Contact your dealer/provider Restriction in tubing or humidifier Filter restricted Clean or replace air inlet filter

Restriction in humidifier or tubing Filter Blocked Clean or replace air inlet filter

Tubing/cannula longer than 7 feet (2.1m) Humidifier attached Remove humidifier No inspiration detected Contact your dealer/provider Power Cartridge needs calibration Fully discharge the Power

Check tubing, cannula and

connections

Install charged Power Cartridge

or attach external power

Repair or replace tubing or

humidifier

Repair or replace humidifier or

tubing

Attach 7 foot (2.1m)

tubing/cannula

Cartridge and recharge

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

22 of

Page 23

ACCESSORIES

WARNING

There are many different types of oxygen tubing, cannula, and humidifiers. The following accessories are recommended to be used with your ECLIPSE Oxygen System. Refer to the “Maintenance” section of this manual for accessory maintenance instructions.

Humidifier – Salter Labs® Bubble Humidifier, Part Number 7600 or equivalent: If your physician has prescribed a humidifier, follow the manufacturer’s instructions for use. Attach the

humidifier to the oxygen outlet port of the oxygen concentrator. The oxygen outlet port on the concentrator. Use of humidifiers not specified for this oxygen system may impair performance and void the warranty.

DO NOT

use a humidifier in Pulse Flow Mode. The ECLIPSE will not detect an inspiration and

will default to Continuous Flow Mode.

Humidifier Adapter–SeQual Part Number 3509: If your physician has prescribed a humidifier, you may need to use the SeQual Humidifier Adapter. Follow the instructions for use. Attach the Humidifier Adapter to the oxygen outlet port of the oxygen system and then to the humidifier.

Oxygen Tubing – Salter Labs® Series 2000 or equivalent Tubing (Internal diameter of the tubing should be no less than 3/16” (0.48 cm): Connect the oxygen tubing to the outlet port of

the humidifier or directly to the oxygen outlet port if you do not use a humidifier. Connect the other end of the tube to the nasal cannula, if not already attached. Tubing not specified for use with this oxygen system may impair the performance.

WARNING

CAUTION

Cannula – Salter Labs® Part Number 1600 Series or equivalent: Your physician will have prescribed a cannula to deliver oxygen. In most cases they are already attached to the oxygen tubing. If not, follow the instructions included with the cannula to attach it to the oxygen tubing. Use of cannula not specified for use with this oxygen system may impair the performance.

Power Options – You have various options to provide power to your ECLIPSE. A Power Cartridge, AC Power Supply and DC Power Supply.

Use of certain oxygen administration accessories not specified for use with

this oxygen system may impair the performance. ONLY use recommended oxygen delivery accessories.

The tube fitting may be tight - DO NOT use oil or grease to lubricate.

If tubing becomes disconnected during operation, ECLIPSE does not alarm.

Check flow at the cannula to verify oxygen delivery.

To ensure there is adequate flow to deliver oxygen, the length of the tubing

symbol marks the

must not exceed 50 feet (15.2m) when using Continuous Flow Mode, and must not exceed 7 feet (2.1m) when operating in Pulse Flow Mode for adequate breath detection.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

23 of

Page 24

Power Cartridge – The rechargeable Power Cartridge supplied with your ECLIPSE is capable of providing you with battery operation depending on your prescribed flow rate.

Your Power Cartridge will be recharged when the ECLIPSE is connected to the AC Power Supply or the DC Power Supply, if adequate power is available. The Power Cartridge will take longer to recharge when connected to the DC Power Supply and will depend on the flow setting and the amperage switch setting.

Power Compartment – The Power Compartment is available when Power Cartridge operation is not required. When using the Power Compartment, your ECLIPSE will operate on the AC and DC Power Supplies.

AC Power Supply, Model 6104 – Your AC Power Supply enables the ECLIPSE to be connected to a grounded AC electrical outlet with the country-specific power cord. Please contact your dealer/provider for the country-specific power cord.

DC Power Supply, Model 6105 – Your DC Power Supply enables the ECLIPSE to be operated in an automobile or other vehicle with an accessory outlet. Contact your dealer/provider to set up the DC Power Supply for proper use in your own automobile.

The indicator on the AC and DC Power Supplies will be either green or red. Green indicates normal operation and red indicates abnormal operation.

WARNING

DO NOT serious injury may result.

expose the AC and DC Power Supplies to water. Electrical shock or

Cart – Your ECLIPSE Oxygen System can be easily transported while attached to the Cart. The cart has wheels and a telescoping handle for easy mobility.

CAUTION

When operating the ECLIPSE on the cart, DO NOT bang, drop or bump the

unit while in transport.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

24 of

Page 25

CLEANING, CARE AND ROUTINE MAINTENANCE

plug

Routine Maintenance

A trained technician will carry out all routine maintenance at least once a year or as needed.

Your dealer/provider will perform inspections and maintenance, of the compressor, filters, alarms, 9V battery, Power Cartridge and other internal parts as needed.

WARNING

DO NOT

maintenance other that what is described in the Patient Cleaning and Care section below. Disassembling the oxygen system may create a hazard of electrical shock and void your warranty. Contact your dealer/provider for any maintenance required.

Patient Cleaning and Care

Cannula Replacement – Replace your tubing and cannula on a regular basis as recommended by your dealer/provider. Your physician or dealer/provider will provide you with cleaning and replacement information.

Air Inlet Filter – Ambient air is drawn into the unit through the air inlet located on the top/back of the unit. Cleaning the air inlet filter is the most important activity you will perform to keep your oxygen system performing properly. Check this air filter daily and clean it at least once a

week.

1. Remove the filter

2. Wash the filter in warm water using a mild detergent solution.

3. Rinse the filter thoroughly and squeeze out the excess water.

4. Allow the filter to air dry.

5. Reinsert the filter in the cabinet.

CAUTION

The air inlet filter should be replaced as needed. If the oxygen system is used in a dusty environment, the filter may need to be replaced more often. You should not operate the ECLIPSE without a filter installed for longer than 30 minutes.

Cabinet, AC Power Supply, DC Power Supply and Power Cord - Use a damp (not soaking wet) clothe or sponge and a mild detergent solution to clean the cabinet and power supplies.

WARNING

File Name 6112_X5

The filter should be free of liquid water and dry to the touch before reinstallation, as excess moisture may impair the proper operation of the oxygen system.

When the filter is removed, the Data Port is exposed. DO NOT attach any cables to this Data Port. It is for Service ONLY.

DO NOT

disassemble the ECLIPSE or attempt to perform any routine

poke objects through the vent holes.

Power Cords, AC or DC Power Supplies before cleaning the exterior

Doc. Number

6112

Revision:

Page:

25 of

Page 26

cabinet. DO NOT use denatured alcohol or apply liquid spray or aerosol cleaners.

Humidifier – If used, clean your humidifier daily to reduce possibility of contamination. Replace humidifier monthly or as recommended by the manufacturer or your dealer/provider.

Cart – Before cleaning the cart, remove the ECLIPSE. Use a damp (not soaking wet) cloth or sponge and mild detergent solution to clean the Cart.

Power Cartridge Cleaning, Care and Maintenance

The Power Cartridge in the ECLIPSE Oxygen System requires special care to assure a longer life and higher performance. The SeQual Power Cartridge is the only approved Power Cartridge to be used.

Once a month, completely discharge your Power Cartridge and fully recharge to calibrate the Power Cartridge.

Use a damp cloth or sponge and mild detergent to clean the Power Cartridge case and the latch.

WARNING

DO NOT parts inside.

tamper with or try to repair the Power Cartridge. No serviceable

Power Cartridge Disposal – Your Power Cartridge is rechargeable and can be recycled. Always return it to your dealer/provider for proper disposal.

Power Cartridge Storage – Your Power Cartridge should be stored in a cool, dry location.

WARNING

Exposing the Power Cartridge to water or other liquids may cause personal injury.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

26 of

Page 27

TECHNICAL DATA

1 to 6 setting in Pulse Flow Mode

Flow Rate Settings Oxygen Concentration

Oxygen Concentration Indicator

Maximum System Pressure Oxygen Outlet Pressure

Electrical Power: AC Operation DC Operation Power Cartridge

AC Power Supply DC Power Supply

Operating Temperature

Operating Humidity

0.5 to 3.0 LPM in Continuous Flow Mode 90% ± 3% at sea level for all flow setting

Green Light = Normal Operation Yellow Light = Warning or Caution, less than 85% ± 3% Red Light Flashing = Abnormal Operation, less than 70% ± 5%

15 psig (103.5 kPa)

5.0 psig (34.5 kPa) nominal

100 – 240 VAC, 50/60 Hz 12 V 195 W-Hrs

200 Watts Max 150 Watts Max

50° F to 104° F (10°

C to 40° C)

10% - 95% at 82.4° F (28° C) dew point

Sound

Dimensions (H x W x D)

Weight

Continuous Flow Indication Audible Alarm Indicators

Back-Up Alarm Power Filters

File Name 6112_X5

48 dBA at 3.0 LPM in Continuous Flow Mode

19.3 inches x 12.3 inches x 7.1 inches (49.0 cm x 31.2 cm x 18.0 cm)

17.4 pounds (7.9 kg) with Power Cartridge

13.9 pounds (6.3 kg) without Power Cartridge Expressed in liters per minute (LPM) Loss of power/Hot Power Cartridge

Low Battery/Warm Power Cartridge Low Oxygen Output O

flow outside normal limits

No inspiration detected in Pulse Mode Unit Malfunction

9V Internal Battery

Doc. Number

6112

Revision:

Page:

27 of

Page 28

Device Classification

IEC Class I, Type B Applied Part

Transport/Storage Requirements

Back pressure Effect on Flow

Temperature: -4° F (-20° C) to +140° F (+60° C) Humidity: up to 95% Non-Condensing

None

Indicator Altitude 0 - 13,123 feet (0 – 4000 meters)

Pulse Flow Mode

• Principle of Operation

Pulse Flow Mode is designed to deliver 16 ml boluses of oxygen per incremental flow setting for each patient inspiration detected. Bolus volume is held constant regardless of breath rate within a given setting. Delivery of the bolus is triggered by detection of the end of inspiration followed by the start of a subsequent inspiration. Sensitivity is dealer/provider adjustable. Based on this inspiration trigger signal, a “pulse” of oxygen is released to the patient by an electronically controlled flow valve. There is no mixing of oxygen with room air.

• Range of Operation Settings

• Accuracy of Delivered

Increments of 1-6 times (x) the bolus of 16 mL (16 to 96 mL per breath)

± 15%

Bolus

• Breathing Frequency range

• Minimum time between

breaths

• Response to missing breaths

6 to 25 breaths per minute average, sustainable

1.25 seconds (maximum 3 consecutive breaths)

Eclipse switches to Continuous Flow Mode after 30 seconds without breath detection.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

28 of

Page 29

SUMMARY OF ALL WARNINGS AND CAUTIONS

WARNING

EDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A

PHYSICIAN

THE ECLIPSE IS NOT INTENDED FOR LIFE SUPPORTING OR LIFE SUSTAINING APPLICATIONS,

MONITORING CAPABILITIES

N CERTAIN CIRCUMSTANCES, THE USE OF NON-PRESCRIBED OXYGEN CAN BE

HAZARDOUS PHYSICIAN.

FOR ADULT USE ONLY. NOT QUALIFIED FOR USE ON PEDIATRIC PATIENTS

OT FOR USE IN THE PRESENCE OF FLAMMABLE ANESTHETICS.

. THIS DEVICE SHOULD ONLY BE USED WHEN PRESCRIBED BY A

Warning: "No Smoking or Naked Flames”.

NOR DOES IT PROVIDE ANY PATIENT

The use of oxygen therapy

"Use No Oil or Grease": A spontaneous and violent ignition may occur if oil, grease or other petroleum substances come into contact with oxygen under pressure. Keep these substances away from the oxygen system, tubing and connections and any other oxygen source. DO NOT or other lubricants.

DO NOT

remove the cover, no serviceable parts inside. Qualified service

personnel should only remove the cover.

DO NOT DO NOT

operate device or accessories on wet surfaces or in standing water and

submerse or expose to water. Electrical shock and serious physical

injury may result.

use any petroleum based

Protect electrical cords from sharp edges. Electrical shock and serious physical injury may result.

This Power Cartridge may explode and cause potential injury if exposed to or disposed of in a fire.

DO NOT

short-circuit the Power Cartridge’s metal contacts with metallic

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

29 of

Page 30

WARNING

File Name 6112_X5

objects, such as keys or coins. It may cause sparks or excessive heat.

DO NOT

Cartridge electrolytes may be toxic if swallowed and can be harmful to skin and eyes. Keep the Power Cartridge away from children.

Use of a damaged Power Cartridge may cause personal injury.

Exposing the Power Cartridge to water or other liquids may cause personal injury.

Possible Shock Hazard. Protect the ECLIPSE and AC/DC Power Supplies from fluid spills or drips.

DO NOT

in a fire or electrical shock hazard.

DO NOT

Cartridge removed while the unit is connected to an external power source. This may result in electrical shock.

Secure the ECLIPSE and the DC Power Supply in your vehicle and make sure the air inlet and exhaust airflow is not blocked. This may impact performance.

DO NOT

without the engine running or attempt to start the vehicle while the DC Power Supply is connected to the vehicle. This may drain the vehicle’s battery.

Operating time will degrade with Power Cartridge use and age.

When operating in Continuous Flow Mode, to ensure adequate flow, DO NOT use a tubing/cannula extension more than 50’ (15.2m) long.

Pulse Flow settings should be determined for each patient individually. Settings from Continuous Flow applications may not be applicable to Pulse Flow Mode.

When operating in Pulse Flow Mode, to ensure adequate breath detection, the length of the tubing/cannula must not exceed 7 feet (2.1m).

As with all conserving devices, the ECLIPSE may not be able to detect some respiratory efforts.

DO NOT

qualified clinician.

disassemble, puncture, or crush the Power Cartridge. Power

use any cord if damaged. Improper use of the power cord may result

touch the Power Cartridge cavity connectors with the Power

leave the ECLIPSE or DC Power Supply plugged into the vehicle

change from prescribed flow rate setting without consulting with a

Doc. Number

6112

Revision:

Page:

30 of

Page 31

WARNING

CAUTION

File Name 6112_X5

AVAILABILITY OF AN ALTERNATE SOURCE OF OXYGEN IS RECOMMENDED IN CASE OF POWER OUTAGE OR MECHANICAL FAILURE PHYSICIAN FOR THE TYPE OF BACK-UP SYSTEM REQUIRED. DO NOT IGNORE

ALARMS.

Use of certain oxygen administration accessories not specified for use with this

. CONSULT YOUR

oxygen system may impair the performance. ONLY use recommended oxygen delivery accessories.

The tube fitting may be tight - DO NOT use oil or grease to lubricate.

If tubing becomes disconnected during operation, ECLIPSE does not alarm.

Check flow at the cannula to verify oxygen delivery.

DO NOT

tamper with, disassemble, crush or heat the Power Cartridge above 140° F (60° C). The Power Cartridge may present a risk of fire or explosion and will void the warranty.

DO NOT

expose the AC and DC Power Supplies to water electrical shock or

serious injury may result.

DO NOT

disassemble the ECLIPSE or attempt to perform any routine maintenance other that what is described in the Patient Cleaning and Care section below. Disassembling the oxygen system may create a hazard of electrical shock and void your warranty. Contact your dealer/provider for any maintenance required.

Unplug Power Cords, AC or DC Power Supplies before cleaning the exterior cabinet. DO NOT cleaners.

DO NOT parts inside.

tamper with or try to repair the Power Cartridge. No serviceable

use denatured alcohol or apply liquid spray or aerosol

Exposing the Power Cartridge to water or other liquids may cause personal injury.

Availability of an alternate source of oxygen is recommended in case of power outage or mechanical failure.

DO NOT

expose unit to temperature outside of specified operating or storage

temperatures as this may damage the unit.

Locate oxygen tubing and Power Supply cords to prevent tripping hazards.

DO NOT

place ECLIPSE in a small enclosed space, such as a bathroom or

closet, with cannula leading out of the enclosed space.

Doc. Number

6112

Revision:

Page:

31 of

Page 32

CAUTION

File Name 6112_X5

DO NOT

such as in a vehicle parked in the sun or on a hot day.

Charging the Power Cartridge below 50 F° (10° C) or above 104° F (40° C) may degrade the performance.

DO NOT

Only use the Power Cartridge for its intended purpose.

Operating your ECLIPSE outside the recommended operating environment may impact performance, cause damage and will void the warranty

Locate the unit in a well-ventilated room that provides adequate air flow and check if air is being prevented from entering or exiting the system by furniture, draperies, bedding, clothing or pets.

Always check to see that the Air Inlet and the exhaust vent are not blocked and the air inlet filter is clean before using your system.

The AC power cord used with the ECLIPSE Oxygen System must meet the requirements of the country where the product is used.

Use with grounded, 3-pin receptacle. DO NOT Use only with SeQual supplied cords.

DO NOT

controlled by a switch.

Store your Power Cartridge in a cool, dry location. This will help to assure the longevity of your Power Cartridge.

DOT/UN Regulations require the removal of the Power Cartridge for international travel.

There are no serviceable parts inside the Power Cartridge. DO NOT

Replace the Power Cartridge with only SeQual approved Power Cartridge.

The Power Cartridge used in this device may present a risk of fire or chemical burn if mistreated. DO NOT C).

Return your Power Cartridge to your dealer/provider for proper disposal

Keep your Power Cartridge away from children.

expose the Power Cartridge to temperatures above 140° F (60°C),

drop the Power Cartridge or expose it to mechanical shock.

remove ground pin from cord.

connect the ECLIPSE to an extension cord or electrical outlet

disassemble, incinerate, or heat above 140° F (60°

Doc. Number

6112

Revision:

Page:

32 of

open.

Page 33

CAUTION

Store the Power Cartridge in a cool, dry place when not in use.

DO NOT

trunk during a hot day.

The ECLIPSE system can only work with a SeQual Power Cartridge. Use of another Power Cartridge or Battery may damage the unit, present a risk of fire or explosion and will void the warranty.

To ensure there is adequate flow to deliver oxygen, the length of the tubing

must not exceed 50 feet (15.2m) when using Continuous Flow Mode, and must not exceed 7 feet (2.1m) when operating in Pulse Flow Mode for adequate breath detection.

When operating the ECLIPSE on the cart, DO NOT bang, drop or bump the

unit while in transport.

The filter should be free of liquid water and dry to the touch before reinstallation, as excess moisture may impair the proper operation of the oxygen concentrator.

When the filter is removed, the Data Port is exposed. DO NOT cables to this Data Port. It is for Service ONLY.

DO NOT

leave your ECLIPSE or your Power Cartridge in your vehicle or in a

poke objects through the vent holes.

attach any

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

33 of

Page 34

ELECTROMAGNETIC COMPATIBILITY

This equipment has been tested and found to comply with the limits for medical devices to the IEC60601-1-2: 2001-09 Electromagnetic Compatibility standard. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed according with the instructions, may cause harmful interference to other devices in the vicinity. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to other devices, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving device.

• Increase the separation distance between the equipment.

• Connect the equipment into an outlet on a circuit different from that which the other

device(s) are connected.

• Consult the manufacturer or service technician for help.

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

34 of

Page 35

DISPOSAL OF EQUIPMENT AND ACCESSORIES

Follow local governing ordinances and recycling plans regarding disposal of device components.

DO NOT

dealer/provider.

Manufactured by:

SeQual Technologies Inc. 11436 Sorrento Valley Road San Diego, CA 92121 USA (858) 202-3100 (800) 826-4610

www.sequal.com

European Union Authorized Agent:

MeddiQuest Limited Business & Technology Centre Bessemer Drive Stevenage SG1 2DX United Kingdom Tel: + 44 1763 222505 Fax: + 44 1763 222049

Dealer/provider Name and Address:

Physician Name and Address:

SeQual® and ECLIPSE™ are registered marks of SeQu al Techn ol o gi es Inc., San Diego, CA 92121 Salter Labs® is a registered mark of Salter Labs, Arvin, CA 92303

dispose of the Power Cartridge. Power Cartridges should be returned to your

File Name 6112_X5

Doc. Number

6112

Revision:

Page:

35 of
