SUPER SMART
SUPER SMART Diesel
®
USE AND MAINTENANCE MANUAL
GB
GB
REVERSIBLE TWO-WHEEL TRACTOR
SUPER SMART SUPER SMART Diesel
BEFORE USING THE TWO-WHEEL TRACTOR
CAREFULLY READ THE INSTRUCTIONS
GIVEN IN THIS MANUAL
GB
2
TABLE OF CONTENTS
Page Page
INTRODUCTION.................................................... 3
SAFETY REGULATIONS ....................................... 3
GENERAL NOTICES............................................. 3
STARTING THE ENGINE ...................................... 4
OPERATING OF THE TWO-WHEEL TRACTOR ... 4
OPERATING OF ATTACHMENTS ........................ 4
MAINTENANCE..................................................... 4
IDENTIFICATION DATA ........................................ 5
TWO-WHEEL TRACTOR IDENTIFICATION .......... 5
ENGINE IDENTIFICATION.................................... 5
EC MARKING ........................................................ 5
TECHNICAL SPECIFICATIONS............................ 7
ENGINE.................................................................. 7
STARTING............................................................. 7
CLUTCH................................................................ 7
SPEEDS ................................................................ 7
POWER TAKE OFF (PTO) .................................... 7
COUPLING OF ATTACHMENTS .......................... 7
HANDLEBARS ...................................................... 7
WHEELS/TIRES .................................................... 7
ACCESSORIES..................................................... 7
MASS .................................................................... 7
DIMENSIONS........................................................ 7
SAFETY DEVICES ................................................. 8
REVERSE SPEED SAFETY DEVICE..................... 8
TRANSFER PRINTING - INSTRUCTIONS AND
SAFETY.................................................................. 9
TWO-WHEEL TRACTOR CONTROLS .................. 10
OPERATING THE CONTROLS ............................. 10
CONTROLS OF FRONT-MOUNTED ATTACH-
MENTS.................................................................. 11
OPERATING THE TWO-WHEEL TRACTOR.......... 12
STARTING THE ENGINE...................................... 12
STOPPING THE ENGINE..................................... 12
FITTING FRONT-MOUNTED
ATTACHMENTS ..................................................... 13
SAFETY DEVICE .................................................. 13
REVERSING THE HANDLEBARS ........................ 13
REVERSING THE WHEELS ................................. 13
COUPLING ATTACHMENTS TO
THE PTO................................................................. 14
MAINTENANCE...................................................... 14
ENGINE ................................................................ 14
GEARBOX ............................................................ 14
POWER TAKE OFF .............................................. 14
CHECKS AND ADJUSTMENTS............................. 15
CLUTCH LEVER ................................................... 15
ROTARY TILLER .................................................... 16
GENERAL............................................................. 16
ROTARY TILLER TECHNICAL
SPECIFICATIONS ................................................ 16
USING THE ROTARY TILLER............................... 16
ROTARY TILLER ADJUSTMENT .......................... 16
ROTARY TILLER MAINTENANCE ........................ 18
CUTTER BAR MOWER .......................................... 19
GENERAL............................................................. 19
CUTTER BAR MOWER TECHNICAL SPECIFICA-
TIONS................................................................... 20
OPERATING CUTTER BAR MOWERS................. 20
CUTTER BAR MOWER ADJUSTMENT................ 20
CUTTER BAR MOWER MAINTENANCE .............. 21
EC CERTIFICATE OF CONFORMITY
3
INTRODUCTION
• This manual provides Use and Maintenance instructions, technical specifications, and safety precautions for reversible two-wheel tractor:
− model SUPER SMART
in the versions with gasoline engine.
• The first section of this manual provides technical
specifications and gives instructions relevant to
the machine. The second section of the manual
gives further details on individual attachments,
and provides all specific operating instructions.
• Read this USE and MAINTENANCE Manual carefully before using your new two-wheel tractor. This
manual provides the most up-to-date information
on your two-wheel tractor available at the time of
going to press. Manufacturer reserves the right to
modify this document at any time without prior notice.
• AFTER-SALES SERVICE. Use only original spare
parts. The use of non-original parts voids the warranty. When ordering spare parts, specify:
− two-wheel tractor serial number;
− part code of spare part required;
− quantity or number of parts required.
SAFETY REGULATIONS
GENERAL NOTICES
Any engine driven machine can become dangerous if
used incorrectly. Pay particular attention to the instructions in this manual marked:
WARNING
This symbol means that failure to observe the regulation could cause injury or even death to the operator.
PRUDENCE
Prudence is the Golden Rule to prevent accidents.
TRAINING
The two-wheel tractor must only be used by responsible people trained in the use of the machine and
duly authorized to use it.
MACHINE AND
ENGINE MANUALS
Read those MANUALS carefully before starting, using, servicing, refuelling or carrying out any work on
the two-wheel tractor.
DECALS
Read all the decals attached to the two-wheel tractor
and follow their prescriptions before starting, driving,
refuelling or servicing the machine. Replace immediately any damaged or illegible decals.
SUITABLE CLOTHING
• Do not wear wide and flapping clothes that could
be caught in moving parts.
• Always wear robust gloves when servicing the
two-wheel tractor or coupling attachments.
• Do not operate your two-wheel tractor barefoot,
wearing sandals or shorts. Wear heavy shoes and
trousers.
PHYSICAL CONDITION
Do not drive the two-wheel tractor if your physical
condition is not suitable.
NOISE
In order to reduce the problems deriving from the
noise of the machine:
• Do not work with the engine at maximum RPM
range.
• Keep the blade head and the blade holder ad-
justed.
• When using the machine for a long time, use ear
protections.
ENGINE RPM
Do not change the injection system in an attempt of
increase max. engine Rpm.
FIRST AID
It is good operating practice to have a first aid box on
the two-wheel tractor.
SAFETY DEVICES
• Do not use the two-wheel tractor if the safety de-
vices are missing or defective..
• Do not interfere with safety devices.
4
STARTING THE ENGINE
• Disengage all control levers before starting the mo-
tor. Keep your feet clear of the attachments fitted to
the two-wheel tractor.
• Do not run the engine in a closed ambient where
the exhaust gases can collect. They contain carbon monoxide that is highly toxic.
• Do not interfere with safety device (engine shut-
off). Do not use the two-wheel tractor if this safety
device is missing or defective.
OPERATING OF THE
TWO-WHEEL TRACTOR
• Make sure that you know how to stop the engine in
an emergency. Familiarize yourself with the controls and learn how to use your two-wheel tractor
correctly.
• Do not allow children or inexperienced people to
operate it.
• Do not use your two-wheel tractor in proximity of
other people, and in particular of children. Do not
use it close to animals. Bear in mind that you are
responsible for any damage or injury caused to
people or things.
• Do not use the rotary tiller attachment without its
protection hood and guards.
• Use your two-wheel tractor only in daylight or with
good artificial lighting. Operate it at walking pace.
Do not run.
• Take particular care on slopes; operate only under
safe and stable conditions. Do not work uphill or
downhill; move across the slope instead. Take special care when turning.
• For obvious reasons, never work on slopes steeper
than 30°.
• To ensure that gasoline fuelled engines are cor-
rectly lubricated, avoid working for long periods on
slopes steeper than 20°.
• Do not operate the two-wheel tractor if hoods or
other safety devices are missing or defective.
• Keep your hands and feet clear of all attachments.
• Do not lift or transport your two-wheel tractor with
the engine running.
• Inspect the ground before you start working. Clear
it from stones, wood, wires and any other foreign
objects.
OPERATING OF ATTACHMENTS
• Check that the attachment coupled to the PTO
functions correctly before starting the motor.
• Never use attachments coupled to the PTO in prox-
imity of children or animals.
• Keep your hands and feet well clear of the attach-
ment coupled to the PTO.
• Before using an attachment, make sure that the
reverse speed safety device has been set as required (this can be used when the front-mounted
attachments are fitted, and not when the tiller is rotating).
• When a front-mounted attachment is installed, the
handlebars are rotated through 180°, hence the
gear and PTO levers are reversed.
• The manufacturer waives any responsibility arising
from improper use of the safety device.
Maximum
Recommended
20°
OK
45°
MF2037-2
MAINTENANCE
• Stop the engine and disconnect the spark plug
lead:
− before checking or repairing your two-wheel
tractor;
− in case of excessive vibrations (investigate
cause immediately).
• Stop the engine before leaving your two-wheel
tractor or adjusting attachments.
• Periodically check that all nuts and bolts are tight.
• Do not leave your two-wheel tractor in closed am-
bients with fuel in the tank. Fuel vapor is a potential
source of danger.
5
• Keep your two-wheel tractor clean. Do not let grass
and oil residues build up: these are a fire hazard.
• Fuel is highly flammable. Store fuel only in spe-
cifically designed containers. Refuel your twowheel tractor in the open. Do not smoke while refuelling.
• Complete refuelling before starting the engine. Do
not remove the fuel cap or refuel when the engine
is running or hot. In case of fuel spillage, do not
start the engine. Push your two-wheel tractor some
distance away from where the spillage occurred
before starting it.
• Replace the exhaust pipe if it becomes worn or
damaged.
EC MARKING
The two-wheel tractor is marked EC in compliance
with the Directive of the European Community Council 89/392/EEC and further amendments (see fig. 1,
part 2).
The summary of the EC marking related to the SUPER SMART model is indicated below.
IDENTIFICATION DATA

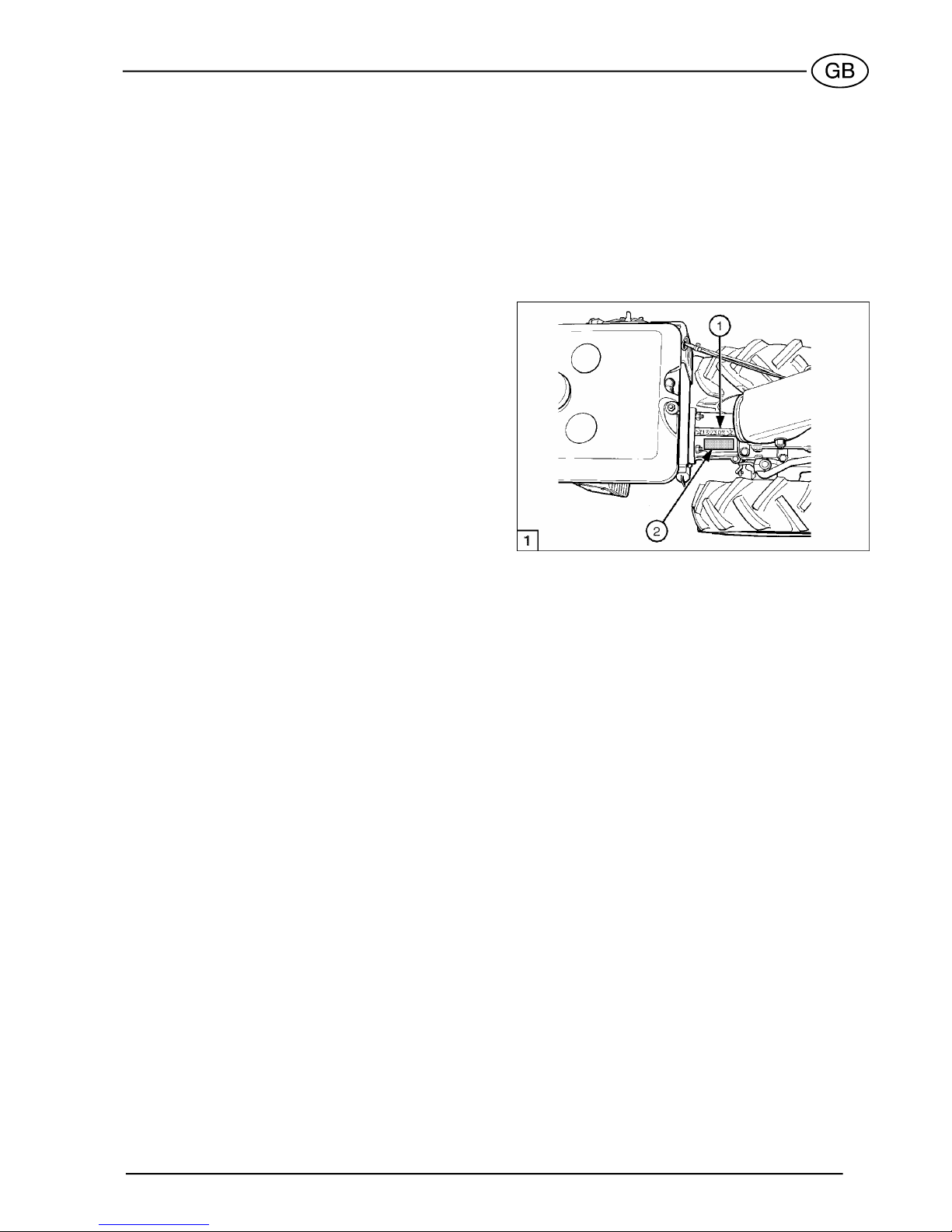

TWO-WHEEL TRACTOR IDENTIFICATION
The serial number is stamped on the engine side of
the gear box of your two-wheel tractor (see fig. 1, item
1).
ENGINE IDENTIFICATION
Refer to the engine Operation and Maintenance Manual.
6
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
SUPER SMART
LGA 226
4 3600
70,000
BH10X00000
Engine:
LOMBARDINI LGA 226
cm. 50
Mass (weight):
with wheels 3.50-6
with rotary tiller
83,5
81,5
<2,5
Test conditions
- P.T.O.: Disengaged - machinestationary on a
concrete plane surface
Test conditions:
- P.T.O.: Engaged
Sound
pressure on
operator’s ears
dB(A)
Sound
pressure on
operator’s ears
dB(A)
(Macchine
stationary
on a grass
surface)
(Macchine
stationary on a
concrete surface
with an interposed
elastic layer)
(Machine
running on a
concrete surface
with an interposed
elastic layer)
Acoustic power
dB(A)
Acoustic power
dB(A)
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
<2,5
89
87,5
104,5
102,5
11,75
11,75
With SICKLE BAR MOWER cm. 96
NOISE AND VIBRATIONS
TYPE OF MARKING
TWO-WHEEL TRACTOR
SUPER SMART - SUPER SMART Diesel
Models:
to
(punched on the gearbox)
SUPER SMART - SUPER SMART Diesel
A211408 A212096Progressiv unit number starting from
Progressiv unit number starting from AC00001
With SICKLE BAR MOWER cm. 96
With ROTARY TILLER cm. 50
With ROTARY TILLER cm. 50
-
-
Engine:
Mass (weight):
with wheels 3.50-6
with rotary tiller
HONDA GC 160
a cm. 50
Modello tipo:
N. Serie:
Mot.:
Potenza: 3,7 kW/ rpm
Anno di Fabbricazione:
Massa: kg
SUPER SMART
GC 160
3600
66,500
BH10X00000
87,5
6,1 NO NO
See NOTEWith ROTARY TILLER cm. 50
100
NO
Engine:
YANMAR L48
cm. 50
Mass (weight):
with wheels 3.50-6
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
SUPER SMART Diesel
L48
3,4 3600
83,500
BH10X00000
TR1017-4GB
NOTE: SUPER SMART Diesel model does not allow the use of front attachment.
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
S/N reading: type of machine
year of manufacturing
000 week of production
00 progressiv n° of production
X
00
000
BH10
GB
7
TECHNICAL SPECIFICATIONS
ENGINE
The two-wheel tractor may be fitted with the following
engines:
− HONDA GC 160; 4 stroke gasoline engine;
3,7 kW (5 CV); 160 cm
3
.
− LOMBARDINI LGA 226; 4 stroke gasoline engine;
4 kW (5,4 CV); 220 cm
3
.
− YANMAR L48; 4 stroke Diesel engine;
4 kW (5,4 CV); 212 cm
3
.
STARTING
Rewind start.
CLUTCH
Cone clutch, oil immersed with control lever.
SPEEDS
MAX SPEED (km/h)
POWER TAKE OFF (PTO)
Mounted attachments are driven via an independent,
single speed PTO engaged by a control lever on the
handlebars.
Maximum PTO speed: 923 rpm (clockwise rotation).
COUPLING OF ATTACHMENTS
Coupling of attachments to the PTO is obtained
through a quick change fitting that provides for fast
installation of the attachments, and does not require
the use of bolts, nuts or spanner.
HANDLEBARS
Adjustable in height and width. Rotate handlebars
through 180 when front-mounted attachments are
used.
WHEELS/TYRES
− Pneumatic tyres with agricultural tread.
− Available sizes: 3.50-6.
− Inflation pressure: 1.2 bar.
NOTE
The instructions covering track adjustment, based on
motor-mower model and type of wheel, are given in a
specific paragraph in this manual
ACCESSORIES
The two-wheel tractor can be fitted with a wide range
of additional easy-to-fit accessories. These are, for instance, several types of iron wheels, watering pumps
and sprayers, snowploughs, ploughs, trailers, water
sprinkling trolleys, etc.
Refer to our catalogue for details about the various
accessories available.
MASS
Refer to the identification plate installed on the machine.
DIMENSIONS
The overall dimensions of the two-wheel tractor are
shown in fig.2.
Loading...
