S.E.P. REV. 1000 (2+2), REV. 1000 Diesel (2+2), REV. 1000 Special (3+2) Use And Maintenance Manual
REV. 1000 (2+2)
REV. 1000 E (2+2)
REV. 1000 Diesel (2+2)
REV. 1000 Special (3+2)
REV. 1000 Diesel Special (3+2)
®
USE AND MAINTENANCE MANUAL
GB
GB
REVERSIBLE TWO-WHEEL TRACTORS
REV. 1000 (2+2)
REV. 1000 Diesel (2+2)
REV. 1000 Special (3+2)
REV. 1000 Diesel Special (3+2)
REV. 1000 E (2+2)
BEFORE USING THE TWO-WHEEL TRACTOR
CAREFULLY READ THE INSTRUCTIONS
GIVEN IN THIS MANUAL
2
TABLE OF CONTENTS
Page Page
INTRODUCTION.................................................... 3
SAFETY REGULATIONS ....................................... 3
GENERAL NOTICES............................................. 3
STARTING THE ENGINE ...................................... 4
OPERATING OF THE TWO-WHEEL TRACTOR ... 4
OPERATING OF ATTACHMENTS ........................ 4
MAINTENANCE..................................................... 4
IDENTIFICATION DATA ........................................ 5
TWO-WHEEL TRACTOR IDENTIFICATION .......... 5
ENGINE IDENTIFICATION.................................... 5
EC MARKING ........................................................ 5
TECHNICAL SPECIFICATIONS............................ 9
ENGINE................................................................. 9
STARTING............................................................. 9
ELECTRIC STARTING (upon request) ................. 9
CLUTCH................................................................ 9
SPEEDS ................................................................ 9
TRANSMISSION ................................................... 9
DIFFERENTIAL GEAR (Special versions)............. 9
POWER TAKE OFF (PTO) .................................... 9
COUPLING OF ATTACHMENTS .......................... 9
HANDLEBARS ...................................................... 9
BRAKES (Special versions) .................................. 9
WHEELS/TIRES .................................................... 9
ACCESSORIES..................................................... 10
MASS .................................................................... 10
DIMENSIONS........................................................ 10
SAFETY DEVICES ................................................. 11
REVERSE SPEED SAFETY DEVICE..................... 11
TRANSFER PRINTING - INSTRUCTIONS AND
SAFETY.................................................................. 12
TWO-WHEEL TRACTOR CONTROLS .................. 13
OPERATING THE CONTROLS ............................. 13
PARKING BRAKE.................................................. 15
CONTROLS OF FRONT-MOUNTED
ATTACHMENTS.................................................... 16
OPERATING THE TWO-WHEEL TRACTOR.......... 16
STARTING THE ENGINE...................................... 16
STOPPING THE ENGINE..................................... 17
FITTING FRONT-MOUNTED ATTACHMENTS...... 17
SAFETY DEVICE .................................................. 17
REMOVAL OF 3rd SPEED PRESELECTION
CONTROL LEVER ................................................ 18
REVERSING THE HANDLEBARS ........................ 18
REVERSING THE WHEELS ................................. 18
COUPLING ATTACHMENTS TO THE PTO........... 19
WHEELS................................................................. 19
TRACK ADJUSTMENT ......................................... 19
MAINTENANCE...................................................... 20
ENGINE ................................................................ 20
OIL BATH AIR FILTER .......................................... 20
GEARBOX AND TRANSMISSION ........................ 20
POWER TAKE OFF .............................................. 21
CHECKS AND ADJUSTMENTS............................. 21
CLUTCH LEVER ................................................... 21
DIFFERENTIAL LOCK LEVER (Special versions) 21
BRAKE LEVERS (Special versions) ..................... 21
ROTARY TILLER .................................................... 22
GENERAL............................................................. 22
ROTARY TILLER TECHNICAL
SPECIFICATIONS ................................................ 22
USING THE ROTARY TILLER............................... 22
ROTARY TILLER ADJUSTMENT .......................... 22
ROTARY TILLER MAINTENANCE ........................ 23
CUTTER BAR MOWER .......................................... 25
GENERAL............................................................. 25
CUTTER BAR MOWER TECHNICAL
SPECIFICATIONS ................................................ 26
OPERATING CUTTER BAR MOWERS................. 26
CUTTER BAR MOWER ADJUSTMENT................ 24
CUTTER BAR MOWER MAINTENANCE .............. 28
EC CERTIFICATE OF CONFORMITY
GB
3
INTRODUCTION
• This manual provides Use and Maintenance in-
structions, technical specifications, and safety precautions for reversible two-wheel tractor:
− model REV. 1000 (2+2)
− model REV. 1000 E (2+2)
− model REV. 1000 Special (3+2)
in the versions with Diesel and gasoline engine.
• For the sake of clarity and ease of identification,
the different two-wheel tractor models are identified in this manual by means of the following
codes:
− 1000 identifies reversible two-wheel tractors
model REV. 1000 (2+2) and REV. 1000 Diesel
(2+2).
− 1000 E identifies reversible two-wheel tractors
model REV. 1000 E (2+2).
− 1000 Special identifies reversible two-wheel
tractors model REV. 1000 Special (3+2) and
REV. 1000 Diesel Special (3+2)
• The first section of this manual provides technical
specifications and gives instructions relevant to
the machine. The second section of the manual
gives further details on individual attachments,
and provides all specific operating instructions.
• Read this USE and MAINTENANCE Manual care-
fully before using your new two-wheel tractor. This
manual provides the most up-to-date information
on your two-wheel tractor available at the time of
going to press. Manufacturer reserves the right to
modify this document at any time without prior notice.
• AFTER-SALES SERVICE. Use only original spare
parts. The use of non-original parts voids the warranty. When ordering spare parts, specify:
− two-wheel tractor serial number;
− part code of spare part required;
− quantity or number of parts required.
SAFETY REGULATIONS
GENERAL NOTICES
Any engine driven machine can become dangerous if
used incorrectly. Pay particular attention to the instructions in this manual marked:
WARNING
This symbol means that failure to observe the regulation could cause injury or even death to the operator.
PRUDENCE
Prudence is the Golden Rule to prevent accidents.
TRAINING
The two-wheel tractor must only be used by responsible people trained in the use of the machine and
duly authorized to use it.
MACHINE AND
ENGINE MANUALS
Read those MANUALS carefully before starting, using, servicing, refuelling or carrying out any work on
the two-wheel tractor.
DECALS
Read all the decals attached to the two-wheel tractor
and follow their prescriptions before starting, driving,
refuelling or servicing the machine. Replace immediately any damaged or illegible decals.
SUITABLE CLOTHING
• Do not wear wide and flapping clothes that could
be caught in moving parts.
• Always wear robust gloves when servicing the two-
wheel tractor or coupling attachments.
• Do not operate your two-wheel tractor barefoot,
wearing sandals or shorts. Wear heavy shoes and
trousers.
PHYSICAL CONDITION
Do not drive the two-wheel tractor if your physical
condition is not suitable.
NOISE
In order to reduce the problems deriving from the
noise of the machine:
• Do not work with the engine at maximum RPM
range.
• Keep the blade head and the blade holder ad-
justed.
• When using the machine for a long time, use ear
protections.
ENGINE RPM
Do not interfere with the engine speed governor: running the engine at a too high speed increases the risk
of accident.
FIRST AID
It is good operating practice to have a first aid box on
the two-wheel tractor.
GB
4
SAFETY DEVICES
• Do not use the two-wheel tractor if the safety de-
vices are missing or defective.
• Do not interfere with safety devices.
STARTING THE ENGINE
• Disengage all control levers before starting the mo-
tor. Keep your feet clear of the attachments fitted to
the two-wheel tractor.
• Do not run the engine in a closed environment
where the exhaust gases can collect. They contain
carbon monoxide that is highly toxic.
• Do not interfere with safety device (engine shut-
off). Do not use the two-wheel tractor if this safety
device is missing or defective.
• When a machine is delivered new, there is no oil in
the air filter. Before using your two-wheel tractor,
add motor oil up to the marked level.
OPERATING OF THE
TWO-WHEEL TRACTOR
• Make sure that you know how to stop the engine in
an emergency. Familiarize yourself with the controls and learn how to use your two-wheel tractor
correctly.
• Do not allow children or inexperienced people to
operate it.
• Do not use your two-wheel tractor in proximity of
other people, and in particular of children. Do not
use it close to animals. Bear in mind that you are
responsible for any damage or injury caused to
people or things.
• Do not use the rotary tiller attachment without its
protection hood and guards.
• Use your two-wheel tractor only in daylight or with
good artificial lighting. Operate it at walking pace.
Do not run.
• Take particular care on slopes; operate only under
safe and stable conditions. Do not work uphill or
downhill; move across the slope instead. Take special care when turning.
• For obvious reasons, never work on slopes steeper
than 30°.
• To ensure that gasoline fuelled engines are cor-
rectly lubricated, avoid working for long periods on
slopes steeper than 20°.
• Do not operate the two-wheel tractor if hoods or
other safety devices are missing or defective.
• Keep your hands and feet clear of all attachments.
• Do not lift or transport your two-wheel tractor with
the engine running.
• Inspect the ground before you start working. Clear
it from stones, wood, wires and any other foreign
objects.
OPERATING OF ATTACHMENTS
• Check that the attachment coupled to the PTO
functions correctly before starting the motor.
• Never use attachments coupled to the PTO in prox-
imity of children or animals.
• Keep your hands and feet well clear of the attach-
ment coupled to the PTO.
• Before using an attachment, make sure that the
reverse speed safety device has been set as required (this can be used when the front-mounted
attachments are fitted, and not when the tiller is rotating).
• When a front-mounted attachment is installed, the
handlebars are rotated through 180°, hence the
gear and PTO levers are reversed.
− The Manufacturer waives any responsibility
arising from improper use of the safety device.
MAINTENANCE
• Stop the engine and disconnect the spark plug
lead:
− before checking or repairing your two-wheel trac-
tor;
GB
5
− in case of excessive vibrations (investigate cause
immediately).
• Stop the engine before adjusting attachments.
• Periodically check that all nuts and bolts are tight.
• Do not leave your two-wheel tractor in closed am-
bient with fuel in the tank. Fuel vapour is a potential
source of danger.
• Keep your two-wheel tractor clean. Do not let grass
and oil residues build up: these are a fire hazard.
• Fuel is highly flammable. Store fuel only in spe-
cifically designed containers. Refuel your twowheel tractor in the open. Do not smoke while refuelling.
• Complete refuelling before starting the engine. Do
not remove the fuel cap or refuel when the engine
is running or hot. In case of fuel spillage, do not
start the engine. Push your two-wheel tractor some
distance away from where the spillage occurred
before starting it.
• Replace the exhaust pipe if it becomes worn or
damaged.
IDENTIFICATION DATA
TWO-WHEEL TRACTOR IDENTIFICATION

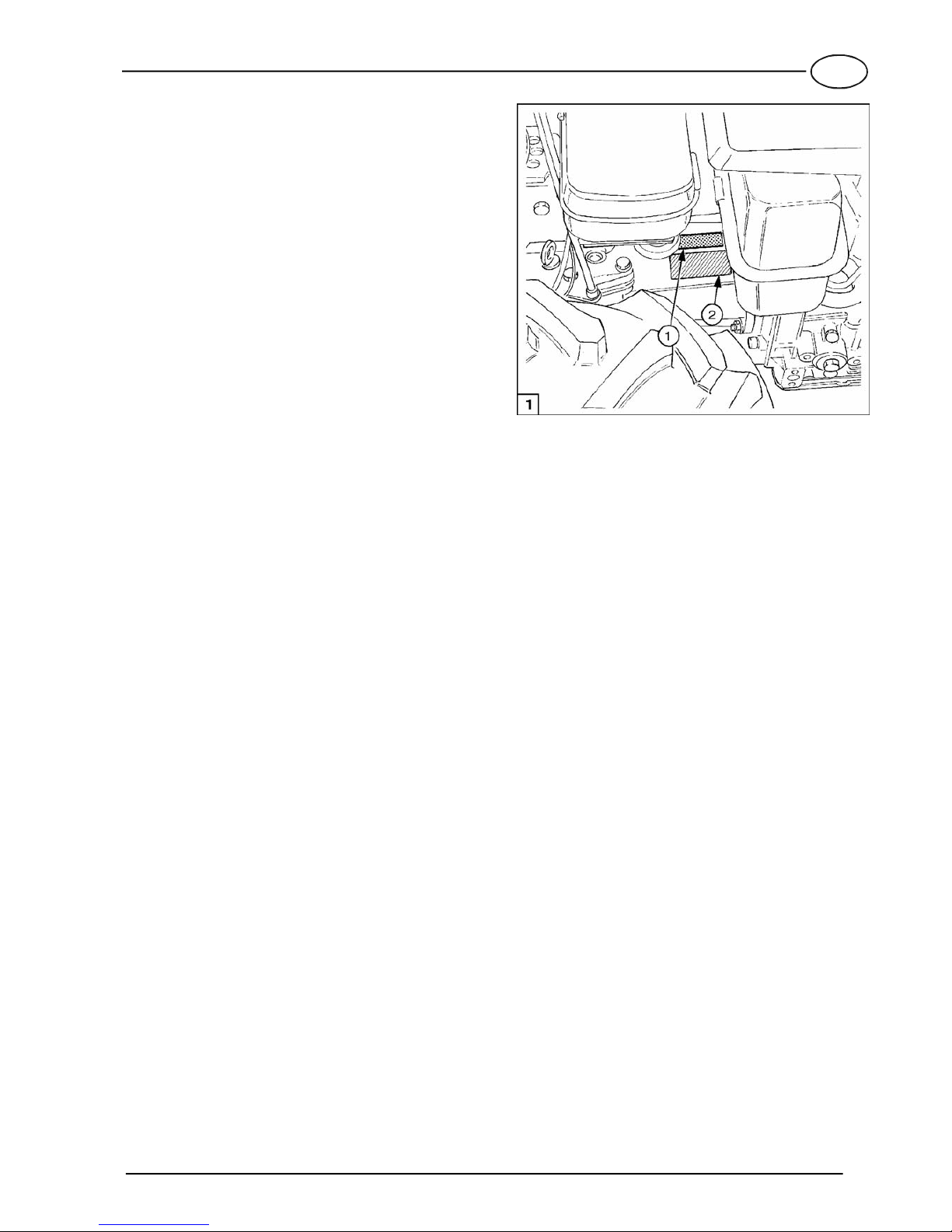

The serial number is stamped on the engine side of
the gear box of your two-wheel tractor (see fig. 1, item
1).
ENGINE IDENTIFICATION
Refer to the engine Operation and Maintenance Manual.
EC MARKING
The two-wheel tractor is marked EC in compliance with
the Directive of the European Community Council
89/392/EEC and further amendments (see fig. 1, item 2).
The summary of the EC marking related to the 1000
and 1000 Special models are indicated below.
GB
6
Test conditions:
- P.T.O.: Disengaged - machinestationary on a
concrete plane surface
Test conditions: - P.T.O.: Engaged
Sound
pressure on
operator’s ears
dB(A)
Sound
pressure on
operator’s ears
dB(A)
(Macchine
stationary
on a grass
surface)
(Macchine
stationary on a
concrete surface
with an interposed
elastic layer)
(Machine
running on a
concrete surface
with an interposed
elastic layer)
Acoustic power
dB(A)
Acoustic power
dB(A)
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
NOISE AND VIBRATIONS
TYPE OF MARKING
TWO-WHEEL TRACTOR 1000 (2+2)
Models:
(punched on the gearbox)
1000 (2+2) - 1000 Diesel (2+2)
Progressiv unit number starting from AG03838
81,5 - 86
102,5
-
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
HONDA GX 160
cm. 60
with wheels 4.00-8
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 (2+2)
GX 160
4 3600
83,500
BH25X00000
MT2001-4GB
S/N reading: type of machine
year of manufacturing
000 week of production
00 progressiv n° of production
X
00
000
BH25
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
84,5 - 2,63 87,5 103,5 12,48
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
LOMBARDINI 1 IM 359
cm. 60
with wheels 4.00-8
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 (2+2)
1 IM 359
6,6 3600
94,500
BH25X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
89,5 103,5 2,89
89
107,5
12,08
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
LOMBARDINI 15 LD 315
4.00-10
with rotary tiller cm. 60
with wheels
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 Diesel (2+2)
15 LD 315
5 3600
121,500
BH25X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
<2,5
GB
93 103,6
14
89
107,5
12,08
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
YANMAR L70
4.00-10
with rotary tiller cm. 60
with wheels
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 Diesel (2+2)
L70
5,7 3600
115,500
BH25X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
100% max peak R.P.M.
6,4
- - -
-
-
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
HONDA GX 200
cm. 60
with wheels 4.00-8
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 (2+2)
GX 200
4 3600
85,000
BH25X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
-
-
- -
-
-
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
Mass (weight):
ROBIN EX 27
cm. 60
with wheels 4.00-8
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 (2+2)
EX 27
5,9 3600
90,000
BH25X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
-
GB
7
Test conditions:
- P.T.O.: Disengaged - machinestationary on a
concrete plane surface
Test conditions: - P.T.O.: Engaged
Sound
pressure on
operator’s ears
dB(A)
Sound
pressure on
operator’s ears
dB(A)
(Macchine
stationary
on a grass
surface)
(Macchine
stationary on a
concrete surface
with an interposed
elastic layer)
(Machine
running on a
concrete surface
with an interposed
elastic layer)
Acoustic power
dB(A)
Acoustic power
dB(A)
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
NOISE AND VIBRATIONS
Models:
()
1000 (2+2) E
Progressiv unit number starting from
punched on the gearbox
AG03838
81,5 -
86
102,5 12,48
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 50
Engine:
HONDA GC 160
4.00-8
cm. 50
Mass (weight):
with wheels
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 (2+2)
GC 160
3,7 3600
78,000
BH25X00000
S/N reading: type of machine
year of manufacturing
000 week of production
00 progressiv n° of production
BH25
X
00
000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
<2,5
TYPE OF MARKING
TWO-WHEEL TRACTOR 1000 (2+2) E
GB
GB
8
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 Special (3+2)
1IM359
6,6 3600
111,000
BH50X00000
Engine:
Mass (weight):
LOMBARDINI 1 IM 359
with wheels 4.00-10
with rotary tiller cm. 60
84,5 2,63 87,5 103,5 12,48
With SICKLE BAR MOWER cm. 117
TYPE OF MARKING
TWO-WHEEL TRACTOR 1000 (3+2)
Models: 1000 Special (3+2) - 1000 Diesel Special (3+2)
Progressiv unit number starting from
(punched on the gearbox)
AD01852
With ROTARY TILLER cm. 60
-
89,5
103,5 2,89 89 107,5 12,08
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
LOMBARDINI 15 LD 315
cm. 60
Mass (weight):
with wheels 4.00-10
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
15 LD 315
5 3600
133,000
1000 Diesel Special (3+2)
BH50X00000
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
Test conditions: - Engine R.P.M.: 85% peak R.P.M.
- P.T.O.: Disengaged - machinestationary on a
concrete plane surface
Test conditions: - P.T.O.: Engaged
Sound
pressure on
operator’s ears
dB(A)
Sound
pressure on
operator’s ears
dB(A)
(Macchine
stationary
on a grass
surface)
(Macchine
stationary on a
concrete surface
with an interposed
elastic layer)
(Machine
running on a
concrete surface
with an interposed
elastic layer)
Acoustic power
dB(A)
Acoustic power
dB(A)
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
Acceleration
on hangrip
EN 1033 - 28662/1
m/sec
2
NOISE AND VIBRATIONS
GB
93
103,6 89
107,5
12,08
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
Engine:
YANMAR L70
cm. 60
Mass (weight):
with wheels 4.00-10
with rotary tiller
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
L70
5,7 3600
125,500
1000 Diesel Special (3+2)
BH50X00000
MT2002-4GB
S/N reading: type of machine
year of manufacturing
000 week of production
00 progressiv n° of production
X
00
000
BH50
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
14
100% max peak R.P.M.
6,4
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 Special (3+2)
GX 200
6,5 3600
111,000
BH50X00000
Engine:
Mass (weight):
HONDA GX 200
with wheels 4.00-10
with rotary tiller cm. 60
-----
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
-
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
Modello tipo:
N. Serie:
Mot.:
Potenza: kW/ rpm
Anno di Fabbricazione:
Massa: kg
1000 Special (3+2)
EX 27
5,9 3600
116,000
BH50X00000
Engine:
Mass (weight):
ROBIN EX 27
with wheels 4.00-10
with rotary tiller cm. 60
-----
With SICKLE BAR MOWER cm. 117With ROTARY TILLER cm. 60
-
VALPADANA
42018 SAN MARTINO IN RIO
REGGIO EMILIA - ITALY
S.p.A.
Loading...
