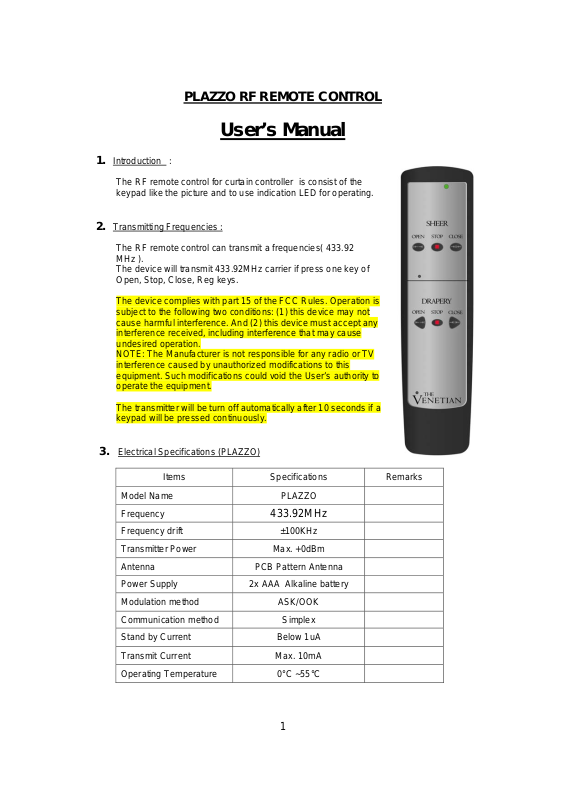

PLAZZO RF REMOTE CONTROL

User’s Manual

Introduction :

1.

The RF remote control for curtain controller is consist of the
keypad like the picture and to use indication LED for operating.

2. Transmitting Frequencies :

The RF remote control can transmit a frequencies( 433.92
MHz ).
The device will transmit 433.92MHz carrier if press one key of
Open, Stop, Close, Reg keys.

The device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference. And (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: The Manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the User’s authority to
operate the equipment.

The transmitter will be turn off automatically after 10 seconds if a
keypad will be pressed continuously.

3. Electrical Specifications (PLAZZO)

Items Specifications Remarks
Model Name PLAZZO
Frequency
Frequency drift ±100KHz
Transmitter Power Max. +0dBm
Antenna PCB Pattern Antenna
Power Supply 2x AAA Alkaline battery
Modulation method ASK/OOK
Communication method Simplex
Stand by Current Below 1uA
Transmit Current Max. 10mA
Operating Temperature 0°C ~55°C

433.92MHz

1

4

. To Program RF Remote controller ID to Curtain Controller

1. Press for few second a program button on curtain controller.

2. Press for few second a registration button on the remote controller.

3. And the Curtain controller will register your rf remote controller.

5. To operate

1. Register your remote controller to the curtain controller.

2. Press any key on remote controller, and blinks led.

3. Curtain controller makes to operate a curtain (sheer and drapery) (raising, lowering,
opening, closing, stopping).
