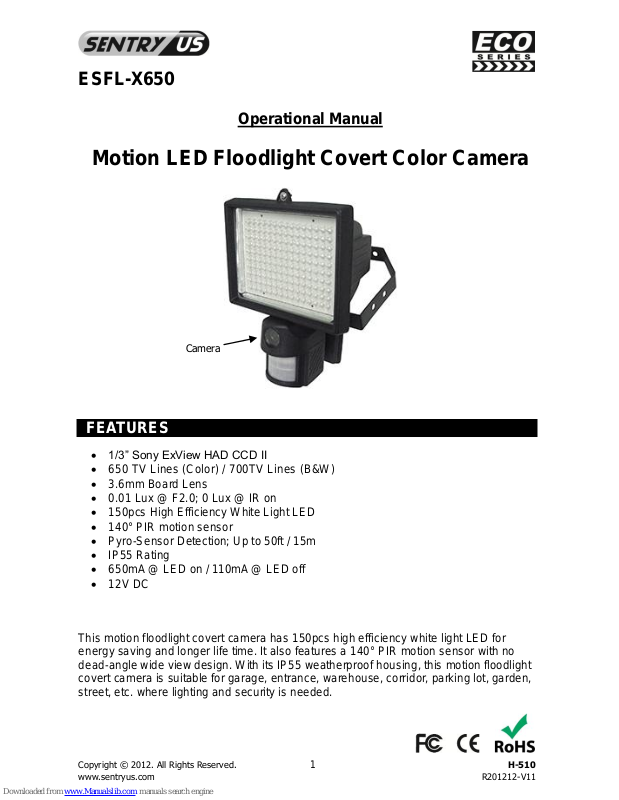

Sentry US ESFL-X650, ESFL-X650P Operational Manual

www.sentryus.com R201212-V11

ESFL-X650

Operational Manual

Motion LED Floodlight Covert Color Camera

FEATURES

 1/3” Sony ExView HAD CCD II  650 TV Lines (Color) / 700TV Lines (B&W)  3.6mm Board Lens  0.01 Lux @ F2.0; 0 Lux @ IR on  150pcs High Efficiency White Light LED  140° PIR motion sensor  Pyro-Sensor Detection; Up to 50ft / 15m  IP55 Rating  650mA @ LED on / 110mA @ LED off  12V DC

This motion floodlight covert camera has 150pcs high efficiency white light LED for energy saving and longer life time. It also features a 140° PIR motion sensor with no dead-angle wide view design. With its IP55 weatherproof housing, this motion floodlight covert camera is suitable for garage, entrance, warehouse, corridor, parking lot, garden, street, etc. where lighting and security is needed.

Camera

www.sentryus.com R201212-V11

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CAUTION

1. Installation for best results

Do not install the product in reverse or sideways to ensure the best performance of detection range and protect the product from dripping water. Install the product on a solid base away from heat generating devices as the high temperature could cause wrong detection of the motion sensor. The motion sensor should not face the moving direction of objects. This will reduce the detection range. Install the product at a height of 10~11.5 feet / 3~3.5 meters to achieve the best performance of detection range.

2. Never point the camera toward the sun Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.

Please read the Manual before attempting to use this product.

www.sentryus.com R201212-V11

3. Handle this camera with care Avoid any shock or bumping of the camera. Improper handling could damage the camera.

4. Requires a proper operating environment This camera is designed for outdoor use. The allowable temperature range for operation of this camera is between -40°F ~ 122°F / -40C ~ 50C.

5. Clean the front face or lens It is recommended that the surface be cleaned every 3~6 months. Cleaning should be done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust.

6. Check the power source voltage The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge protector at all times.

7. Objects and liquid entry Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the video product.

8. Servicing Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.

9. Damage requiring service Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the video product. c. If the video product has been exposed to rain or water. d. If the video product has been dropped or the cabinet has been

damaged.

e. When the video product exhibits a distinct change in performance.

10. Please follow your local privacy laws and regulations when using covert cameras with or without audio recording in a public setting. Manufacturer and/or distributor are not responsible for any improper usage of this camera.

LIMITED WARRANTY

This product is covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs:

1. Camera sticker is removed

If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased. We have no other way to verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.

www.sentryus.com R201212-V11

2. Camera is modified in any way

If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty will be voided immediately. It is the customer’s responsibility to keep the camera in good condition.

3. Video or power cable is cut

The video cable and the power cable should not be tampered with. Cutting or modifying of the cables will result in termination of the warranty.

PACKAGE CONTENTS

 One (1) Motion Floodlight Covert Camera with power/video cable  One (1) Operational Manual

* For any returns, please include all components listed above with original packaging in

Resalable Condition. Absolutely No Returns will be accepted if any component is

missing/damaged.

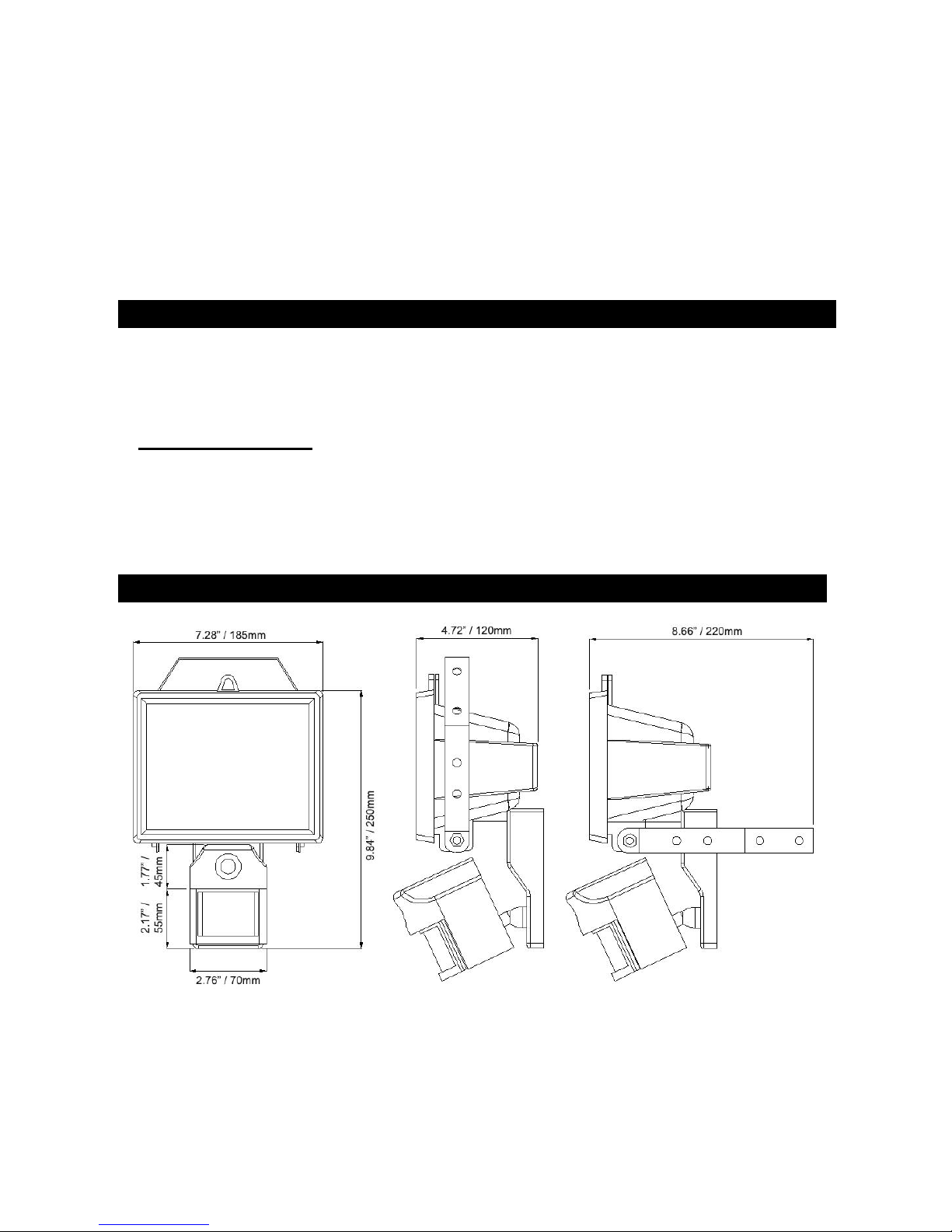

DIMENSIONS

www.sentryus.com R201212-V11

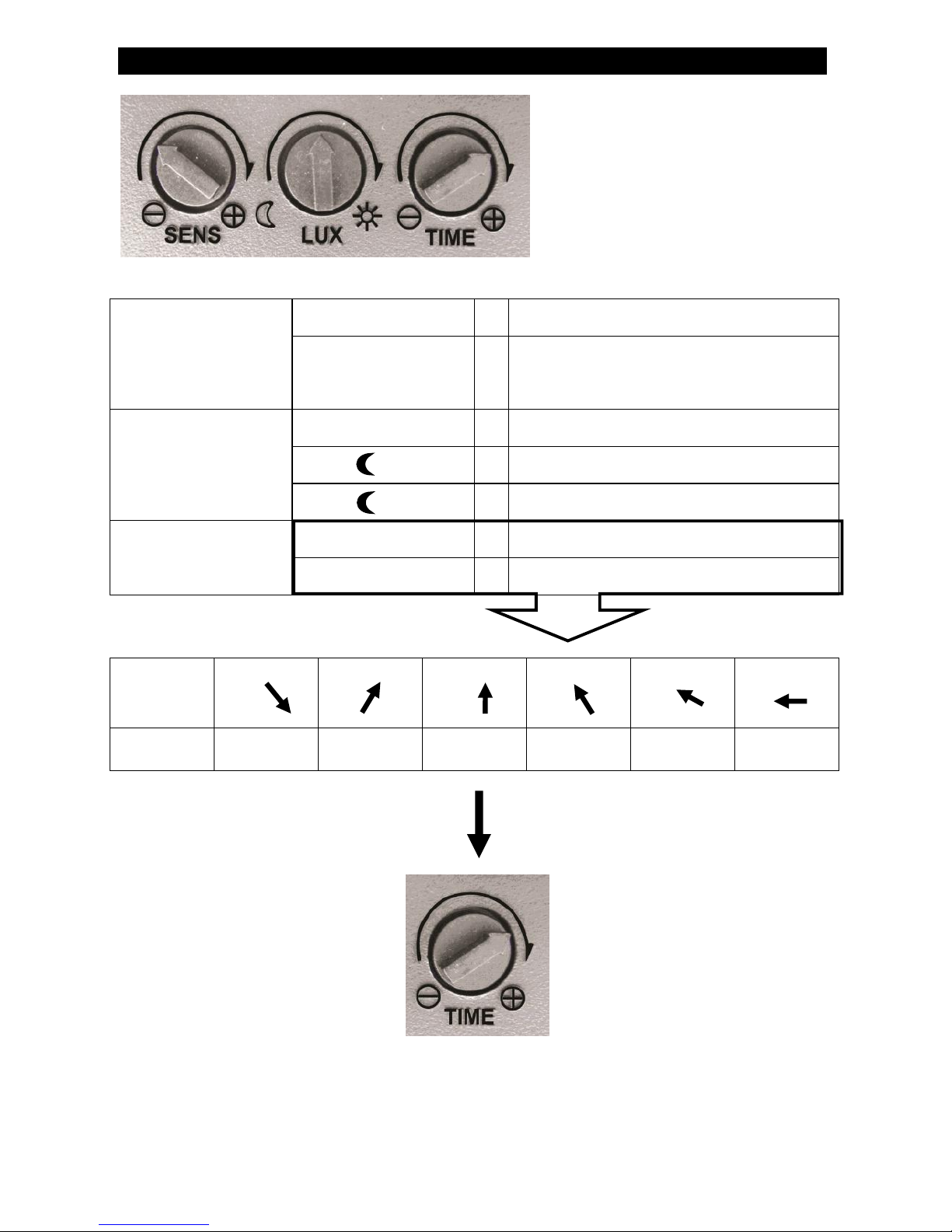

VR ADJUSTMENTS

SENS: – / +

Sensitivity Setting

“–”-wise

►

Decreases detection range to Min. 5M

“+”-wise

►

Increases detection range to Max. 15M (based on 22°C)

LUX: ☼ /

Timing of Lighting

“☼”-wise

►

Standby on 24 hours

“ ”-wise

►

Standby at nighttime

“ ”-wise

►

Adjust the LUX VR to 9 ~ 10 O’clock

TIME: – / +

Lighting Time

“–”-wise

►

Continually lighting in 5 seconds

“+”-wise

►

Continually lighting in 12 minutes

Directions (O’clock)

5

1

12

11

10

9

Lighting Time

12 min

7 min

5 min

3 min

2 min

5 sec

www.sentryus.com R201212-V11

SPECIFICATIONS

Model (NTSC)

ESFL-X650

Model (PAL)

ESFL-X650P

Color CCD Camera

Image Sensor

1/3” Sony ExView HAD CCD II

Effective Picture Elements

NTSC: 976(H) x 494(V)

PAL: 976(H) x 582(V)

Resolution

650 TV Lines (Color) / 700TV Lines (B&W)

Minimum Illumination

0.01 Lux @ F2.0, 0 Lux @ IR on

S/N Ratio

More than 54dB

Auto Electronic Shutter

NTSC:1/60 sec ~ 1/100,000 sec

PAL:1/50 sec ~ 1/110,000 sec

Gamma Correction

0.45

Gain Control

Auto

White Balance

Auto

Synchronization

Negative Sync. Internal

Video Output

1.0 Vp-p Composite Video / 75 ohms

Lens

3.6mm Board Lens / F2.0

Voltage Requirement

12V DC

Recommend 2A / 2000mA or 1A / 1000mA

Camera & Floodlight

Power Consumption

650mA @ LED on / 110mA @ LED off

Motion Sensor Floodlight

LED

150pcs White Light LED

(life time 10,000 hours)

Luminance

350-450 lm

Color Temperature

6000°K~6300°K

Detection Mode

Pyro-Sensor

Sensor Swiveling Angle

45° Vertical & Horizontal

Suitable Mounting

Wall & Ceiling Mount

Time Adjustment

5 sec.~12 min VR Adjustable

Lux Adjustment

Day ~ Night VR Adjustable

Detection Range

Up to 50ft / 15m, 140° (22°C) VR Adjustable

Operating Temperature

-40°F ~ 122°F / -40C ~ 50C

Warm Up Time

30 sec

IP Rating

IP55 weatherproof

Physical Properties

Dimensions (W x H x D)

7.28 x 8.86 x 9.84 inches 185 x 220 x 250mm

Net Weight

2.87 lbs / 1.3 kg

* Specifications are subject to change without notice

OEM Product Item Code: H-510

MADE IN TAIWAN
