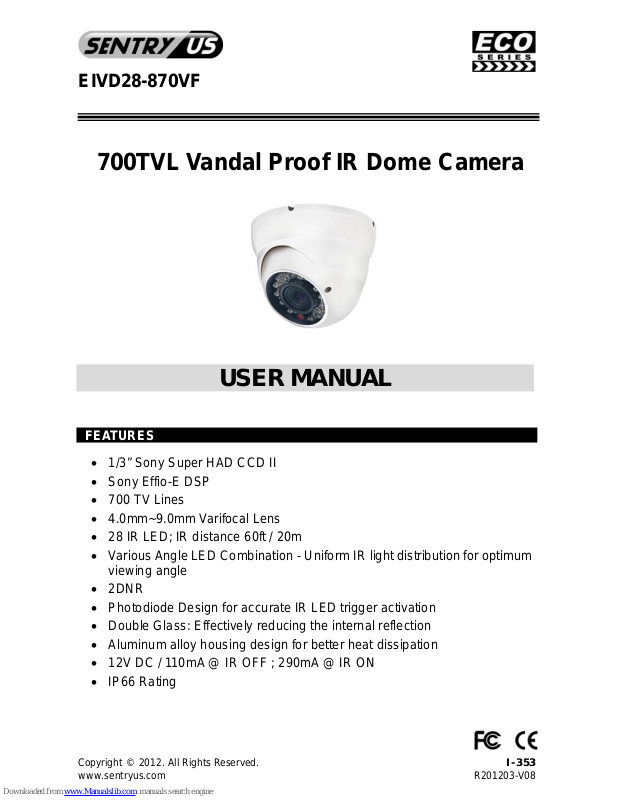

EIVD28-870VF

700TVL Vandal Proof IR Dome Camera

USER MANUAL

FEATURES

• 1/3” Sony Super HAD CCD II

• Sony Effio-E DSP

• 700 TV Lines

• 4.0mm~9.0mm Varifocal Lens

• 28 IR LED; IR distance 60ft / 20m

• V arious Angle LED Combination - Unifo rm IR light distribution fo r optimum

viewing angle

• 2DNR

• Photodiode Design for accurate IR LED trigger activation

• Double Glass: Effectively reducing the internal reflection

• Aluminum alloy housing design for better heat dissipation

• 12V DC / 110mA @ IR OFF ; 290mA @ IR ON

• IP66 Rating

Page 2

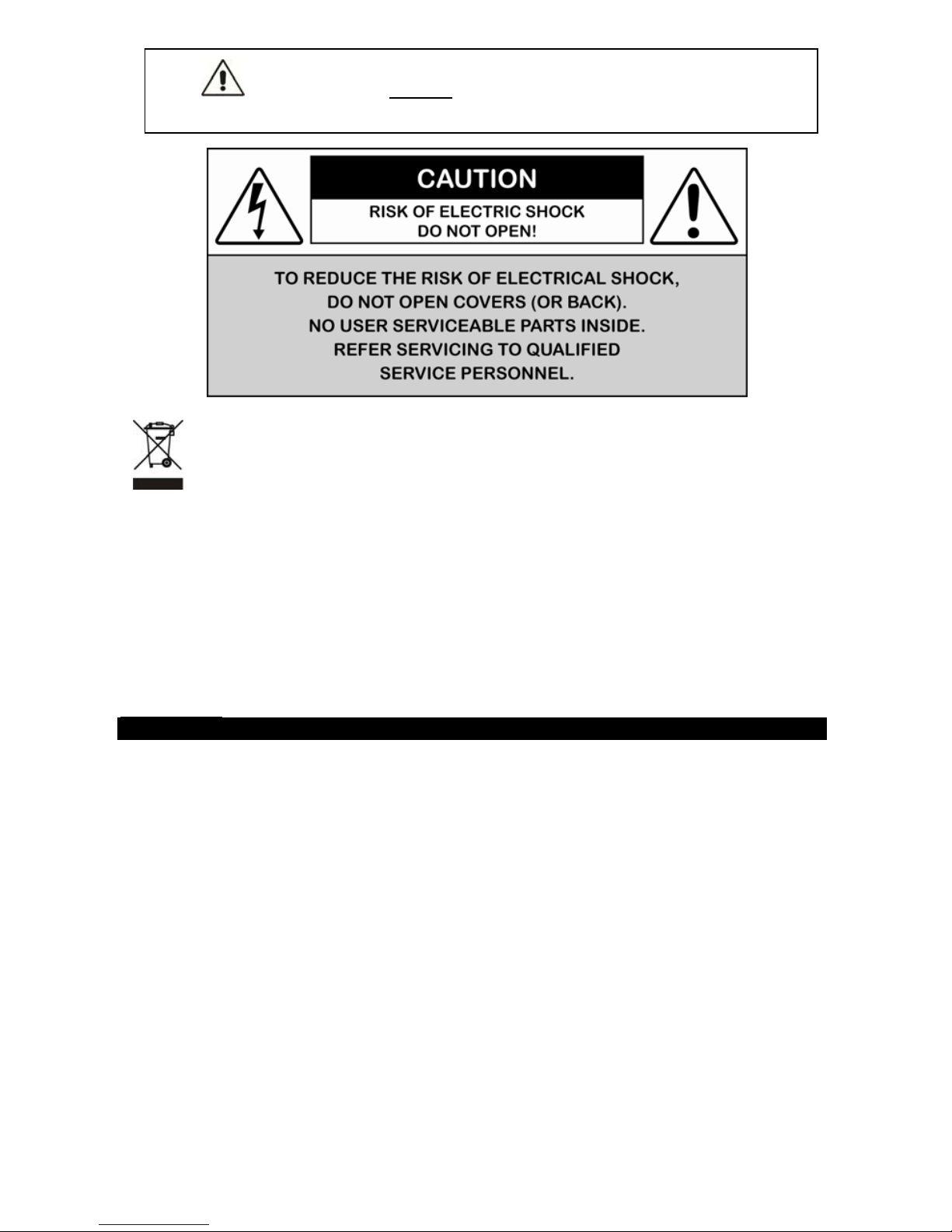

Disposal of Old Electrical & Electronic Equipment ( Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CAUTION

1. Never point the camera toward the sun

Do not expose the lens directly to the sun or to strong light as this may damage the pick-up

device.

2. Handle this camera with care Avoid any shock or bumping of the camera. Improper handling could damage the camera.

3. Requires a proper operating environment This camera is designed for indoor use. The allowable temperature range for operation of this

camera is between 14°F ~ 122°F / -10°C ~ 50°C.

4. Clean the front face or lens It is recommended that the surface be cleaned every 3~6 months. Cleaning should be done by

using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust.

5. Check the power source voltage The power source voltage should be within the specified range. (Camera must meet the

specifications). Camera must be connected to a surge protector at all times.

6. Objects and liquid entry Never push objects of any kind into this camera as this may touch dangerous voltage points of

short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the video product.

Please read the Manual before attempting to use this product.

Specifications and appearance are subject to change without notice.

Page 3

7. Servicing Do not attempt to service this video product by yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.

8. Damage requiring service Unplug this video product from the wall outlet and refer service to qualified servicing personnel

under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the video product. c. If the video product has been exposed to rain or water. d. If the video product has been dropped or the cabinet has been damaged. e. When the video product exhibits a distinct change in performance.

LIMITED WARRANTY

This product is covered under warranty for one (1) year from the date of purchase. The warranty will automatically be voided if any of the following occurs:

1. Camera sticker is removed

If the camera sticker is removed, we will not be able to confirm any information regarding when

and where the product was purchased. We have no other way to verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.

2. Camera is modified in any way

If the camera is scratched, damaged, or modified in a manner not described in this manual, the

warranty will be voided immediately. It is the customer’s responsibility to keep the camera in good condition.

3. Video or power cable is cut The video cable and the power cable should not be tampered with. Cutting or modifying of the

cables will result in termination of the warranty.

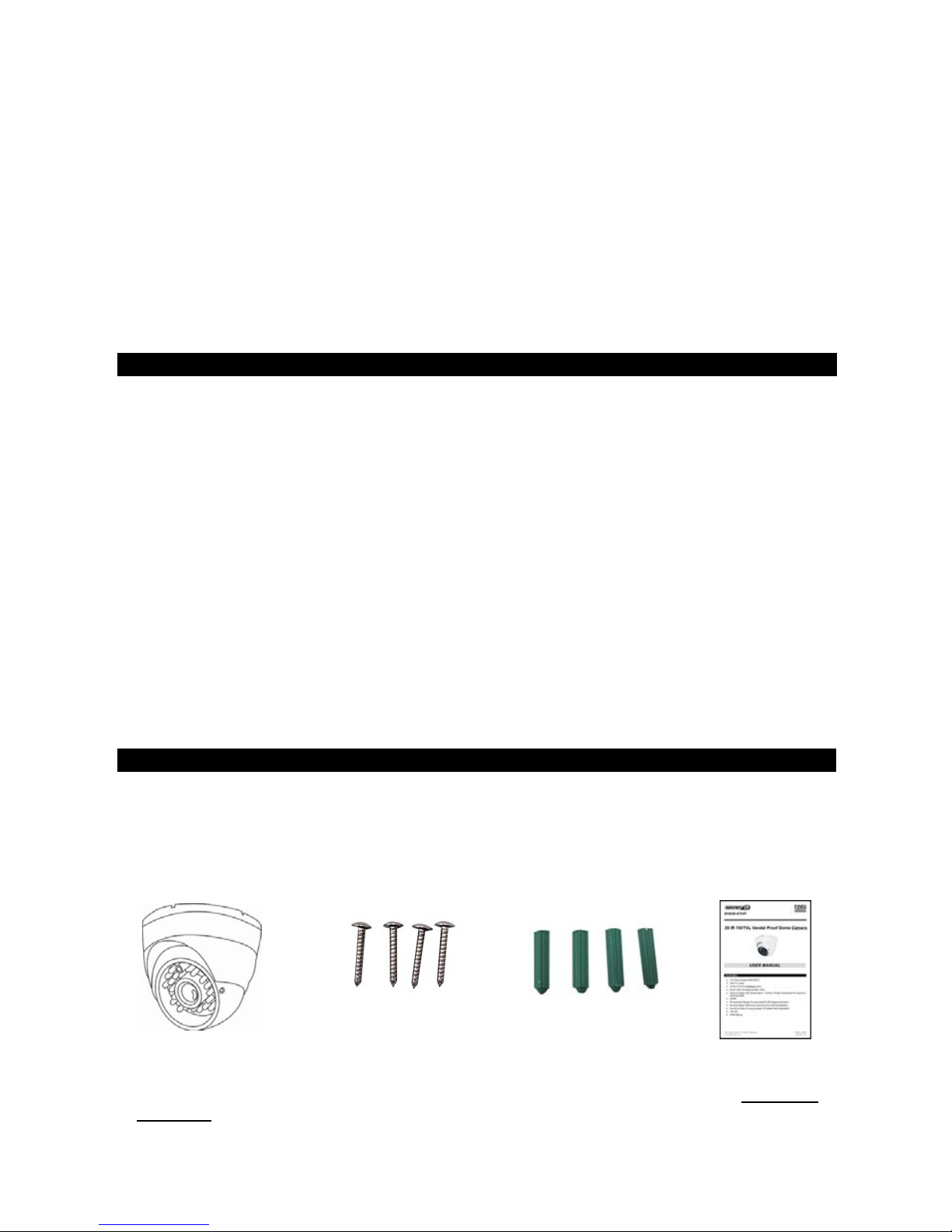

PACKAGE CONTENTS

A. One (1) IR Dome Camera with power/video cable B. Four (4) Mounting Screws C. Four (4) Wall Anchors D. One (1) User Manual

* For any returns, please include all components listed above with original packaging in Resalable

Condition. Absolutely No Returns will be accepted if any component is missing/damaged.

A. B. C. D.

Page 4

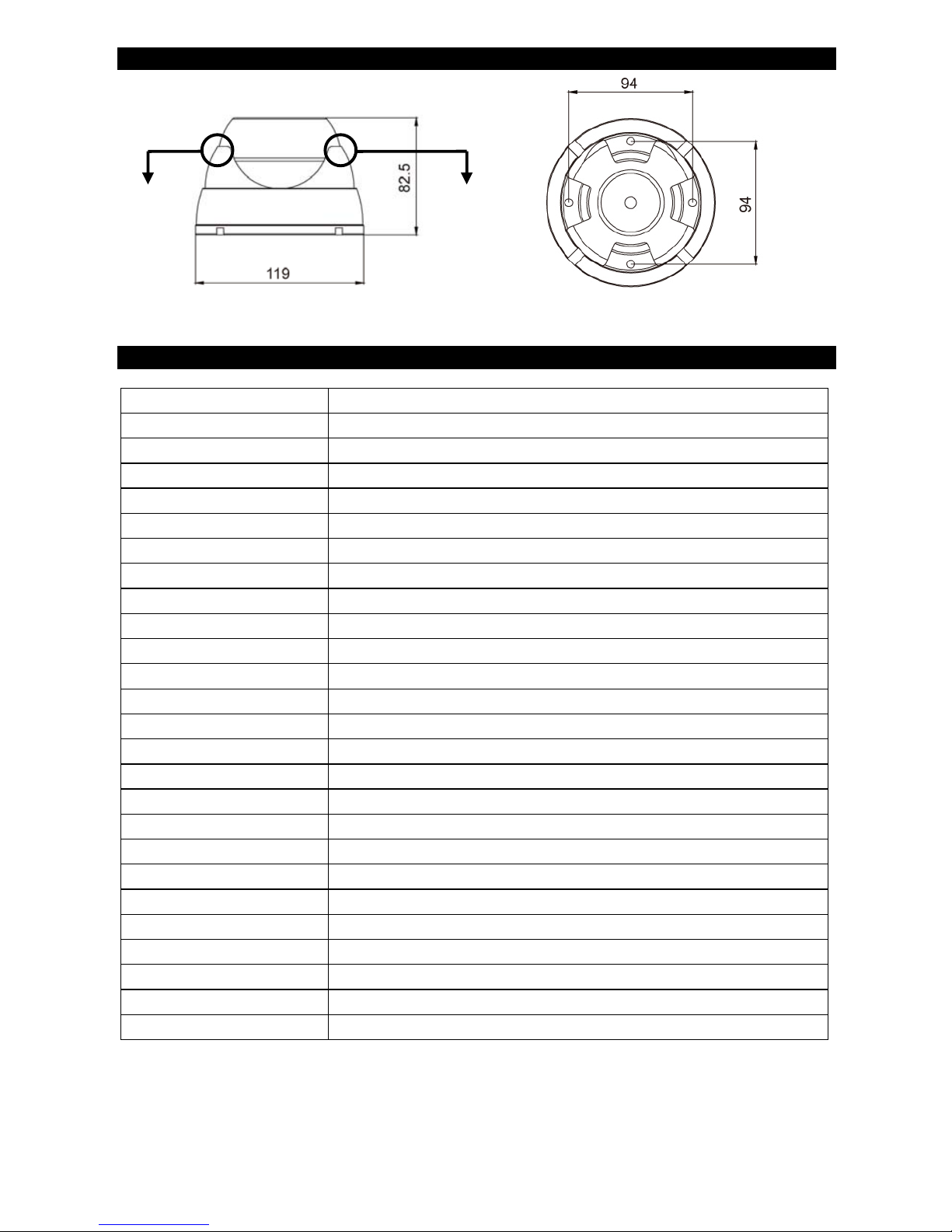

DIMENSIONS

SPECIFICATION

Model (NTSC) EIVD28-870VF Model (PAL) EIVD28-870VFP Sensor 1/3” Sony Super HAD CCD II DSP Sony Effio-E Total Pixels NTSC: 1028(H) x 508(V) / PAL: 1028(H) x 596(V) Effective Pixels NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V) Resolution 700 TV lines Synchronizing System Internal Scanning System 2:1 Interlace S/N Ratio More than 48 dB(AGC OFF) Electronic Shutter Auto/1/60 (1/50) ~1/100,000 sec. Min. Illumination 0.1 Lux / F2.0 (50IRE) Video Output 1.0 Vp-p / 75 ohm composite IR LED 28pcs IR IR Distance 60ft / 20m IR Trigger 3.1lux / 3.75lux IR ON / OFF Auto White Balance 1800°K~10500°K Lens Type 4.0mm~9.0mm Varifocal Lens Power Source 12V DC ± 10% / 1A Power Consumption 3.48W Current 110mA @ IR OFF ; 290mA @ IR ON IP Rating IP66 Operating Temperature 14°F ~ 122°F / -10°C ~ 50° Storage Temperature -4°F ~ 158°F / -20°C ~ 70°C



Dimension 3.25(H) x 4.69 (Dia) inches / 82.5(H) x 119 (Dia) mm Weight 1.68 lbs / 0.76 kg

*Specifications are subject to change without notice

MADE IN TAIWAN

Unit: mm

Zoom:

Far / Near

Lens

Adjustor

Focus

Lens

Adjusto
