Sentry US SHDVR-04, EIR24-3650, EIR42X-450VF, EIR42X-460VF, EIR42X-470VF Quick Start Manual

...

Page 1

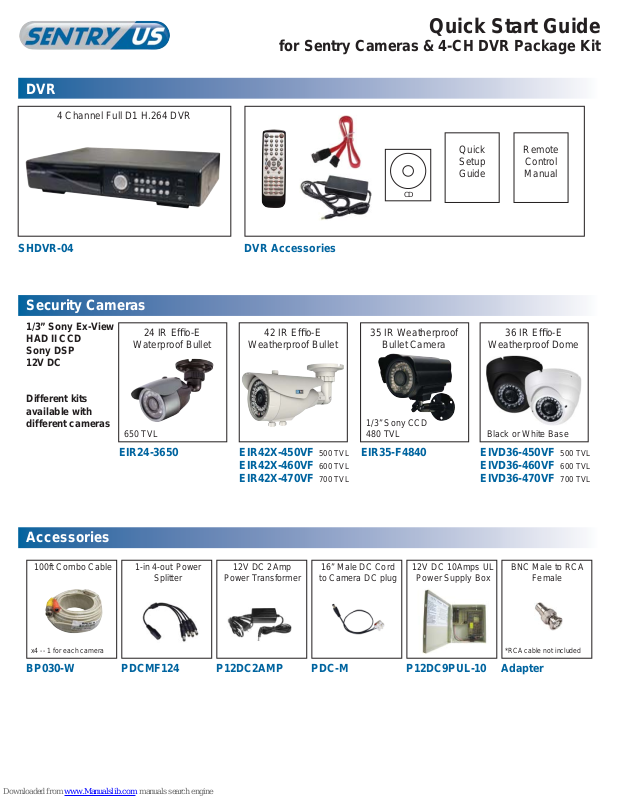

DVR

Quick Start Guide

for Sentry Cameras & 4-CH DVR Package Kit

4 Channel Full D1 H.264 DVR

SHDVR-04

Security Cameras

1/3” Sony Ex-View HAD II CCD Sony DSP 12V DC

Different kits available with different cameras

24 IR Efﬁ o-E

Waterproof Bullet

650 TVL

DVR Accessories

42 IR Efﬁ o-E

Weatherproof Bullet

CD

35 IR Weatherproof

Bullet Camera

1/3” Sony CCD 480 TVL

Quick Setup Guide

36 IR Efﬁ o-E

Weatherproof Dome

Black or White Base

Remote

Control Manual

Accessories

100ft Combo Cable

x4 -- 1 for each camera

BP030-W

EIR24-3650

1-in 4-out Power

Splitter

PDCMF124

EIR42X-450VF EIR42X-460VF EIR42X-470VF

12V DC 2Amp

Power Transformer

P12DC2AMP

500 TVL 600 TVL 700 TVL

16” Male DC Cord

to Camera DC plug

EIR35-F4840

PDC-M

12V DC 10Amps UL

Power Supply Box

P12DC9PUL-10

EIVD36-450VF EIVD36-460VF EIVD36-470VF

BNC Male to RCA

Female

*RCA cable not included

Adapter

500 TVL 600 TVL 700 TVL

Page 2

Connection Diagram

Rear Panel

Power for Camera

Video from

Camera

Network

VGA

VGA Monitor

BNC

Security Monitor

or

Power for DVR

Power for

Camera

Front Panel

1. Direction Keys

2. LED Indicators

3. MENU

4. ENTER

5. 4-ch Display

6. SEQ

RCA

7. LIST

8. PLAY

9. SLOW

TV

1256

3

78910 13

4

10. ZOOM

11. Channels

12. USB port for ﬂ ash drive backup

1211

13. USB port for mouse control

R201205-V25
