Sentry360 IS-DM520 User Manual
IS-DM520, HB
User Manual
Ver 1.0
©Sentry360 2014
Table of Contents
1. Overview ............................................................................................................................ 3
1.1 Features ...................................................................................................................... 3
1.2 Package Contents........................................................................................................ 4
1.3 Dimensions .................................................................................................................. 5

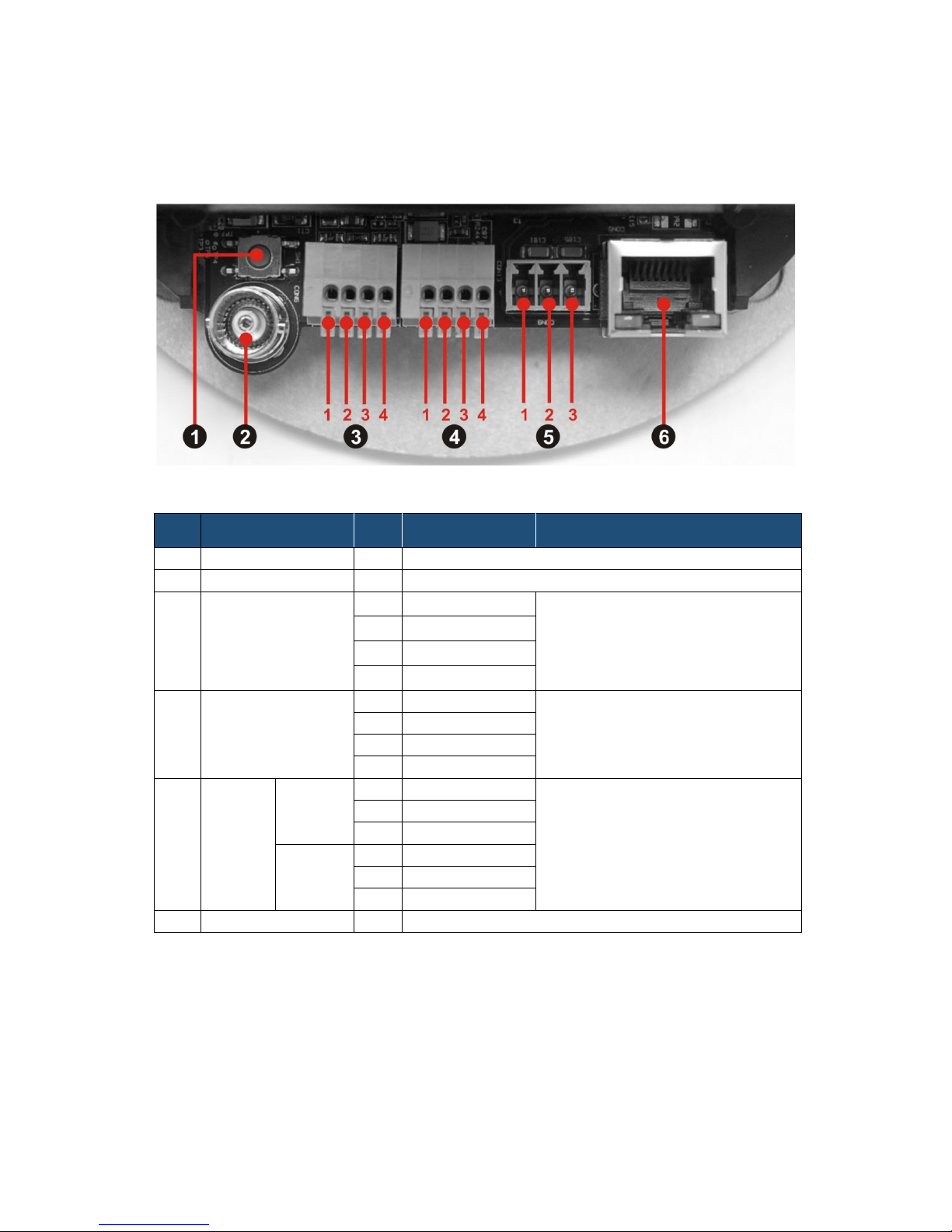

1.4 Connectors .................................................................................................................. 6
2. Camera Cabling ................................................................................................................. 7
2.1 Connect Power ............................................................................................................ 7
2.2 Connect Ethernet Cable ............................................................................................... 7
2.3 Connect Alarm I/O ....................................................................................................... 7
3. System Requirements ...................................................................................................... 8

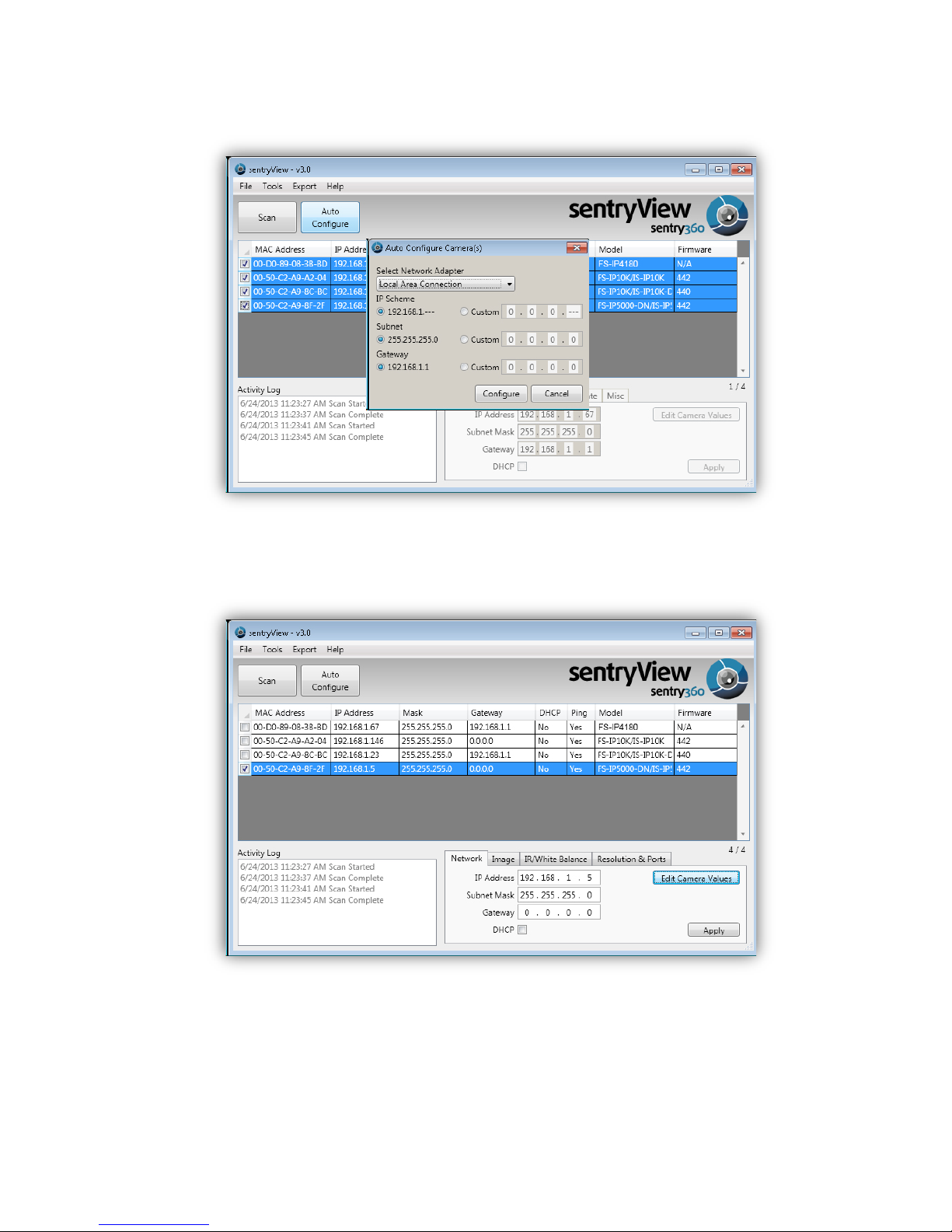

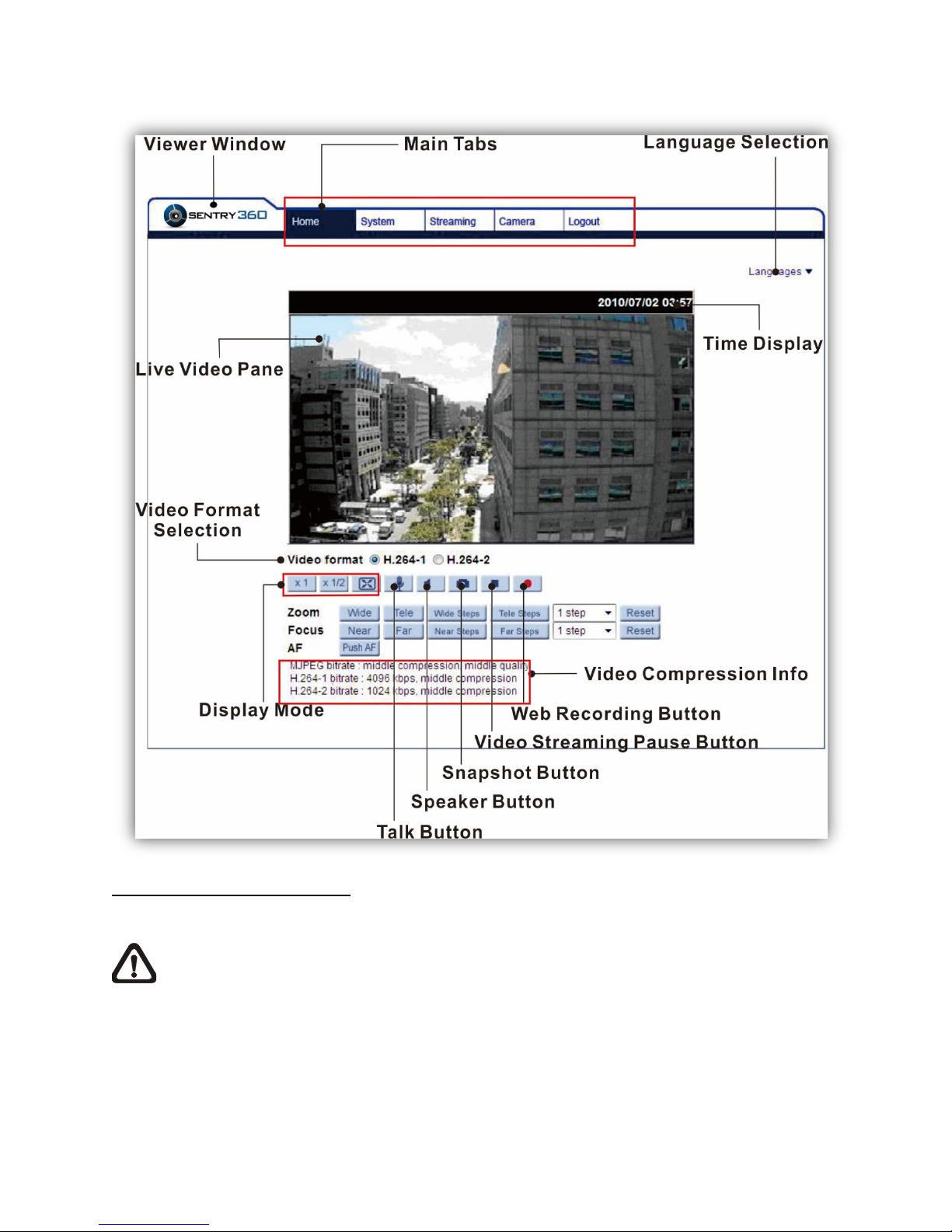

4. Access Cam era ................................................................................................................. 9
5. Configure Video Streams ................................................................................................13
6. Configuration Files Export / Import ................................................................................14
Appendix A: Delete the Existing DC Viewer ..........................................................................15
Appendix B: Setup Internet Security .....................................................................................16
1. Overview
The IS-DM520 camera is a Quad-streaming, H.264 & MJPEG encoding, 5.0 Megapixel
resolution, IP-addressable, network camera. It is designed to deliver full-motion, high-definition,
progressive scan digital video across local area networks. The IS-DM520 features a design with
a 1/2.5” CMOS sensor, Power over Ethernet, 24 IR LED, heater/blower (HB model only), and
Audio-In and Audio-Out. The IS-DM520 is a cost-effective, high-level, megapixel network
camera.
1.1 Features
• Progressive Scan CMOS Sensor
• Quad Streams Compression: H.264 Baseline / Main / High Profile + MJPEG
• Multi-language Support
• Tampering Alarm
• Remote Zoom & Focus (Motorized Lens)
• Wide Dynamic Range
• Motion Detection
• Privacy Masks
• Smart Picture Quality / 3D Noise Reduction
• Vertical View Mode (Image rotation by 90 degrees)
• Smart IR Mode
• Network Failure Detection
• Day/Night (ICR)
• IR LED Module (IR and HB models, working distance up to 25m)
• Micro SD support
• BNC analog output
• Weatherproof (IP66 International)
• ONVIF Support
1.2 Package Contents
Please check the package contains the following items listed below.
Camera
DC Jack Cable & Power Terminal Block
Rubber Washers (×6)
Self Tapping Screws
(×4)
Quick Guide
Security Torx
Plastic Screw Anchors
(×4)
NOTE: The type of the supplied self-tapping screws is mainly for softer
substrate/material installation such as wood. For other installation environment such as
cement wall, it is required to pre-drill and use plastic anchors before fastening the
supplied self-tapping screw on the wall.
1.3 Dimensions
The IS-DM520 dimensions are shown below.
Top View Side View
