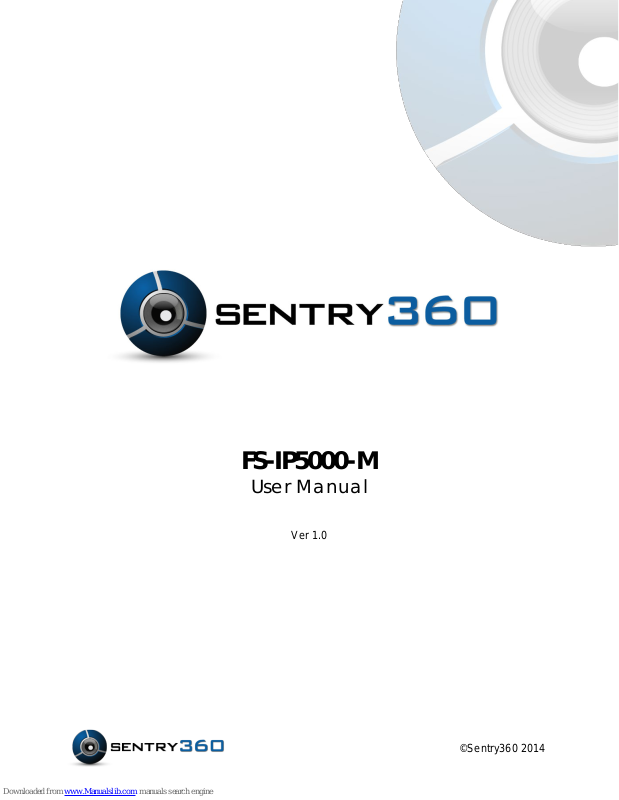

FS-IP5000-M
User Manual
Ver 1.0
©Sentry360 2014
Table of Contents
1. Overview ............................................................................................................................ 3
1.1 Features ...................................................................................................................... 3
1.2 Package Contents........................................................................................................ 4
1.3 Dimensions .................................................................................................................. 5
1.4 Installation ................................................................................................................... 6
1.5 Connectors .................................................................................................................. 7
2. Connect Ethernet Cable .................................................................................................... 8
3. System Requirements ...................................................................................................... 9
4. Access Camera ................................................................................................................10
5. Configure Video Streams ................................................................................................14
6. Configuration Files Export/ Import .................................................................................15
Appendix A: Delete the Existing DC Viewer ..........................................................................16
Appendix B: Setup Internet Security .....................................................................................17
1. Overview
The FS-IP5000-M camera is an MJPEG or H.264 encoding, 5.0 Megapixel resolution, IP
addressable, 360 degree camera. It is designed to deliver full-motion, high-definition,
progressive scan digital video across local area networks. The FS-IP5000-M features a design
with no moving parts, creating a full 360 degree view. An optically corrected panoramic lens,
designed exclusively for the FullSight™ camera, allows for immersive 360 degree live view as
well as pan-tilt-zoom during playback with the use of Sentry360’s API or SDK with any 3
Network Video Recording Software Certified Partner. User Interface options of live or playback
can be one of the following: Panoramic Display, Quad Virtual Camera display, Single Virtual
PTZ camera display, or panoramic with two virtual camera display with calibrated PTZ capability
between the panoramic image and virtual cameras. The FS-IP5000-M is a cost effective, highlevel, megapixel network camera.
1.1 Features
• Progressive Scan CMOS Sensor
• Quad Streams Compression: H.264 Baseline/ Main/ High Profile + MJPEG
• Multi-language Support
• Tampering Alarm
• Wide Dynamic Range
• Motion Detection
• Privacy Masks
• Smart Picture Quality/ 3D Noise Reduction
• Vertical View Mode (Image rotation by 90 degrees)
• Network Failure Detection
• Weatherproof Dongle Cable
• Weatherproof (IP66 international)
• Micro SD support
• Security Torx against tampering
• ONVIF Support
rd
party
1.2 Package Contents
Please check the package contains the following items listed below.
Camera (with Cable)
Rubber Washer (×1, Casing)
Rubber Washers (×3, Baseplate)
Self-tapping screws (×3)
Security Torx
NOTE: The type of the supplied self-tapping screws is mainly for softer
substrate/material installation such as wood. For other installation environment such as
cement wall, it is required to pre-drill and use plastic anchors before fastening the
supplied self-tapping screw on the wall.
Plastic Anchors (×3)
Quick Guide
1.3 Dimensions
The FS-IP5000-M dimensions are shown below.
1.4 Installation
Step 1. Put the rubber washer in both
Step 2. Align the installing hole to the
Step 3. Refer to 1.5 CONNECTORS and 2. CONNECT ETHERNET CABLE to c onnect
Step 4. Align the arched parts on both
We suggest installing the FS-IP5000-M according to the following steps to make sure the
camera is waterproof.
sides of the holes on the
bottom plate of the camera.
target position and fasten the
screws to attach the camera.
the cable and adjust the lens.
the dome cover and bottom
plate to attach the two parts
firmly together. Fasten the
security screws on the dome
cover to finish installing the
camera.
1.5 Connectors
Designation
Description
Restore to default setting;
2
Lens
Rotate the lens right/left to adjust focus
3
Focus Fixed Screw
Loosen the screw to adjust the lens
4
Tilt Fixed Screw
Loosen the screw to adjust tilt angle
5
Micro SD Card Slot
For video recording storage
The diagram below shows the FS-IP5000-M reset button and various adjusting screws.
Definition for each will be given as follows.
1
Reset Button
press the button with a proper tool
2. Connect Ethernet Cable
Please follow the instructions below to connect the FS-IP5000-M Ethernet cable.
The FS-IP5000-M supports an RJ-45 Dongle Cable.
RJ-45 Dongle
RJ-45 Dongle Cable Connection
Run the Ethernet cable through the Waterproof RJ-45 Screw-On Plug. Then connect one end of
the Ethernet cable to the RJ-45 dongle, tightening the sealing nut of the W at er proof RJ-45
Screw-On Plug completely. Next, connect the other end of the Ethernet cable to Power
Sourcing Equipment (PSE) like hubs or routers.
NOTE: Please use a PoE waterproof switch/hub so that the camera can work.
3. System Requirements
Items
System Requirement
1. Intel® Pentium® M, 2.16 GHz o r
2. 2 GB RAM or more
Operating System
Windows VISTA/ Windows XP/ Windows 7
Web Browser
Microsoft Internet Explorer 6.0 or later
10Base-T (10 Mbps) or 100Base-TX (100 Mbps)
Viewer
ActiveX control plug-in for Microsoft IE
To access the FS-IP5000-M via web browser, please ensure your PC has a good network
connection, and meets system requirements as described below.
Personal Computer
Network Card
Intel® Core
Firefox
Chrome
Safari
operation
TM
2 Duo, 2.0 GHz
4. Access Camera
Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or
12V adapter).
Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool,
here: http://sentry360.com/product/sentryview/
Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras.
Step 4. To automatically configure your camera network settings, check the boxes of the
cameras you want to configure. Then click Auto Configure.
Step 5. Confirm your network settings and click Configure.
Step 6. To manually configure your cameras, click Edit Camera Values at the bottom right,
enter your IP Address, Subnet Mask, Gateway, and DHCP settings. Click Apply to
save these values.
Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video
Management System, please download the latest version here:
http://sentry360.com/product/sentrycore/
Step 8. Right click on a camera and select Browse. The prompt for entering the default
username and password will appear for logging in to the FS-IP5000-M.
The default login ID and password for the Administrator are:
Login ID
Password
Admin
1234
NOTE: I D and password are case sensitive.
Installing DC Viewer Software Online
For the initial access to the FS-IP5000-M, a client program, DC Viewer, will be automatically
installed to the PC when connecting to the camera.
If the web browser doesn’t allow DC Viewer installation, please check the Internet security
settings or ActiveX controls and plug-ins settings (refer to A
PPENDIX B: SETUP INTERNET
SECURITY) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for permission to install the
ActiveX Control for displaying video in browser. Right click on the Information Bar and select
<Install ActiveX Control…> to allow the installation. Then the security warning window will pop
up. Click on <Install> to carry on software installation.
The download procedure of DC Viewer software is specified as follows.
Step 1. In the DC Viewer installation window, click on <Next> to start installation.
Step 2. The status bar will show the installation progress. After the installation is completed,
click on <Finish> to exit the installation process.
Step 3. Click on <Finish> to close the DC Viewer installation page.
Once the DC Viewer is successfully installed, the FS-IP5000-M Home page will be able to
correctly display as the figure below.
Image and Focus Adjustment
The image displays on the Home page when successfully accessing to the FS-IP5000-M. Adjust
zoom and focus as necessary to produce a clear image.
Note: Please refer to FS-IP5000-M
MENU TREE for more button function detail.
5. Configure Video Streams
Users can setup Video Resolution on the Video Format page of the user-friendly browser-based
configuration interface.
Video Format can be found under this path: Streaming > Video Format.
Click on <Save> to confirm the setting.
6. Configuration Files Export / Import
To export/ import configuration files, users can access the Maintenance page on the userfriendly browser-based configuration interface.
The Maintenance setting can be found under this path: System > Maintenance.
Users can export configuration files to a specified location and retrieve data by uploading an
existing configuration file to the FS-IP5000-M.
Export
Users can save the system settings by exporting the configuration file (.bin) to a specified
location for future use. Click on the <Export> button, and the popup File Download window will
come out. Click on <Save> and specify a desired location for saving the configuration file.
Upload
To copy an existing configuration file to the FS-IP5000-M, please first click on <Browse> to
select the configuration file, and then click on the <Upload> button for uploading.
Appendix A: Delete the Existing DC Viewer
For users who have installed the DC Viewer in the PC previously, please first rem ove the
existing DC Viewer from the PC before accessing the FS-IP5000-M.
Deleting the DC Viewer
In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or
Remove Programs>. In the <Currently installed programs> list, selec t <DCViewer> and click on
the button <Remove> to uninstall the existing DC Viewer.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up all the f iles in the <Temporary
Internet Files>. The procedure is as follows.
Step 1. In the web browser, click on the <Tools> tab on the menu bar and select <Internet
Options>.
Step 2. Click on the <Delete> button under the <Browsing History> section.
Step 3. In the opened window, tick the box beside <Temporary Internet Files> and click on
<Delete> to start deleting the files.
Appendix B: Setup Internet Security
ActiveX controls and plug-ins settings:
player.
If ActiveX control installation is blocked, please either set Internet security level to default or
change ActiveX controls and plug-ins settings.
Internet Security Level: Default
Step 1. Start the Internet Explorer (IE).
Step 2. Click on the <Tools> tab on the menu bar and select <Internet Options>.
Step 3. Click on the <Security> tab, and select <Internet> zone.
Step 4. Down the page, click on the <Default Level> button and click on <OK> to confirm
the setting. Close the browser window, and restart a new one later to access the
FS-IP5000-M.
ActiveX Controls and Plug-ins Settings
Step 1. Repeat Steps 1 ~ 3 of the previous section above.
Step 2. Down the page, click on the <Custom Level> button to change ActiveX controls and
plug-ins settings. The Security Settings window will pop up.
Step 3. Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to <Enable>
or <Prompt>. Please note that the items vary by IE version.
1. Binary and script behaviors.
2. Download signed ActiveX controls.
3. Download unsigned ActiveX controls.
4. Allow previously unused ActiveX controls to run without prompt.
5. Allow Scriptlets.
6. Automatic prompting for ActiveX controls.
7. Initialize and script ActiveX controls not marked as safe for scripting.
8. Run Active X controls and plug-ins.
9. Only allow approved domains to use ActiveX without prompt.
10. Script ActiveX controls marked safe for scripting*.
11. Display video and animation on a webpage that does not use external media
Step 4. Click on <OK> to accept the settings. A prompt window will appear for confirming
the setting changes, click <Yes(Y)> to close the Security Setting window.
Step 5. Click on <OK> to close the Internet Options screen.
Step 6. Close the browser window, and restart a new one to access the FS-IP5000-M.
