Sentry360 FS-IP3000-M User Manual
FS-IP3000-M
User Manual
Ver 1.0
©Sentry360 2014
Table of Contents
1. Overview ............................................................................................................................ 3
1.1 Features ...................................................................................................................... 3
1.2 Package Contents........................................................................................................ 4
1.3 Dimensions .................................................................................................................. 5
1.4 Installation ................................................................................................................... 6
1.5 Connectors .................................................................................................................. 7
2. Connect Ethernet Cable .................................................................................................... 8
3. System Requirements ...................................................................................................... 9
4. Access Camera ................................................................................................................10
5. Configure Video Streams ................................................................................................14
6. Configuration Files Export/ Import .................................................................................15
Appendix A: Delete the Existing DC Viewer ..........................................................................16
Appendix B: Setup Internet Security .....................................................................................17
1. Overview
The FS-IP3000-M camera is an MJPEG or H.264 encoding, 5.0 Megapixel resolution, IP
addressable, 360 degree camera. It is designed to deliver full-motion, high-definition,
progressive scan digital video across local area networks. The FS-IP3000-M features a design
with no moving parts, creating a full 360 degree view. An optically corrected panoramic lens,
designed exclusively for the FullSight™ camera, allows for immersive 360 degree live view as
well as pan-tilt-zoom during playback with the use of Sentry360’s API or SDK with any 3
Network Video Recording Software Certified Partner. User Interface options of live or playback
can be one of the following: Panoramic Display, Quad Virtual Camera display, Single Virtual
PTZ camera display, or panoramic with two virtual camera display with calibrated PTZ capability
between the panoramic image and virtual cameras. The FS-IP3000-M is a cost effective, highlevel, megapixel network camera.
1.1 Features
• Progressive Scan CMOS Sensor
• Quad Streams Compression: H.264 Baseline/ Main/ High Profile + MJPEG
• Multi-language Support
• Tampering Alarm
• Wide Dynamic Range
• Motion Detection
• Privacy Masks
• Smart Picture Quality/ 3D Noise Reduction
• Vertical View Mode (Image rotation by 90 degrees)
• Network Failure Detection
• Weatherproof Dongle Cable
• Weatherproof (IP66 international)
• Micro SD support
• Security Torx against tampering
• ONVIF Support
rd
party
1.2 Package Contents
Please check the package contains the following items listed below.
Camera (with Cable)
Rubber Washer (×1, Casing)
Rubber Washers (×3, Baseplate)
Self-tapping screws (×3)
Security Torx
NOTE: The type of the supplied self-tapping screws is mainly for softer
substrate/material installation such as wood. For other installation environment such as
cement wall, it is required to pre-drill and use plastic anchors before fastening the
supplied self-tapping screw on the wall.
Plastic Anchors (×3)
Quick Guide
1.3 Dimensions
The FS-IP3000-M dimensions are shown below.
1.4 Installation
Step 1. Put the rubber washer in both
Step 2. Align the installing hole to the

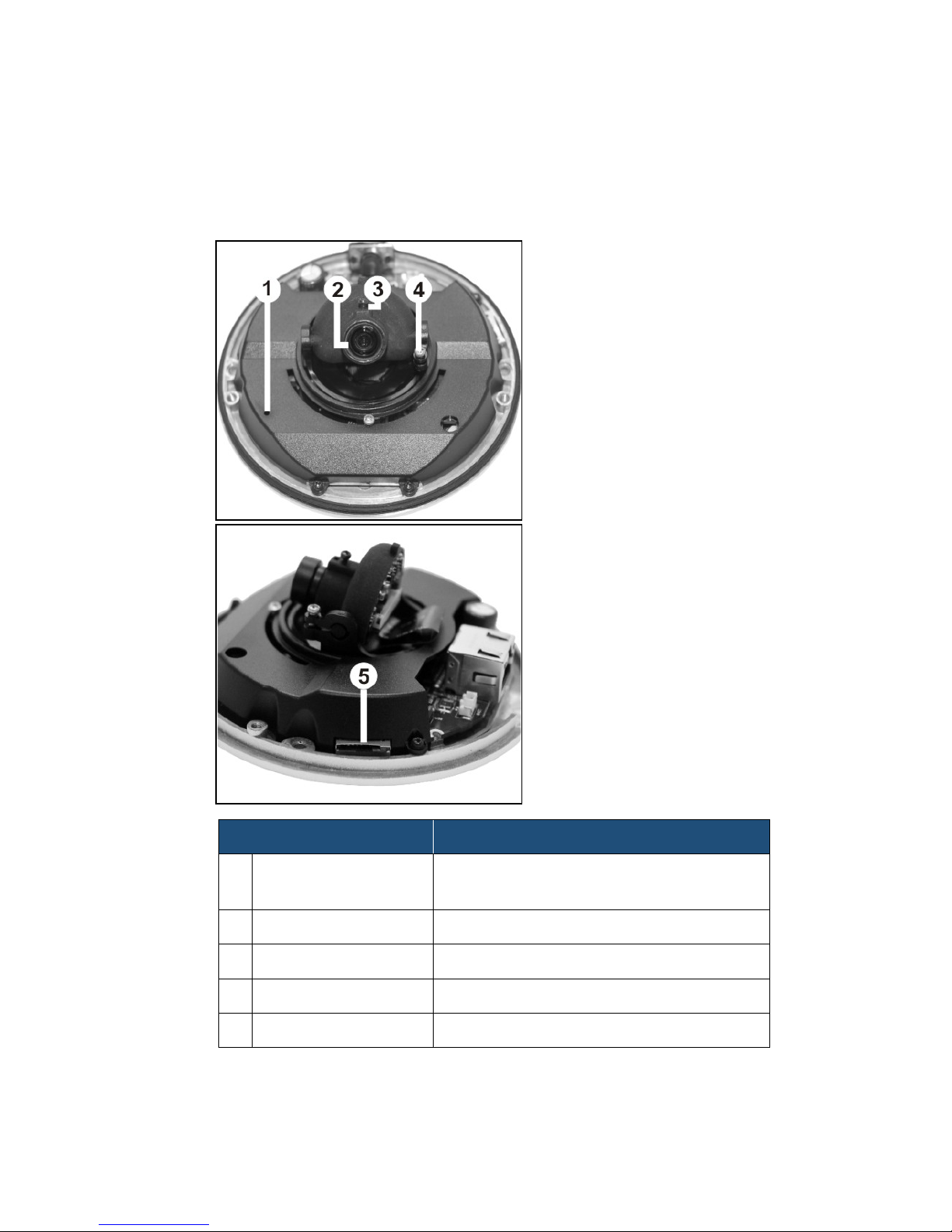

Step 3. Refer to 1.5 CONNECTORS and 2. CONNECT ETHERNET CABLE to c onnect
Step 4. Align the arched parts on both
We suggest installing the FS-IP3000-M according to the following steps to make sure the
camera is waterproof.
sides of the holes on the
bottom plate of the camera.
target position and fasten the
screws to attach the camera.
the cable and adjust the lens.
the dome cover and bottom
plate to attach the two parts
firmly together. Fasten the
security screws on the dome
cover to finish installing the
camera.
