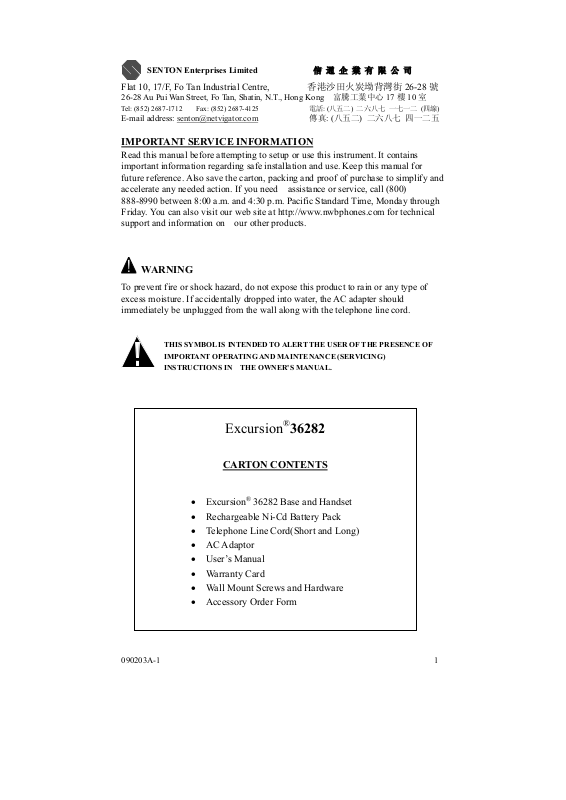

Senton 36282 User Manual

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

IMPORTANT SERVICE INFORMATION

Read this manual before attempting to setup or use this instrument. It contains
important information regarding safe installation and use. Keep this manual for
future reference. Also save the carton, packing and proof of purchase to simplify and
accelerate any needed action. If you need assistance or service, call (800)
888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through
Friday. You can also visit our web site at http://www.nwbphones.com for technical
support and information on our other products.

WARNING

To prevent fire or shock hazard, do not expose this product to rain or any type of
excess moisture. If accidentally dropped into water, the AC adapter should
immediately be unplugged from the wall along with the telephone line cord.

THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF

IMPORTANT OPERATING AND MAINTENANCE (SERVICING)

INSTRUCTIONS IN THE OWNER'S MANUAL.

• Excursion® 36282 Base and Handset

• Rechargeable Ni-Cd Battery Pack

• Telephone Line Cord(Short and Long)

• AC Adaptor

• User’s Manual

• Warranty Card

• Wall Mount Screws and Hardware

• Accessory Order Form

Excursion®36282

CARTON CONTENTS

090203A-1 1

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry
tub, in a wet basement or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it
from overheating. These openings should never be blocked or covered. The openings should never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed in
a built-in installation unless proper ventilation is provided.

7. This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your dealer or local power
company.

8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be
abused by persons walking on it.

9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric
shock.

10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.

11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service
contractor when some service or repair work is required. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the
appliance is subsequently used.

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:

A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only

those controls that are covered by the operating instructions. Improper adjustments of other
controls may result in damage and will often require extensive work by a qualified technician

to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinctive change in performance.

13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

090203A-1 2

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

INSTALLATION

PRECAUTIONS

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.

3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.

4. Use caution when installing or modifying telephone lines.

MAINTENANCE

1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never
use polish, solvents, abrasives or strong detergents since these can damage the finish.

2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other
appliance that produces heat.

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instruction. read and follow these instructions:

1. Use only the 3.6V, 450mAh, Ni-Cd battery pack .

2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.

3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the

eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling the battery in order not to short the battery with conducting material such
as rings, bracelets and keys. The battery or conductor may overheat and cause burns.

5. Recharge only the battery provided with or identified for use with this product. The battery may leak
corrosive electrolyte or explode if it is not the correct type.

6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by
heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes
or skin.

7. When inserting the battery into this product, the proper polarity or direction must be observed.
Reverse insertion of batteries can cause charging that may result in leakage or explosion.

8. Do not store this product, or the battery provided with or identified for use with this product, in
high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of
extending shelf life should be stabilized at room temperature prior to use after cold storage.

9. Disconnect telephone lines before installing batteries

SAVE THESE INSTRUCTIONS

FCC NOTICE

The FCC requires that you be advised of certain requirements involving the use of this telephone.

1. This telephone is hearing aid compatible.

2. This equipment complies with 47 CFR Part 68 requirement. On the bottom of this equipment is a
label that contains, among other information, the ACTA registration number and Ringer Equivalence
Number (REN) for this equipment. If requested, provide this information to your telephone
company.

3. The REN is useful to determine the quantity of devices you may connect to your telephone line and

090203A-1 3

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

r

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

still have all of those devices ring when your number is called. In most, but not all areas, the sum of
the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you
may connect to your line, as determined by the REN, you should call your local telephone company
to determine the maximum REN for your calling area.

4. If your telephone causes harm to the telephone network, the telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will be advised of your right to file a
complaint with the FCC.

5. Your telephone company may make changes to its facilities, equipment,

operations or procedures that could affect the proper operation of your equipment. If they do, you
will be given advance notice so as to give you an opportunity to maintain uninterrupted service.

6. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co., Inc
at [phone] or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA 91745
for repair/warranty information. The telephone company may ask you to disconnect this equipment
from the network until the problem has been corrected or you are sure that the equipment is not
malfunctioning.

7. This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs. (Contact your state public utility commission or corporation
commission for information.).

8. USOC jack type is RJ11C and the compatible jack is part 68 compliance.

NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this [equipment ID] does not disable your alarm equipment. If you have questions about
what will disable alarm equipment, consult your telephone company or a qualified installer.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and, (2) his device must accept
any interference received, including interference that may cause desired operation. Privacy of
communications may not be ensured when using this phone.

Changes or modifications not expressly approved in writing by Northwestern Bell Phones may
void the user's authority to operate this equipment.

Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs;
to minimize or prevent such interference, the base of the cordless phone should not be placed nea
or on top of a TV or VCR; and, if interference is experienced, moving the cordless telephone
farther away from the TV or VCR will often reduce or eliminate the interference.

AC ADAPTOR:

Use only with Class 2 Transformer, 9VDC output ,

200mA, center pin positive.

090203A-1 4

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

Excursion® 36282 CONTROLS DIAGRAM

MSG WTG
/NEW CALL
LED Indicator

TALK Button

SAVE/MEMO
Button

OPT/TRANS
Button

Headset Jack

TONE(*)/
Button

FLASH/EDIT
Button

TONE PULSE

9VDC200m A

LINE

TONE/PULSE Switch DC 9V Jack LINE Jack

LCD Display

Base Units Antenna

SCAN/MENU
Button

Page Button

CALLS Button

IN USE/ Handset 1
CHARGE LED
Indicator

# /

Button

RE/PA/DELETE
(Redial/Pause/
Delete) Button

Handset 2
CHARGE LED
Indicator

Base Unit
(Rear View)

Button

Button

DC 9V Jack

PAGE

Cordle ss ph one

IN USE

CHARGE

GHz

2.4

D

m

u

e

t

a

s

l

y

-

H

a

t

S

d

n

s

e

CHARGE

2

C

e

.

h

s

4

a

a

r

B

m

g

i

n

g

e

G

H

t

z

s

y

D

S

u

t

a

e

l

-

H

s

a

n

d

090203A-1 5

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

DESCRIPTIONS

HANDSET CONTROL:

LCD Display - Shows call information, phone status, prompts and Phonebook items.

MSG WTG / NE W CALL Indicator - Red LED blinks when you have new message(s) and call(s).

TALK Button - Press this button to place a call, answer a call, or end a call.

Save /MEMO button –Saves the changes on the listed items. Allows you to retrieve a memory(name and

phone number)for the personal Phonebook (up to 20 memories).

TONE * /

# /

FLASH/EDIT Button - (FLASH)Momentarily hangs up the phone to access custom calling features

such as Call waiting or Three-way calling provided by you local phone company. (EDIT) Press to edit
listed items

It also allows you to view the caller list or /and Phone.

Microphone -Used for speaking with callers.

Headset Jack – A jack located on the side of the handset used for connecting your headset to enjoy a

hands-free communication.

RE/PA/Delete(Redial/Pause/Delete) Button – (Redial)Press to redial the last number you dialed.
(Pause)Press to insert pause while dialing. (Delete)Press and hold down to delete items.

Calls Button - Press to see the caller list.

OPT(Option)/TRANS(Transfer) Button – Allow you to transfer to other handset during a call.

During you view the caller list, press to place a long distance call or to place a local call.

SCAN/MENU –While in standby mode, this button allows you to set the handset in Programming mode.
While in Talk mode. It is used to manually select one of the 40 operating channels when you experience
interference on the handset.

Receiver – Allows you to hear calls.

BASE UNIT CONTROLS:

Base Antenna - A fixed antenna.

Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these

contacts periodically with an alcohol-moistened cloth or cotton swab.

IN USE/CHARGE 1 LED Indicator -Lights up to indicate the handset 1or handset 2 is ON or when the
handset 1 is placed on the base unit for charging. It flashes to indicate the page function is in use.

CHARGE 2 LED Indicator - Lights up to indicate when the handset 2 is placed on the base unit for
charging

PAGE B u t t o n - Allows you to locate the handset when it is not on the base, or to alert the person near the
handset.
TONE/PULSE Switch - A switch located on the bottom of the base unit, which allow you to set the
dialing mode to either Tone dialing or Pulse(rotary) dialing.

DC 9V jack - A jack located on the rear side of the base unit used for connecting the AC

090203A-1 6

Button - Press to move left on the large LCD Display

Button - Press to move right on the large LCD Display.

/ Button - Allows you to adjust the handset volume(3 steps) in TALK mode.

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

k

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

adaptor to the base unit.

TEL LINE jack – Accepts line cord to make connection with modular type telephone outlet.

INSTALLATION

TYPE INCLUDED WITH THIS UNIT. USE OF OTHER BATTERY TYPES MAY CAUSE INJURIES
OR DAMAGE.

Battery Installation

1. Remove the battery compartment cover of the handset by pressing the top of the cover and sliding it

2. Connect the Ni-Cd battery pack plug along the slot into the handset’s battery connector as shown

CAUTION: USE ONLY THE NICKEL CADMIUM(Ni-Cd) BATTERY

down.

below.

Handset
Battery
Compartment

Red
wire

Black
Wire

Battery
Connector

(Figure 1)

3. Insert the Ni-Cd battery into the battery compartment.

4. Replace the battery compartment cover by sliding it up towards the handset.

NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is recommended that the
Ni-Cd battery pack should be fully charged overnight prior to initial use.

Belt Clip Installation

With the back of handset facing up, insert one side of the belt clip hook into the matching slots at the top
side of handset as shown in Figure2. Slide the other hook until it locks into place from the opposite side
of the handset.

Belt clip hoo

WALL USE:

Wall Mounting (Standard Wall Jack)

1. Install the wall mount bracket at the position as shown in Figure 3.

2. Connect the short telephone line cord to the TEL LINE jack..

3. Connect the opposite end of the telephone line cord to the modular wall jack.

(Figure 2)

090203A-1 7

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

.

.

t

t

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

4. Align the wall mounting slots with studs located on the modular wall plate and slide base down to
lock in place.

Wall Mounting (No Standard Wall Jack)

1. Drill two holes with a vertical distance between the two marked positions of 3

Base Unit

shown in Figure 4.

Wall Mount Bracket

.....................

3

15/16

55

(100mm)

.....................

(Figure 3)

Wall Moun
Stud

Telephone
Modular
Jack

Wall Moun
Stud

15/16”

（100mm）as

(Figure 4)

2. Drive a screw into each of the holes. Tighten them to the end of the screw lines, only leaving the
smooth part of the screw head outside the wall.

3. Hand the unit onto the screws, then slide it down firmly to fasten the base securely.

Uninstalling the Wall Mount Bracket

To remove the wall mount bracket from the base unit, pull it front as shown in Figure 5.

(Figure 5)

POWER CONNECTION

CAUTION: You must use a Class II, 120 Volt AC/9 Volt DC adaptor that delivers at least 200mA
for base unit and 200mA for charger. The center tip must be positive and the plug must correctly fit
the base unit’s DC 9V 200mA jack and fit the charger DC 9V 200mA jack.

1. Plug the AC adaptor into a standard AC outlet.

2. Insert the small plug into the DC 9V 200mA jack on the rear of the base unit and Insert

the small plug into the DC 9V 200mA on the rear of the charger as shown in Figure 5.

090203A-1 8

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

t

k

r

C

t

r

k

r

k

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

Base Unit

harger

AC Outle

DC 9V Jac

TONE PULSE

9VDC200mA

AC Adapto
Plug

HEADSET CONNECTION
One of the special features of your phone is that your handset could utilize a headset (not included) for
hands-free communication. Insert the small plug at the end of your headset cord to the headset jack at the
side of the handset as shown in Figure 6. Follow the procedures discussed in “Placing a Call” when to
place and receive a call.

Note: The headset jack of your cordless telephone is compatible with 2.5mm headset plugs only. When
you plug in the headset into the headset jack, it automatically mutes the microphone and speaker of the
handset. Unplug the headset to return the handset to normal use.

INITIAL SETUP

Please follow these steps before using the cordless telephone for the first time.

1. Ensure that the handset battery pack is installed and charged fully for at least 14 hours.

2. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base
unit.

SETTING THE TONE/PULSE MODE

Select the appropriate dialing service by moving the TONE/PULSE switch at the bottom of the base unit:

· TONE for Tone service , or

· PULSE for Rotary service.

SETTING THE HANDSET RINGER ON/OFF MODE

The handset must be set to ring ON mode in order to ring when receiving an incoming call.
See Programs Operation section on “RING ON/OFF SETTING”.

LINE

9VDC

AC Outle

DC 9V Jac

AC Adapto
Plug

9VDC Adapto

(Figure 6)

Handset Jac

(Figure 7)

090203A-1 9

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

TELEPHONE OPERATION

Place a Call

1. Pick up the handset and press the TALK button. The Call Timer starts to count. The base unit IN
USE LED indicator will light up.

2. Listen for a dial tone.

3. Dial the telephone number. The phone numbers appear on the LCD Display as you enter the
number.

4. When finished with your call, press the TALK button or place the handset on the base unit.

NOTE: The call timer will start to count once you press the TALK button.

Receive a Call

NOTE: If you are expecting incoming calls, the handset must be programmed to RING ON mode.

If the handset is on the base

1. When the phone rings, simply pick up the handset from the base cradle if the unit is set to
auto-answer ON mode. If the unit is set to auto-answer OFF mode, press the TALK button. See the
“AUTO ANSWER ON/OFF” section to set auto-answer mode. The LCD Display will show
“TALK”.

2. Start your conversation.

3. To end your conversation, either press the TALK button or place the handset on the base unit.

If the handset is out of the base:

1. When the phone rings, press the TALK button on the handset. The LCD Display will show “ TALK”
and the base unit IN USE LED will light up.

2. Start your conversation.

3. To end your conversation, either press the TALK button or place the handset on the base unit.

Last Number Redial

A. AFTER HEARING A BUSY TONE WHEN PLACING A CAL.L

1. If you get a busy tone, press handset TALK button to hang up.

2. Press the handset TALK button again and listen for a dial tone.

3. Press the handset RE/PA/DELETE button. This will automatically redial the last telephone
number you called (up to 32 digits).

4. When finished with your call, press the TALK button or place the handset on the base
unit.

:

B. WHEN THE HANDSET IS OFF THE BASE UNIT AND IN STANDBY MODE

1. Press the TALK button on the handset and listen for a dial tone.

2. Press the RE/PA/DELETE button. This will automatically redial the last telephone number you
called (up to 32 digits).

3. When finished with your call, press the TALK button or place the handset on the base unit.

SAVING IN THE PHONEBOOK

1. Press the SAVE/MEMO button.

2. Press the FLASH/EDIT button.

3. Use the TELEPHONE KEYPAD button(0-9) to enter the name, (see the “TELEPHONE KEYPAD
CHARACTERS SETTING” section ) you can store up to 15 characters.

4. Press the DN

5. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can
store up to 16 digits.

6. Press the SAVE/MEMO button to save into memory

7. Press the SAVE/MEMO button to go back to standby mode.

button once.

090203A-1 10

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

NOTE: If there are no memory locations left in the phonebook, the unit will display “ MEMORY FULL”.
To continue with memory programming, you must delete or edit existing speed dial numbers.
If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to STANDBY
mode.
It will not save a duplicate telephone number or a name without the corresponding telephone number in
the Phonebook.

A. PREFERRED CALLS(VIP)

You an assign PREFERRED CALL which will generate a special ringer sound at start of the second ring
to any welcome caller in the Phonebook.

1. Press the SAVE/MEMO button.

2. Press the

3. Press the SCAN/MENU button once. The LCD Display will show “VIP”.

4. Press the SAVE/MEMO button to save the preferred call and go back to STANDBY mode.

JOHN SMITH

B. BLOCKED CALLS

You can assign a BLOCKED CALL which will disable the ringer sound from the second ring to any
caller in the Phonebook.

1. Press the SAVE/MEMO button.

2. Press the

3. Press the SCAN/MENU button twice. The LCD Display will show “REJ”.

4. Press the SAVE/MEMO button to save the preferred call and go back to STANDBY mode.

JOHN SMITH

TELEPHONE KEYPAD CHARACTERS

The TELEPHONE KEYPAD buttons(0-9) are used to enter the characters when entering
names. Press the appropriate KEYPAD button to get the following characters.

or button to find the one you need.

VIP

888-555-1212

#

1 TOTAL20

or button to find the one you need.

REJ

888-555-1212

#

2 TOTAL20

090203A-1 11

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

N

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

KEYPAD

BUTTON

For example, If you want to enter the character “C” , press the “2” KEYPAD button, the first character
displayed will be “A” . Press the “2” button again to display “B”, and press again to display the letter
“C”. To enter the next character, press the appropriate button. If ,however , the next character is on the
same button as the previous character, you will first need to press the SHIFT RIGHT
Pressing the SHIFT RIGHT
character, you can go back to the incorrect character by pressing the SHIFT LEFT
delete the character inside the cursor “

VIEWING THE PHONEBOOK

This Phonebook lets you scroll through the list to find the person you need for one touch dialing. You can
store up to 20 names and telephone numbers in the Memory.

1. Press the SAVE/MEMO button.

2. Press the

NOTE: To exit the Phonebook at anytime, Press the SAVE/MEMO button.

1 Space &

2 A B C 2

3 D E F 3

4 G H I 4

5 J K L 5

6 M N O 6

7 P Q R S 7

8 T U V 8

9 W X Y Z 9

0 0

PHONE BOOK

TOTAL 20

name or telephone number is more than 11 digits.

ALEX BROWIN

6045551212

CHARACTERS

,

( ) * . 1

button a second time will produce a space. If you want to change any

button.

button. To

”, press the RE/PA/DELETE button.

o. of memory store

or button to find the one you need , press the SHIFT RIGHT button if the

ALEX BROWIN

6045551212

090203A-1 12

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

EDITING NAME AND NUMBER IN THE PHONEBOOK

1. Press the SAVE/MEMO button.

2. Press the

3. Press the FLASH/EDIT button to edit the name.

ALEX BROWIN

4. Press the SHIFT LEFT
want to change.
To erase, press the RE/PA/DELETE Button
To add, use the TELEPHONE KEYPAD buttons(0-9).

5. Press the

6. Press and hold the SHIFT LEFT
want to change.
To erase, press the RE/PA/DELETE button.
To add, use the TELEPHONE KEYPAD buttons(0-9).

ALEX BROWIN

6045551212

7. Press the SAVE/MEMO button to confirm.

IMPORTANT: It is not advisable to save a telephone number without the corresponding name in the
Phonebook. This will lead to improper displays on Private and Out of Area calls.

NOTE: When no active buttons are pressed for 20 seconds, the LCD Display will automatically return to

PLACING CALLS FROM THE PHONEBOOK

1. Press the SAVE/MEMO button.

2. Press the

3. Press the TALK button to dial out the telephone number.

4. Start your conversation.

5. To end your conversation, either press the TALK button or place the handset on the base unit.

NOTE: Be sure to check that the line is not in use by another extension.

DELETING A STORED NUMBER

1. Press the SAVE/MEMO button.

2. Press the

3. Press the RE/PA/DELETE button. The unit will ask you to delete the selected telephone number and
the LCD Display will show “EARSE ITEM?”.

ERASE ITEM?

4. Press again the “RE/PA/DELETE button to delete. The LCD Display will show “ERASED”.

5. Press the SAVE/MEMO button to return to STANDBY mode.

or button to find the one you want to edit.

6045551212

cursor is blinking

or RIGHT button to move the cursor to the letter or number you

button to edit the number.

or RIGHT button to move the cursor to the number you

cursor is blinking

STANDBY mode.

or button to find the one you want to call.

or button to find the one you want to delete.

604-555-1212

#

1

090203A-1 13

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

MIXED MODE DIALING (Temporary Pulse to Tone Dialing)

1. If you only have pulse (rotary dialing) service in your area and want to access Tone services (Bank
by Phone , etc.), ensure that the Tone/Pulse switch on the bottom of the base unit is set to the Pulse
position.

2. Press the TONE(*) button once to switch from Pulse to Tone dialing temporarily.
Pulse dialing mode resumes when the call is ended.

PAUSE FUNCITON

• In some cases, such as PABX or long distance service, a pause may be needed in the dialing
sequence. Pressing the handset RE/PA/DELETE button inserts the programmed time interval
between dialed numbers.

FLASH FUCTION

• Used to access custom calling features such as Call Waiting or Three-Way Calling provided by your
local phone company. Flash can also be used to restore a dial tone to make a new call.

CHANNEL SELECTION(40 Channels)

• Your cordless telephone lets you select a channel from the 40 frequencies available to transmit
signals between the base unit and handset. If the existing channel becomes noisy or starts having
interference, you can either move closer to the base unit or press the SCAN/MENU button on the
handset until a better reception is found.

OUT OF RANGE WARNING

• The handset and base unit communicate up to a certain maximum range. The distance can be
affected by weather, power lines, or even other cordless telephone.

• If you are far away from the base unit, the handset beeps and “ OUT RNAGE” is shown on the LCD
Display to warn you that the background noise level is too high for proper communication between
the handset and the base unit.

• When you hear this sound and see the “OUT RANGE” display, you should move closer to the base
unit. Otherwise, the call will automatically cut off after 20 seconds.

LOW BATTERY WARNNIG

• When the handset battery voltage level is low, the handset LCD Display shows “LOW BATTERY”.

• Return the handset on the base cradle to charge.

PAGING FUNCTION

• If you have misplaced the handset or need to alert person nearly the handset, press the PAGE
button on the base unit. Each press of this button will activate the handset to beep for 20 seconds
and LCD Display shows “PAGING” while it is being paged by the base unit.

NOTE: Even if the handset is in RING OFF mode, the base unit can page the handset.

090203A-1 14

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

N

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

CALLER ID OPERATION

GETTING TO KNOW YOUR NEW PHONE
IMPORTANT: Subscription to Caller ID (CID)/Call Waiting ID services from your local phone

company is required for using the Caller ID/Call Waiting ID features of the Excursion®36282. Your new
36282 telephone gives you the ultimate in cordless telephone sound quality with the luxury of Caller ID
and Call Waiting ID. If this is your first cordless telephone, you will soon discover that your cordless is
similar to regular telephones, except without the cord. If you have owned a cordless in the past, you will
discover that the 36282 telephone is the most powerful and full-functioned Call Waiting ID cordless
telephone on the market, some key features are:

• 40 name and number Caller ID/Call Waiting ID memory(Call List)

• 20 name and number programmable memory (Phonebook)

• Hearing – aid compatibility

• Automatic or manual selection of the clearest of 40 channels

Unlike regular telephones, your cordless telephone does not work during power failures.
We do not recommend you to use a cordless telephone as the only phone in your residence

INTRODUCTION TO CALLER ID AND CALL WAITING ID

The Excursion® 36282 Caller ID/Calling Waiting ID devices allow you to take advantage of the Caller
identification delivery service offered by your local telephone company. For more information, you can
refer to the following Question and Answer table:

QUESTIONS ANSWERS

What is Caller ID? Caller ID is a device that identifies the calling party before you

What is Caller Waiting ID? Call Waiting ID is a device that can also identifies the call waiting

How does Caller ID and
Call Waiting ID work?

Who provides Caller ID
service?

How can I activate my
Caller ID?

RECEIVING NEW CALL

• When you receive a new call, the call information is stored under CALLER ID List. The “NEW”
segment of LCD Display and NEW CALL LED indicator will flash if there is new call(s).

• When you receive a call, the system displays the caller information sent by the telephone company,
called a Call Record. The Call Record consists of the following information:

a. The caller’s name(if available)
b. The caller’s telephone number
c. The time and date of a call
d. A call record number

• If there is no call records, the LCD display shows “NO CALLS”.

answer a call. This device can be used to screen unwanted calls and
eliminate harassment from annoying calls.

party before you answer a call.
When used with Caller ID/Call Waiting service, the Caller ID/Call
Waiting ID device displays the name(if available), and the telephone
number (if available) of the person calling before you answer your
telephone.
Your local telephone company. However, not all local telephone
companies provide Caller ID service. Please call you local phone
company to confirm that the service is available before you install the
device.
For you Caller ID unit to function, you must first arrange with your
local telephone company to have Caller ID/Call Waiting ID service
installed on you line. There is an extra charge added to your monthly
telephone bill for this service. Before using this unit, please read this
instruction manual carefully.

JOHN SMITH
555-555-1212

AM

10:00

12/15

#8

EW

090203A-1 15

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

VIEWING THE CALLER ID LIST

1. In standby mode, press CALLS button to enter Caller ID list. If there is new call(s), the new call(s)
will be displayed at first. If the name or number is more than 11 characters, press the SHIFT RIGHT

button to view the rest of the display.

2. Press
last call received to the first. The
call received to the last.

3. Press CALLS button to finish.

NOTE: If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to
STANDBY mode.

ALEX BROWIN

6045551212

or button to scroll to the next call. The button will go through the calls from the

ALEX BROWIN

6045551212

or button will allow you to view the calls from the first

090203A-1 16

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

t

r

3

r

d

y

d

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

CALLER ID DISPLAY

JOHN SMITH
555-555-1212

AM

8:05

12/25 #38

555-555-1212

8:05AM 12/25 #38

U N AVA I L A B L E

----------------------------

11:2

AM

12/25

#

PRIVATE

----------------------------

11:2 3AM 12/25

#

ERROR

AM

9:07

12/25

N EW

2

TOTAL

MSG
RING: ON

9:07AM 12/25

NEW

0

TOTAL

VIP
JOHN SMITH

888-555-1212

9:07AM 12/25

NEW

1

TOTAL

NO CALLS

9:07AM 12/25

NEW

0

TOTAL

NOTE: If a call is received from the same number more than once since the records were last viewed, no

new entry is made, but the repeat call icon “RPT” and the number of repeat calls is displayed.

CALL WAITING

When you subscribe to Call Waiting service from your local telephone Company, this telephone will
display the name and number of the second caller while you are having a conversation.

1. When a second call comes in while you are having a conversation, you will hear a notification tone
from the handset and volume is momentarily muted. The LCD Display will automatically shows the
name and number of the second caller.

2. Press the FLASH /EDIT button to answer the second caller. The first caller’s name and number will
be displayed.

3. When you have finished, press the FLASH/EDIT button to continue with your conversation with the
first caller.

LCD Display shows name and number, time and date of the call.

LCD Display shows number-only service.

“ U N AVA I L A B L E ” will be displayed when Caller ID information is no
available. This call was made from a telephone company that does not offe
Caller ID services(including international calls).

20

“PRIVATE” will be shown when a call is received from a blocked number.
For privacy reasons, some states allow callers the option to prevent thei

40

telephone data from being displayed on the other party’s Caller ID display.

Display shows when the Caller ID information was received incorrectly or
only part of the data was received.

8

NOTE: When an error is received, none of the date from This call is save
in memor

Display shows when a voice mail message has been received and is stored
by message waiting service provided by the phone company.

39

Display shows when the incoming call is a priority call.

10

This is displayed when CALLS button is pressed an
there is no Caller ID date stored.

0

090203A-1 17

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

JIM CARRY

800-2-10-8950

MIN

00

18

’

SEC

ALEX BROWN

800-2-10-8950

00

MIN

’

18

SEC

MESSAGE WAITING

If you have subscribed to Voice Mail message service and if you have requested Visual Message
Indication from your local telephone company, the MSG WTG /NEW CALL LED indicator will blink
and the LCD Display will show “MSG” when there is voice message(s) for you from your telephone
company. To remove the MESSAGE WAITING indicator, see the “Message Waiting Setting” section.

MSG
RING: ON

9:07AM 12/25

NEW

0

TOTAL

39

PLACING A CALL FROM THE CALLER LIST

1. Press the CALLS button.

2. Press the

or button to select the call record you wish to call back.

3. If the number displayed is not correct(needing 7,10,11 digits), press the OPTION button to select
call number.

JOHN SMITH
555-555-1212

9:07AM 12/25 #8

JOHN SMITH

555-1212

9:07AM 12/25 #8

JOHN SMITH

15555551212

9:07AM 12/25 #8

4. Press TALK button to dial out or press CALLS button to cancel dialing.

5. To end you conversation, either press the TALK button or place the handset on the
base unit.

090203A-1 18

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

SAVING THE NAME AND NUMBER FROM THE CALLER LIST INTO
PHONE BOOK

1. Press the CALLS button.

2. Press the

3. Press SAVE/MEMO button. The LCD Display shows “SAVE”.

4. Press CALLS button to return to standby mode.

NOTE: When call records with 10 digits is stored in the phonebook, a “1” is inserted in front of the

number. If you must dial out a 10-digit number for local calls, you must edit the number to
exclude that digit to dial out correctly.

SELECTIVE DELETING IN THE CALLER LIST

1. Press the CALLS button

2. Press the

3. Press RE/PA/DELETE button. The LCD Display will show “ERASE ITEM?”

ERASE ITEM?

10:00AM 12/25 #6

4. To delete the selected call record, press RE/PA/DELETE button.

5. Press the CALLS button to return to STANDBY mode.

DELETING ALL RECORDS IN THE CALLER LIST

1. Press the CALLS button.

2. Press and hold RE/PA/DELETE button. The LCD Display will show “ ERASE ALL?”

To delete all Caller ID records, press RE/PA/DELETE button. The LCD Display will show
“ERASE ALL” and return to standby mode.

PROGRAMS OPERATION

This unit contains the following special Programs:

A. RING ON/OFF
B. LANGUAGE
C. FIRST RING ON/OFF
D. TIME SET
E. AREA CODE
F. CONTRAST

A. RING ON/OFF

To turn on or off the ringing sound.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHONE KEYPAD #1 button.

3. Press the FLASH/EDIT button.

4. Press the

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

B. LANGUAGE

This telephone offers English, Spanish and French languages for your convenience.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHONE KEYPAD #2 button.

3. Press the FLASH/EDIT button.

4. Press the

or button to scroll to the call record you wish to store into the phonebook.

or button to scroll to the call record you wish to delete.

555-1212

G. MSG WAITING
H. AUTO ANSWER ON/OFF
I. PRIVATE RING ON/OFF
J. UNAVAIL RING ON/OFF
K. IT SET 1
L. IT SET 2

RING:ON

#

01

or button to select ON or OFF. RING ON is the preset mode.

ENGLISH

or button to select the language you desire. English is the preset language.

TOTAL

#

02

12

TOTAL

12

090203A-1 19

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

C. FIREST RING ON /OFF

You can turn off the first ring of the telephone so that it does not ring until caller ID

information has been displayed.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHON KEYPAD #3 button.

3. Press the FLASH/EDIT button.

4. Press the

or button to select the ON or OFF. FIRST RING ON is the preset mode.

FIRST RING

On

#

03

TOTAL

12

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

D. TIME SET

Set the date and time.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHONE KEYPAD #4 button.

3. Press the FLASH/EDIT button.

4. Use the TELEPHONE KEYPAD button to enter the month, date, hour and minute.

The cursor moves automatically after entering each item.

Press the TELEPHONE KEYPAD #1 for AM setting, or
Press the TELEPHONE KEYPAD #2 for PM setting.

5. When the final setting is programmed, the time and date are automatically saved.

6. Press the SCAN/MENU button to go back to STANDBY mode.

NOTE: The date and time will automatically set, if you have subscribed to the Caller ID service from

your local telephone company.

E. AREA CODE

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHON KEYPAD #5 button.

3. Press the FLASH/EDIT button.

4. Use the TELEPHONE KEYPAD buttons to enter the three digit area code.

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

F. CONTRAST

This unit enables you to select 3 brightness levels for the Large LCD Display.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHON KEYPAD #6 button.

3. Press the FLASH/EDIT button.

4. Press the

or button to adjust the brightness of the display. Level 2 is

the preset brightness.

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

G. MSG WAITING (Message Waiting)

To turn off the Message Waiting LCD/LED indicator.

1. Press and hold the SCAN/MENU button.

2. Press the TELEPHON KEYPAD #7 button.

3. Press the FLASH/EDIT button.

4. Press the SAVE/MEMO button, the Message Waiting LCD/LED indicator turn off.

5. Press the SCAN/MENU button to go back to STANDBY mode.

TIME SET

AM

10:03

12/25 #04

AREA CODE

#

05

TOTAL

MSG WAITING

delete

#

07

11

TOTAL

- - -

12

CONTRAST

2

#

06

TOTAL

12

TOTAL

12

090203A-1 20

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

R

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

IMPORTANT: Message Waiting LCD/LED indicator will automatically turn on, If you have
subscribed to Voice Mail message service and if you have Visual Message indication from your local
telephone company.

H. AUTO ANSWER ON/OFF
Turn on or off the auto answer feature. When in on mode, the phone will automatically

answer an incoming call if the handset is lifted from the base unit.

1. Press and hold the MEMU/SCAN button.

2. Press the TELEPHON KEYPAD #8 button.

3. Press the FLASH/EDIT button.

4. Press the

AUTO ANSWER ON is the preset mode.

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to STANDBY mode.

I. PRIVATE RING ON/OFF
Turn on or off ring or all calls where the caller has blocked their caller ID.

1. Press and hold the SCAN/MENU button.

2. Press the

3. Press the EDIT/FLASH button.

4. Press the

PRIVATE RING ON is the preset mode.

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF
mode.

J. UNAVAILABLE RING ON/OFF
Turn on or off ring or all calls where the caller has blocked their caller ID.

1. Press and hold the SCAN/MENU button.

2. Press the

3. Press the FLASH/EDIT button.

4. Press the

UNAVAIL RING ON is the preset mode.

5. Press the SAVE/MEMO button to save the setting.

6. Press the SCAN/MENU button to go back to standby mode.

NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF

mode.

or button to select ON or OFF.

#9 button twice.

or button to select ON or OFF.

#0 button once.

or button to select ON or OFF.

AUTO ANSWE

On

#

08

TOTAL

RRIVATE RNG

#

09

UNAVAIL RNG

On

#

10

TOTAL

12

On

TOTAL

12

12

K. ID SET 1
During a call, the source handset user can press the OPT/TRANS button followed by destination

handset. The call is quick transferred to the destination handset, it starts ringing and shows
“TRANSFER”. If destination handset user does not answer the call with 30 sec, source handset will
be ring back for 30 sec.

1. Press and hold the SCAN/MENU button.

2. Press the

3. Press the SAVE/MEMO button to save the setting.

4. Press the SCAN/MENU button to go back to standby mode.

* button once.

ID SET

#

11

1

TOTAL

12

090203A-1 21

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

L. ID SET 2
During a call, the source handset user can press the OPT/TRANS button followed by destination

handset. The call is quick transferred to the destination handset, it starts ringing and shows
“TRANSFER”. If destination handset user does not answer the call with 30 sec, source handset will
be ring back for 30 sec.

1. Press and hold the SCAN/MENU button.

2. Press the

3. Press the SAVE/MEMO button to save the setting.

# button once.

ID SET

#

12

2

TOTAL

12

4. Press the SCAN/MENU button to go back to standby mode

65,536 Combination Security Coding

The cordless telephone have a digital coding security system to prevent unauthorized use of your
telephone line by other cordless phones nearly. The cordless telephone have 65,536 possible security code
combinations. Each combination of the code is randomly generated every time the handset is picked up.

Resetting Security Code and Channel
Communication between the handset and the base unit may not be possible in any of the following
situations:

1. After a power failure.

2. After relocating the base unit by disconnecting the AC adapter.

3. After replacing the handset battery.

4. The handset goes out of range from the base unit.

To reset, place the handset on the cradle of the base unit for five seconds.

IMPROVING CORDLESS RECEPTION

Follow these guidelines to improve cordless sound quality:

• Select an area to install the unit where it is closest to the center of your home or office. This will
improve the operating range of the unit.

• Keep the base unit away from electrical equipment. Radio Frequency Interference (RFI) is
sometimes generated by these appliances, which can cause a degradation in cordless reception.

• Keep the handset batteries charged as much as possible. Weak handset batteries can limit the range
of cordless operation.

MAXIMIZING BATTERY LIFE

Repeated use or recharge of Ni-Cd batteries without periodic full discharge results in reduced useable
charge time. When you notice the usable charge duration decreasing, fully discharge the Ni-Cd battery
and recharge as described:

DISCHARGING

1. Unplug the telephone line cord from the Excursion

2. Make sure that the adapter is connected.

3. Lift the handset out of the base cradle.

4. Press the TALK button of the handset and start discharging.

Once the Symbol Low Battery appears on LCD Display, it means that the battery level is low. Let it fully
discharge for 12 hours. Once the Ni-Cd battery is fully discharged, you may now charge the battery to its
full capacity.
CHARGING

1. Make sure the adapter and telephone line cord are connected to the Excursion

2. Place the handset on the base cradle. The CHARGE LED indicator of the base unit will light
steadily.

3. Leave the handset charging on the base for 14 hours continuously to get a maximum charge.

4. The Excursion
once you notice a decrease in the useable charge time.

®

36282 is now ready for regular use. Discharge and charge the Ni-Cd battery again

®

36282.

®

36282.

090203A-1 22

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

MAINTENANCE

1. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any
other appliance that produces heat.

2. Use a slightly damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil.
Never use polish, solvents, abrasives or strong detergents since these can damage the finish.

TECHNICAL INFORMATION

This cordless phone uses radio frequencies to allow mobility. There are certain difficulties in using radio
frequencies with a cordless telephone. While these are normal, the following could affect the operation of
your system.
NOISE: Electric pulse noise is present in most homes at one time or another. This noise is most intense
during electrical storms. Certain kinds of electric equipment such as light dimmers, fluorescent bulbs,
motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise
pulses, you may occasionally hear them in your handset. Generally, they are minor annoyances and
should not be interpreted as defects in your system.
RANGE: Because radio frequencies are used, location of the base unit can affect operating range. Try
several locations in your home or business and pick the one that gives you the clearest signal.
INTERFERENCE: Some electronic devices operate in and/or generate interference near the operating
frequencies of your cordless telephone. While several protection circuits are used to prevent unwanted
signals, there may be periods when these unwanted signals cause interference. If interference occurs
frequently, it can be minimized or eliminated by lowering the height of your base antenna or by relocating
the base unit. You can check for interference before selecting the final base unit location by plugging in
the phone.

090203A-1 23

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

TROUBLESHOOTING

A. TELEPHONE UNIT TROUBLESHOOTING TABLE

SYMPTOM SOLUTION

No dial tone • Check the telephone line cord connectors at both ends that they are

Does not ring

No power on the
handset unit

Does not charge • Check the Ni-Cd battery pack for proper connection inside the

Range is limited • Move the base unit so that it is centrally located in your residence or

Calls received flutters
or fades

Interference on
reception
Excessive static • Refer to the section “Improving Cordless Reception”.

pushed in firmly until they click.

• If you had a power failure or had unplugged the base unit, replace the
handset on the base unit for two to five seconds to reset the system.

• Check the RING ON/OFF mode on the handset. Set to RING ON
mode to enable the handset ringer.

• Check the telephone line cord connectors at both ends that they are
pushed in firmly until they click.

• You may have exceeded the Ringer Equivalence Number(REN) limit
of how many phones can be connected to the same line. The REN
total of all devices(printed on the bottom label of each unit)should
not exceed five(5). Disconnect the appropriate units to lower the
REN total.

• Check the Ni-Cd battery pack for proper connection inside the
battery compartment on the handset.

• The handset rechargeable Ni-Cd pack may need charging.

battery compartment on the handset.

• Made sure the charging contacts on both the base unit and the
handset are in contact during charging.

• The charging contacts and terminals may need cleaning with an
alcohol-dampened swab.

office and make sure that the base unit is not located near appliances.

• The handset Ni-Cd battery may be weak. Recharge the Ni-Cd battery.

• Refer to the section “ Improving Cordless Reception”.

• The handset rechargeable Ni-Cd battery pack may need charging.

• Choose an alternate channel using the SCAN/MENU button on the

handset.

• Refer to the section “Improving Cordless Reception”.

090203A-1 24

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室

Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [email protected] 傳真: (八五二) 二六八七 四一二五

B. CALLER ID SYSTEM TROUBLESHOOTING TABLE

SYMPTOM SOLUTION

The Caller ID panel
is blank

The Caller ID does
not show the caller’s
name and/or phone
number

Random characters
and/or “NO DATA”
appear on the LCD
display
Cannot get call
Waiting identification
on the LCD panel

AC ADAPTOR:USE ONLY WITH CLASS 2 POWER SOURCE, OUTPUT 9VDC,

THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE

Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California, USA

36282/090203A-1 www.nwbphones.com

PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE

(SERVICING) INSTRUCTIONS IN THE OWNER’S MANUAL.

• Check the power connection.

• Check the telephone line cord connections.

• Check the batteries for proper installation.

• The Caller ID unit will not function until you have Caller ID service

provided by your local phone company. Call your local phone
company to have Caller ID installed on your telephone line.

• If you pick up the phone before the second ring, the caller
information will not be correctly received. If you have telephone
answering device(TAD) connected with the unit, set the TAD to
answer after two rings or more.

• If it is a blocked call or an out-of-area call, the caller’s name and/or
phone number will not appear on the display.

• If only the caller’s phone number appears on the display, it may be
Single Data Message Format(SDMF) call, as opposed to a Multiple
Data Message Format (MDMF) call. Please call your local phone
company to see which service you have.

• On rare occasions, the Caller ID information sent by the telephone
company may have an error in the transmission. This is not the fault
of your Caller ID unit. It can only capture and store the data that was
received.

• Subscription to Caller ID Call Waiting (CIDCW) is required from
your local phone company for the CIDCW function to operate
properly. Call you local phone company for details.

200mA for base unit and 200mA for charger .

090203A-1 25
