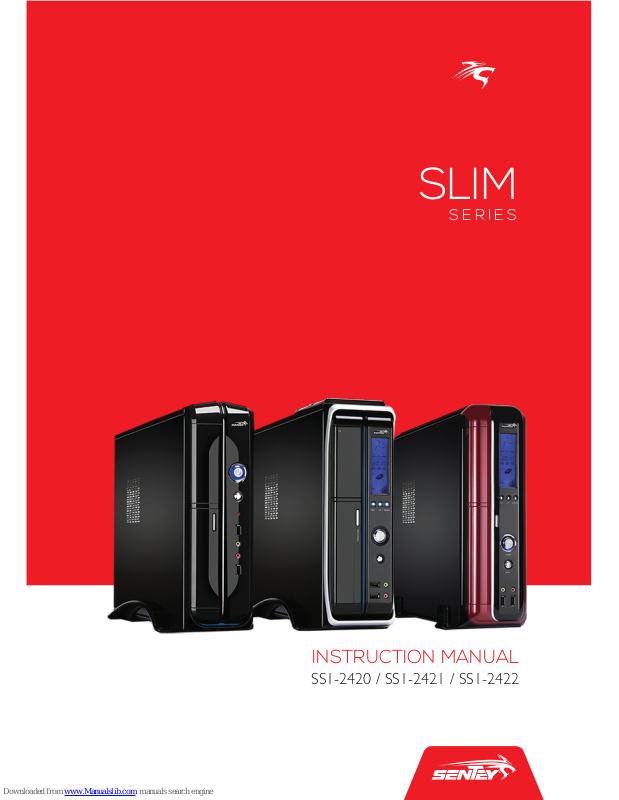

INSTRUCTION MANUAL
SS1-2420 / SS1-2421 / SS1-2422
S ERI E S
SLIM
FEATURES
4,6Kg / 5,1Kg
10.14 lb / 11.24 lb
Case Type
Expansion Slots
Front Material
Side Panel
Motherboard Holders
2.5” SSD Internal Bays
Material
Color
Motherboards Supported
LCD Display
5.25” Bays
ATX Slim Tower
4 - Low Prole
3.5” External HDD Bays 1
Plastic
Solid with Vent
Bronze screws
2
3.5” Internal HDD Bays
Top fan Cooler
1
1 x 80mm Black
435mm (L) x 104mm (W)
x 325mm (H)
STEEL SECC
Glossy Finished Bay foldable covers 1
Micro ATX / Mini ITX
Only SS1-2421 / 2422
1
Plastic Support Included
Size
Weight Net/Gross
FRONT PANEL FEATURES
1 2
1
2
3
4
5
6
1 2
3
45
6
1
3
4
5
6
LCD DISPALY ONLY
SS1-2421 / SS1-4222
3.5 EXTRENAL BAY
WITH DOOR SYSTEM
3
4 5 6
5.25 ODD EXTRENAL BAY
WITH DOOR SYSTEM
POWER &
RESET BUTTON
AUDIO & MIC 2 x USB 2.0
PORTS
SS1-2420 SS1-2421 SS1-2422
LCD DISPLAYS
CONTROL
BUTTONS
FAN
DISPLAY
SPEAKER
VOLUME
INTERNAL
TEMPERATURE
FAN USE
(PORCENTAGE)
H.D.D
ACTIVITY
POWER
BUTTON DISPLAY BUTTON FUNCTIONS
1
SPECIAL FEATURES
3
2
SETTING RANGE: FROM 20 TO 79. WHEN THE
INNER TEMPERATURE RAISES OVER THE SET VALUE,
THE DISPLAY COLOR CHANGES, AN ALARM BEEPS
AND THE FAN IS SET TO 100% RPM UNTIL 10
MINUTES AFTER THE TEMPERATURE DESCENDS
FROM THE SETTING VALUE.
AUTOMATIC BEEP WHEN THE TEMPERATURE
RAISES OVER THE 40º, 50º AND 60º C
SETTING THE TEMPERATURE OF
COOLING FAN OPERATION.
RAISES THE VALUE
TEMPERATURE CONTROL, INBOTH CELSIUS
AND FARENHEIT DEGREES.
SPECIAL FAN, MANUALLY CONTROLLED FROM
THE LCD DISPLAY.
FAN COOLER ICON IN LCD DISPLAY.
HDD READING.
LOWERS THE VALUE
REMOVING MULTI-BAY TRAY
B
REMOVING TOP PANEL
C
To remove the multi-bay tray, unscrew it from the
chassis and lift up.
Remove the screws to release the Multibay.
Remove the top cover to access the screws,
115/230v switch and AC Inlet for power supply
FAN COOLER CONNECTION
INSTRUCTIONS
REMOVING SIDE PANEL
A
Extract the 4 screws and slide the cover towards
the back side of the case. Lift the cover.
Remove the two screws and pull the side panel to
rear easily way
Top fan cooler with 3-pin female
connector
3-pin connector available to connect
to 3-pin male connector of motherboard.
3-pin connector available to connect
to 3-pin male connector of LCD
controller.
INSTALLING DRIVES BAYS
INSTALLING 3.5'' EXTRENAL DRIVE
E
INSTALLING OPTIC DRIVES IN 5.25'' BAYS
D
Withdraw the multi-bay tray from
the case and insert yhe optic drive
in the corresponding bay.
Screw the drive to the tray until held
firm.
Once the drive has been placed,
match its holes with the ones in the
chassis structure.
Remove the multi-play tray from
the case.
Adjust the screws until the drive is
firmly held
Insert the optic drive in the corresponding bay.
INSTALLING 3.5'' INTRENAL DRIVE
F
Remove the multi-play tray from
the case.
Adjust the screws until the drive is
firmly held
Insert the optical drive in the corresponding bay.
INSTALLING 2.5'' INTERNAL DRIVE
G
Remove the multi-play tray from
the case.
Adjust the screws until the drive is
firmly held the correct position as
shown in the picture
Insert 2.5'' SSD driver in the corresponding bay as shown in the picture.
INSTALLING A MOTHERBOARD
H
Use the bronze screws over the
plating of the chassis.
Mount the motherboard to the
bronze pieces.
Mount the motherboard on its
place (Use the plastic pieces only if
necessary).
ACCESORIES INCLUDED
14 SELF-TAPPING SCREWS (MOTHER ODD).
6 PLAIN SCREWS (HDD).
6 BRONZE SCREWS.
1 SPEAKER.
1 PLASTIC SUPPORT BASE.
1 ANTI-THEFT BLOCKING GUIDE WITH SCREW.
1 POWER CORD.
WIRING DIAGRAMS
USB 2.0
USB 2.0 WIRING DIAGRAM
1
AUDIO WIRING DIAGRAM
2
CONNECTORS
20+4 PIN
MOTHERBOARD x 1
CONNECTOR
FLOPPY DISK x 1
CONNECTOR
SATA x 2
CONNECTOR
MOLEX x 3
CONNECTOR 4 PIN
CPU 12v x 1
PSU BCP450-OM INCLUDED
PSU BCP450-OM - SFX STANDAR FORMAT
WWW.SENTEY.COM
