Sentek PROBE User Manual

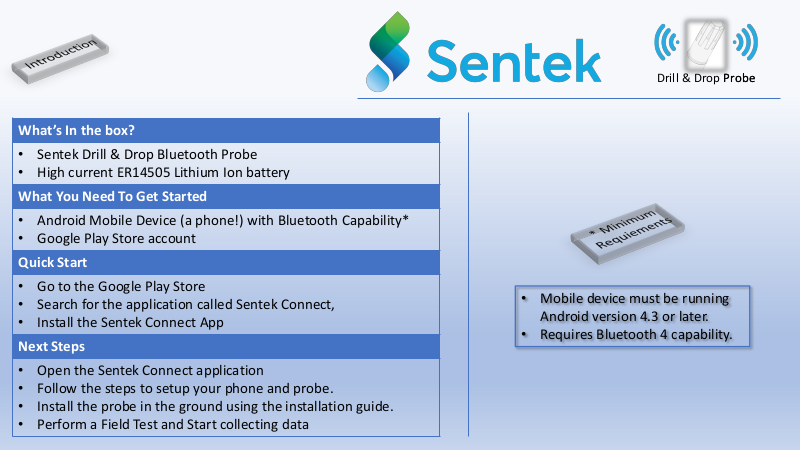

What’s In the box?

• Sentek Drill & Drop Bluetooth Probe

• High current ER14505 Lithium Ion battery

What You Need To Get Started

• Android Mobile Device (a phone!) with Bluetooth Capability*

• Google Play Store account

Quick Start

• Go to the Google Play Store

• Search for the application called Sentek Connect,

• Install the Sentek Connect App

Next Steps

Drill & Drop ProbeProbe

• Mobile device must be running
Android version 4.3 or later.

• Requires Bluetooth 4 capability.

• Open the Sentek Connect application

• Follow the steps to setup your phone and probe.

• Install the probe in the ground using the installation guide.

• Perform a Field Test and Start collecting data

Scan button – starts
scanning for probes
within range

Menu button –
opens the context
sensitive menu.

Global Download

button – starts download
process for each probe
visible on screen.

Yellow: Factory state, no
configuration at all.

Probe Status

Yellow + Green:
Configured but
not deployed yet.

Yellow + Green + Blue:
Configured and field tested,

we’re in business!

Database

Probe name

Serial No: Probe
serial number

Battery full, 3.2 – 3.6 Volts

Battery Status

Battery low, < 3.2
Volts. Probe will still
work but battery near
end of life

Battery low, < 3.0 Volts. Probe
unable to take samples but will
still communicate. After battery
replacement, probe will resume

logging.

MAC: Media Access
Address, unique network
address for this probe

(Shown when Advanced Enabled)

Drill & Drop ProbeProbe

Term Definition

Application for Smartphone or mobile devices

obtainable in Google Play store (Android) or Apples’

APP

BTLE

Lite

Mobile Device

Sentek Device

App Store. (IOS)

Bluetooth Low Energy Version 4 onwards (Also
known as Bluetooth smart)

This version of the Sentek “Drill & Drop Connect”
App has all probe configuration features and
firmware upgrade disabled.
Any tablet or phone that runs Android OS 4.3 or

higher, with support for Bluetooth 4* or above
(*AKA Bluetooth Low Energy BTLE)
Bluetooth enabled device – probe, dongle or other
future product.

When this symbol appears, there’s

new data available in the probe but

it hasn’t been download from the
probe to your mobile device.

RSSI – Received Signal Strength
Indication.
0dB = Strong, -110dB = very weak

Updated: Time and date of
the interaction with your
mobile device.
