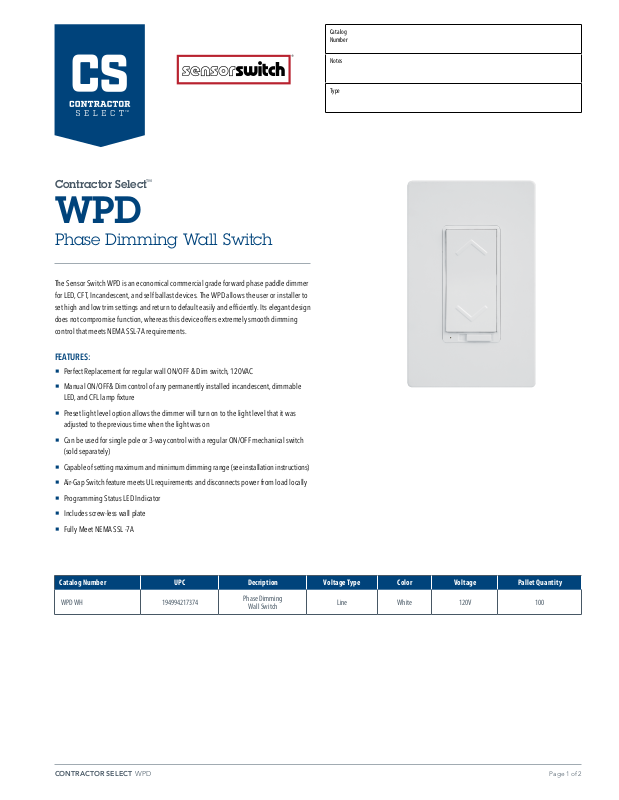

Page 1
Catalog
Number
Notes
Type
Contractor Select
™
WPD
Phase Dimming Wall Switch
The Sensor Switc h WPD is an economic al commercial gra de forward pha se paddle dimmer
for LED, CF T, Incandescent, and self balla st devices. T he WPD allows the us er or installer to
set high and low trim set tings and return to default easily and ef ciently. Its elegant design
does not c ompromise func tion, whereas this devic e offers ex tremely smooth dimming
control that meets NEMA SSL-7A requirements.
FEATURES:
¡ Perfect Replacement for regular wall ON/OFF & Dim switch, 120VAC
¡ Manual ON/OFF& Dim control of any permanently installed incandescent, dimmable
LED, and CFL lamp xture
¡ Preset light level option allows the dimmer will turn on to the light level that it was
adjusted to the previous time when the light was on
¡ Can be used for single pole or 3-way control with a regular ON/OFF mechanical switch
(sold separately)
¡ Capable of setting maximum and minimum dimming range (see installation instructions)
¡ Air-Gap Switch feature meets UL requirements and disconnects power from load locally
¡ Programming Status LED Indicator
¡ Includes screw-less wall plate
¡ Fully Meet NEMA SSL -7A
Catalog Number UPC Decription Voltage Type Color Volta ge Pallet Quantity
WPD WH 194994217374
Phase Dimming
Wall Switch
Line White 120V 100
Page 1 of 2CONTRACTOR SELECT WPD
Page 2
Specifications Dimensions
INSTALL ATIO N:
- WARNING: To avoid re, shock, or death. High Voltage - Turn off power at circuit breaker
or fuse and test that power is off before wiring.
- CAUTION: To reduce the risk of overheating and possible damage to other equip ment,
DO NOT install to control a receptacle, a motor-operated appliance, a uores cent lighting
xture, or a transformer supplied appliance.
- Remove wall plate and existing switch mounting screws.
- Carefully remove the existing switch from the switch box.
- Disconnect the wiring from the existing switch.
- Connect the dimmer switch as shown in the wiring diagram: Black lead to hot wire, white
lead to neutral wire, red lead to load wire, green lead to ground wire.
- Check connections to be sure they are tight, and no bare conductors are exposed.
- Insert the WPD dimmer switch into the standard outlet box carefully.
- Make sure the WPD dimmer switch supplied screws in designated location.
- Attach the wall plate.
- Restore power at the circuit breaker and test the system.
LISTINGS:
cULus Listed
For use in ambient operating temperatures ranging from - 0°C to 40°C.
WARRANTY:
5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
Specications subject to change without notice.
2. 61"H x 1.9 0"W x 1.56"D (66.5mm x 48.2mm x 39.5mm)
One Lithonia Way, Conyer s, GA 30012 | 770-9 22-9000 | www.acui tybrands.com
© 2021 Acuity Brands Lighting, Inc. All right s reserved. Rev. 01/28/21 Page 2 of 2
CONTRACTOR SELECT WPD
