Sensoro S0010X User Manual



Overview

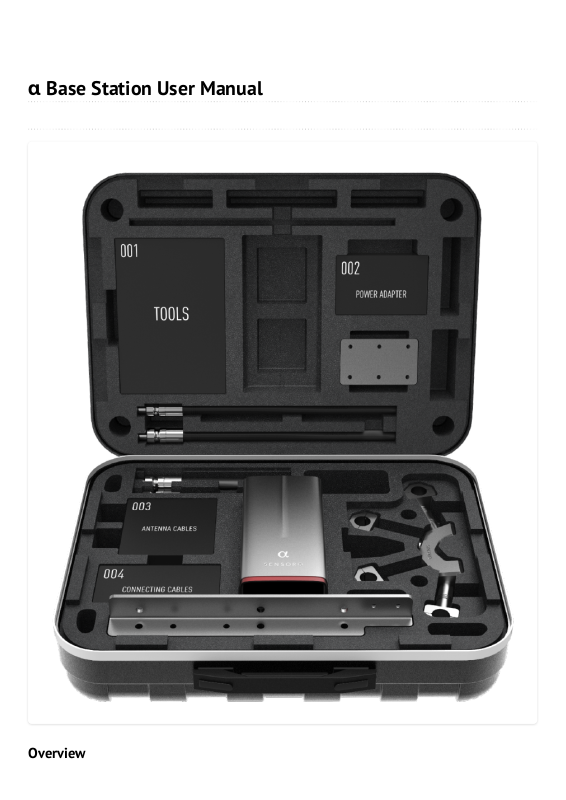

α Base Station User Manual

α Base Station is designed and built for outdoor IoT application scenes that require low power­consumption,long range and low throughput, hence capable of handling the data communication
of a large-scale sensing network.

It supports multiple communication modes to servers (3G, Ethernet etc.) for flexibility to adapt to
various
scenes; multi-network hot backup is also available to improve
reliability and stability in data communication.

Operating Principles



PoE Power Supply



Specifications

Property Specifications

Dimensions 120mm x 120mm x 260mm

Weight 2.5kg

Material Al 6063T

Interface

RJ45 x 1Console x 1Antenna N-Type Female Connector x 4

LED 1

Network

3GEthernet

Power Power over Ethernet (PoE) (802.3af) <13W

Operating
Environment

-40°Cӗ+65°C 5%RHӗ90%RH -60mӗ3000mҁBut the POE Adapter
only use for 0°Cӗ+40°C҂

Storage
Environment

-40°Cӗ+80°C 5%RHӗ90%RH

IP Grade IP67

Wind resistance 165MPH

Atmospheric
pressure

53kPaӗ106kPa

The socket-outlet shall be installed near the equipment and shall be easily accessible. The
product is designed for IT power distribution system with phase-to-phase voltage 230V.

α Commander



http://iot.sensoro.com .

α Tool



http://iot.sensoro.com/app/download .

Docs



http://docs.sensoro.com .

Base Station Status

LED Status What an you do

Breathing Station Starting Waiting for about 2 mins

White Working Properly Nothing to do

Yellow Something Error Restart

Red No Internet Connection

Check the 3G҈LAN

Contact Us

US Headquarters
Seattle, United States
E-mail: [e-mail]
Phone: [phone]
Address: 500 YALE AVENUE NORTH SEATTLE WA 98109

Beijing Headquarters

Customer Service Tel: [phone]
Working Hours: Monday to Friday 10:00 am to 7:00 pm
E-mail: [e-mail]
Developers’ QQ group: 385 456 618
Address: T1-B-2807, Wangjing SOHO, Chaoyang District, Beijing, China

Customer Service

Tell ғ+86 010-8416 1077
Email ғ[e-mail]

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS



RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment
(WEEE). This means that this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer
when he buys an new electrical or electronic equipment.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

☐ Reorient or relocate the receiving antenna.
☐ Increase the separation between the equipment and receiver.
☐ Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.
☐ Consult the dealer or an experienced radio/TV technician for help.

FCC RF exposure statement:

FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF
exposure guidelines, place the product at least 20cm from nearby persons. The device must not
be co-located or operating in conjunction with any other antenna or transmitter.
