Quick-Start Instructions

This is not a substitute for the
instruction manual. It is for
reference only.

Read and understand the
instruction manual before use.

MADE IN THE USA

WITH GLOBALLY SOURCED COMPONENTS

Distributed by:

851 Transport Drive
Valparaiso, IN 46383-8432

Phone: [phone]
Web: www.gasleaksensors.com

Innovative Detection Solutions

1. Turn on G2-GLT Device and Tablet (for the
tablet press and hold the top right button).

2. Wait until G2-GLT displays ‘WAITING FOR
TRAINER’ on screen.

3. Note: If G2-GLT Device has passed
‘WAITING FOR TRAINER’ screen (Either
you have skipped or it has already been
connected with application), It will take you
directly to the Instrument screen.

4. Launch the GLT application (if it does not
auto launch).

5. Tap the “Connect”

6. After the connection has been made, tap
either of the two options

7. Training Mode: It will put device in
simulation mode and allows trainer to
control device (sensors are inactive).

8. Monitoring Mode: It will put device in
Normal mode and allows trainer to monitor
remotely (sensors are active).

9. The G2-GLT will continue through warm-up
and arrive at the work display.

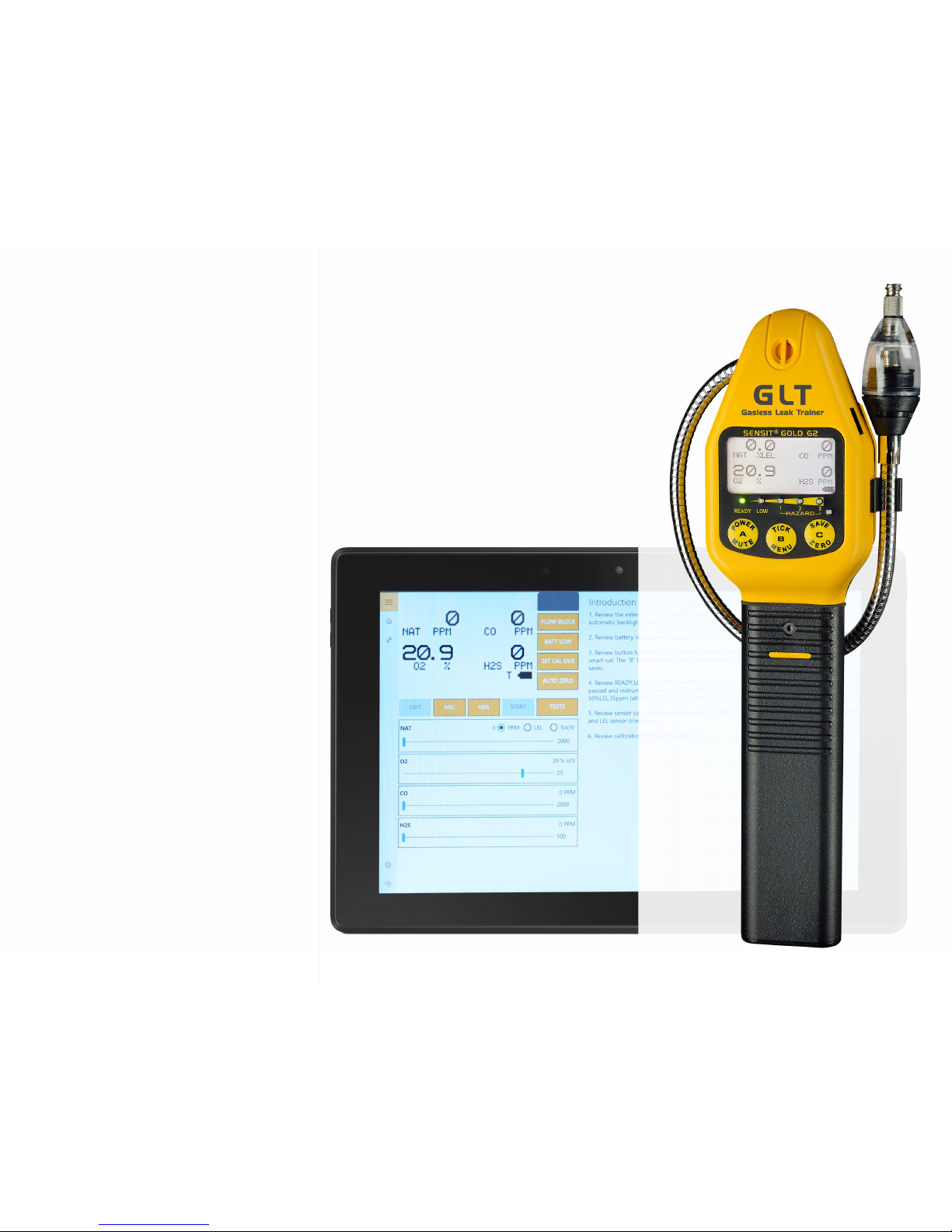

10. The tablet will display the G2-GLT screen
with adjustable slide bars if in “training
mode” or just the screen if in “monitor
mode”.

SENSIT® G LT

QUICK-START INSTRUCTIONS

11. The training modules will be displayed
simultaneously on the right hand side or
bottom side of the screen depending on the
orientation of the tablet.

12. Note: If you need to switch the mode, you
need to ‘Disconnect’ and Restart the ‘G2-GLT
Dev ice ’.

13. Note: If any congurations or mode changes
on ‘G2-GLT Device’, please power cycle the
G2-GLT and connect to the application again.
