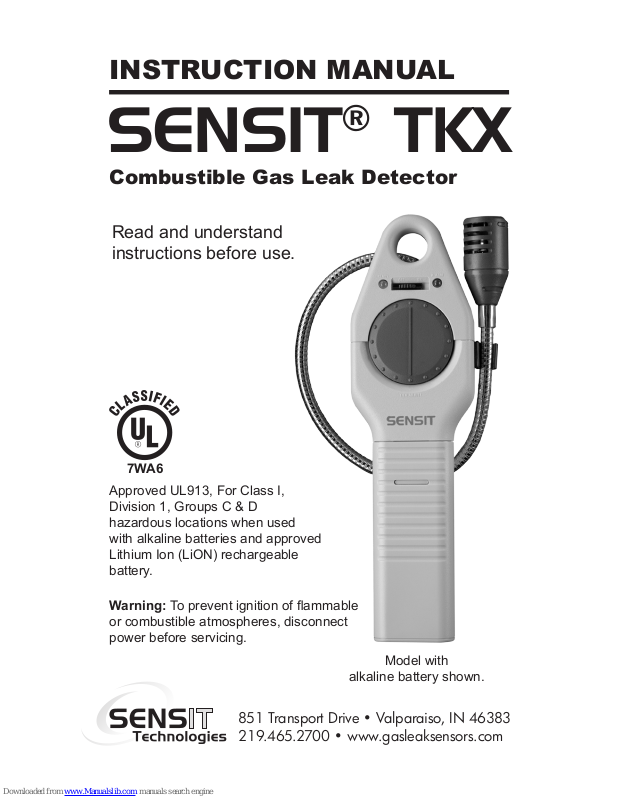

Sensit TKX Instruction Manual

851 Transport Drive • Valparaiso, IN 46383

219.465.2700 • www.gasleaksensors.com

Combustible Gas Leak Detector

Warning: To prevent ignition of ammable or combustible atmospheres, disconnect power before servicing.

7WA6

Approved UL913, For Class I, Division 1, Groups C & D hazardous locations when used with alkaline batteries and approved Lithium Ion (LiON) rechargeable battery.

INSTRUCTION MANUAL

SENSIT

®

TKX

Read and understand instructions before use.

Model with

alkaline battery shown.

⚠ Warning: For models powered by alkaline batteries - To prevent the risk of ignition of ammable atmospheres, batteries must only be changed in an area known to be non-hazardous.

For models powered by alkaline batteries - Do not mix batteries of different age or type.

⚠ Warning: For models with built-in LiON rechargeable batteries - To prevent the risk of ignition of ammable atmospheres, batteries must only be charged in an area known to be nonhazardous.

⚠ Warning: For models with built-in LiON rechargeable battery - Do not attempt to remove the rechargeable battery. This battery is not intended to be removed by the end user.

⚠ Warning: To prevent ignition of ammable or combustible atmospheres, disconnect power before servicing.

FOR YOUR SAFETY

NOTICE: ⚠ CAUTION: This safety symbol

is used to indicate a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

ii

3

CONTENTS

Preparation

For Your Safety ..................................................... ii

Parts and Accessories ..........................................4

General Description ..............................................5

Product Specications ..........................................6

Product Features ..................................................7

Operation

Preparation Alkaline Battery Powered Model ..............8

Preparation LiON Rechargeable Battery Model ...........9

Operation and Use ........................................10-11

Battery Replacement - Alkaline .................... 12-13

Battery Recharging - LiON Rechargeable .... 14-15

Operation Check.................................................16

Sensor Replacement ..........................................17

Warranty .............................................. Back Cover

PARTS AND ACCESSORIES

Standard Accessories (Included)

Carrying Pouch 360-00002 Instruction Manual 750-00043 Alkaline Batteries* 310-00004 Wall Charger (US)** 871-00050

Optional Accessories / Parts

Sensor 375-2611-00 Wall Charger (International)** 871-00049

* for models powered by alkaline batteries ** for models powered by the LiON rechargeable battery

4

GENERAL DESCRIPTION

The SENSIT® TKX instrument is an advanced state-of-the-art leak detector capable of detecting many combustible, noncombustible and toxic gases.

The SENSIT® TKX solid state sensor is sensitive to most combustible and/or toxic gases.

A partial list of these gases is:

Acetone, Alcohol, Ammonia, Steam, Butane, Gasoline, Jet Fuel, Hydrogen Sulde, smoke, Industrial Solvents, Methane, Lacquer Thinner, Naphtha, Propane, Natural Gas.

⚠ CAUTION This instrument is not to be used as

a carbon monoxide investigative tool or to quantify any gas concentration.

5

SPECIFICATIONS

PRODUCT SPECIFICATIONS

Power Supply: 3 “C” Alkaline Batteries / Built-in rechargeable battery

Sensor: Solid State

Sensitivity: 20 ppm Methane

Warm up: Approx. 1 Minute

Response Time: Instantaneous

Duty Cycle: Continuous

Battery Life: Approx. 30 Hours Alkaline

Approx. 20 Hours LiON

Size: 3.5” x 10” x 1.6” (89 x 254 x 40 mm)

Weight: 2.4 lbs. (1.1 kg) Alkaline

2.0 lbs. (0.9 kg) LiON

Operating Temp.: 0 to 120º F (-20 to 50º C)

Charging Temp.: 32 - 104º F (0 - 40º C)

Probe Length: 16”

Approvals: UL913 Intrinsically Safe

6

7WA6

SENSIT® TKX is approved by Underwriters Laboratories to UL913, for Class I, Division 1, Groups C & D hazardous locations when used with alkaline batteries or approved LiON rechargeable battery.

7

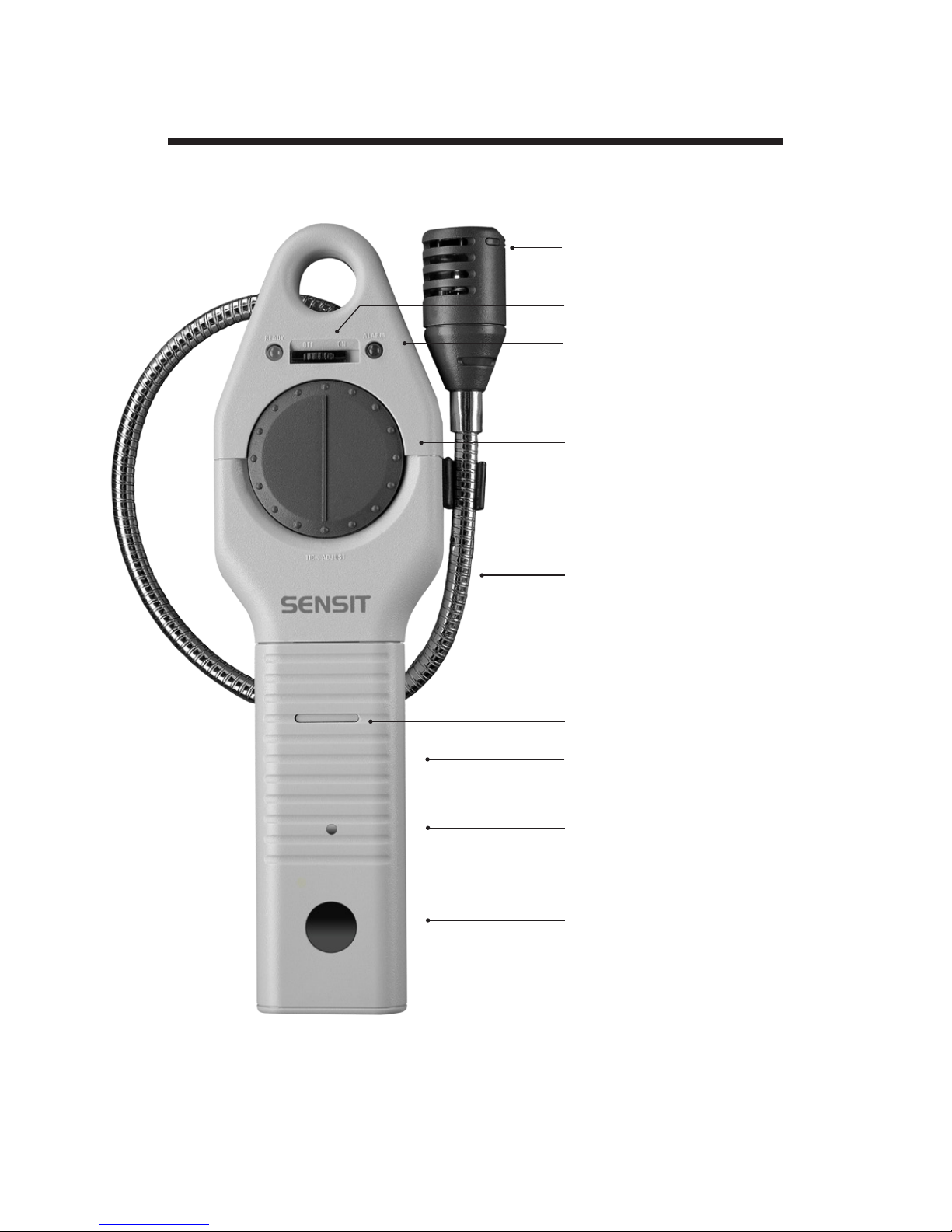

PRODUCT FEATURES

Model with

Rechargeable Battery Shown

SENSOR

ON / OFF SWITCH

SENSING INDICATOR

TICK ADJUST DIAL

FLEXIBLE GOOSENECK

BATTERY COVER LOCKING TAB

BATTERY COMPARTMENT COVER

CHARGING LED

(RECHARGEABLE MODEL ONLY)

CHARGING PORT AND COVER

(RECHARGEABLE MODEL ONLY)

8

PREPARATION

ALKALINE BATTERY POWERED MODEL

1. Depress the locking tab on the front of the battery compartment cover with a coin or at object and pull the battery sleeve handle away from the top of the instrument.

2. Place three (3) approved batteries into the battery compartment. BE SURE TO OBSERVE AND FOLLOW THE POLARITY MARKING on the inside of the battery holder for proper battery installation. The instrument will not function with improperly installed batteries.

3. Replace the battery compartment cover pushing it in place until the locking tab snaps into position. Check to be sure the battery compartment cover is secure to the instrument body by rmly pulling the handle away. The handle will remain in place if cover is properly in place.

9

PREPARATION

LiON RECHARGEABLE BATTERY MODEL

For safety during shipping, the TKX with LiON rechargeable battery has been packaged with a special label covering the ON/OFF Switch to insure the device does not turn on during shipment. This label must be removed before the TKX can be powered on.

Follow the procedure in the section titled “Battery Charging” (page 14) to perform an initial charge to the battery.

10

OPERATION AND USE

1. Turn the unit on in an uncontaminated / gas free environment by moving the switch from the “OFF” to the “ON” position.

2. The green ready LED will illuminate if there is ample battery power. The red LED may icker and the tick may sound during the warm up. To silence the tick, rotate the tick wheel fully counterclockwise.

3. Adjust the “TICK ADJUST” by rotating it in a clockwise direction until a uniform tick begins to sound. A uniform tick rate indicates a fully warmed up instrument. The red LED will ash at the same time the tick sounds.

4. Approach suspected leak areas with the sensor until the tick begins to increase. When the tick increases do not move the sensor from the suspected leak area, rotate the tick adjust slightly counterclockwise to slow the ticking sound and continue to approach the leak. Continue to use this method to pinpoint the leak.

REMEMBER: An increase in tick indicates you are approaching a leak, a decrease in tick indicates you are moving away.

11

OPERATION AND USE

5. If the green LED does not illuminate or blinks, the alkaline batteries must be replaced or the rechargeable battery must be recharged.

6. If the instrument does not perform or it has been damaged, test the instrument by following the “operation check” procedure in this manual.

12

BATTERIES

Battery Replacement Alkaline Battery Powered Devices

If the green LED fails to illuminate, the batteries need replacement.

1. Depress the locking tab on the front of the battery compartment cover with a coin or at object and pull the battery sleeve handle away from the top of the instrument.

2. Removed the spent batteries and place three (3) approved batteries into the battery compartment. BE SURE TO OBSERVE AND FOLLOW THE POLARITY MARKING on the inside of the battery holder for proper battery installation. The instrument will not function with improperly installed batteries.

⚠ Warning: To prevent the risk of ignition of ammable atmospheres, batteries must only be changed in an area known to be non-hazardous.

(CONTINUED ON NEXT PAGE)

BATTERIES

Battery Replacement Alkaline Battery Powered Devices

(CONTINUED)

3. Replace the battery compartment cover pushing it in place until the locking tab snaps into position. Check to be sure the battery compartment cover is secure to the instrument body by rmly pulling the handle away. The handle will remain in place if cover is properly in place.

A fresh set of alkaline batteries should operate the instrument for approximately 30 hours.

13

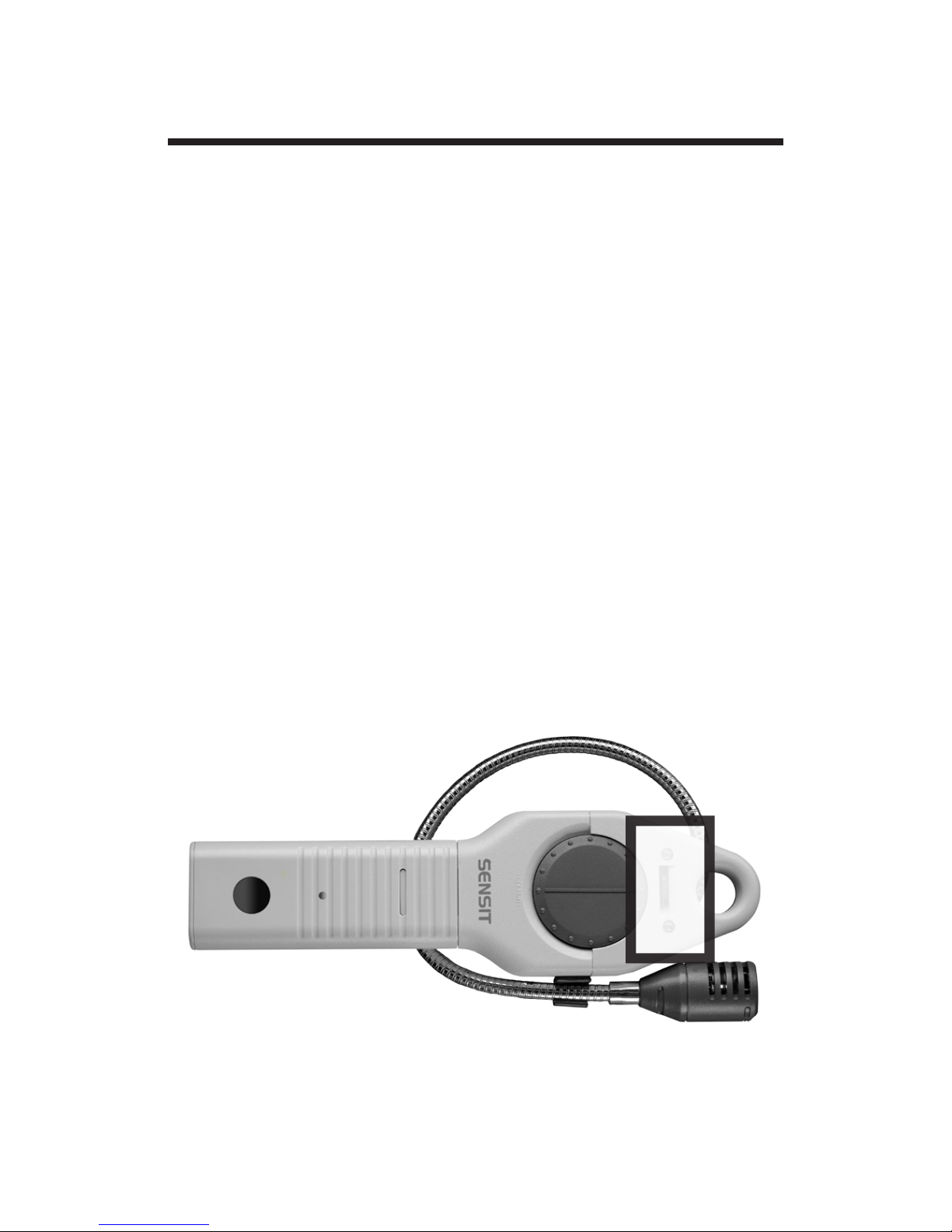

BATTERIES

Battery Charging LiON Rechargeable Battery Powered Devices

If the green LED next to the ON/OFF switch blinks or fails to illuminate on the instrument, the battery needs recharging.

Recharge the battery only at a temperature between 32 and 104 ºF (0 – 40 ºC)

1. Remove the Charging Port Cover. (Note: this cover is tethered to the TKX housing. Care should be taken not to pull the end of the tether completely out of the Charging Port Hole.)

2. The charging connection should be visible through the charging port hole. Insert the plug from the approved battery charger that was provided with your TKX instrument.

(CONTINUED ON NEXT PAGE)

14

⚠ Warning: To prevent the risk of ignition of ammable atmosphere, recharging the battery must only be completed in an area known to be non-hazardous.

BATTERIES

Battery Charging LiON Rechargeable Battery Powered Devices

(CONTINUED)

3. The charging LED will illuminate red to indicate that the battery is charging and green to indicate a fully charged battery. Charging may take up to 6 hours.

4. When charging is complete, remove the charger plug and replace the charging port cover. The instrument will operate for approximately 20 hours continuously on a full charge.

15

OPERATION CHECK

First follow steps 1, 2 and 3 (page 10) in the Operation and Use section. Then expose the sensor to a known gas source such as an unlit butane lighter. The tick should increase when the gas is applied. The tick will decrease when the gas is removed.

If the unit fails to respond, the sensor may need replacing or the unit may need to be sent in for repair (see below).

⚠ CAUTION This instrument shall only be

repaired by a SENSIT factory authorized repair technician.

16

SENSOR REPLACEMENT

1. Turn the unit off

2. Pull off the sensor cap

3. Unplug the old sensor and discard

4. Line up reference tab on side of sensor with

reference mark on sensor circuit board and

plug in sensor

5. Replace sensor cap

6. Turn on unit and perform “Operation Check”

17

NOTES

________________________________________

NOTES

________________________________________

SENSIT TKX Instruction Manual Part # 750-00043

WARRANTY

Your SENSIT®TKX instrument is warranted to be free from defects in materials and workmanship for a period of one year after purchase (excluding sensor and alkaline batteries). If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at our option. This warranty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect, or improper maintenance. A purchase receipt or other proof of date of original purchase may be required before warranty performance will be rendered. This warranty gives you specic legal rights and you may have other rights which vary from state to state.

Instruments out of warranty will be repaired for a service charge. Return the unit postpaid and insured to:

SENSIT Technologies 851 Transport Drive Valparaiso, IN 46383

Phone: (219) 465-2700 888 4 SENSIT (473-6748) Fax: (219) 465-2701

Revision 10-26-2016
